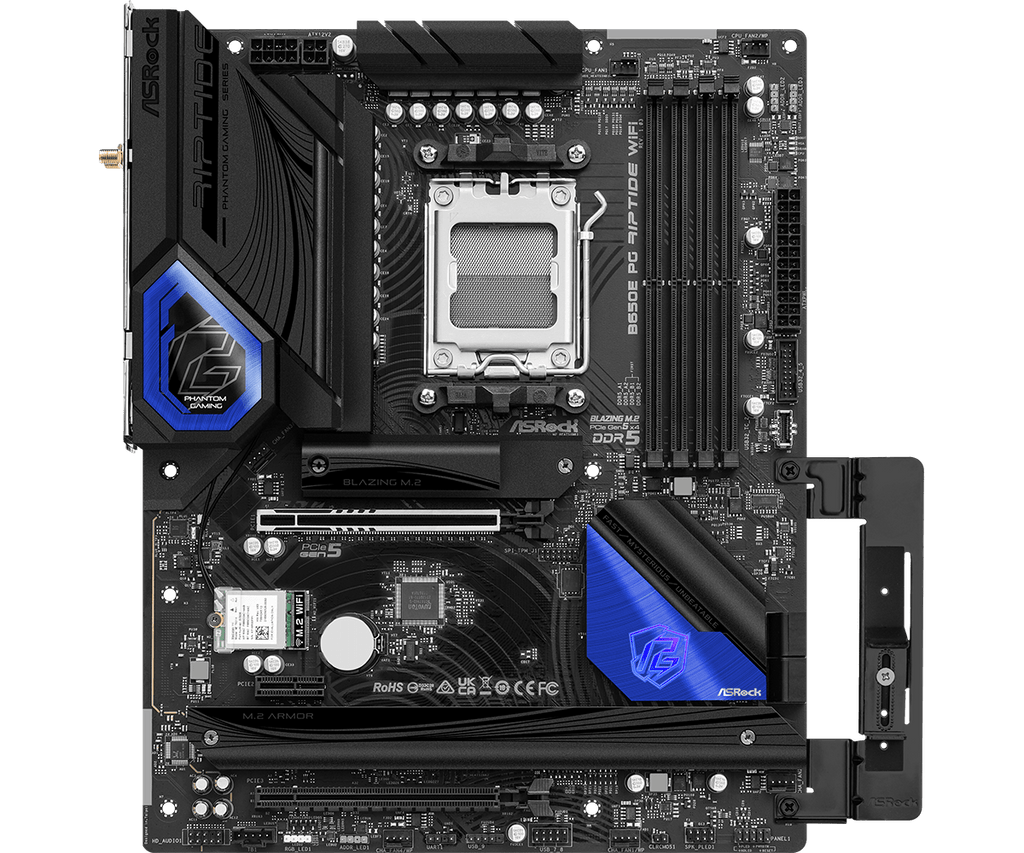

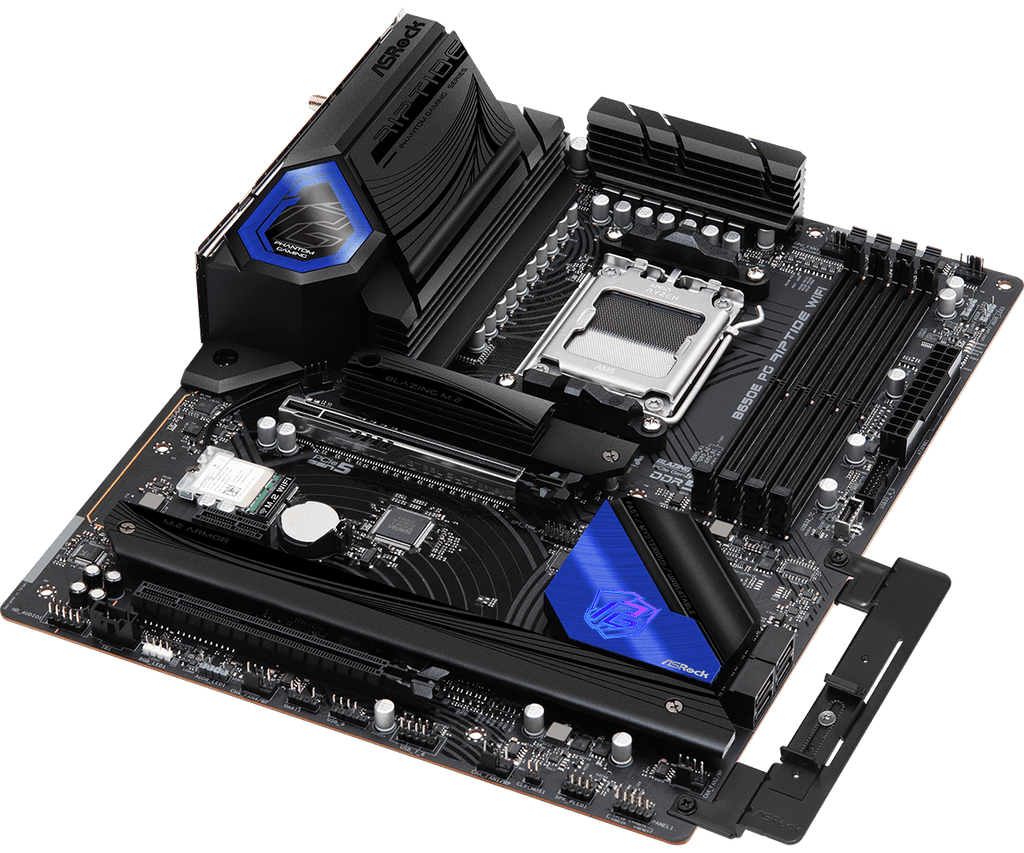

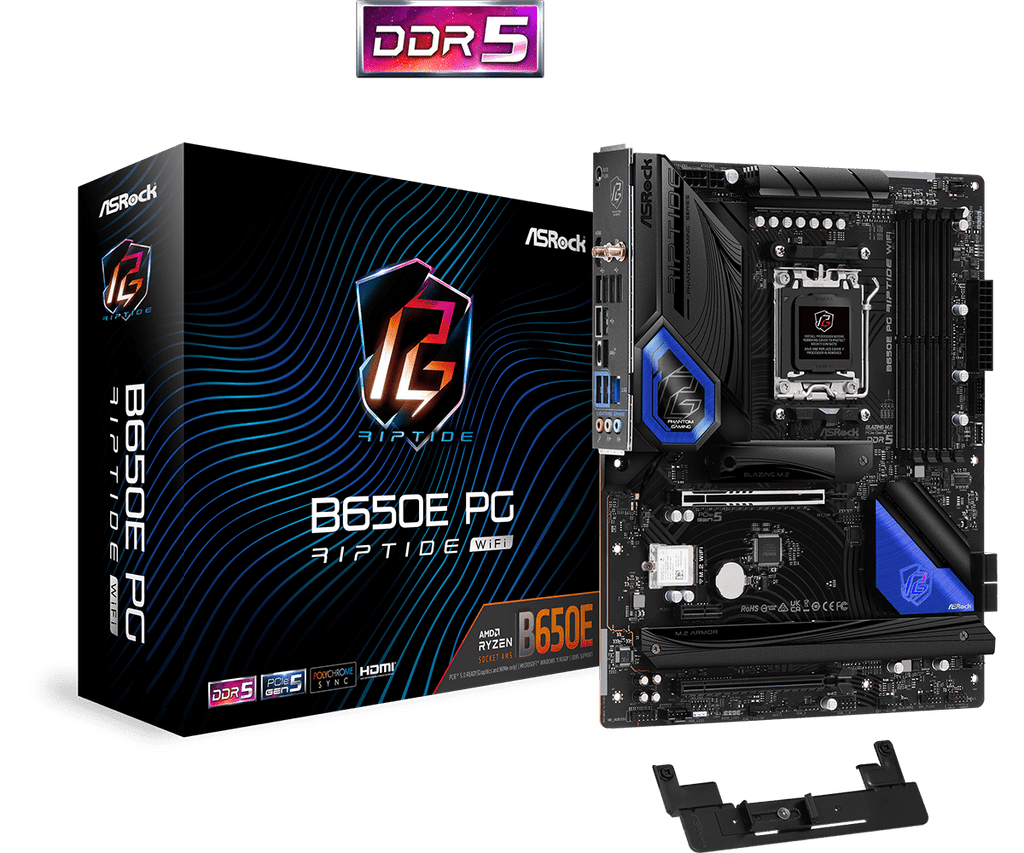

ASRock B650E PG Riptide WiFi DDR5,Socket AM5 ATX Motherboard
ASRock B650E PG Riptide WiFi DDR5,Socket AM5 ATX Motherboard
ASRock B650E PG Riptide WiFi DDR5,Socket AM5 ATX Motherboard
在圖片上滾動放大 點擊圖片以放大
ASRock B650E PG Riptide WiFi DDR5,Socket AM5 ATX Motherboard
ASRock B650E PG Riptide WiFi DDR5,Socket AM5 ATX Motherboard
ASRock B650E PG Riptide WiFi DDR5,Socket AM5 ATX Motherboard

ASRock B650E PG Riptide WiFi DDR5,Socket AM5 ATX Motherboard

節省 $385.00
ASROCK
價格:
$1,665.00 $2,050.00

描述

  • Exclusive features
    Superb Productivity
    - PCIe Gen5 (Graphics, M.2)
    - Dual Channel DDR5
    Rock-Solid Durability
    - Server Grade Low Loss PCB
    - 14+2+1 Phase Power Supply, 60A SPS
    - Flexible Integrated I/O Baffle
    Ultrafast Connectivity
    - Killer 2.5 Gigabit LAN,
    802.11ax Wi-Fi 6E module
    - ASRock Lightning gaming port
    EZ Update
    - BIOS Flashback button
    - ASRock Auto Driver Installer
    EZ Troubleshooter
    - ASRock boot status check
  • processor
    - Supports AMD Socket AM5 Ryzen™ 7000 Series processors
  • chip
    -AMD B650
  • Memory
    - Dual channel DDR5 memory technology
    - 4 x DDR5 slots
    - Supports DDR5 non-ECC, un-buffered memory up to 7600+(OC) *
    - Maximum system memory capacity: 192GB
    - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
  • BIOS
    - 256Mb AMI UEFI Legal BIOS, supports graphical interface
  • built-in display
    Integrated AMD RDNA™ 2 graphics (actual support depends on CPU)
    - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
  • Sound effects
    - 7.1 channel high-fidelity audio (Realtek ALC897 audio codec)
    - Nahimic Audio
  • network
    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - Killer E3100G
    - Supports Killer LAN software
  • wireless network
    - 802.11ax Wi-Fi 6E module
    - Supports IEEE 802.11a/b/g/n/ac/ax
    - Supports dual-band 2x2 and extended 6GHz bands *
    - Dual antennas support 2 (transmit) x 2 (receive) diversity technology
    - Supports Bluetooth 5.2 + High speed class II
    - Supports MU-MIMO

    * Microsoft ® Windows ® 11 will support Wi-Fi 6E (6GHz bandwidth) and enable this feature through Windows ® Update and software updates (in supported countries). Whether or not support is supported will be determined based on the regulations of different countries and regions.
    The 6E function only supports routers compatible with 6GHz.
  • Expansion slot
    CPU:
    - 1 x PCIe 5.0 x16 slot (PCIE1), supports x16 mode *
    - 1 x PCIe 3.0 x16 slot (PCIE3), supports x4 mode *
    Chipset:
    - 1 x PCIe 4.0 x1 slot (PCIE2) *
    - 1 x M.2 slot (Key E), supports 2230 type WiFi/BT PCIe WiFi module *
    - Supports AMD CrossFire™
    - The graphics card PCIe slot has 15μ gold-plated connectors (PCIE1)

    * Supports NVMe SSD boot
  • store
    CPU:
    - 1 x Blazing M.2 slot (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset
    :
    - 1 x M.2 slot (M2_2, Key M), supports M Key 2242/2260/2280 type M.2 PCIe module to SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) mode* - 1
    x Hyper M.2 slot (M2_3, Key M), supports type 2260/ 2280 PCIe Gen4x4 (64 Gb/s) mode *
    - 2 x SATA3 6.0 Gb/s ports
    ASMedia ASM1061:
    - 2 x SATA3 6.0 Gb/s ports

    * Supports NVMe SSD and
    supports ASRock U.2 kit when booting
  • RAID
    - Support RAID 0 and RAID 1 for SATA storage devices
    - Support RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices *

    * Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    - 1 x USB 3.2 Gen2x2 Type-C (front)
    - 1 x USB 3.2 Gen2 Type-C (rear)
    - 1 x USB 3.2 Gen2 Type-A (rear)
    - 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
    - 9 x USB 2.0 (6 Rear, 3 Front)

    * All USB supports ESD electrostatic protection
  • Connector
    - 1 x SPI TPM header
    - 1 x Power LED and speaker header
    - 1 x RGB LED header *
    - 3 x Programmable LED header **
    - 1 x CPU fan connector (4-pin) ***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control) ****
    - 4 x Case/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control) *****
    - 1 x 24-pin ATX power port
    - 1 x 8-pin 12V power port
    - 1 x 4-pin 12V power port
    - 1 x Front Panel Audio port
    - 1 x Thunderbolt™ AIC port (5-pin) (supports ASRock Thunderbolt™ 4 AIC card)
    - 2 x USB 2.0 pin connector (supports 3 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports)
    - 1 x front Type C USB 3.2 Gen2x2 header ( 20Gb/s) (ReDriver)

    * Supports up to 12V/3A, 36W LED light strips

    ** Supports up to 5V/3A, 15W LED light strips

    *** CPU_FAN1 supports fan power up to 1A (12W).

    **** CPU_FAN2/WP supports fan power up to 2A (24W) ).

    ***** CHA_FAN1~4/WP supports fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~4/WP can automatically detect 3-pin or 4-pin fans.
  • Rear panel output/input interface
    - 2 x Antenna Port
    - 1 x HDMI Port
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
    - 2 x USB 3.2 Gen1 ports (USB32_23 are Lightning gaming ports)
    - 6 x USB 2.0 ports
    - 1 x RJ-45 LAN port
    - 1 x BIOS Flashback button
    - HD audio jacks: Line-in/Front speakers/Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - Killer Control Center
    - ASRock Polychrome SYNC *
    UEFI
    - ASRock Full HD UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash

    * These apps can be downloaded from ASRock APP Shop.
  • appendix
    - 1 x User manual
    - 2 x SATA data cable
    - 2 x ASRock WiFi 2.4/5/6 GHz antenna
    - 2 x M.2 slot screws
    - 1 x Graphics card support bracket
  • Specification
    - ATX size: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    - 8-layer PCB design
  • operating system
    - Support Microsoft ® Windows 10 64-bit / 11 64-bit
  • Certification
    - FCC, CE
    - Supports ErP/EuP (requires a power supply that supports ErP/EuP)
