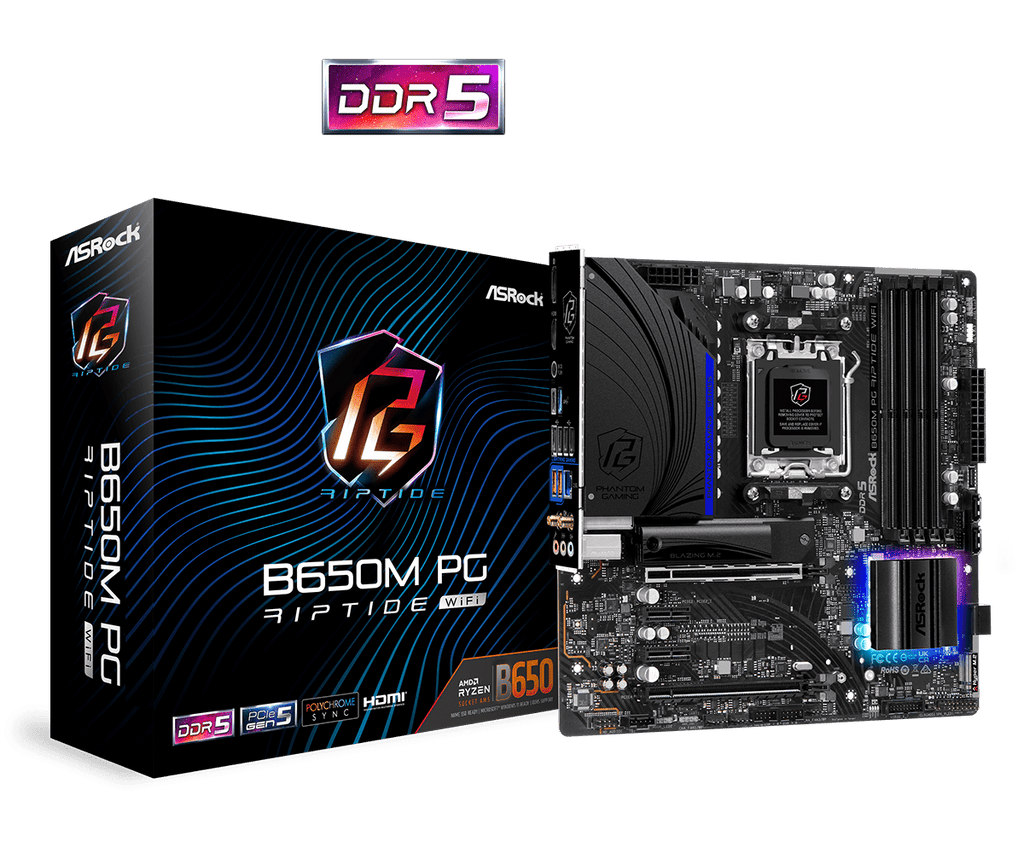

ASRock B650M PG Riptide WiFi DDR5,Socket AM5 mATX Motherboard
ASRock B650M PG Riptide WiFi DDR5,Socket AM5 mATX Motherboard
ASRock B650M PG Riptide WiFi DDR5,Socket AM5 mATX Motherboard
ASRock B650M PG Riptide WiFi DDR5,Socket AM5 mATX Motherboard
在圖片上滾動放大 點擊圖片以放大
ASRock B650M PG Riptide WiFi DDR5,Socket AM5 mATX Motherboard
ASRock B650M PG Riptide WiFi DDR5,Socket AM5 mATX Motherboard
ASRock B650M PG Riptide WiFi DDR5,Socket AM5 mATX Motherboard
ASRock B650M PG Riptide WiFi DDR5,Socket AM5 mATX Motherboard

ASRock B650M PG Riptide WiFi DDR5,Socket AM5 mATX Motherboard

節省 $340.00
ASROCK
價格:
$1,180.00 $1,520.00

描述

    • Exclusive features
      Superb Productivity
      - PCIe Gen5 (M.2)
      - Dual Channel DDR5
      Rock-Solid Durability
      - 12+2+1 Phase Power Supply, 50A Dr.MOS with Enlarged Heatsink Armor
      - Flexible Integrated I/O Shield
      Ultrafast Gaming
      - 2.5 Gigabit LAN , 802.11ax Wi-Fi 6E module
      - ASRock Lightning gaming port
      EZ Update
      - BIOS Flashback button
      - ASRock Auto Driver Installer
      EZ Troubleshooter
      - ASRock boot status check
    • processor
      - Supports AMD Socket AM5 Ryzen™ 7000 Series processors
    • chip
      -AMD B650
    • Memory
      - Dual channel DDR5 memory technology
      - 4 x DDR5 slots
      - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) *
      - Maximum system memory capacity: 192GB *
      - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

      * Due to operating system limitations, the actual usable memory under Windows ® 32-bit operating system will be less than 4GB. This restriction does not apply to 64-bit CPUs under Windows ® 64-bit operating systems.
    • BIOS
      - 256Mb AMI UEFI Legal BIOS, supports graphical interface
    • built-in display
      Integrated AMD RDNA™ 2 graphics (actual support depends on CPU)
      - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
      - 1 x DisplayPort 1.4 with DSC (compressed), supported HDCP 2.3 and max. resolution up to 4K 120Hz
    • Sound effects
      - 7.1 channel high-fidelity audio (Realtek ALC897 audio codec)
      - Nahimic Audio
    • network
      - 2.5 Gigabit network card 10/100/1000/2500 Mb/s
      - Dragon RTL8125BG
      - Supports Phantom Gaming LAN software
      - Fully intelligent automatic bandwidth optimization
      - Visual friendly UI interface
      - Visual network usage statistics table
      - Built-in Bandwidth Optimization for Gaming, Browsing and Streaming Modes
      - User-Defined Priority Control
  • wireless network
    - 802.11ax Wi-Fi 6E module
    - Supports IEEE 802.11a/b/g/n/ac/ax
    - Supports Dual-Band 2x2 with extended 6GHz band * support
    - Dual antennas support 2 (transmit) x 2 (receive) diversity Technology
    - Supports Bluetooth + High speed class II
    - Supports MU-MIMO

    * Microsoft ® Windows ® 11 will support Wi-Fi 6E (6GHz bandwidth) and enable this feature through Windows ® Update and software updates (in supported countries). Whether or not support is supported will be determined based on the regulations of different countries and regions.
    The 6E function only supports routers compatible with 6GHz.
  • Expansion slot
    CPU:
    - 1 x PCIe 4.0 x16 slot (PCIE1), supports x16 mode *
    - 1 x PCIe 4.0 x16 slot (PCIE4), supports x4 mode *
    Chipset:
    - 2 x PCIe 3.0 x1 slots (PCIE2 and PCIE3) *
    - 1 x vertical M.2 slot (Key E), supports 2230 type WiFi/BT PCIe WiFi module

    * Supports NVMe SSD.
    Supports AMD CrossFire™
    graphics card PCIe slot when booting. 15μ gold-plated connector (PCIE1)
  • store
    CPU:
    - 1 x Blazing M.2 slot (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset
    :
    - 1 x Hyper M.2 slot (M2_2, Key M) , supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
    - 4 x SATA3 6.0 Gb/s ports

    * Supports NVMe SSD boot
  • RAID
    - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices *

    * Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    - 1 x USB 3.2 Gen2 Type-C (rear)
    - 1 x USB 3.2 Gen2 Type-A (rear)
    - 1 x USB 3.2 Gen1 Type-C (front)
    - 6 x USB 3.2 Gen1 (4 front, 2 rear)
    - 8 x USB 2.0 (4 front, 4 rear)

    * All USB supports ESD electrostatic protection
  • Connector
    - 1 x SPI TPM header
    - 1 x Power LED and speaker header
    - 1 x RGB LED header *
    - 3 x Programmable LED header **
    - 1 x CPU fan connector (4-pin) ***
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control) ****
    - 3 x Case/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control) *****
    - 1 x 24-pin ATX power port
    - 1 x 8-pin 12V power port
    - 1 x 4-pin 12V power port
    - 1 x Front Panel Audio port
    - 1 x Thunderbolt™ AIC port (5-pin) (supports ASRock Thunderbolt™ 4 AIC card)
    - 2 x USB 2.0 pin connectors (supports 4 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 headers (supports 4 USB 3.2 Gen1 ports)
    - 1 x front Type C USB 3.2 Gen1 header

    * Supports up to 12V/3A, 36W LED light strips
    ** Supports up to 5V/3A, 15W LED light strips
    *** CPU_FAN1 supports fan power up to 1A (12W).
    **** CPU_FAN2/WP supports fan power up to 2A (24W) ).
    ***** CHA_FAN1~3/WP supports fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~3/WP can automatically detect 3-pin or 4-pin fans.
  • Rear panel output/input interface
    - 2 x Antenna Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)
    - 2 x USB 3.2 Gen1 ports (USB32_23 are Lightning gaming ports.)
    - 4 x USB 2.0 ports
    - 1 x RJ-45 LAN port
    - 1 x BIOS Flashback button
    - HD Audio Jack: Line In/Front speaker/microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Phantom Gaming LAN Software
    - ASRock Polychrome SYNC *
    UEFI
    - ASRock Full HD UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash

    * These apps can be downloaded from ASRock APP Shop.
  • appendix
    - 1 x User manual
    - 2 x SATA data cable
    - 2 x ASRock WiFi 2.4/5/6 GHz antenna
    - 2 x M.2 slot screws
    - 1 x M.2 plug-in holder
  • Specification
    - Micro ATX dimensions: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
    - 2-ounce copper circuit board
  • operating system
    - Support Microsoft ® Windows 10 64-bit / 11 64-bit
  • Certification
    - FCC, CE
    - Supports ErP/EuP (requires a power supply that supports ErP/EuP)
    •
