描述
Model

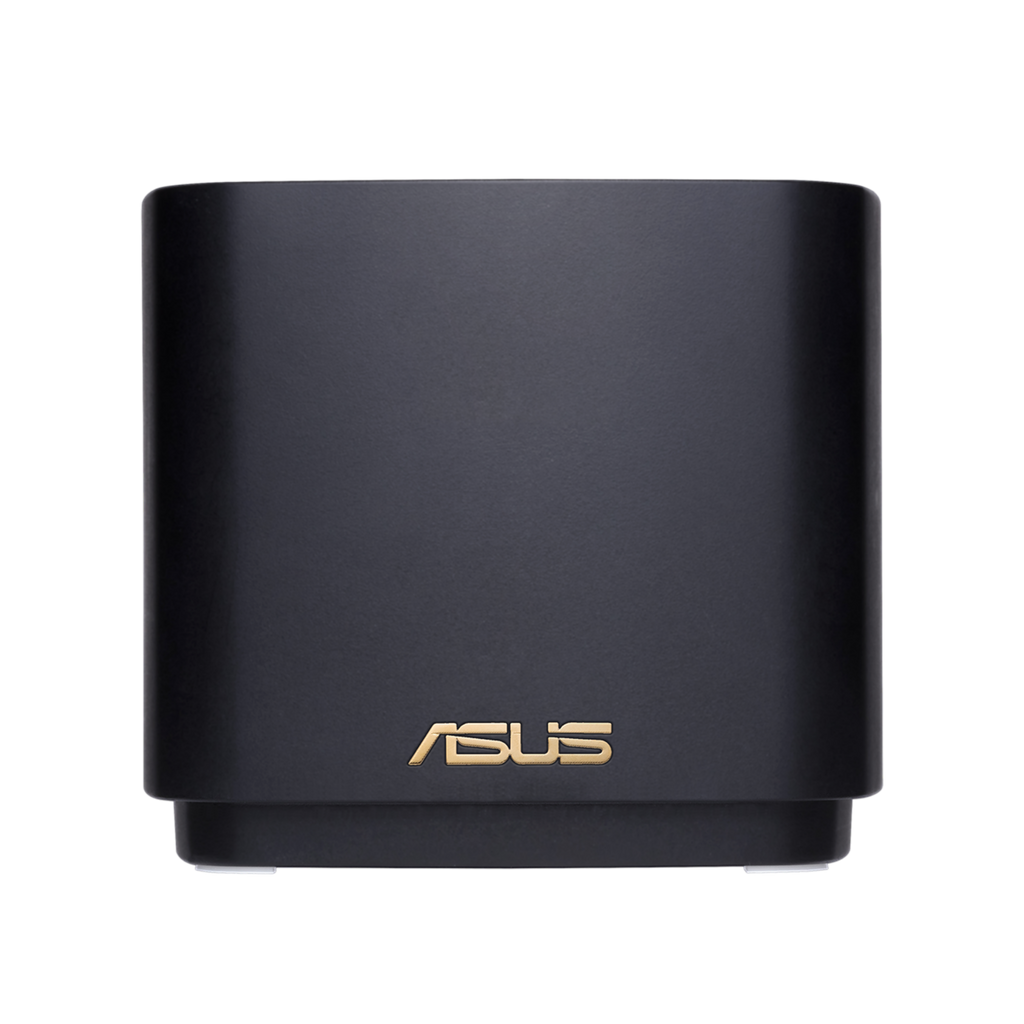

ASUS ZenWiFi XD5
model
XD5 (B-1-PK)
Internet Protocol
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Wireless speed
AX3000 Ultimate AX performance: 2402 Mbps+ 574 Mbps
AX technology
have
Transmission rate
802.11a: up to 54 Mbps
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
WiFi 4 (802.11n): up to 300 Mbps
WiFi 5 (802.11ac): up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps
WiFi 6 (802.11ax) (5GHz): up to 2402 Mbps
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
WiFi 4 (802.11n): up to 300 Mbps
WiFi 5 (802.11ac): up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz): up to 574 Mbps
WiFi 6 (802.11ax) (5GHz): up to 2402 Mbps
Number of antennas
Internal dual-band antenna x 2
processor
1.7GHz quad-core processor
Memory
128 MB Flash
512 MB RAM
512 MB RAM
Boosts speed
MIMO technology
Wireless band
2.4GHz/5GHz
network port
RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1
Button
WPS Button, Reset Button
LED Indicator
Power x 1
Power Supply
AC Input: 110V~240V(50~60Hz)
DC Output: 12 V with max. 1.5 A current
DC Output: 12 V with max. 1.5 A current
Package content
ZenWiFi XD5
RJ45 Ethernet cable
Power adapter
Quick start guide
Warranty Card
Screw Pack
RJ45 Ethernet cable
Power adapter
Quick start guide
Warranty Card
Screw Pack
Product Weight (g)
307g
