Product name (model name) | AG275UXM |
Screen size (diagonal) | 27"W |
Visible size (diagonal) | 68.5cm |
screen aspect ratio | 16:9 |
Panel type | Fast IPS technology |
point distance | 0.1554(H)X0.1554(V)mm |
Screen size | 596.736(H)X335.664(V)mm |
Brightness (typical) |
450cd/m² (SDR)[*] 700cd/m² (HDR)[*] 1200cd/m² (HDR Peak)[*] |
Comparison (Typical/Minimum) | 1000:1/800:1 |
Dynamic contrast (typ.) | 80000000:1 |
Response time (typical) | 1msGtG[*] |
Viewing angle (horizontal/vertical) (typ.) | 178°/178°(CR>10) |
Scan frequency |
Horizontal: 30k-370kHz Vertical: 48-165Hz |
Maximum resolution | 3840x2160@165Hz[*] |
Display color | 1.07 billion[*] |
Color gamut (typical) |
100% sRGB coverage (based on CIE 1931) 98% DCI-P3 coverage (based on CIE 1976) [*] |
Factory color calibration (average) | ΔE<2 (sRGB)[*] |
HDCP Capability | have |

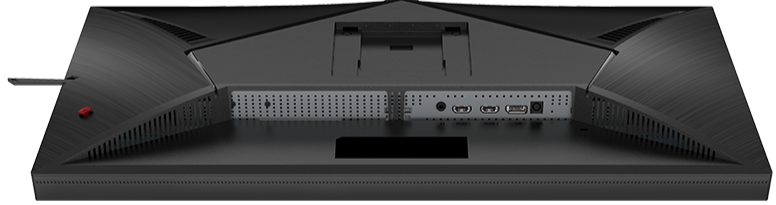

interface | HDMI2.1(HDR)×2, DP1.4(HDR), audio output |
Plug and Play | VESA DDC2B/CI |
trumpet | none |
Rated power | 19.5Vdc, 6.93A |
Power consumption |
Normal working: 47W (typical value); Standby: ≤0.5W |
User Control | Signal source switch/up, crosshair/down, game mode/decrease/left, gaming atmosphere light/increase/right, power switch/menu/select |
OSD language | English, German, French, Italian, Spanish, Swedish, Polish, Czech, Russian, Portuguese, Korean, Traditional Chinese, Simplified Chinese, Japanese, Finnish, Dutch, Turkish, Ukrainian |
Certification | CCC, CEL, CH RoHS, Win11, CE, FCC, TÜV Rheinland Flicker Free |
Shell color | Black/Gray |
Wall hanging | VESA 100mm×100mm |
Quick release bracket | support |
Bracket | Tilt: -5°~23° |

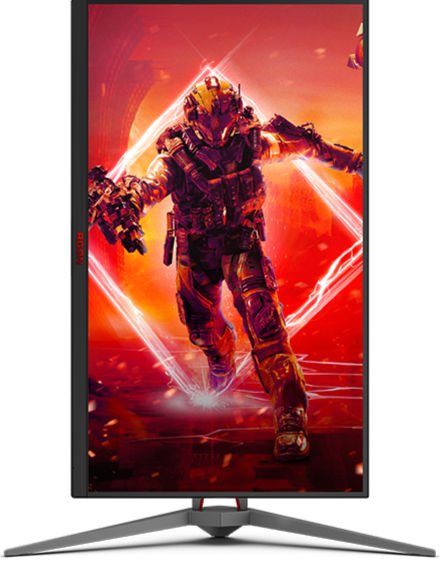

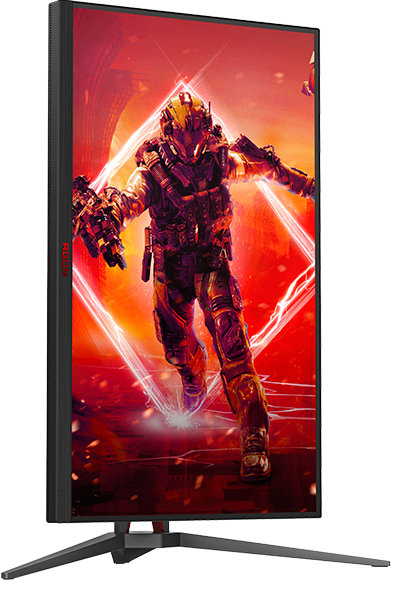

Vertical rotation: -90°~90° | |
Height adjustment: 150mm | |
Rotation left and right: -20°~20° | |
Monitor (including stand/base) | 613.4(W)x(422.8~561.1)(H)x234.5(D)mm |
Monitor (without stand/base) | 613.4(W)x365.8(H)x58.8(D)mm |
Packing box | 840(W)x445(H)x161(D)mm |
Net weight (including bracket/base) | 6.77kg |
Net weight (excluding bracket/base) | 5.29kg |
Gross weight (including packaging) | 10.12kg |
Data description |
[*]: SDR brightness specifications are typical value data from AOC Laboratory. HDR is turned off in the operating system, and the brightness/contrast is measured at the maximum value under the factory default settings of the monitor. The values will vary slightly due to different test environments or individual products. Please refer to the actual product. [*]: HDR brightness specifications are typical value data from AOC Laboratory. HDR is turned on in the operating system, measured under the factory default settings of the monitor, and the brightness of the 100% HDR white screen is stable. The values will vary slightly due to different test environments or individual products. Please refer to the actual product. [*]: HDR peak brightness is the typical value data of the 10% HDR white screen small window test under the monitor's factory default settings, from AOC Labs. Values may vary slightly due to different testing environments or individual products, please refer to the actual product. [*]: GtG response time is typical value data, from AOC laboratory, measured with Overdrive set to "Strong". Values may vary slightly due to different testing environments or individual products, please refer to the actual product. [*]: Color accuracy ΔE<2 is the average data, from AOC laboratory, measured in sRGB mode. Values may vary slightly due to different testing environments or individual products, please refer to the actual product. [*]: Color gamut specifications are typical value data, obtained from AOC laboratory, measured at the factory default settings, with the comparison set to the maximum. Color gamut values will vary slightly depending on the testing environment or individual products. If there is any discrepancy with the exclusive factory color calibration report that comes with each product, please refer to the actual product. [*]: 100% sRGB color gamut coverage is based on CIE 1931; 98% DCI-P3 color gamut coverage is based on CIE 1976 [*]: HDMI2.1 signal input, in order to achieve UHD 144Hz/160Hz/165Hz, a display card that supports DSC must be used. Please consult your graphics card manufacturer for DSC support [*]: HDMI2.1, DP1.4 signal input, UHD 165Hz supports 1.07 billion display colors. NVIDIA® graphics cards recommend using the DP interface, while AMD® graphics cards can use HDMI or DP interfaces. Due to different graphics card strategies , some options will be hidden. Please refer to the actual graphics card support status. [*]: According to the VESA standard, different operating systems and display cards may have certain errors (+/-1Hz) when calculating the refresh rate (field frequency). Please refer to the actual product for the specific refresh rate (field frequency) ). [*]: Due to the light diffusion effect of the LCD panel and the backlight area dimming principle, there will be a slight halo or instantaneous brightness turn-on phenomenon at the edge of some specific picture windows or moving objects. This is the physical characteristic of the Mini LED backlight LCD panel. It is not a malfunction, please feel free to use it. You can choose to turn off "Local Dimming" through the OSD menu to reduce or eliminate this phenomenon. [*]: Unless otherwise stated, the data involved in this page comes from AOC laboratory. In actual use, the values will vary slightly due to different testing environments or individual products. Please refer to the actual product. [*]: This product was designed with full consideration of its impact on the environment and is packaged in 100% recyclable paper materials. The outer box/corrugated buffer packaging is made of corrugated cardboard and original cardboard materials, excluding foam cushioning pads and plastic bags |
packing list |
LCD Monitor Simple Instructions Warranty Certificate Monitor Base/Stand Power Cord Power Adapter DP Signal Cable HDMI Signal Cable Factory Color Calibration Report |
Description
Features
1) Adaptive-Sync synchronization technology (supports FreeSync™), saying goodbye to screen tearing, stuttering and other phenomena during high-definition rendering, providing a smooth gaming experience and giving players an important competitive advantage
2) VESA DisplayHDR™1000 certification, full display direct glass-based Mini LED backlight technology, 4-level light control mode, 4608 LED particles, 1152 partitions independent backlight control, delivering deeper blacks and brighter whites, presenting a similar Visual effects in real environments
3) Fast IPS technology 4K UHD wide viewing angle colorful hard screen, four times the resolution of Full HD, 80 million:1 high dynamic contrast ratio, the picture is clearer and sharper, bringing a realistic visual experience
4) 165Hz high update rate, fast LCD 1ms fast grayscale response time [*], whether playing games, watching movies or enjoying online content, it brings clear and smooth high-definition picture quality
5) 1.07 billion display colors[*], QD quantum dot technology, 100% sRGB[*], 98% DCI-P3 color gamut coverage[*], DCI-P3 color gamut adjustment, color accuracy ΔE<2 (average)[ *], the color presentation is more accurate and rich
6) DP1.4, HDMI2.1 and other high-definition interfaces and audio output interfaces provide a series of convenient connectivity and high compatibility, making it easy to connect to entertainment equipment and provide high-definition entertainment experience
7) PBP dual-screen display/PIP picture-in-picture function, display two signals on the screen at the same time, watch movies, play games, and share entertainment
8) Low blue light setting, easily switch to low blue light situation mode and reduce the impact of harmful blue light

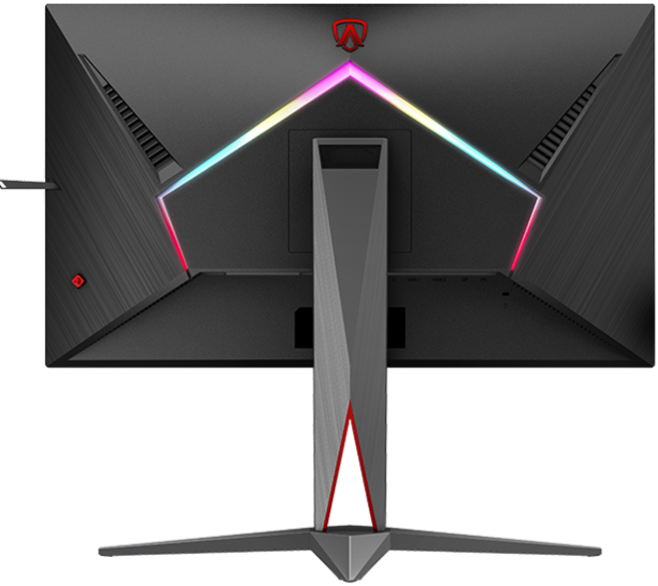

9) Aigong Esports Light FX music rhythm colorful atmosphere light, 14 kinds of light shows and over 100,000 colors can be set at will
10) Aigong E-Sports Menu, G-Menu adjustment software, parameter adjustment, whatever you want
11) Low input delay, one step ahead, discover targets in time and seize the opportunity
12) One-click settings for FPS/RTS and other game modes to quickly enter the game state
13) Dynamic crosshair and sniper scope to assist in shooting and aiming in FPS games
14) Dark field control, discover enemies in the dark first and respond quickly
15) Shadow enhancement, enhanced detail presentation, and enhanced viewing experience
16) Game tone adjustment, optimizing gray scale display and picture color saturation
17) Frame counter, showing the real-time update rate of the screen
18) Multi-screen ratio adjustment to meet players' battle situation requirements
19) 1mm micro frame, 5.7mm narrow screen black border
20) Retractable headphone hook, quick-release bracket, portable handle, supports four-way adjustment (up and down lift/left and right rotation/front and back tilt/vertical rotation), providing users with a comfortable entertainment experience
21) Environmentally friendly paper packaging materials to reduce environmental pollution
