[最新產品] Cisco Catalyst 1200 16-Port Gigabit Ethernet + 2xSFP (120W PoE+) Smart Managed Switch (C1200-16P-2G-UK/NE-1216P2G)
[最新產品] Cisco Catalyst 1200 16-Port Gigabit Ethernet + 2xSFP (120W PoE+) Smart Managed Switch (C1200-16P-2G-UK/NE-1216P2G)
[最新產品] Cisco Catalyst 1200 16-Port Gigabit Ethernet + 2xSFP (120W PoE+) Smart Managed Switch (C1200-16P-2G-UK/NE-1216P2G)
Roll over image to zoom in Click on image to zoom
[最新產品] Cisco Catalyst 1200 16-Port Gigabit Ethernet + 2xSFP (120W PoE+) Smart Managed Switch (C1200-16P-2G-UK/NE-1216P2G)
[最新產品] Cisco Catalyst 1200 16-Port Gigabit Ethernet + 2xSFP (120W PoE+) Smart Managed Switch (C1200-16P-2G-UK/NE-1216P2G)
[最新產品] Cisco Catalyst 1200 16-Port Gigabit Ethernet + 2xSFP (120W PoE+) Smart Managed Switch (C1200-16P-2G-UK/NE-1216P2G)

[最新產品] Cisco Catalyst 1200 16-Port Gigabit Ethernet + 2xSFP (120W PoE+) Smart Managed Switch (C1200-16P-2G-UK/NE-1216P2G)

CISCO
Price:
HK$3,190.00 HK$3,299.00

Description

Cisco Catalyst 1200 Series Smart Switches

From connections between devices to cloud applications, networks play an increasingly important role in enterprises. Reliability, security and economy are the primary considerations for many enterprises when purchasing network products. Coupled with the complexity of network management and operations, enterprises need to invest time and resources.


Figure 1: Cisco Business Dashboard and Cisco Business mobile app

Cisco Catalyst 1200 Series Switches
The Cisco Catalyst 1200 Series is the next generation of affordable smart switches that combines powerful performance and reliability to provide a complete set of features needed for SMB networks. The switch uses customized Linux OS software to provide flexible management options, comprehensive security functions and Layer 3 static routing functions. Its functions are far beyond those of unmanaged or consumer-grade switches, while the cost is much lower than that of fully managed switches. (managed) switch. If you need a reliable solution to share network resources and connect computers, Internet phones, and wireless access points (APs), the Catalyst 1200 Series Smart Switches are an ideal and affordable solution.

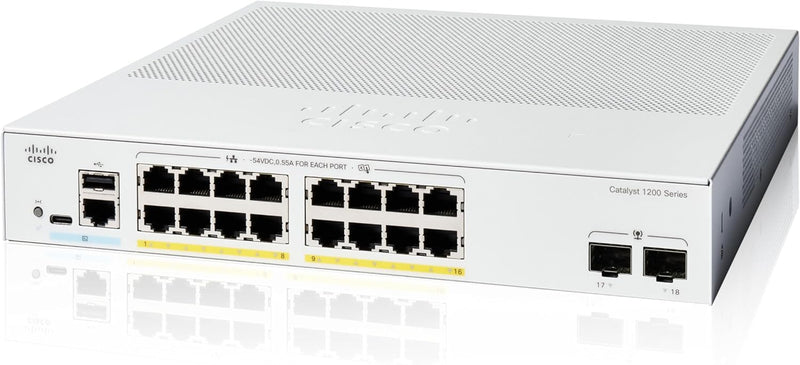

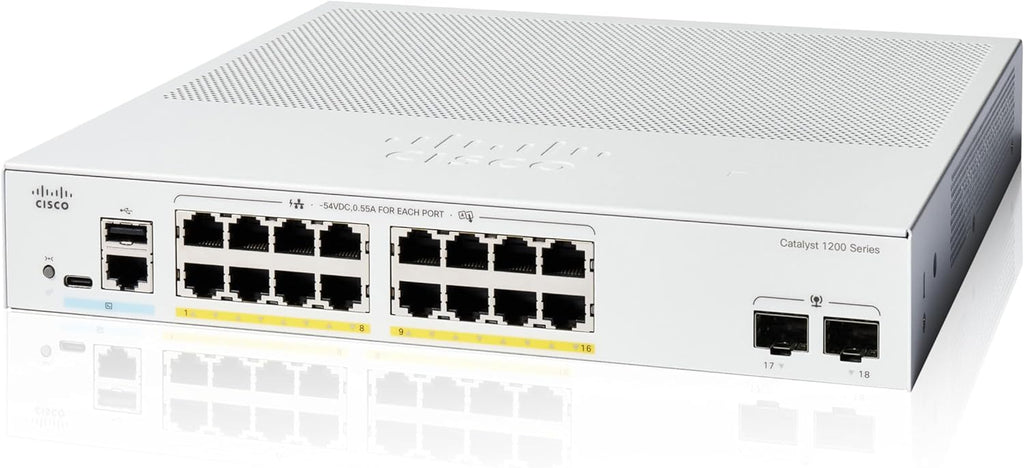

Figure 2: Catalyst 1200 Series Switches

C1200-16P-2G-UK Functions and Features
  • 16 x 1G PoE+ network interface, supporting 120W total output power
  • 2 x 1G SFP Uplinks
  • Fanless design, built-in power supply
  • Supports VALN, Spanning Tree Protocol (STP), Quality of Service (QoS), IPv4 / IPv6 static routing
  • Network management capabilities: On-device UI, Cisco Business Dashboard, mobile app
  • Network security features: IEEE 802.1X interface security, Denial-of-Service (DoS) attack protection, access control lists (ACLs)
  • Supports Cisco Business Dashboard embedded detection (more information: https://www.cisco.com/go/cbd )
  • Compliant with IEEE 802.3az energy saving standards
  • Dimensions: 268 x 297 x 44mm
  • Weight: 2.38kg
  • Limited lifetime warranty (the product will still be returned to the factory for repair services before it is discontinued)
  • For rack installation, an additional 19-inch Rack Mount Kit (RCKMNT-CMPCT-1K=) is required.
Complete Data Sheet
Commercial applications
Whether you need basic high-speed computer and server connectivity or a comprehensive voice, data, and wireless technology solution, Cisco Catalyst 1200 Series Switches can meet your business needs. Possible deployment scenarios include:
  • High-speed desktop connectivity: C1200 series switches can quickly and securely connect office printers, servers, and other network devices to employees' computers. Efficient and reliable connectivity accelerates file transmission and data processing, improving network uptime and employee productivity.

  • Flexible wireless connectivity: C1200 series switches work with third-party wireless solutions to extend your network coverage. With security features, Power over Ethernet Plus (PoE+), virtual LANs (VLANs) and QoS, these switches are the perfect foundation for adding enterprise-class wireless solutions to your network. If you choose the PoE+ model, each port of the switch can provide up to 30W of power, which means you can easily deploy wireless access points by simply connecting network cables, maximizing employee productivity.

  • Unified Communications: C1200 Series switches provide QoS capabilities that prioritize "latency-sensitive" traffic, allowing you to consolidate all communications solutions—such as IP telephony and video surveillance—on a single network. Cisco offers a complete portfolio of IP telephony and other unified communications products for small businesses, and the C1200 Series switches have been rigorously tested to ensure easy integration and full compatibility with other vendors' products.
Features and Benefits
Cisco Catalyst 1200 Series Smart Switches provide all the features you need to create a basic enterprise-class network at an affordable price. These features include:
  • Easy to configure and manage: The C1200 Series switches are designed to be easy to deploy and use by small businesses or the partners that serve them:
    • Cisco Business Dashboard is designed for managing C1200 Series switches, allowing you to easily customize the interface and widgets to proactively manage your network. The switch supports embedded probes and direct management, eliminating the need to set up separate hardware or virtual machines on-site. Built-in wizards simplify the setup and addition of new devices. For more information, please visit  https://www.cisco.com/go/cbd .

    • Cisco Networking Plug and Play solutions provide simple, secure, unified and integrated products to simplify the introduction of new equipment or updates to existing network configurations. The solution provides a unified approach to a near-zero-touch deployment experience for Cisco routers, switches, and wireless devices.

    • A redesigned, modern web user interface reduces the time required to deploy, troubleshoot, and manage your network. The Configuration Wizard simplifies the most common configuration tasks and provides all users with the ultimate tool for setting up and managing their network.

    • The switch supports an external Bluetooth adapter. As long as it is connected to the USB port of the switch, laptops and tablets can be connected via Bluetooth-based RF, and then stored via Bluetooth via Telnet or Secure Shell (SSH) client. Get the Command-Line Interface (CLI) of the switch. The GUI can also be accessed via Bluetooth via a browser.

  • Reliability and performance: Cisco Catalyst 1200 Series switches are tested to deliver the high performance and reliability you expect from Cisco switches and help you avoid costly downtime. Switches speed up file transfer times, improve slow networks, keep your important business applications available, and help your employees respond faster to customers and each other. With a network based on Cisco Catalyst 1200 Series switches, you can meet all your business communications and connectivity needs and reduce the total cost of ownership of your technology infrastructure. C1200 Series switches also support 10 Gigabit Ethernet uplinks on select models, so you can build a future-proof, high-performance network that allows your business to thrive.

  • Layer 3 static routing: This feature allows you to divide your network into separate workgroups and communicate across VLANs without degrading application performance. Therefore, you can manage internal routing while the router focuses on external traffic and security, helping your network run more efficiently.

  • Power over Ethernet (PoE): PoE+ functionality is available on select C1200 series switch models. Deploy IP telephony, wireless, video surveillance and other solutions with just a single network cable, eliminating the need for separate power supplies or wires. PoE+ delivers up to 30W of power per port and is ideal for deploying 802.11ac wireless access points, Pan-Tilt-Zoom (PTZ) IP cameras, video phones and thin client devices, providing greater flexibility and investment protection.

  • Network Security: C1200 Series switches provide security and network management features to maintain a high level of security for your business, keeping unauthorized users off the network and protecting your business data. These switches include integrated network security to reduce the risk of security breaches, IEEE 802.1X port security to control network access, denial of service (DoS) attack protection to increase network uptime during an attack, and extensive access control Lists (ACLs) are used to protect sensitive parts of the network from unauthorized users and to prevent network attacks.

  • Flexible and compact design: The sleek and compact design provides additional flexibility for easy deployment, including installation in external wiring closets such as retail stores, open offices and classrooms, without disturbing the environment.

  • Energy-efficient solution: C1200 series switches are designed to be energy-efficient and environmentally friendly without compromising performance. They help conserve energy by optimizing electricity usage, which helps protect the environment and lowers your energy costs. Power saving features include:
    • Supports the Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption by monitoring traffic on active links and putting the links to sleep during quiet periods.
    • Automatically power off port when link is down
    • Most models feature a fanless design that reduces power consumption, increases reliability and provides quieter operation

  • Peace of mind and investment protection: C1200 Series switches deliver the reliable performance, investment protection and investment protection you've come to expect from Cisco switches. Limited lifetime maintenance and factory replacement services keep your business running smoothly.
