Description
Acer U320 Case
| M/B Form Factor: | MICRO ATX/ITX | PSU Form Factor: Micro PSU OR ATX 12V, PS/2 | |
| I/O Ports: | USB3.0*2+USB1.1*1 &TYPE C* 1+ AUDIO | ||

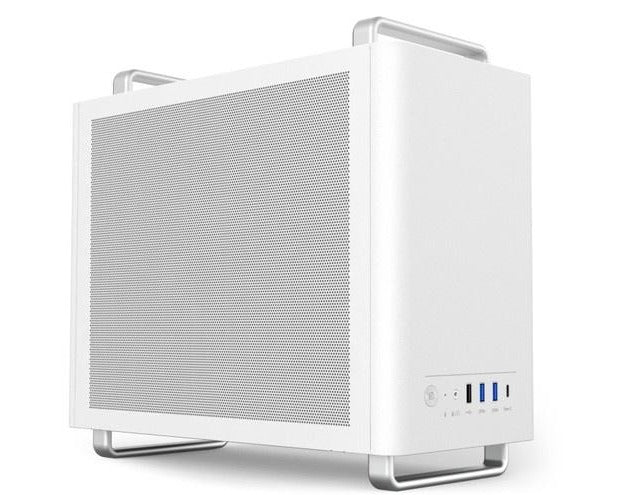

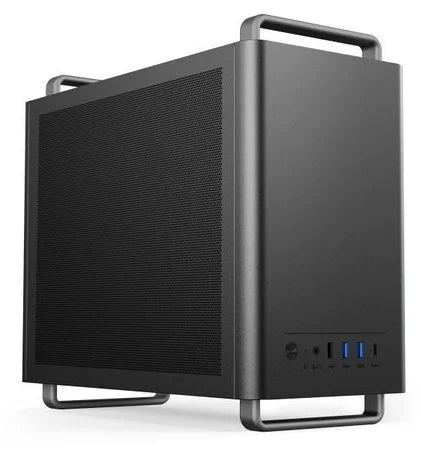

| Side panel & Front panel : | metal mesh side panel | ||
| Hardware capability: |
HDD*1+SSD*2 or SSD*3 Bottom installl 3*90mm or 2*120mm fan then support 1SSD; Bottom install 2*90mm fan then support 2SSD; |
||
| Supports VGA Cards up to: | 310mm | ||
| Maximum height of CPU: | 135mm | ||
| Fan positions: |
Top:2*80mmm or 2*90mm fans; Rear: 1*80mm fan or 1*90mm; Bottom:90mm*3 or 120mm*2 fans; Left side panel:1*240mm liquid cooler(Limited lock micro power supply) |
||
| Chassis dimension: | L350*W165*H310MM | ||
| Carton size: | D335*W200*H400MM | ||
| Material of Chassis: | A grade SPCC 0.8mm Thickness | ||
| Chassis type: | Mini Tower |
| Interface card expansion slot: | 4 |
| Interior paint: (black/white) | ✓ |
| Hidden cable management hole design: |  |
| Side panel type: | Breathable side panels |
| Chassis color style: | black/white |
| weight: | |
| Dimensions (width x depth x height): | 165x365x313mm |
| I/O: | |
|---|---|
| USB 3.0: | 2 |
| USB 2.0: | 1 |
| USB 2.0 to Type-C: | 1 |
| Audio (front): | HD Audio |
| Disk expansion slot: | |
| 2.5" Hidden Type: | 2 |
| 2.5" / 3.5" common: | 1 |
| Fan configuration: | |
|---|---|
| Top of case: | 2 pcs 80 mm / 90 mm (optional) |
| Front of case: | 1 piece 80 mm (optional) |
| Bottom of the casing: | 3 pcs 90 mm / 2 pcs 120 mm (optional) * Shared with disk device |
| Inside the casing: | 1 x 240 mm water cooling unit (optional) *Can only be used with micro ATX power supply |
| Device compatibility: | |
| motherboard: | Mini-ITX, Micro-ATX |
| Maximum length of supported graphics card: | * Need to match the actual environment |
| Maximum height of CPU cooler supported: | * Need to match the actual environment |
| Supported power supply types: | *ATX / micro ATX power supply |
