Description
Model | NE1000G M ATX3.0 |
Type | ATX 12V 3.0 |
Dimension | 140(L)*150(W)*86(H) |
Modular | Full-Modular |
Warranty | 10 years |
Input Voltage | 100V-240V |
Input Current | 12A-6A |
Input Frequency Range | 60Hz-50Hz |
PFC | Active PFC |
Power Good Signal | 100-150ms |
Protection | OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO |
Output Capacity | 1000W |
Operation Temperature | 0~40°C |
Regulatory | cTUVus/TUV/CB/RCM/CE/ FCC/BIS/BSMI/KC/UKCA/ICES |

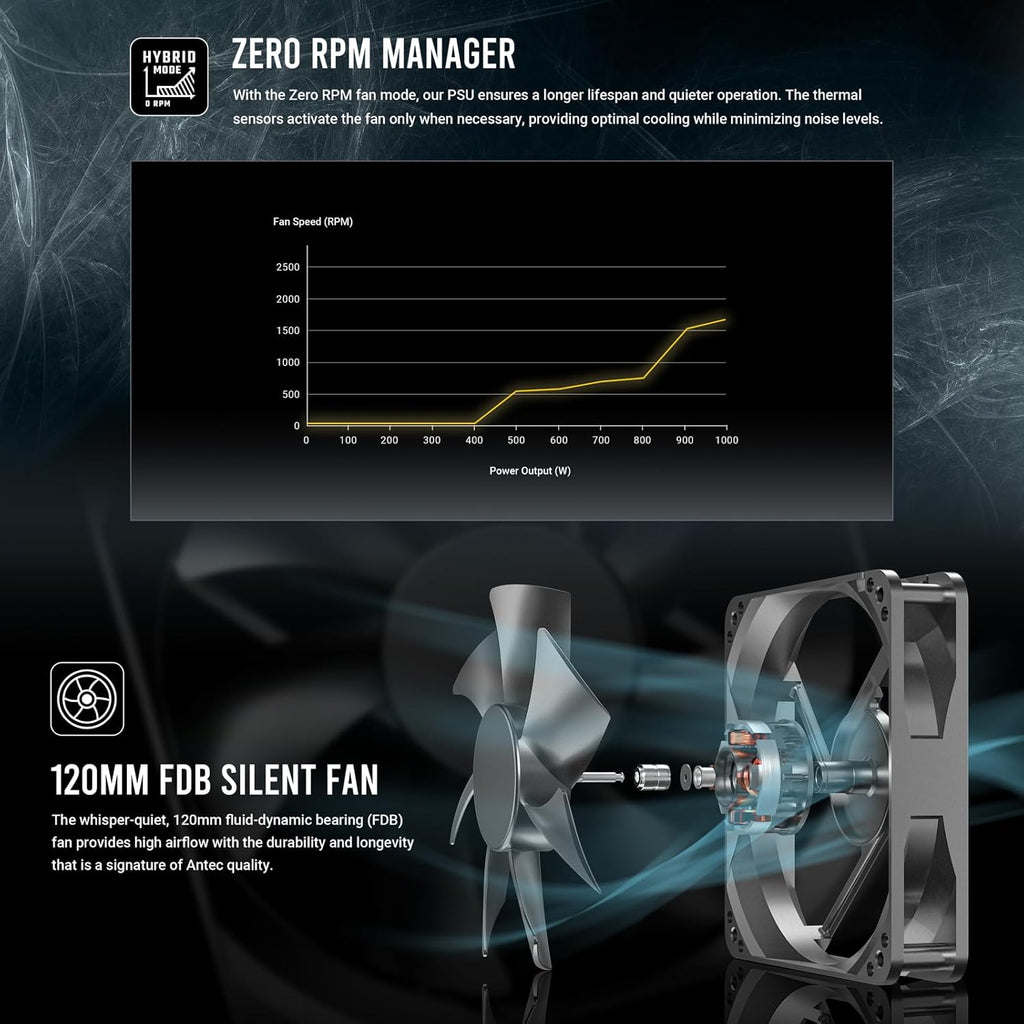

Fan | 120mm FDB Silent Fan |
Certifications | 80 Plus Gold |

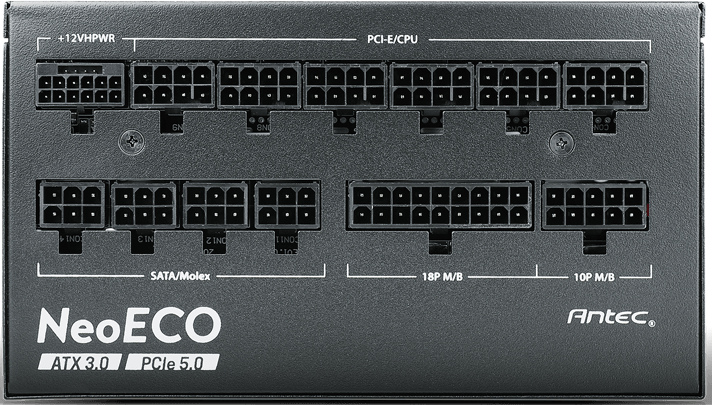

Connector | 1 x 24(20+4)pin MB |

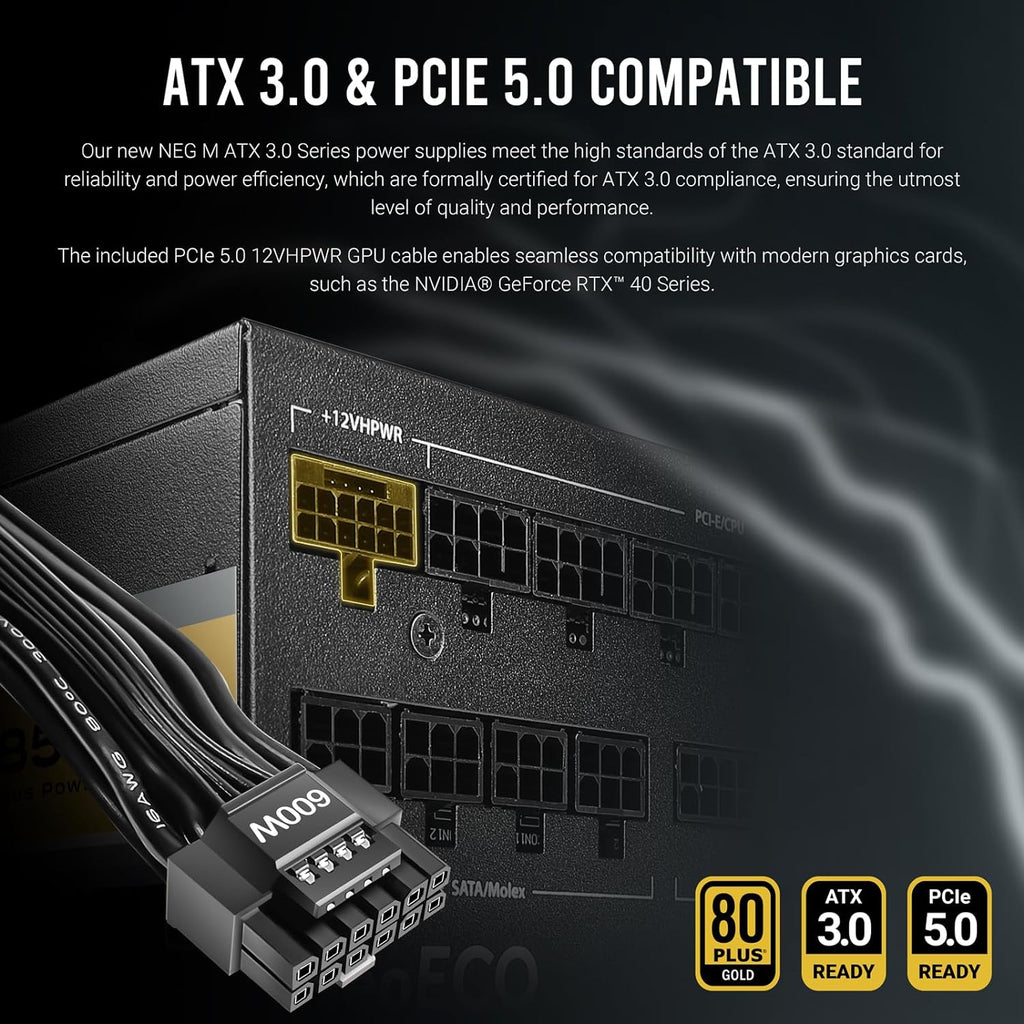

1 x 16(12+4)pin PCIE 5.0 12VHPWR | |
2 x 8(4+4)pin CPU | |
4 x 8(6+2) Pin PCI-E | |
12 x SATA | |
4 x Molex | |
Net Weight | 1.64 kgs |
Gross Weight | 4.66 kgs |
