| Presentation |

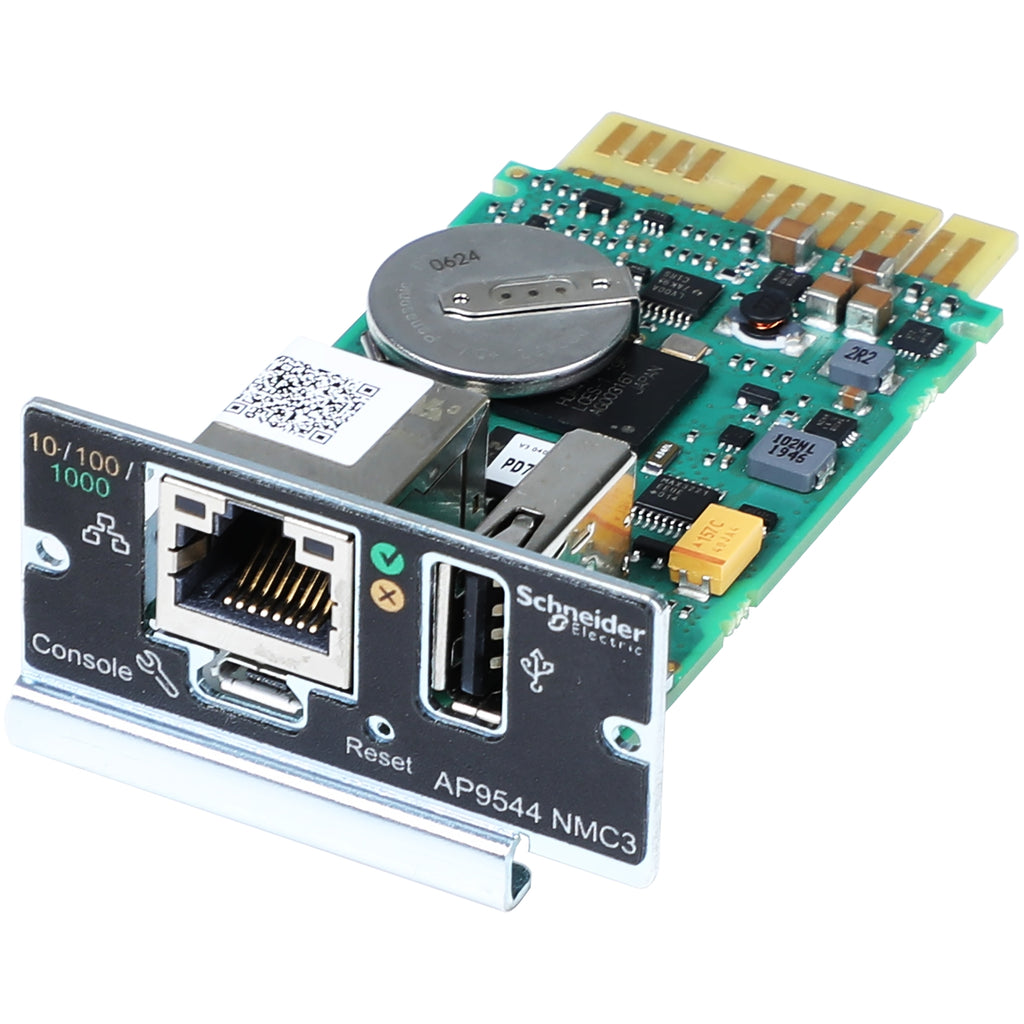

The Network Management Card for Easy UPS On-Line (AP9544) enables secure remote monitoring and control of one Easy UPS Online through the easy-to-use web browser interface, via EcoStruxure™ IT Software or another SNMP-enabled system. A 12-month Secure NMC Subscription, that allows the customer to access future firmware updates, is included with the purchase of the card*. Upon expiration of the provided Secure NMC Subscription the purchase of a new Secure NMC Subscription is required to access future firmware updates. *The NMC Firmware must be V2.5 or later. Find the latest Firmware in the Software and Firmware section below. |
|---|---|
| Lead time | Usually in Stock |
| Product or component type | Network interface |
|---|---|
| provided equipment |
User manual USB cable |
| height | 4.4cm |
|---|---|
| Width | 5.2cm |
| Depth | 8.0cm |
| Net weight | 0.05kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Standards | CISPR 32 EN 55024 EN 61000-4-2 EN 61000-4-3 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-8 EN 61000-6-2 EN/IEC 62040-2 |
|---|---|
| product certifications | FCC Class A ICES-003 VCCI class A AS/NZS |
| Ambient air temperature for operation | -5…45 °C |
|---|---|
| Operating altitude | 0...10000ft |
| Relative humidity | 0…95% |
| Ambient air temperature for storage | -15…65 °C |
| Storage altitude | 0.00…15240.00 m |
| Storage Relative Humidity | 0…95% |
| Communication network type | 10/100/1000BASE-T |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.600cm |
| Package 1 Width | 16.500 cm |
| Package 1 Length | 23.000cm |
| Package 1 Weight | 302.000g |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 44 |
| Package 2 Height | 68.000cm |
| Package 2 Width | 60.000cm |
| Package 2 Length | 80.000cm |
| Package 2 Weight | 21.000kg |
| Warranty | 2 years repair or replace |
|---|
