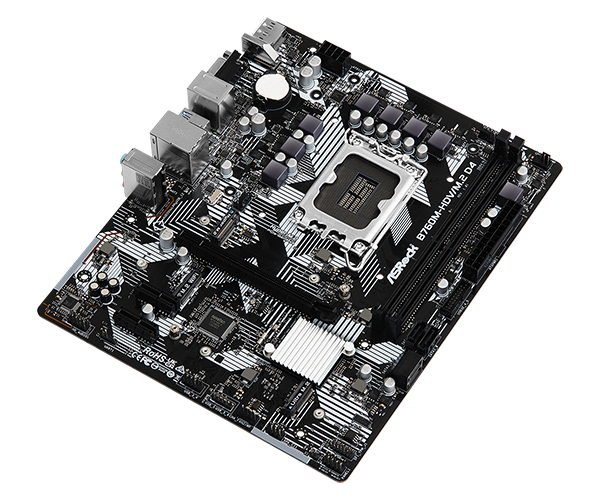

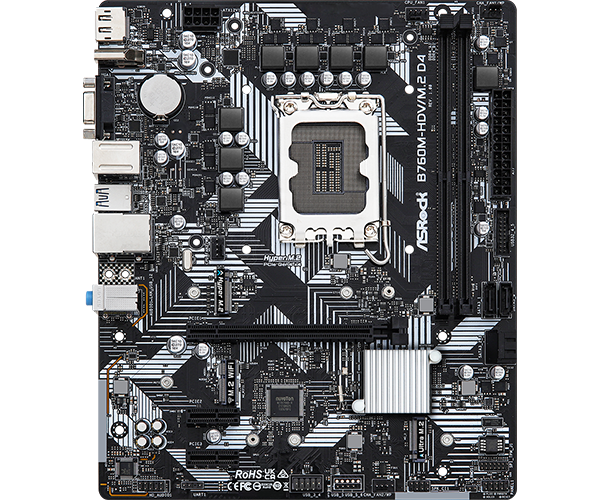

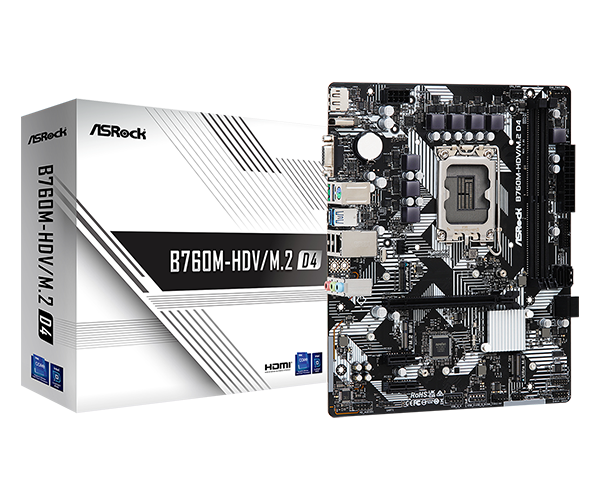

ASRock B760M-HDV/M.2 D4 DDR4, LGA 1700 mATX Motherboard
ASRock B760M-HDV/M.2 D4 DDR4, LGA 1700 mATX Motherboard
ASRock B760M-HDV/M.2 D4 DDR4, LGA 1700 mATX Motherboard
ASRock B760M-HDV/M.2 D4 DDR4, LGA 1700 mATX Motherboard
Roll over image to zoom in Click on image to zoom
ASRock B760M-HDV/M.2 D4 DDR4, LGA 1700 mATX Motherboard
ASRock B760M-HDV/M.2 D4 DDR4, LGA 1700 mATX Motherboard
ASRock B760M-HDV/M.2 D4 DDR4, LGA 1700 mATX Motherboard
ASRock B760M-HDV/M.2 D4 DDR4, LGA 1700 mATX Motherboard

ASRock B760M-HDV/M.2 D4 DDR4, LGA 1700 mATX Motherboard

ASROCK
Price:
HK$680.00 HK$829.00

Description

  • Unique Feature
    Rock-Solid Durability
    - 5+1+1 Power Phase
    EZ Update
    -ASRock Auto Driver Installer
  • CPU
    - Supports 13th Gen & 12th Gen and next gen Intel ® Core™ Processors (LGA1700)
    -Supports Intel® Hybrid Technology
    -Supports Intel® Turbo Boost Max 3.0 Technology
    -Supports Intel® Thermal Velocity Boost (TVB)
    -Supports Intel® Adaptive Boost Technology (ABT)
  • Chipset
    -Intel® B760
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 2 x DDR4 DIMM Slots
    - Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) *
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 64GB *
    -Supports Intel® Extreme Memory Profile (XMP) 2.0

    * 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
    1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    -Intel® Xe Graphics Architecture (Gen 12)
    - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
    - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
    - 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

    * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
  • LAN
    - Gigabit LAN 10/100/1000 Mb/s
    -Realtek 8111H
  • Slots
    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode *
    Chipset:
    - 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) *
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    * Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
    Chipset:
    - 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes *
    - 4 x SATA3 6.0 Gb/s Connectors * *

    * Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks

    * * If M2_2 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
    - 1 x USB 3.2 Gen1 Type-C (Rear)
    - 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
    - 5 x USB 2.0 (2 Rear, 3 Front)
    * All USB ports support ESD Protection
  • Connector
    - 1 x SPI TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (4-pin) *
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control) * *
    - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed ​​Control) * * *
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

    * CPU_FAN1 supports the fan power up to 1A (12W).

    * * CPU_FAN2/WP supports the fan power up to 2A (24W).
    * * * CHA_FAN1~2/WP supports the fan power up to 2A (24W).
    CPU_FAN2/WP and CHA_FAN1~2/WP can auto detect if 3-pin or 4-pin fan is in use.

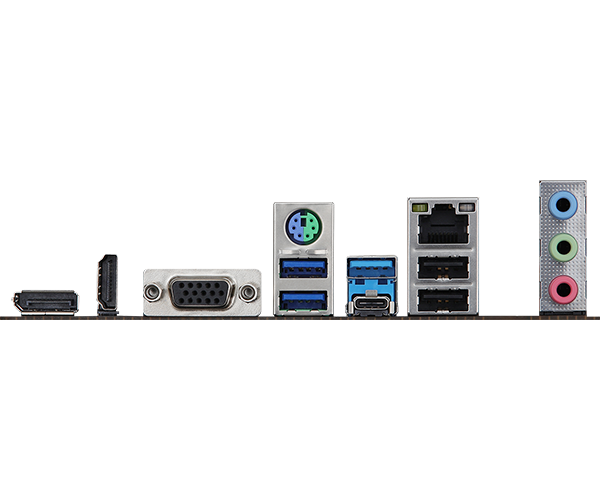

  • Rear Panel I/O
    - 2 x Antenna Mounting Points
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 1 x USB 3.2 Gen1 Type-C Port
    - 3 x USB 3.2 Gen1 Type-A Ports
    - 2 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    -ASRock Auto Driver Installer
    - ASRock Instant Flash
    - ASRock Easy RAID Installer

    * These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual
    - 1 x I/O Shield
    - 2 x SATA Data Cables
    - 3 x Screws for M.2 Sockets
  • Form Factor
    - Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
  • OS
    -Microsoft® Windows® 10 64-bit / 11 64-bit
  • Certifications
    - FCC, CE
    - ErP/EuP ready (ErP/EuP ready power supply is required)
