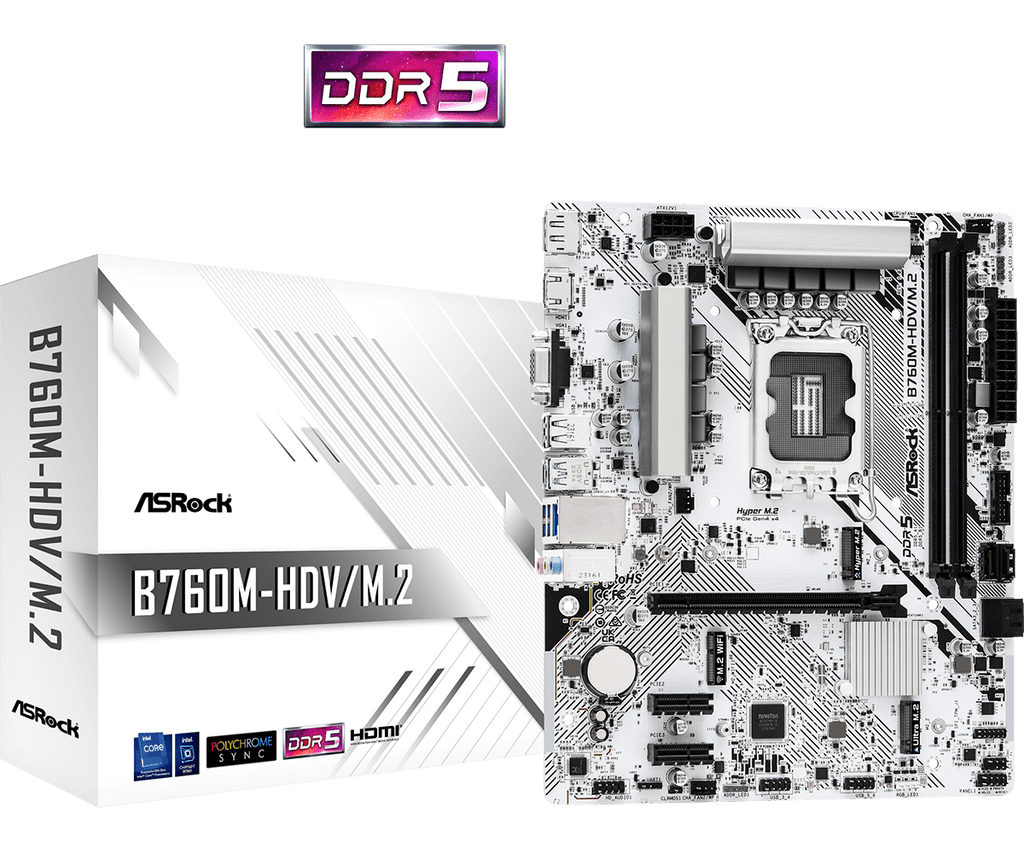

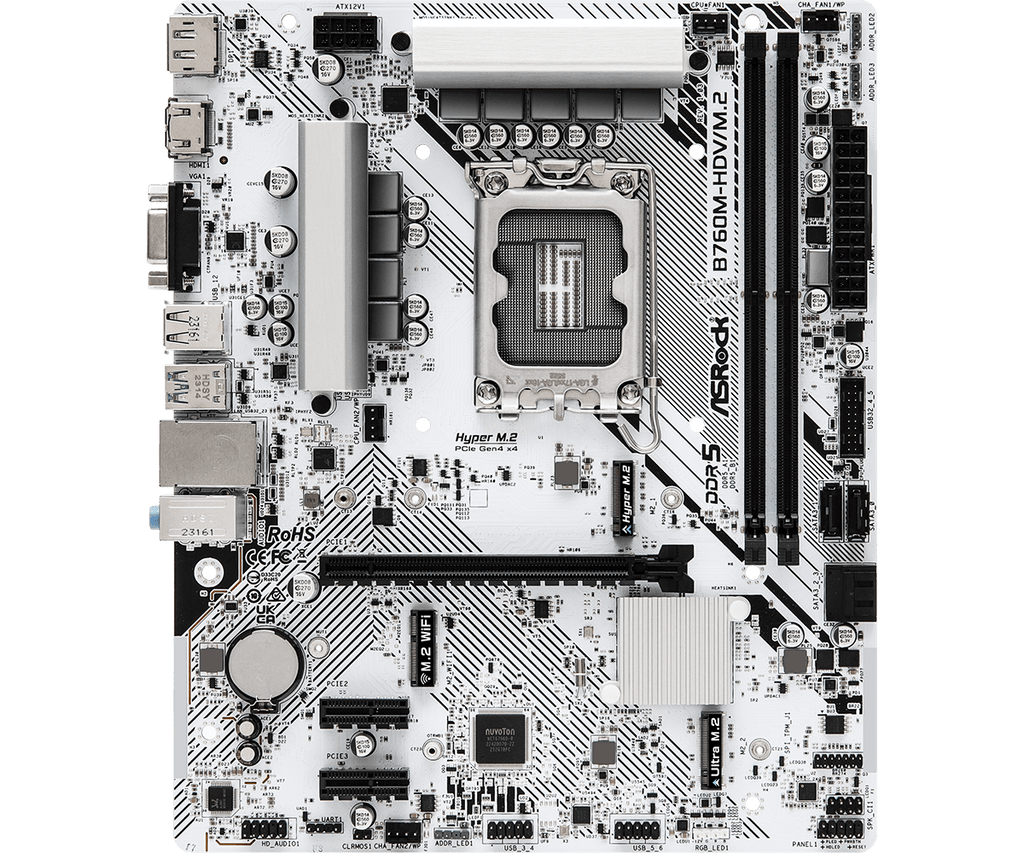

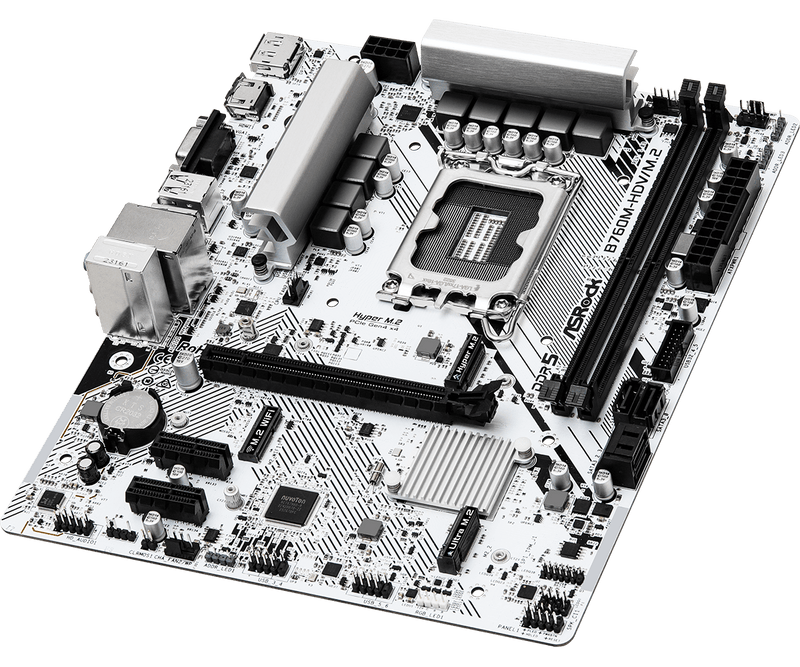

ASRock B760M-HDV/M.2 White White DDR5,LGA 1700 mATX Motherboard

Superb Productivity
-Dual Channel DDR5
Rock-Solid Durability
- 7+1+1 Power Phase
-ASRock ^Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology
Ultrafast Connectivity
- 2.5G LAN
EZ Update
-ASRock Auto Driver Installer

-Supports ^14th , ^13th & ^12th Gen ^Intel® Core™ Processors (LGA1700)
-Supports ^Intel® Hybrid Technology
-Supports ^Intel® Turbo Boost Max 3.0 Technology
-Supports ^Intel® Thermal Velocity Boost (TVB)
-Supports ^Intel® Adaptive Boost Technology (ABT)

^-Intel® B760

- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) *
- Max. capacity of system memory: 96GB
-Supports ^Intel® Extreme Memory Profile (XMP) 3.0

- 128Mb AMI UEFI Legal BIOS with GUI support

^-Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
-Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode *
Chipset:
- 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3) *
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

Chipset:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) modes * *
- 4 x SATA3 6.0 Gb/s Connectors

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

- 1 x USB 3.2 Gen1 Type-C (Rear)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header *
- 3 x Addressable LED Headers * *
- 1 x CPU Fan Connector (4-pin) * * *
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control) * * * *
- 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed ​​Control) * * * * *
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

- 2 x Antenna Mounting Points

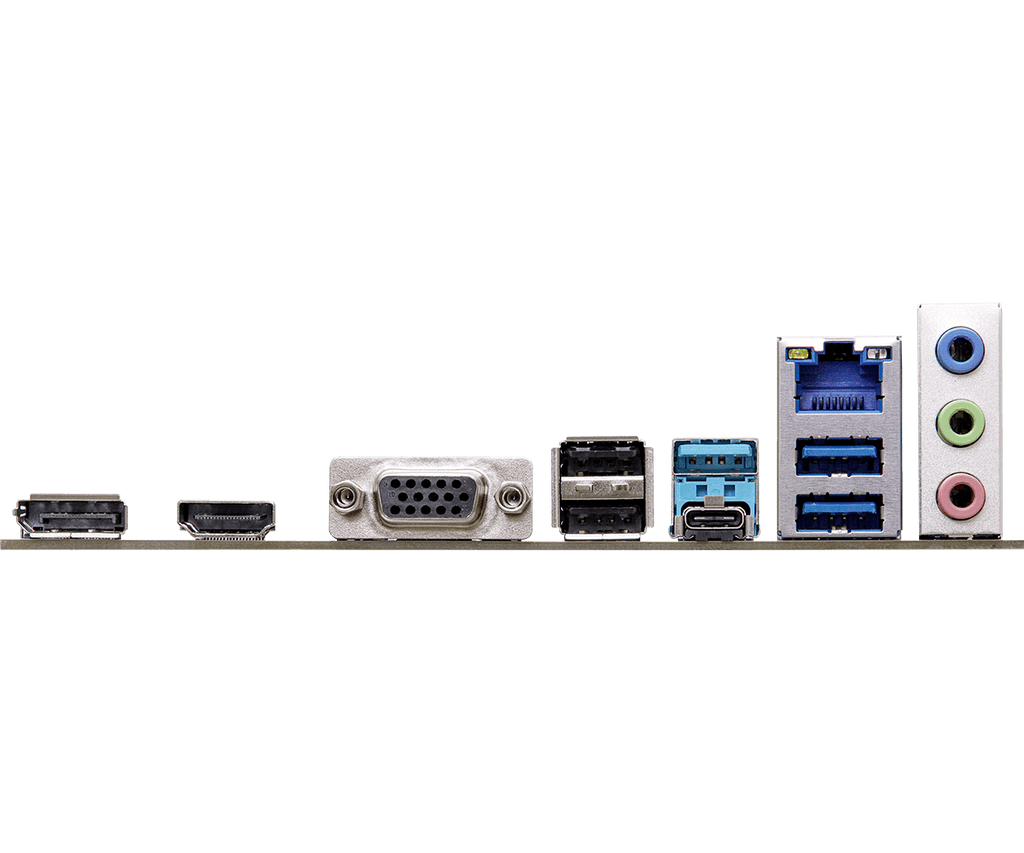

- 1 x D-Sub Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
-ASRock Polychrome SYNC *
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer

- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets

- Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm

-Microsoft ^Windows® 10 64-bit / 11 64-bit
