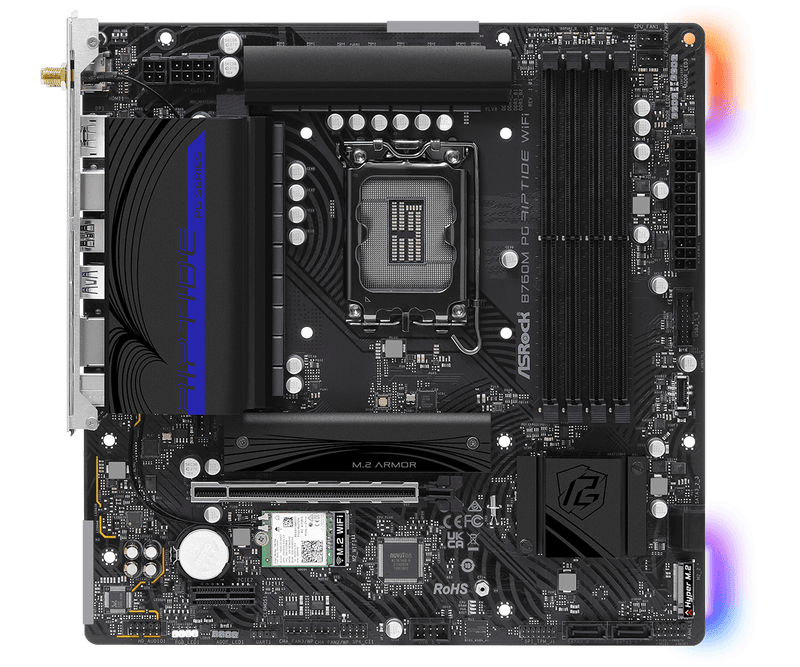

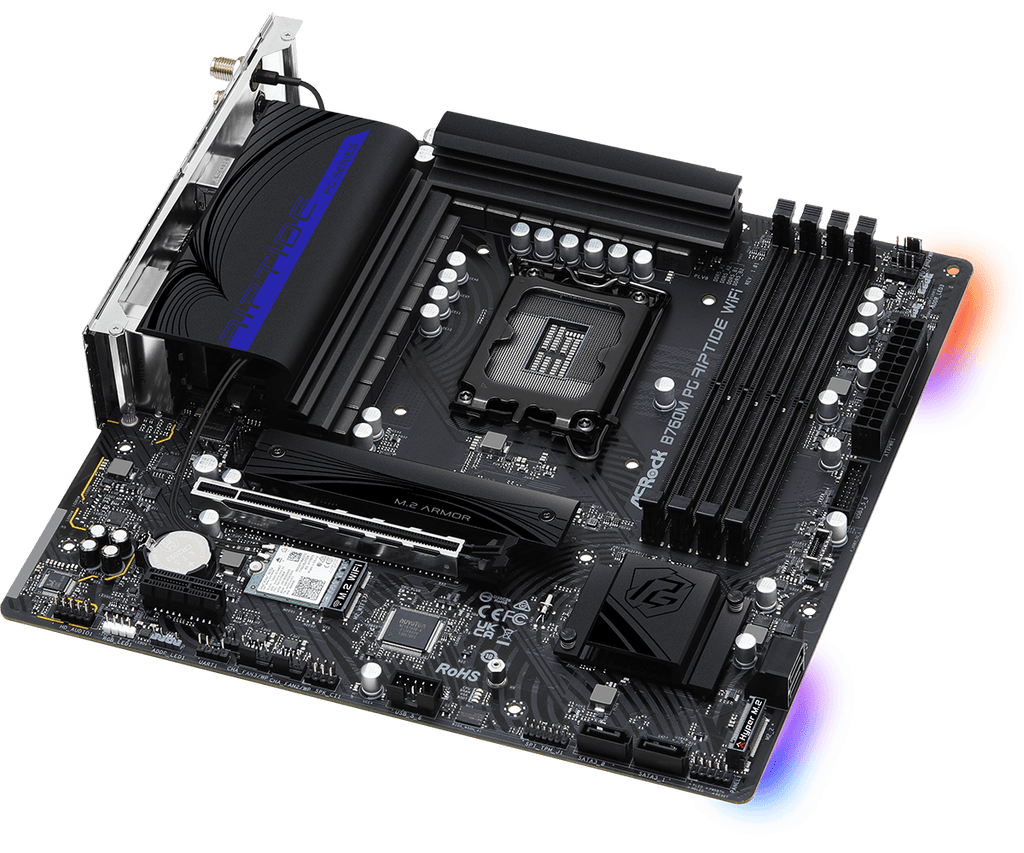

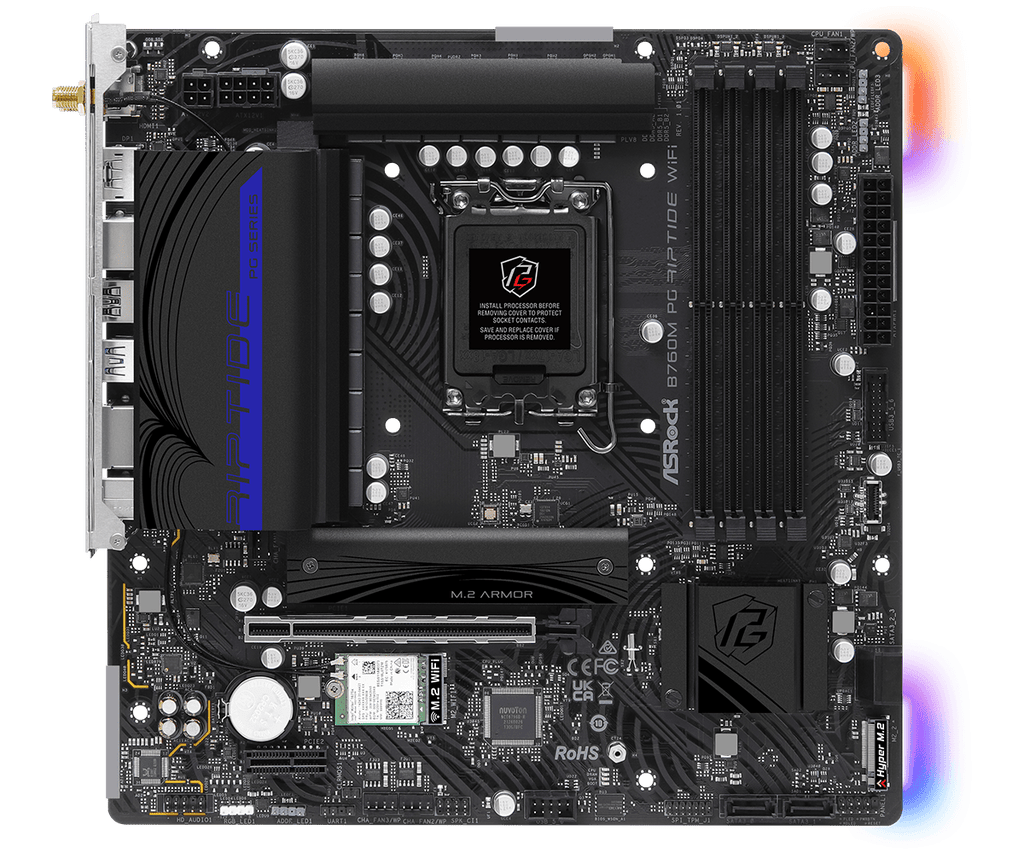

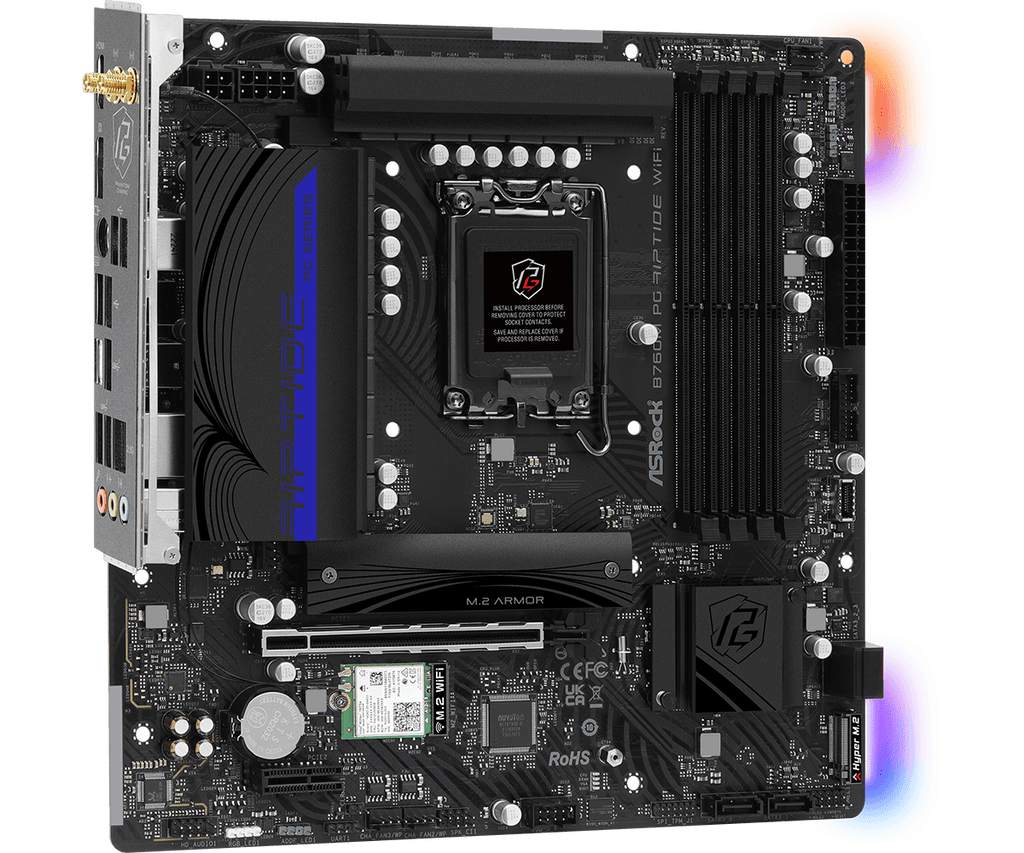

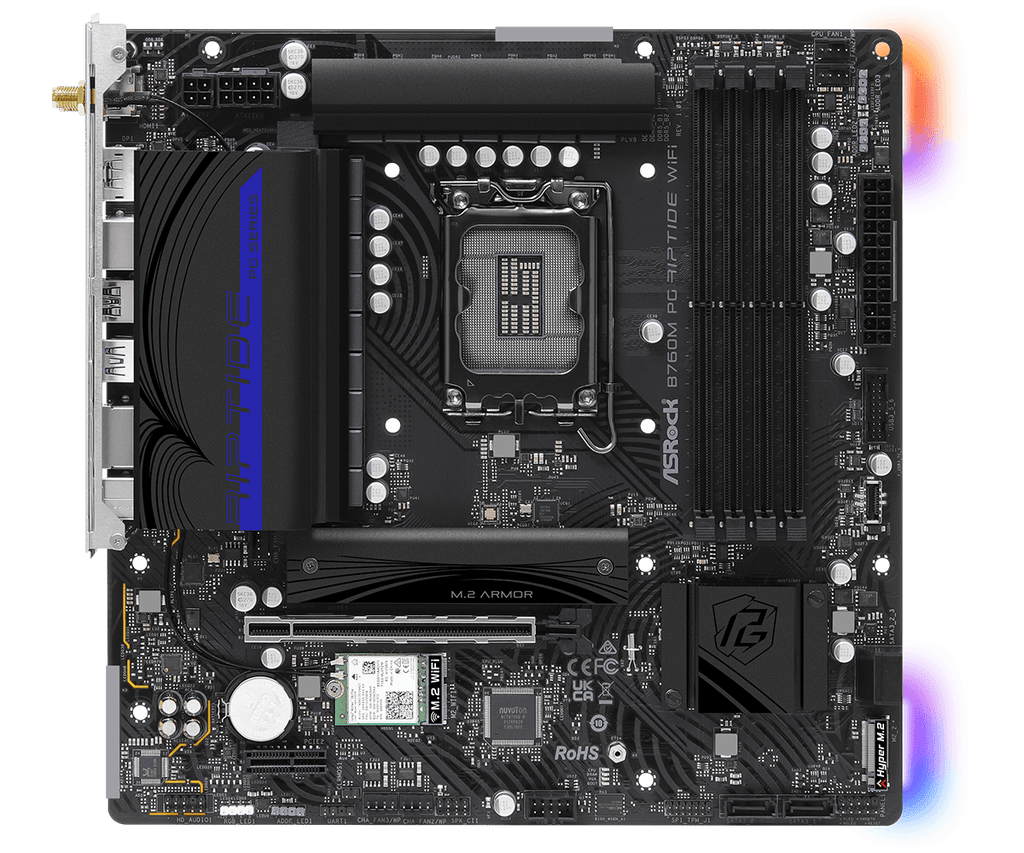

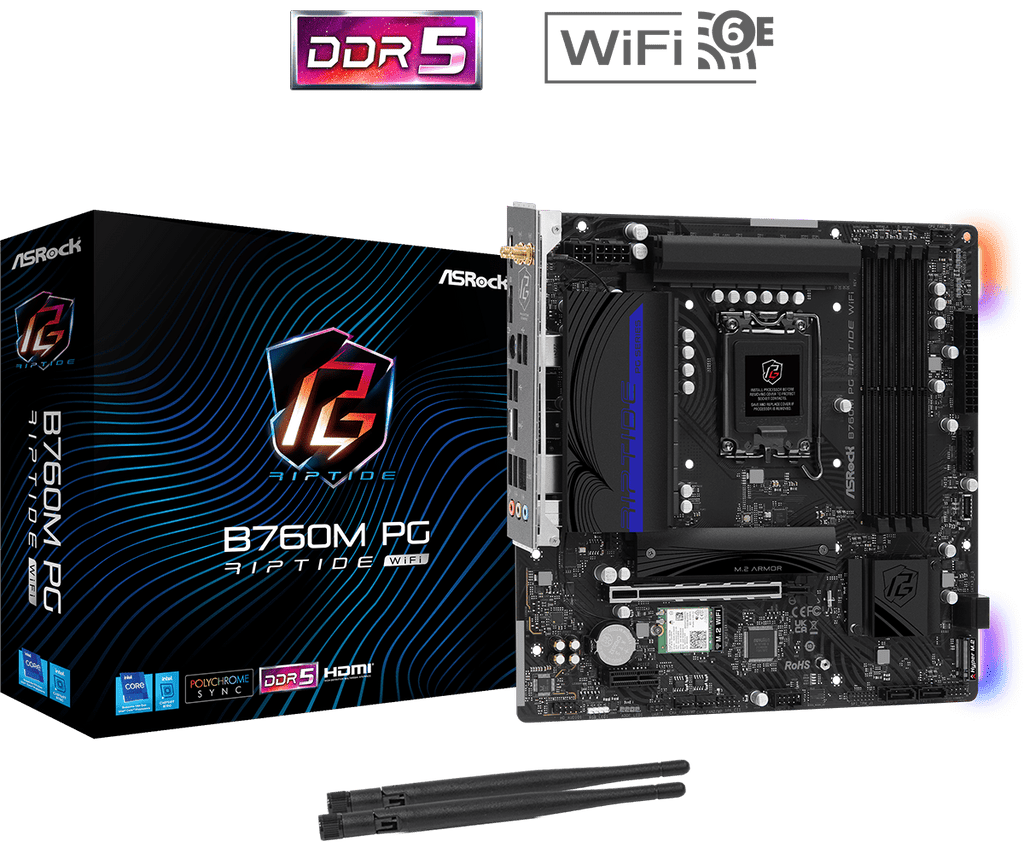

ASRock B760M PG Riptide WiFi DDR5,LGA 1700 mATX Motherboard

Superb Productivity
-Dual Channel DDR5
Rock-Solid Durability
- 14+1+1 Power Phase
- Pre-Installed I/O Shield
Ultrafast Connectivity
- 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module
EZ Update
-ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker

-Supports ^14th , ^13th Gen & ^12th Gen ^Intel® Core™ Processors (LGA1700)
-Supports ^Intel® Hybrid Technology
-Supports ^Intel® Turbo Boost Max 3.0 Technology
-Supports ^Intel® Thermal Velocity Boost (TVB)
-Supports ^Intel® Adaptive Boost Technology (ABT)
- Supports ASRock Hyper BCLK Engine

^-Intel® B760

- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) *
- Max. capacity of system memory: 192GB
-Supports ^Intel® Extreme Memory Profile (XMP) 3.0

- 256Mb AMI UEFI Legal BIOS with GUI support

^-Intel® Xe Graphics Architecture (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Phantom Gaming LAN Software
-Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control

- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 160MHz with extended 6GHz band * support
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.3 + High speed class II
-SupportsMU-MIMO
- Supports Killer LAN Software

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode *
Chipset:
- 1 x PCIe 4.0 x1 Slot (PCIE2) *
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel ^® CNVio/CNVio2 (Integrated WiFi/BT)

CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode *
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode *
- 4 x SATA3 6.0 Gb/s Connectors

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header *
- 3 x Addressable LED Headers * *
- 1 x CPU Fan Connector (4-pin) * * *
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control) * * * *
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed ​​Control) * * * * *
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header

- 2 x Antenna Ports

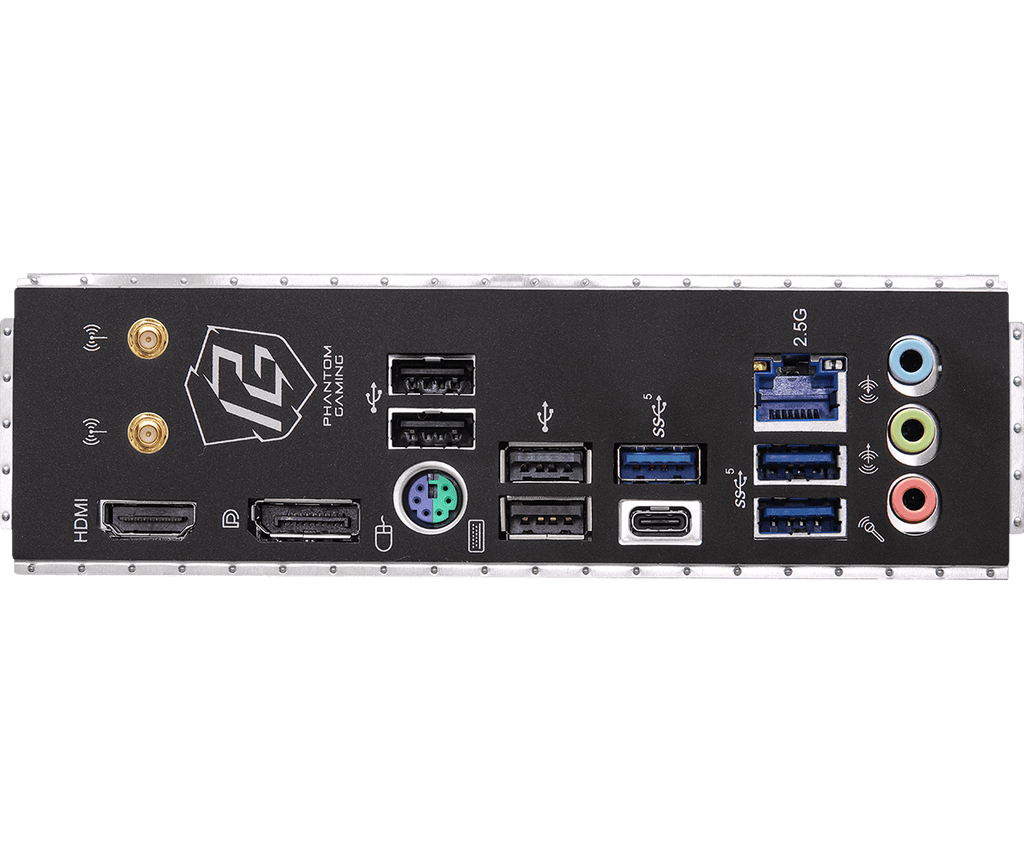

- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- Killer Control Center
-ASRock Polychrome SYNC *
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
-ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer

- 1 x User Manual
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 1 x Screw for M.2 Socket

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

-Microsoft ^Windows® 10 64-bit / 11 64-bit

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
