Save $169.00
ASROCK
Price:
HK$1,930.00 HK$2,099.00

Description

  • Exclusive Features
    Excellent Efficiency-
    PCIe Gen5 (Graphics, M.2)
    - Dual-channel DDR5-
    Thunderbolt™ 4 Type-C port (40 Gb/s)
    Absolutely Reliable Durability-
    10+1+1+1+1 Power Phase, 110A SPS for VCore with Enhanced Heatsink Armor-
    Memory OC Shield-
    Flexible Integrated I/O Protection-
    20K Long-lasting Black Capacitors (High-quality Conductive Polymer Capacitors)
    Ultra-Fast Gaming-
    2.5 Gigabit LAN, 802.11axe Wi-Fi 6E ModuleEZ
    Update-
    One-Click BIOS Update Button-
    ASRock Automatic Driver InstallationEZ
    Troubleshooting-
    ASRock POST Status Checker
  • processor
    - Supports Intel ® Core™ Ultra Processor (Series 2) (LGA1851)
    - Supports Intel ® Hybrid Technology
    - Supports Intel ® Turbo Boost Max 3.0 Technology
    - Supports Intel ® Thermal Velocity Technology (TVB)
    - Supports Intel ® Adaptive Overclocking Technology (ABT)
    - Integrated NPU for dedicated AI acceleration
  • chip
    - Intel ® B860
  • Memory
    - Dual-channel DDR5 memory technology
    - 2 x DDR5 memory slots
    - Supports DDR5 (non-ECC), un-buffered memory up to 9333+(OC) *
    - Supports Clocked Unbuffered DIMM (CUDIMM)
    - Max. system memory capacity: 128GB **
    - Supports Intel ® Extreme Memory Configuration (XMP) technology 3.0x


    * 1DPC 1R, the maximum frequency can reach 9333+ MHz (OC), 6400 MHz is the native frequency. 1DPC 2R, the maximum frequency can reach 6800+ MHz (OC), 6400 MHz is the native frequency.
    ** Due to operating system limitations, the actual memory that can be used under Windows ® 32-bit operating system will be less than 4GB. There is no such limitation when using a 64-bit CPU under Windows ® 64-bit operating system.
  • BIOS
    - 256Mb AMI UEFI Legal BIOS with GUI support
  • Onboard Graphics
    - Intel ® Xe LPG Graphics Architecture
    - 1 x HDMI 2.1 TMDS/FRL 8G compatible, supports HDR, HDCP 2.3 and maximum resolution up to 4K 120Hz
    - 1 x Intel ® Thunderbolt™ 4, supports HDCP 2.3 and maximum resolution up to 8K 60Hz / 5K 120Hz **

    * Only processors with built-in GPU can support Intel ® UHD Graphics Built-in Visuals and display output.
    ** Supports two 4K displays or one 8K display
    Only CPU embedded graphics can display through Thunderbolt™ port To display on Thunderbolt™ display, please use CPU models with embedded graphics.
  • Sound
    - 7.1 channel high definition audio with content protection support (Realtek ALC1220 audio codec)
    - Automatic impedance detection for rear audio
    - Layered left and right channel wiring
    - Nahimic audio
  • local area network
    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - Dragon RTL8125BG
    - Supports Phantom Gaming Ethernet software
    - Fully intelligent automatic bandwidth optimization
    - Visual user-friendly interface
    - Visual network usage statistics
    - Built-in bandwidth optimization for gaming, browsing and streaming modes
    - User-defined priority control
  • Wireless network card
    - 802.11axe Wi-Fi 6E module-
    Supports IEEE 802.11a/b/g/n/ac/ax/axe-
    Supports dual-band 2x2 160MHz, and supports extended 6GHz * band-
    Dual antenna supports 2 (transmit) x 2 (receive) diversity technology-
    Supports Bluetooth 5.3-
    Supports MU-MIMO

    * Wi-Fi 6E module is only supported by Microsoft ® Windows ® 11. No driver is available for Windows ® 10. 6GHz band availability will be subject to different regulatory conditions in each country and region. Activation through Windows ® Update and software update (for supported countries)
    A ​​6GHz compatible router is required to obtain 6E functionality.
  • Expansion Slot
    CPU:
    - 1 x PCIe 5.0 x16 slot (PCIE1), supports x16 mode *
    Chipset:
    - 1 x M.2 interface (Key E), supports 2230 type WiFi/Bluetooth PCIe WiFi module and Intel CNVio/CNVio2 (integrated WiFi/BT)

    * Support NVMe SSD boot
  • storage
    CPU:
    - 1 x Blazing M.2 connector (M2_1, Key M), supports PCIe Gen5x4 (128 Gb/s) mode 2280 *
    Chipset:
    - 1 x Ultra M.2 connector (M2_2, Key M), supports PCIe Gen4x4 (64 Gb/s) mode 2280 *
    - 3 x SATA3 6.0 Gb/s connectors

    * Support Intel ® Volume Management Device (VMD)
    Support NVMe SSD boot
  • Redundant Array of Independent Disks (RAID)
    - Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices
  • USB
    CPU:
    - 1 x Thunderbolt™ 4 Type-C (rear) Chipset:
    - 1 x USB 3.2 Gen2 Type-C (front)
    - 2 x USB 3.2 Gen2 Type-A (rear)
    - 6 x USB 3.2 Gen1 (4 rear, 2 front)
    - 3 x USB 2.0 (1 rear, 2 front)

    * All USB supports ESD protection
  • Onboard Interface
    - 1 x Thermistor cable header
    - 2 x Addressable LED headers *
    - 1 x CPU fan connector (4-pin) (Smart Fan Speed ​​Control) **
    - 1 x Chassis fan connector (4-pin) (Smart Fan Speed ​​Control) **
    - 1 x AIO water pump fan connector (4-pin) (Smart Fan Speed ​​Control) ***
    - 1 x 24-pin ATX power connector
    - 1 x 8-pin 12V power connector (High-density power connector)
    - 1 x Front panel audio connector
    - 1 x USB 2.0 header (supports 2 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports)
    - 1 x Front Type-C USB 3.2 Gen2 header (10 Gb/s)

    * Supports up to 5V/3A, 15W LED strip
    ** CPU_FAN and CHA_FAN1 support fan power up to 1A (12W).
    *** AIO_PUMP supports fan power up to 3A (36W).
    AIO_PUMP can auto-detect 3-pin or 4-pin fan.

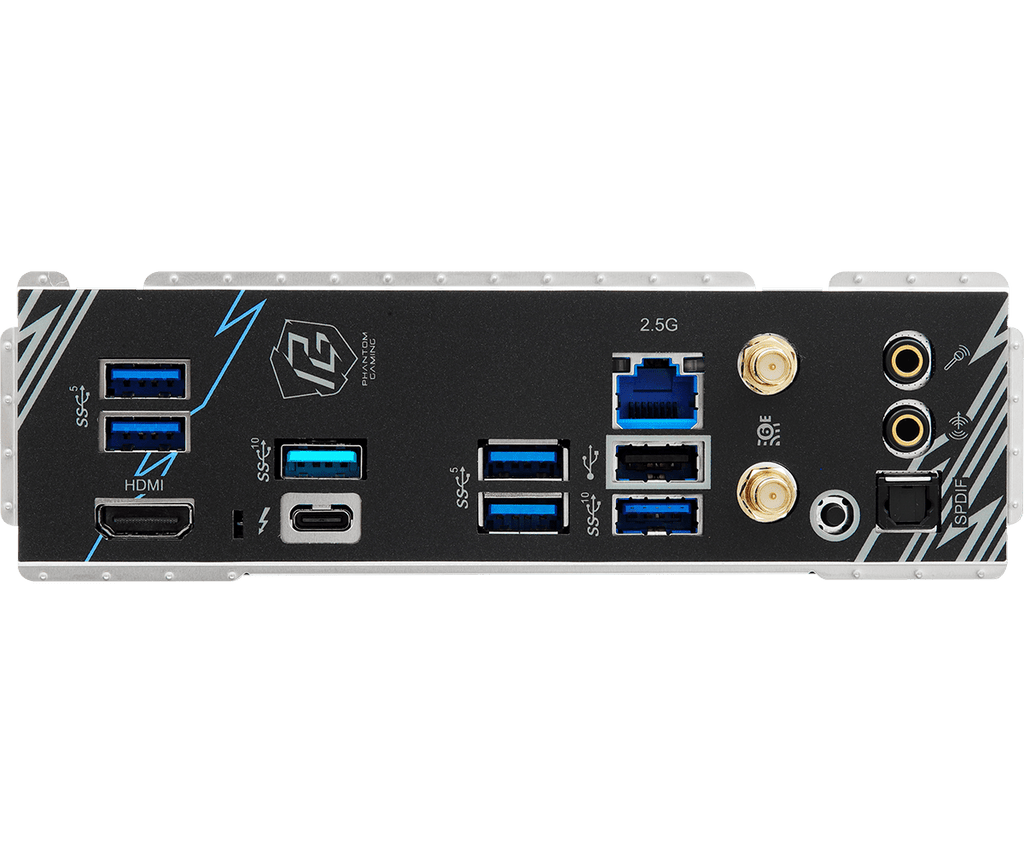

  • Back panel input/output interface
    - 2 x Antenna Ports-
    1 x HDMI Port-
    1 x Optical SPDIF Digital Audio Out Port-
    1 x Thunderbolt™ 4 Type-C Port (40Gb/s for USB4 protocol; 40Gb/s for Thunderbolt™ protocol) *
    - 2 x USB 3.2 Gen2 Type-A Ports-
    4 x USB 3.2 Gen1 Ports-
    1 x USB 2.0 Port-
    1 x RJ-45 Network Card Port-
    1 x BIOS One-Click Update Button-
    1 x Line Out Jack (Gold Audio Jack)
    - 1 x Microphone In Jack (Gold Audio Jack)

    * Supports USB PD 3.0 up to 5V@3A (15W) charging
  • Software and UEFI
    Software
    - ASRock Motherboard Tuning Software (Phantom Gaming Tuning)
    - ASRock Phantom Gaming Ethernet Software
    - ASRock Polychrome SYNC *
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock Custom UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash (Instant Update Tool)

    * These utilities can be downloaded from ASRock Live Update & APP Shop.

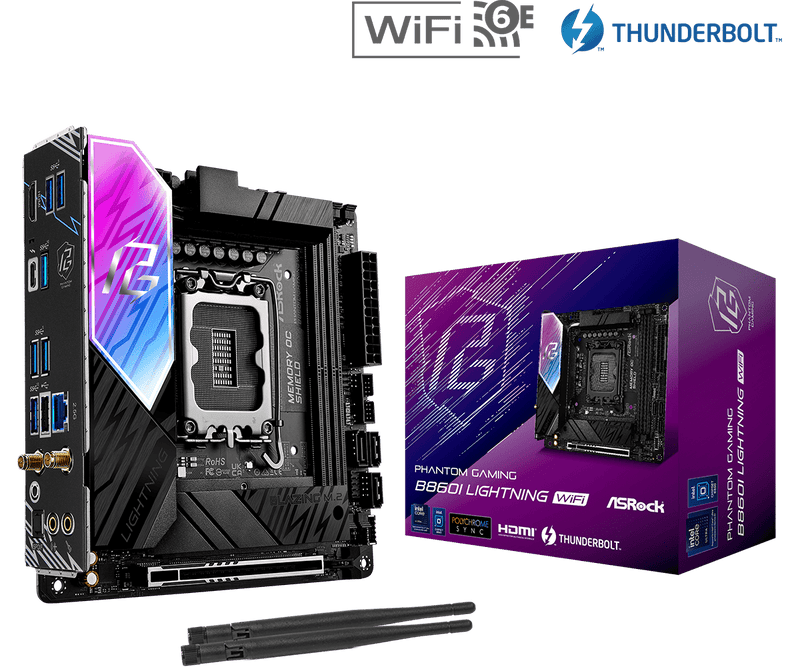

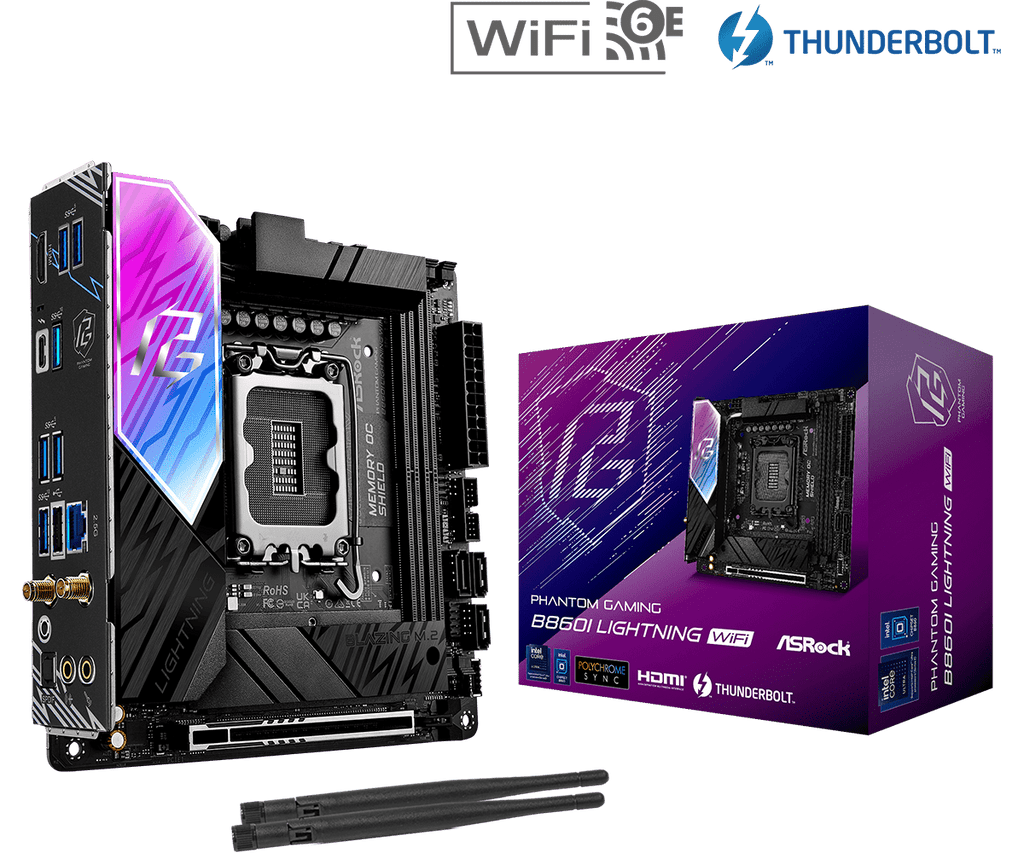

  • appendix
    - 2 x SATA data cables-
    2 x ASRock WiFi 2.4/5/6 GHz antennas-
    1 x Thermistor cable-
    2 x M.2 slot screws
  • structure
    - Mini-ITX form factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
    - 10-layer PCB
  • operating system
    - Support Microsoft ® Windows 11 64-bit
