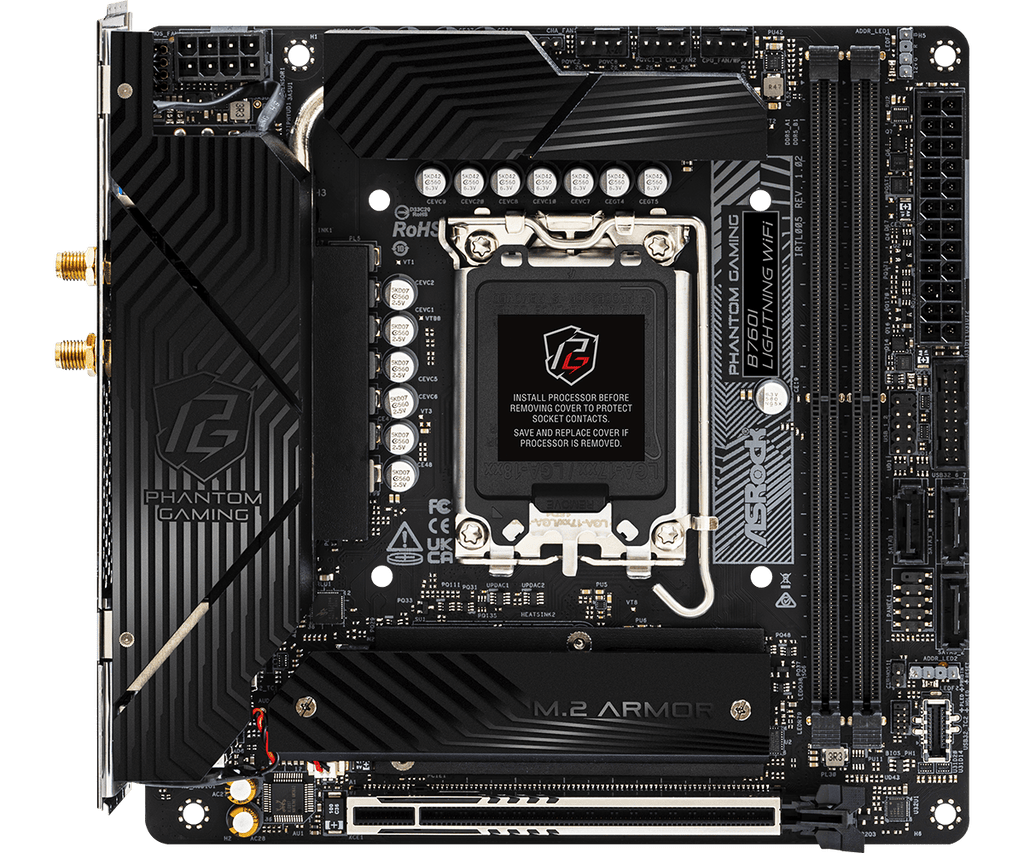

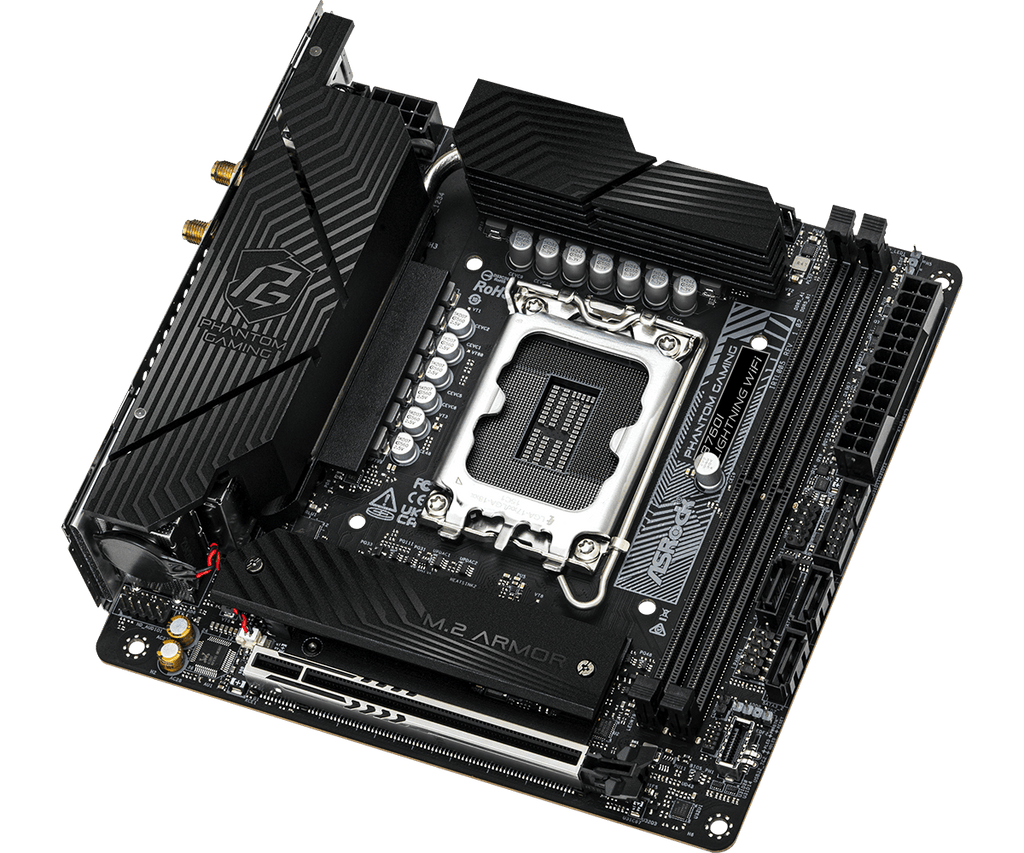

ASRock B760i Lightning WiFi DDR5,LGA 1700 Mini-ITX Motherboard

• processor
  - Supports 14th, 13th and 12th Generation ^Intel® Core™ Processor(LGA1700)
  - Supports ^Intel® Hybrid Technology
  - Supports ^Intel® Turbo Boost Max 3.0 technology
  - Supports ^Intel® Thermal Velocity Boost (TVB)
  - Supports ^Intel® Adaptive Boost Technology (ABT)
• chip
  ^-Intel® B760
• memory
  - Dual-channel DDR5 memory technology
  - 2 x DDR5 slots
  - Supports DDR5 non-ECC, un-buffered memory up to 8600+(OC) *
  - Maximum system memory capacity: 96GB
  - Supports ^Intel® Extreme Memory Profile (XMP) 3.0 technology


  * 1DPC 1R up to 8600+ MHz (OC), native 5600 MHz.
  1DPC 2R up to 7000+ MHz (OC), native 5200 MHz.
• BIOS
  - 128Mb AMI UEFI Legal BIOS, supports graphical interface
• built-in display
  ^-Intel® Xe graphics architecture (Gen 12)
  - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz


  * Only processors with built-in GPU functionality support ^Intel® The UHD display chip has built-in visual enhancement functions and display output.
• Sound effects
  - 7.1-channel high-fidelity audio (Realtek ALC897 audio codec)
  - Nahimic Audio
• network
  - 2.5 Gigabit network card 10/100/1000/2500 Mb/s
  - Dragon RTL8125BG
  - Supports Phantom Gaming LAN software
  - Fully intelligent automatic bandwidth optimization
  - Visual and friendly UI interface
  - Visual network usage statistics table
  - Built-in games, browsing and streaming mode bandwidth optimization
  - User-defined priority control

Wireless Network - 802.11axe Wi-Fi 6E Module
- Support IEEE 802.11a/b/g/n/ac/ax/axe
- Support Dual-Band 2x2 160MHz with extended 6GHz band* support
- Dual antennas support 2 (transmit) x 2 (receive) diversity technology
- Support Bluetooth 5.3 + High speed class II
- Support MU-MIMO
*Microsoft ^® Windows ^® 11 will support Wi-Fi 6E (6GHz bandwidth) and enable this feature through Windows ^® Update and software updates (in supported countries). Whether or not support is supported will be determined based on the regulations of different countries and regions.
The 6E function only supports routers compatible with 6GHz. Expansion slot CPU:
- 1 x PCIe 5.0 x16 slot (PCIE1), supports x16 mode*
Chipset:
- 1 x M.2 slot (Key E), supports 2230 type WiFi/BT PCIe WiFi module and Intel ^® CNVio/CNVio2 (Integrated WiFi/BT)
* Supports NVMe SSD boot storage CPU:
- 1 x Hyper M.2 slot (M2_1, Key M), supports PCIe Gen4x4 type 2280 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 slot (M2_2, Key M), supports PCIe Gen4x4 type 2280 (64 Gb/s) mode*
- 3 x SATA3 6.0 Gb/s ports
*Supports Intel® Volume Management Device (VMD)
Supports NVMe SSD boot RAID - supports RAID 0, RAID 1 and RAID 5 for SATA storage devicesUSBChipset:
- 1 x USB 3.2 Gen2 Type-A (rear)
- 1 x USB 3.2 Gen2 Type-C (rear)
- 6 x USB 3.2 Gen1 Type-A (2 front, 4 rear)
- 1 x USB 3.2 Gen1 Type-C (front)
- 1 x USB 2.0 (front)
* All USB support ESD static protection connector - 2 x programmable LED headers*
- 1 x thermistor wire header
- 1 x CPU/water pump fan port (4-pin) (smart fan speed control)**
- 2 x chassis fan ports (4-pin)***
- 1 x 24-pin ATX power port
- 1 x 8-pin 12V power port (high-density power port)
- 1 x Front Panel Audio port
- 1 x USB 2.0 header (supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports)
- 1 x Front Type C USB 3.2 Gen1 header
*Supports up to 5V/3A, 15W LED light strip
** CPU_FAN1/WP supports fan power up to 2A (24W).
CPU_FAN1/WP can automatically detect 3-pin or 4-pin fans.

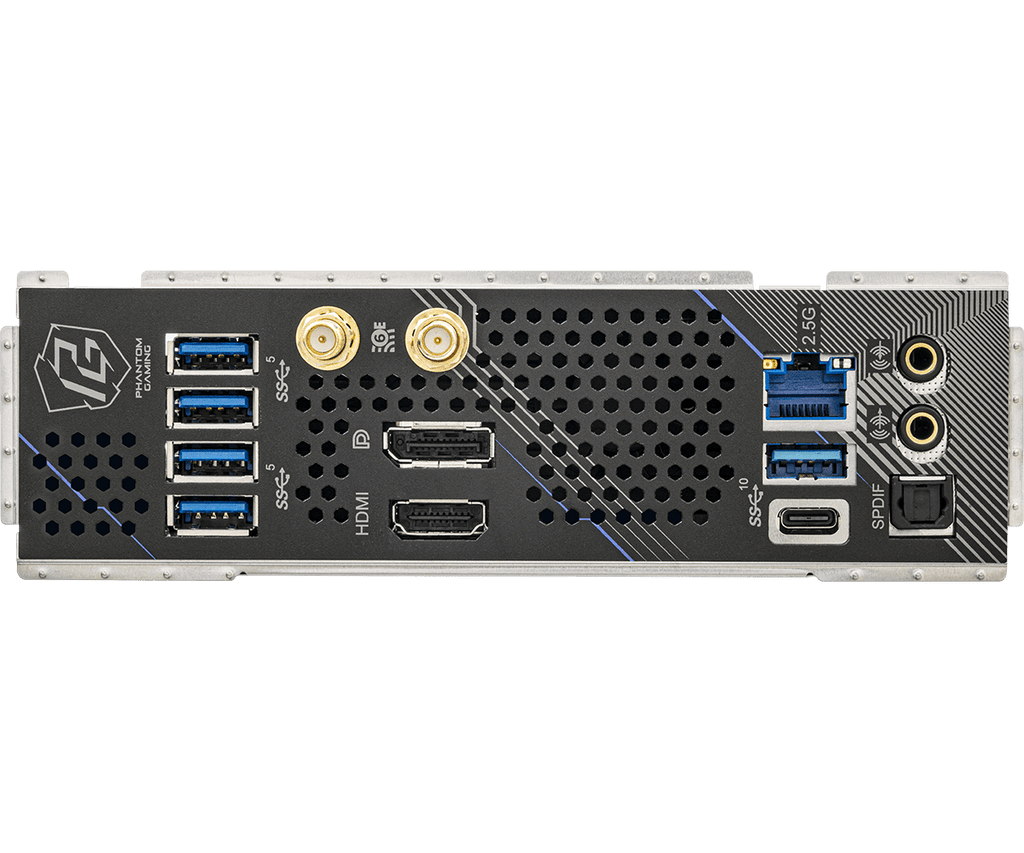

*** CHA_FAN1 and CHA_FAN2 support fan power up to 1A (12W). Rear panel output/input interface - 2 x antenna ports
- 1 x HDMI port
- 1 x DisplayPort 1.4
- 1 x optical SPDIF digital audio output port
- 1 x USB 3.2 Gen2 Type-A port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C port (10 Gb/s)
- 4 x USB 3.2 Gen1 ports
- 1 x RJ-45 network port
- 1 x Line Out Jack (Gold audio jack)
- 1 x Microphone Input Jack (Gold audio jack) software and UEFI software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN software
-ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My favorite UEFI
-ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer

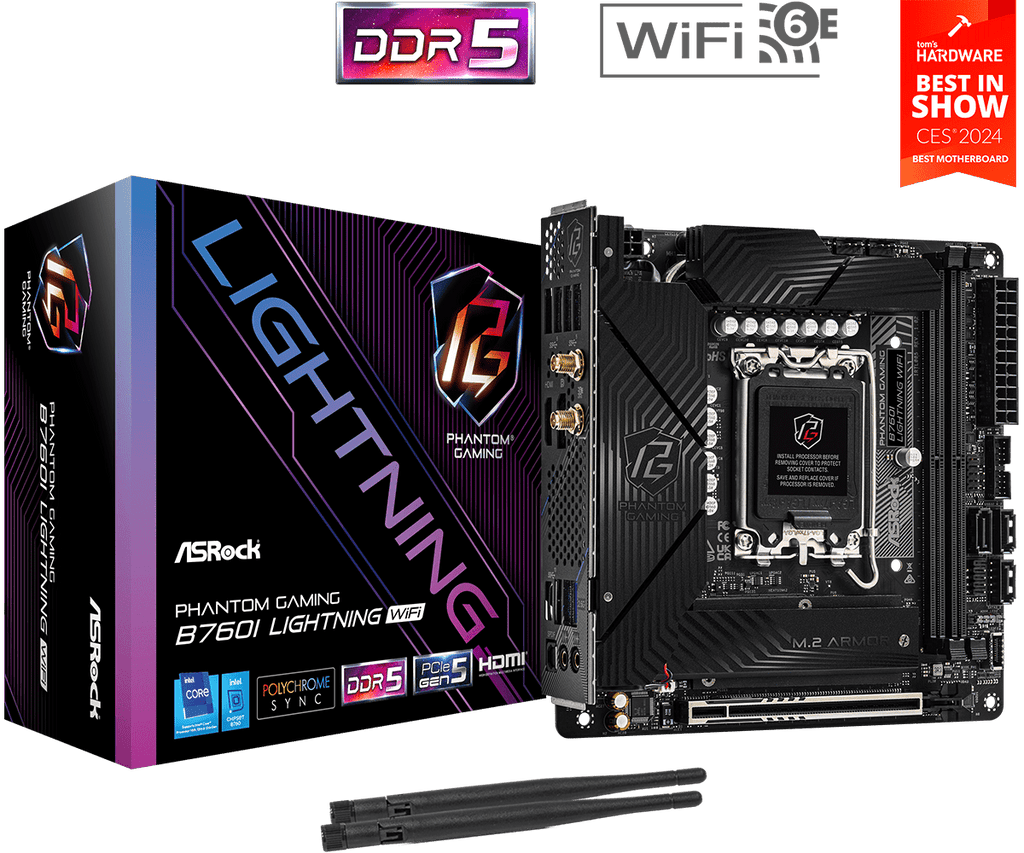

*These apps can be downloaded from ASRock APP Shop. Accessories - 2 x SATA data cables
- 2 x ASRock WiFi 2.4/5/6 GHz antennas
- 1 x M.2 slot screw
- 1 x Thermistor Wire Size - Mini-ITX Size: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
- 8-layer PCB design
- 2 oz copper circuit board operating system - Supports Microsoft ^® Windows 10 64-bit / 11 64-bit Certification - FCC, CE
- Supports ErP/EuP (requires a power supply that supports ErP/EuP)
