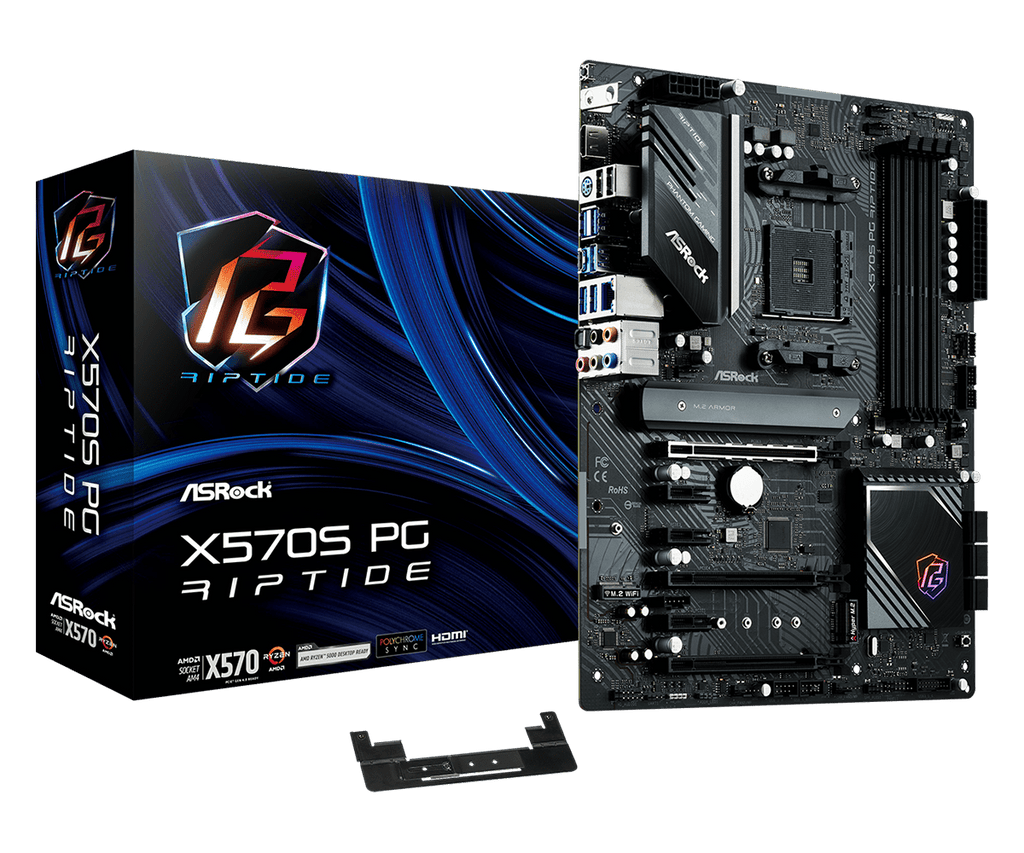

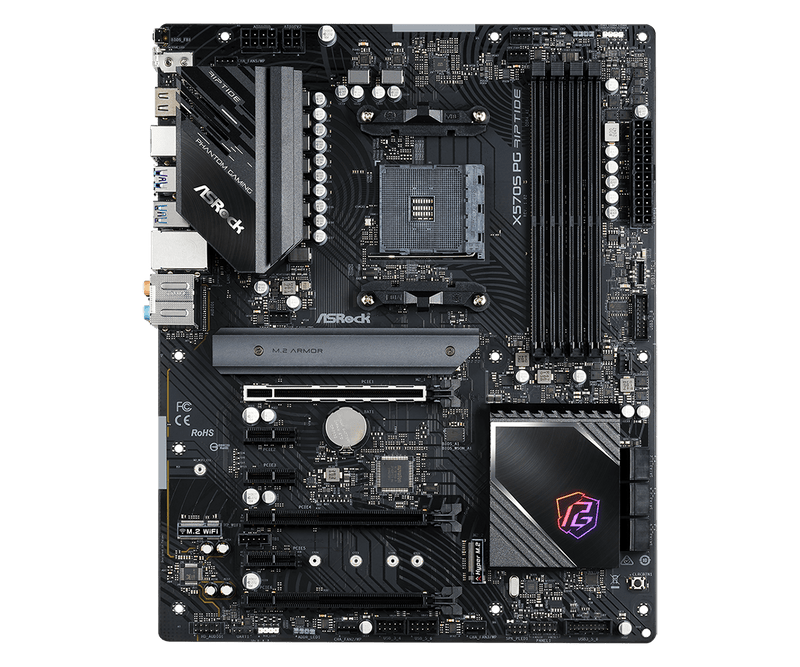

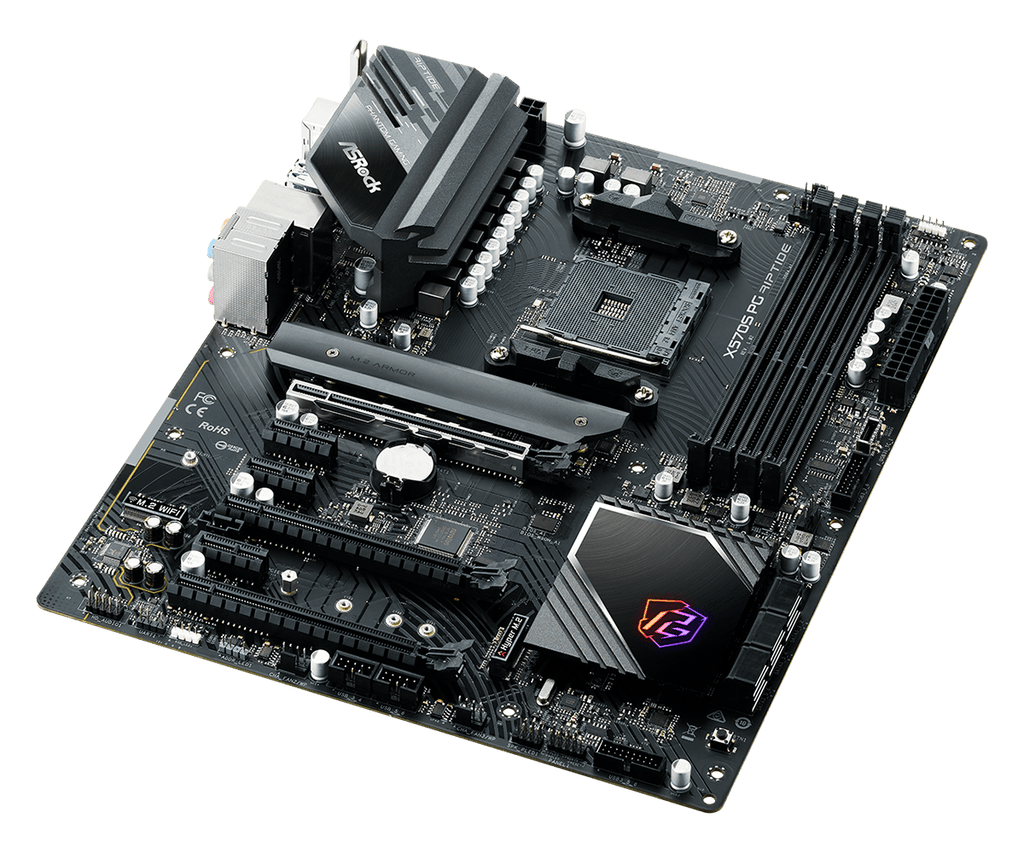

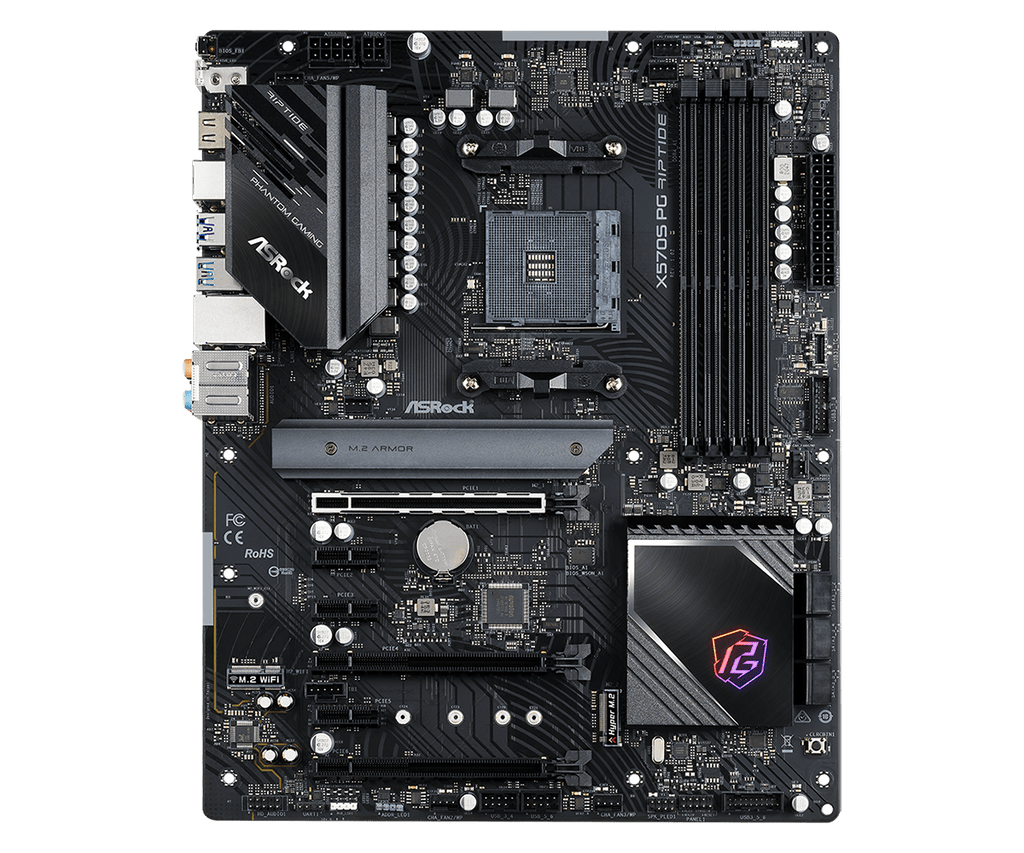

ASRock X570S PG Riptide DDR4,AM4 Socket ATX Motherboard
ASRock X570S PG Riptide DDR4,AM4 Socket ATX Motherboard
ASRock X570S PG Riptide DDR4,AM4 Socket ATX Motherboard
ASRock X570S PG Riptide DDR4,AM4 Socket ATX Motherboard
ASRock X570S PG Riptide DDR4,AM4 Socket ATX Motherboard
Roll over image to zoom in Click on image to zoom
ASRock X570S PG Riptide DDR4,AM4 Socket ATX Motherboard
ASRock X570S PG Riptide DDR4,AM4 Socket ATX Motherboard
ASRock X570S PG Riptide DDR4,AM4 Socket ATX Motherboard
ASRock X570S PG Riptide DDR4,AM4 Socket ATX Motherboard
ASRock X570S PG Riptide DDR4,AM4 Socket ATX Motherboard

ASRock X570S PG Riptide DDR4,AM4 Socket ATX Motherboard

ASROCK
Price:
HK$940.00 HK$999.00

Description

  • Unique Feature
    ASRock USB 3.2 Gen2
    - ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s)
    - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
    ASRock Super Alloy
    - XXL Aluminum Alloy Heatsink
    - Premium 60A Power Choke
    - 50A Dr.MOS
    - Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
    -Matte Black PCB
    - High Density Glass Fabric PCB
    - 2oz Copper PCB
    Killer 2.5G LAN
    ASRock Lightning Gaming Port
    ASRock Steel Slot Gen4
    ASRock Full Coverage M.2 Heatsink
    ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
    ASRock POST Status Checker (PSC)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Supports AMD AM4 Socket Ryzen™ 2000, 2000 G-Series, 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors *
    -Digi Power design
    - 10 Power Phase design

    * Please refer to CPU support list for details.
  • Chipset
    -AMD X570
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 4 x DDR4 DIMM Slots
    - AMD Ryzen series CPUs (Vermeer) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory *
    - AMD Ryzen series CPUs (Matisse) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory *
    - AMD Ryzen series APUs (Cezanne) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory *
    - AMD Ryzen series APUs (Renoir) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory *
    - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory *
    - AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory *
    - Max. capacity of system memory: 128GB *
    - Supports Extreme Memory Profile (XMP) memory modules
    - 15μ Gold Contact in DIMM Slots

    * For Ryzen Series APUs (Picasso and Renoir), ECC is only supported with PRO CPUs.
    Please refer to below table for AMD non-XMP memory frequency support.

    Ryzen Series CPUs (Vermeer):


    Ryzen Series CPUs (Matisse):


    Ryzen Series APUs (Cezanne):


    Ryzen Series APUs (Renoir):


    Ryzen Series CPUs (Pinnacle Ridge):


    Ryzen Series CPUs (Picasso):


    SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2
    DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label

    * * Due to the operating system limitation, the actual size memory may be less than 4GB for the reservation for system usage under Windows ® 32-bit OS. For Windows ® 64-bit OS with 64-bit CPU, there is no such limitation.
  • BIOS
    - 256Mb AMI UEFI Legal BIOS with GUI support
    - Supports "Plug and Play"
    - ACPI 5.1 compliance wake up events
    - Supports jumperfree
    - SMBIOS 2.3 support
    - CPU, VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustment
  • Graphics
    - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU *
    - DirectX 12, Pixel Shader 5.0
    - Shared memory default 2GB. Max Shared memory supports up to 16GB. * *
    - Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
    - Supports HDR (High Dynamic Range) with HDMI 2.1
    - Supports HDCP 2.3 with HDMI 2.1 Port
    - Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
    - Supports Microsoft® PlayReady

    * Actual support may vary by CPU

    * * The Max shared memory 16GB requires 32GB system memory installed.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    -Supports Surge Protection
    - Gold Audio Jacks
    - Nahimic Audio
  • LAN
    - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
    - 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)
    - Supports Killer LAN Software
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    -SupportsPXE
  • Slots
    AMD Ryzen series CPUs (Vermeer, Matisse)
    - 1 x PCI Express 4.0 x16 Slot (x16 (PCIE1)) *
    AMD Ryzen series CPUs (Cezanne, Renoir, Pinnacle Ridge)
    - 1 x PCI Express 3.0 x16 Slot (x16 (PCIE1) *
    AMD Ryzen series APUs (Picasso)
    - 1 x PCI Express 3.0 x16 Slot (x8 (PCIE1)) *
    AMD X570 Chipset
    - 2 x PCI Express 4.0 x16 Slots (x4 (PCIE4) / x2 (PCIE6))

    - 3 x PCI Express 4.0 x1 Slots
    - Supports AMD Quad CrossFireX™ ​​and CrossFireX™
    - 15μ Gold Contact in VGA PCIe Slot (PCIE1)
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

    * Supports NVMe SSD as boot disks
  • Storage
    - 6 x SATA3 6.0 Gb/s Connectors
    - 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/ s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso) *
    - 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, Pinnacle Ridge and Picasso) *

    * If M2_2 is occupied by a PCIE-type M.2 device, SATA3_5_6 will be disabled.
    If Thunderbolt™ support is enabled, SATA type M.2 will be disabled.
    Supports NVMe SSD as boot disks
    NVMe SSD is not supported with AMD Athlon™ 3000G Processors
    Supports ASRock U.2 Kit
  • RAID
    - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    - Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
  • Connector
    - 1 x Power LED and Speaker Header
    - 2 x RGB LED Headers *
    - 2 x Addressable LED Headers * *
    - 1 x CPU Fan Connector (4-pin) * * *
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control) * * * *
    - 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed ​​Control) * * * * *
    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card only)
    - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
    - 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
    - 1 x Clear CMOS Button

    * Support in total up to 12V/3A, 36W LED Strip

    * * Support in total up to 5V/3A, 15W LED Strip

    * * * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    * * * * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.

    * * * * * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.
  • Rear Panel I/O
    - 1 x Antenna Bracket
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x HDMI Port
    - 1 x Optical SPDIF Out Port
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
    - 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) *
    - 2 x USB 2.0 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - 1 x BIOS Flashback Button with LED
    - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

    * USB3_2 and USB31_TA_1 are the Lightning Gaming Ports.
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (Phantom Gaming Tuning)
    - ASRock Killer LAN Software
    -ASRock Polychrome SYNC *
    UEFI
    - ASRock Full HD UEFI
    - ASRock Instant Flash

    * These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
  • Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables

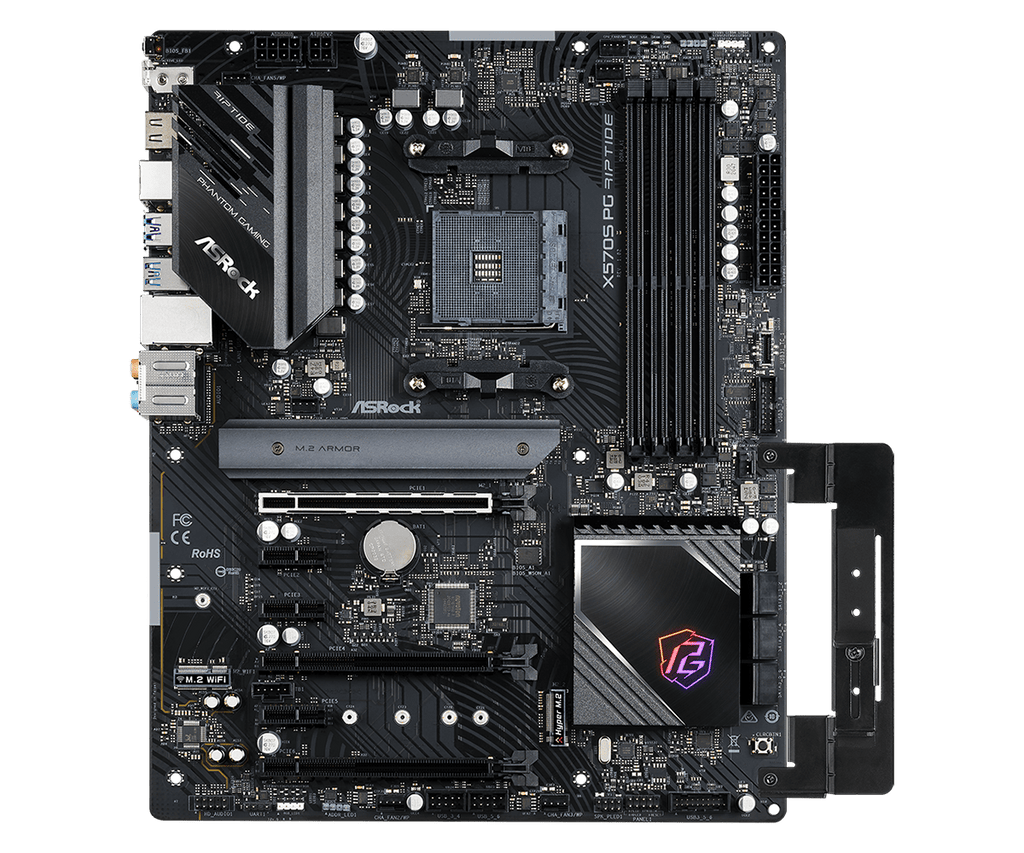

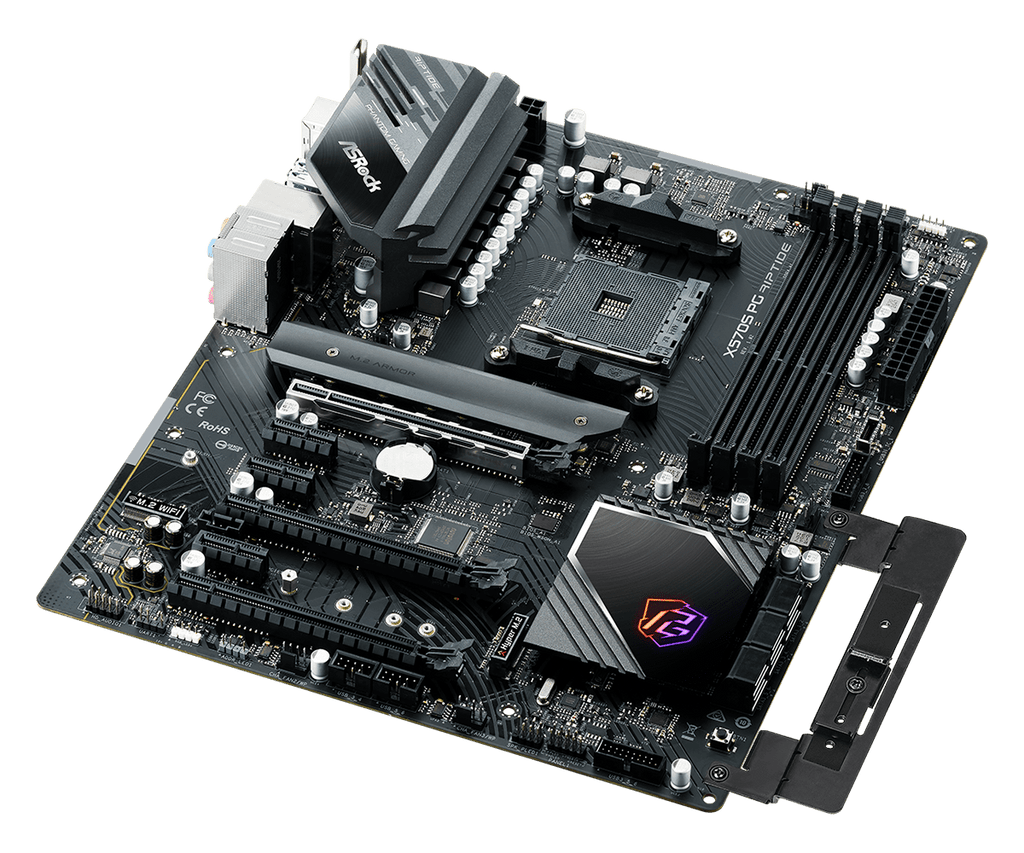

    - 1 x Graphics Card Holder
    - 3 x Screws for M.2 Sockets
    - 1 x Standoff for M.2 Socket
  • Hardware Monitor
    - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Fan Multi-Speed ​​Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDP
  • Form Factor
    - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
    -Solid Capacitor design
    - 2oz Copper PCB
  • OS
    -Microsoft® Windows® 10 64-bit / 11 64-bit
