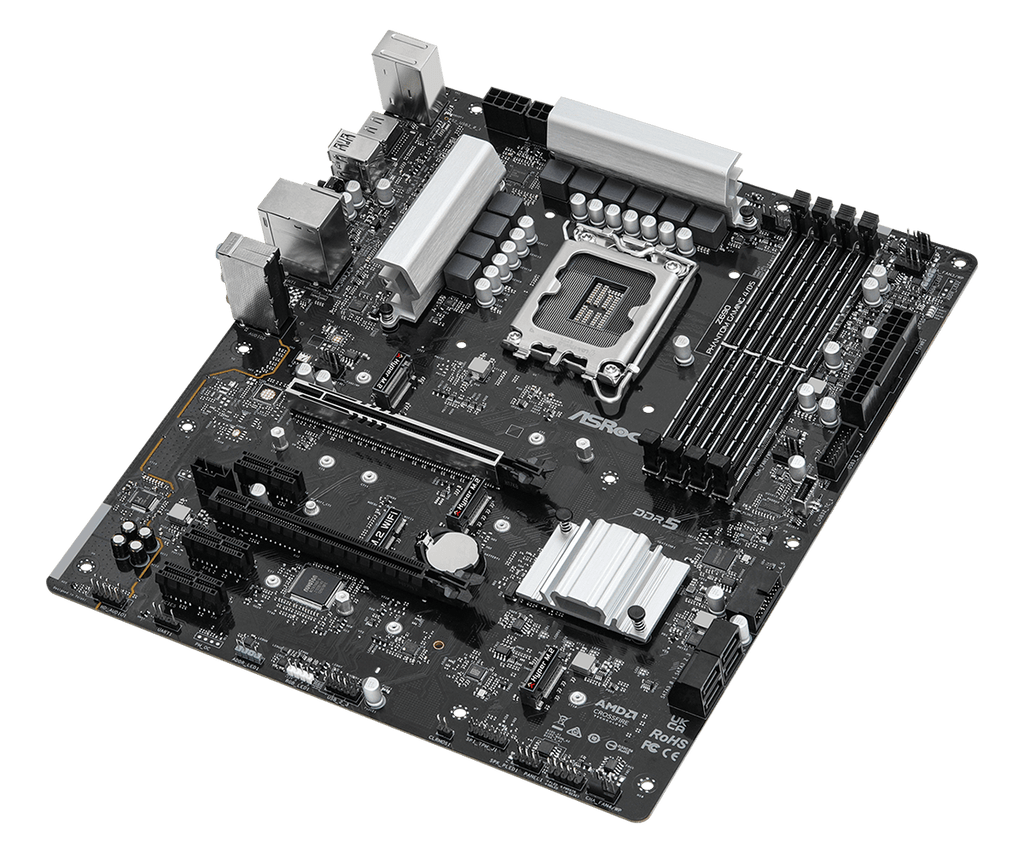

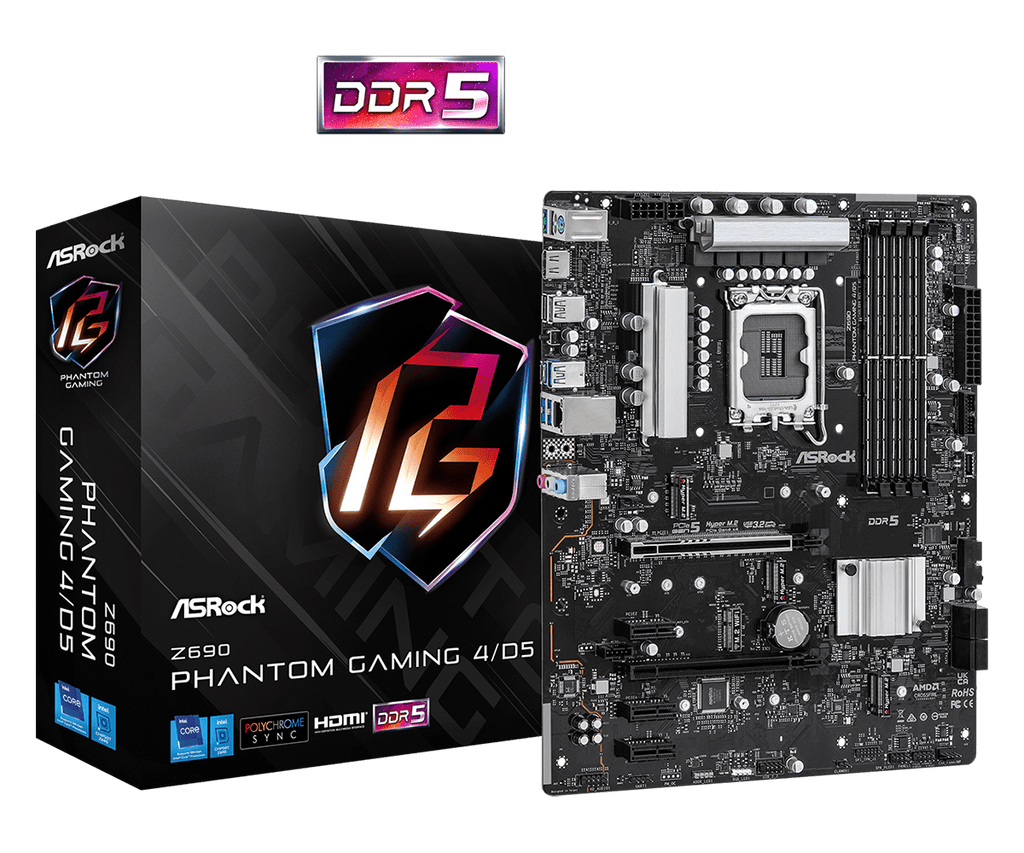

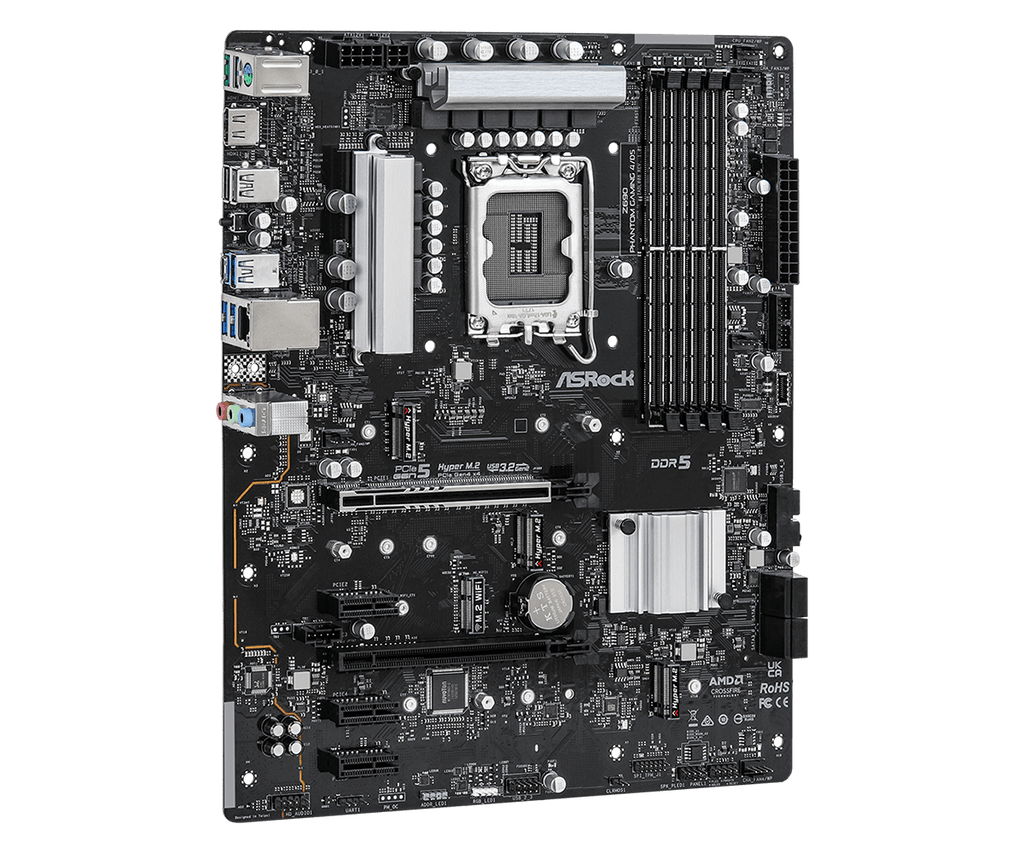

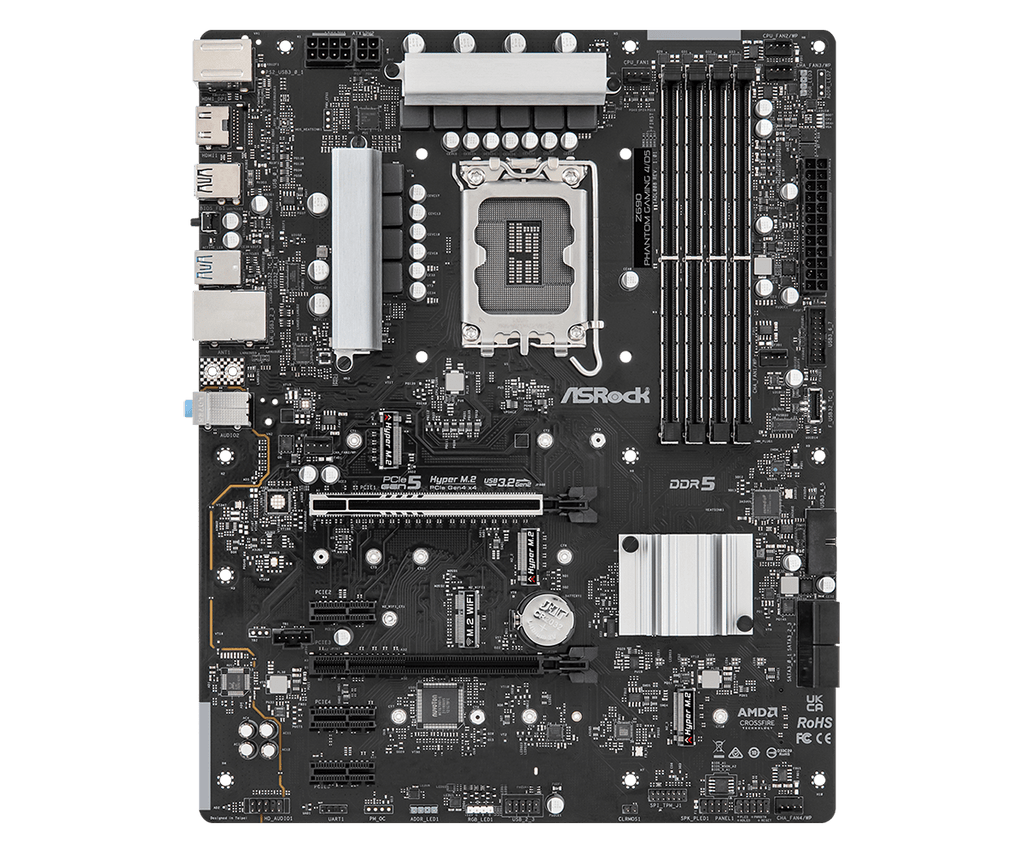

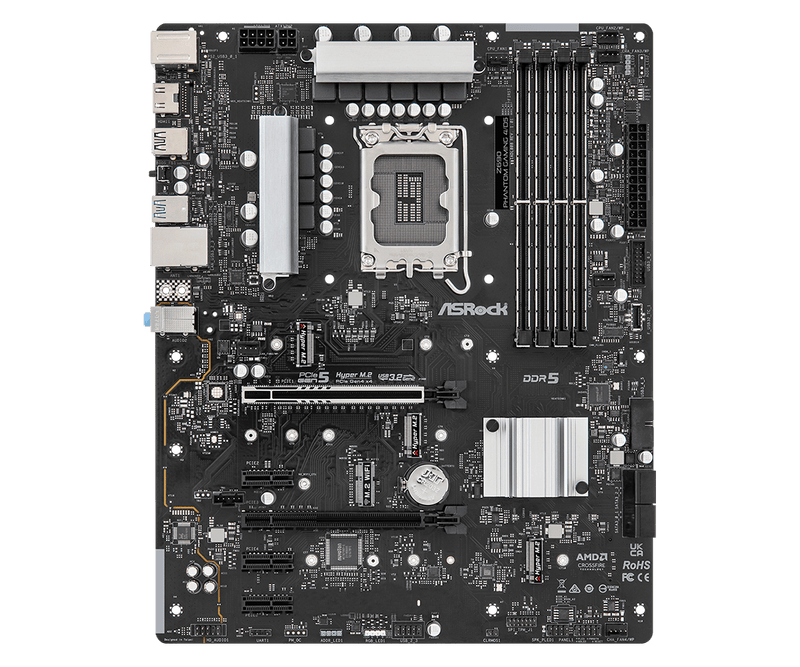

ASRock Z690 Phantom Gaming 4/D5 DDR5,LGA 1700 ATX Motherboard

ASRock USB 3.2 Gen2
- ASRock Front Type C USB 3.2 Gen2x2 header (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C port (10 Gb/s)
ASRock Super Alloy
- Advanced Inductor
- 50A Dr.MOS
- Glossy Black PCB
- High Density Moisture-Proof Fiber Circuit Board
ASRock Alloy Slot
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Power On Status Check (PSC)
ASRock Full Protection (Supports All USB, music source, network port)
ASRock Live Update & APP Shop

- Supports 14th, 13th and 12th generation Intel ^® Core™ processors (LGA1700)
- 9 power phase design
-Supports Intel ^® Hybrid Technology
- Supports Intel ^® Turbo Boost Max 3.0 technology

- Intel ^® Z690

- Dual channel DDR5 memory technology
- 4 x DDR5 slots
- Supports DDR5 non-ECC, un-buffered memory up to 5800+(OC) *
- Maximum system memory capacity: 192GB
- Supports Intel ^® Extreme Memory Profile (XMP) 3.0 Technology

- 128Mb AMI UEFI Legal BIOS, supports multi-language graphical interface
- ACPI 6.0 compliant, supports wake-up and automatic boot (Wake Up Events)
- supports SMBIOS 2.7
- CPU core/cache, CPU GT, VDD2, DRAM, VCCIN AUX, +1.8 V PROC, +1.05V PROC, +0.82V PCH, +1.05V PCH voltage multi-function regulator

-Intel®^​
​
​

- 7.1 channel high-fidelity audio (Realtek ALC897 audio codec)
- Anti-surge-
Nahimic Audio

- Gigabit network card 10/100/1000 Mb/s
- Giga PHY Intel ^® I219V
- Supports Wake-On-LAN function
- Supports lightning protection/anti-ESD static electricity
- Supports Energy Efficient Ethernet 802.3az
- Supports UEFI PXE

CPU:
- 1 x PCIe 5.0 x16 slot (PCIE1), supports x16 mode *
Chipset:
- 1 x PCIe 4.0 x16 slot (PCIE3), supports x4 mode *
- 3 x PCIe 3.0 x1 slots (PCIE2, PCIE4 and PCIE5) *
- 1 x M.2 slot (Key E), supports Type 2230 WiFi/BT PCIe WiFi module and Intel ^® CNVi (Integrated WiFi/BT)

- Supports AMD CrossFire™

CPU:
- 1 x Hyper M.2 slot (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
Chipset:
- 1 x Hyper M.2 slot (M2_2, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
- 1 x Hyper M.2 slot (M2_3, Key M), supports type 2260/2280/22110 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) mode *
- 4 x SATA3 6.0 Gb/s ports

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

- 1 x SPI TPM header
- 1 x power LED and speaker header
- 1 x RGB LED header *
- 2 x programmable LED headers **
- 1 x CPU fan port (4-pin) ***
- 1 x CPU/water pump fan port (4-pin) (smart fan speed control) ****
- 4 x case/water pump fan interface (4-pin) (smart fan speed control) *****
- 1 x 24-pin ATX power port
- 1 x 8-pin 12V power port (high-density power port)
- 1 x 4-pin 12V power port (high-density power port)
- 1 x Front Panel Audio port
- 1 x Thunderbolt™ AIC port (5-pin) (supports ASRock Thunderbolt™ 4 AIC card)
- 1 x USB 2.0 header (supports 2 USB 2.0 ports) (supports ESD protection)
- 2 x USB 3.2 Gen1 headers (supports 4 USB 3.2 Gen1 ports) (supports ESD protection)
- 1 x Front Type C USB 3.2 Gen2x2 header (20 Gb/s) (supports ESD protection)

- 3 x antenna mounting points

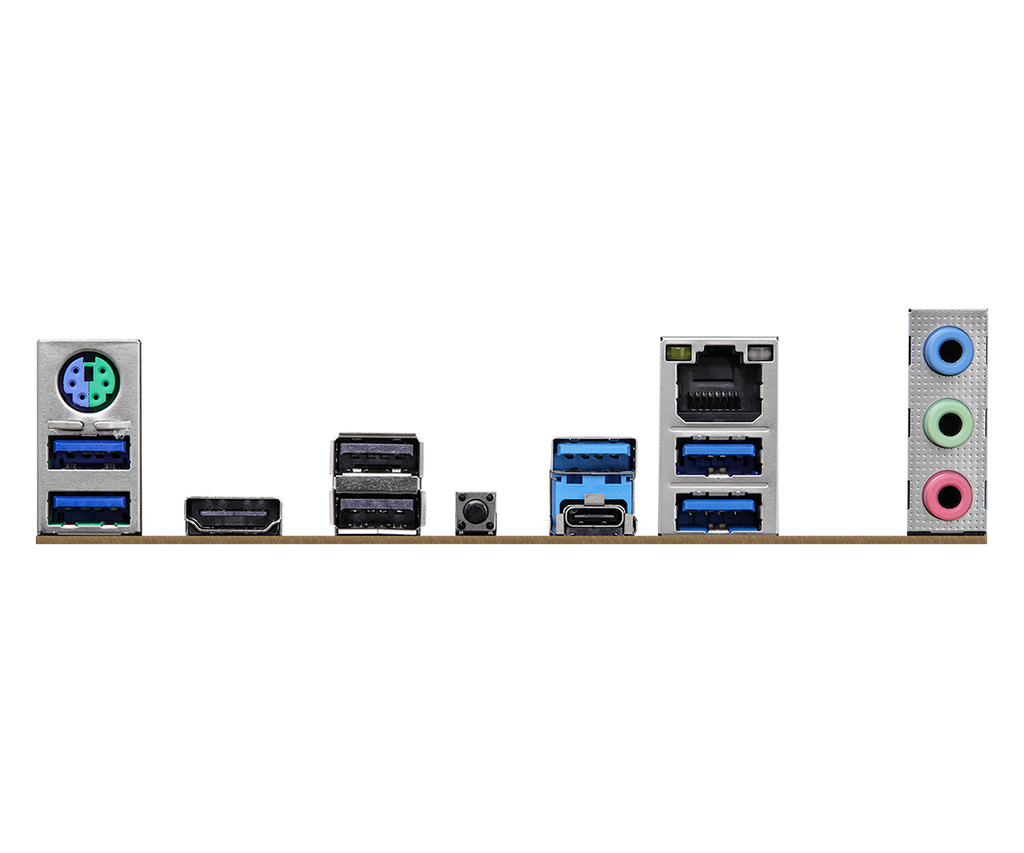

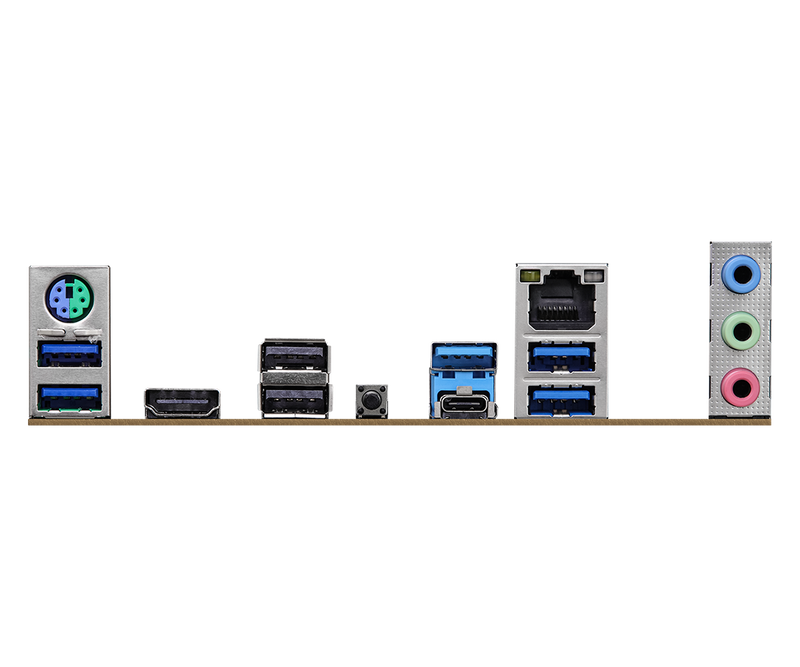

- 1 x PS/2 keyboard/mouse port
- 1 x HDMI port
- 1 x USB 3.2 Gen2 Type-A port (10 Gb/s) (ReDriver) (Supports ESD protection)
- 1 x USB 3.2 Gen2 Type-C port (10 Gb/s) (ReDriver) (Supports ESD protection)
- 4 x USB 3.2 Gen1 ports (supports ESD protection)
- 2 x USB 2.0 ports (supports ESD protection)
- 1 x RJ-45 network port with LED indicators (ACT/LINK LED and SPEED LED)
- 1 x BIOS Flashback button
- HD Audio Jack: Line In/Front Speaker/Microphone

software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Polychrome SYNC
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My favorite UEFI
- ASRock Instant Flash
- ASRock Easy RAID Installer

- Drivers, application software, anti-virus software (trial version)

- Quick installation guide, support CD, I/O cover
- 2 x SATA data cable
- 4 x M.2 slot screws

- Fan tachometer: CPU, CPU/water pump, chassis/water pump fan
- Silent fan (automatically adjusts chassis fan speed according to CPU temperature): CPU, CPU/water pump, chassis/water pump fan
- Fan multi-speed control: CPU, CPU/water pump, chassis/water pump fan
- Real-time voltage monitoring: CPU core, VCCSA, VDD2, +1.05V PROC, +0.82V PCH, ATX+5VSB, VCCIN AUX, PCH, +12V, +5V, +3.3V

- ATX form factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
-Solid capacitive design

- Supports Microsoft ^® Windows 10 64-bit / 11 64-bit
