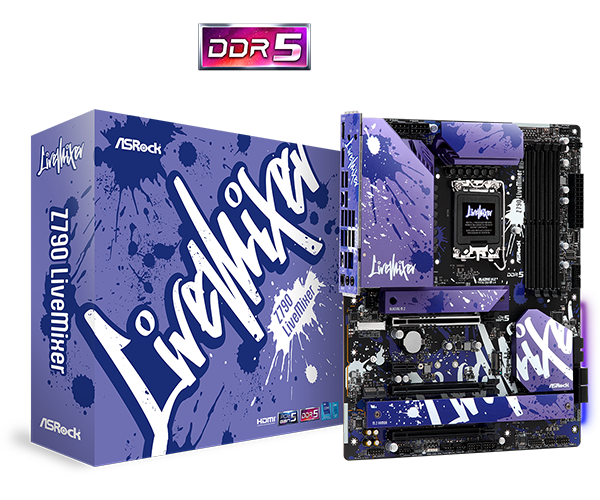

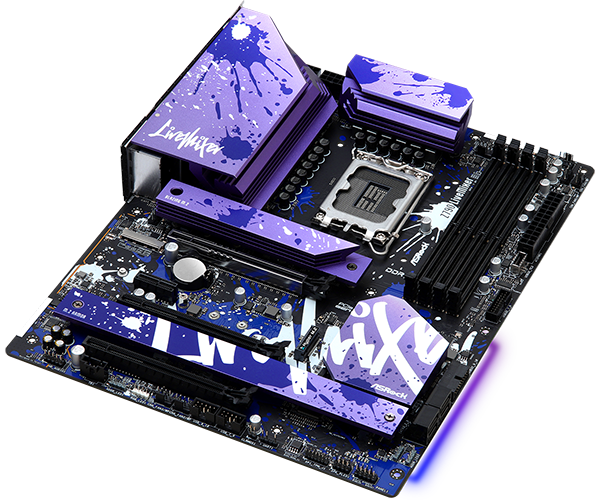

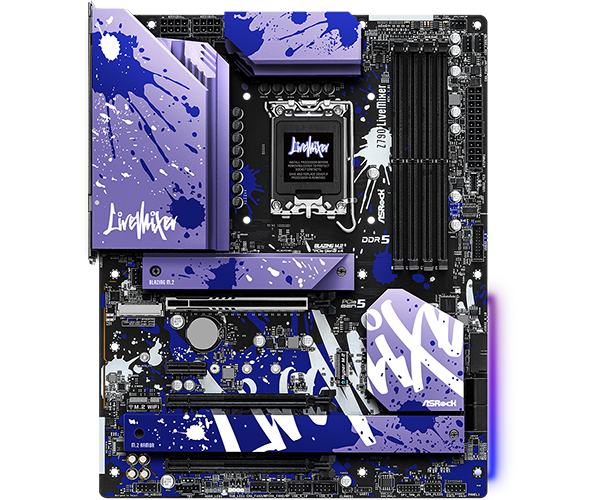

ASRock Z790 LiveMixer DDR5, LGA 1700 ATX Motherboard

• Unique Feature
  Superb Productivity
  - PCIe Gen5 (Graphics, M.2)
  -Dual Channel DDR5
  Rock-Solid Durability
  - 14+1+1 Power Phase, 60A SPS for VCore+GT with Enlarged Heatsink Armor
  - Flexible Integrated I/O Shield
  - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) for VCore
  Ultrafast Connectivity
  - 2.5G LAN
  -ASRock Lightning Gaming Ports
  EZ Update
  -ASRock Auto Driver Installer
  EZ Troubleshooter
  - ASRock Post Status Checker
• CPU
  - Supports ^13th Gen & ^12th Gen and next gen Intel ^® Core™ Processors (LGA1700)
  -Supports ^Intel® Hybrid Technology
  -Supports ^Intel® Turbo Boost Max 3.0 Technology
  -Supports ^Intel® Thermal Velocity Boost (TVB)
  -Supports ^Intel® Adaptive Boost Technology (ABT)
• Chipset
  ^-Intel® Z790
• Memory
  - Dual Channel DDR5 Memory Technology
  - 4 x DDR5 DIMM Slots
  - Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC) *
  - Max. capacity of system memory: 192GB
  -Supports ^Intel® Extreme Memory Profile (XMP) 3.0



  * 1DPC 1R Up to 7200+ MHz (OC), 4800 MHz Natively.
  1DPC 2R Up to 6000+ MHz (OC), 4400 MHz Natively.
  2DPC 1R Up to 5600+ MHz (OC), 4000 MHz Natively.
  2DPC 2R Up to 4800+ MHz (OC), 3600 MHz Natively.
• BIOS
  - 128Mb AMI UEFI Legal BIOS with GUI support
• Graphics
  ^-Intel® Xe Graphics Architecture (Gen 12)
  - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
  - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
  - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz



  * ^Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
• Audio
  - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  - Nahimic Audio
• LAN
  - 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  - Dragon RTL8125BG
  - Supports Dragon 2.5G LAN Software
  -Smart Auto Adjust Bandwidth Control
  - Visual User Friendly UI
  - Visual Network Usage Statistics
  - Optimized Default Setting for Game, Browser, and Streaming Modes
  - User Customized Priority Control

Slots

CPU:

- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode *
Chipset:
- 2 x PCIe 4.0 x16 Slots (PCIE3 and PCIE4), support x4 mode *
- 1 x PCIe 3.0 x1 Slot (PCIE2) *
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel ^® CNVio/CNVio2 (Integrated WiFi/BT)
- Supports AMD CrossFire™
