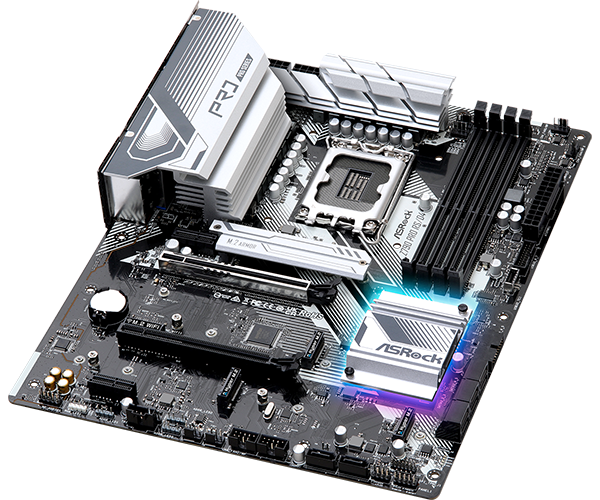

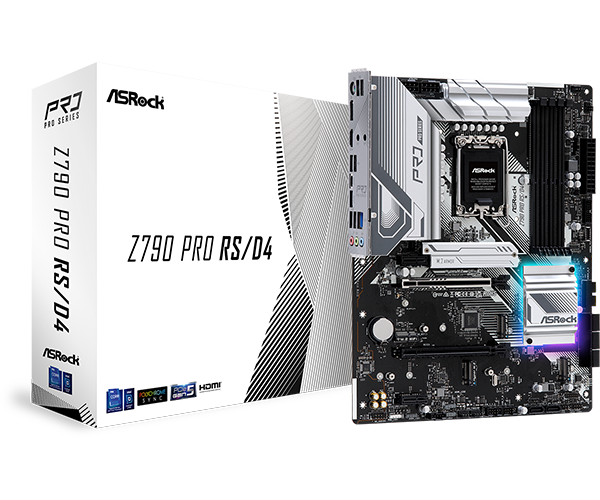

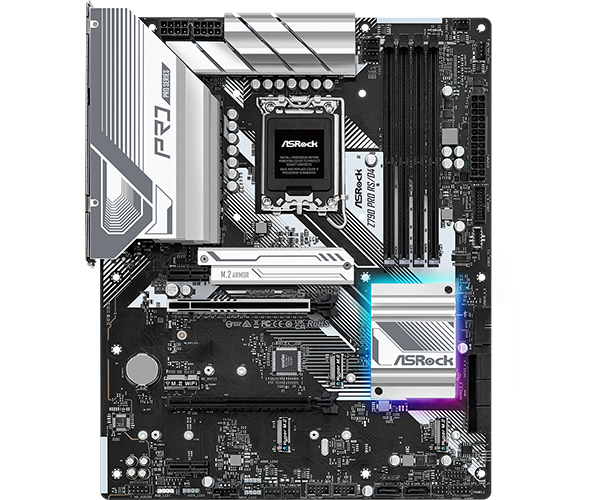

ASRock Z790 Pro RS/D4 DDR4,LGA 1700 ATX Motherboard

Roll over image to zoom in Click on image to zoom

Unique Feature

Superb Productivity
- PCIe Gen5 (Graphics)
Rock-Solid Durability
- 14+1+1 Power Phase, 50A Dr.MOS for VCore+GT with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
Ultrafast Connectivity
- 2.5G LAN EZ Update
-ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
CPU

- Supports ^13th Gen & ^12th Gen and next gen Intel ^® Core™ Processors (LGA1700)
-Supports ^Intel® Hybrid Technology
-Supports ^Intel® Turbo Boost Max 3.0 Technology
-Supports ^Intel® Thermal Velocity Boost (TVB)
-Supports ^Intel® Adaptive Boost Technology (ABT)
Chipset

^-Intel® Z790
Memory

- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC) *

- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
-Supports ^Intel® Extreme Memory Profile (XMP) 2.0

* 1DPC 1R Up to 5333+ MHz (OC), 3200 MHz Natively.
1DPC 2R Up to 4400+ MHz (OC), 3200 MHz Natively.
2DPC 1R Up to 4533+ MHz (OC), 3200 MHz Natively.
2DPC 2R Up to 4266+ MHz (OC), 3200 MHz Natively.
BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics

^-Intel® Xe Graphics Architecture (Gen 12)
- 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

* ^Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
-Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control

Slots

CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE2), supports x16 mode *
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode *
- 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) *
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel ^® CNVio/CNVio2 (Integrated WiFi/BT)

- Supports AMD CrossFire™

* Supports NVMe SSD as boot disks

Storage

CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode *
- 8 x SATA3 6.0 Gb/s Connectors

* Supports ^Intel® Volume Management Device (VMD)
Supports NVMe SSD as boot disks

RAID

- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices

USB

- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 6 x USB 3.2 Gen1 (2 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)

* All USB ports support ESD Protection

Connector

- 1 x eDP Signal Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header *
- 3 x Addressable LED Headers * *
- 1 x CPU Fan Connector (4-pin) * * *
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * * * *
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * * * * *
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)

* Supports in total up to 12V/3A, 36W LED Strip

* * Support in total up to 5V/3A, 15W LED Strip

* * * CPU_FAN1 supports the fan power up to 1A (12W).
* * * * CPU_FAN2/WP supports the fan power up to 2A (24W).

* * * * * CHA_FAN1~5/WP support the fan power up to 2A (24W).

* * * * * CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.

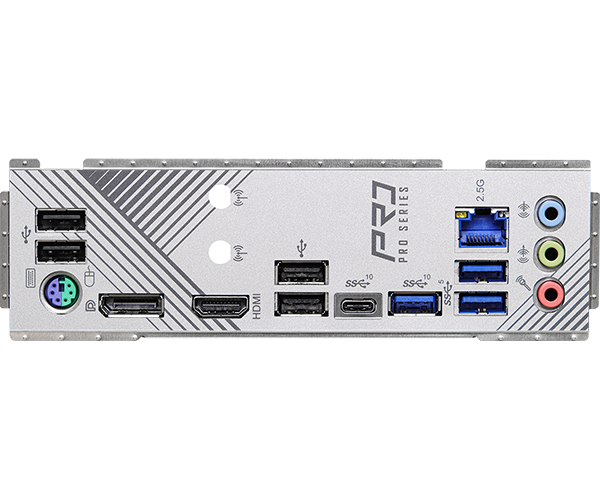

Rear Panel I/O

- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
-ASRock Polychrome SYNC *
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
-ASRock Auto Driver Installer
- ASRock Instant Flash
- ASRock Easy RAID Installer

* These utilities can be downloaded from ASRock Live Update & APP Shop.

Accessories

- 1 x User Manual
- 2 x SATA Data Cables
- 5 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket

Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 2oz Copper PCB

^-Microsoft® ^Windows® 10 64-bit / 11 64-bit

* ^Windows® 10 only supports version 21H2 or later

Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
