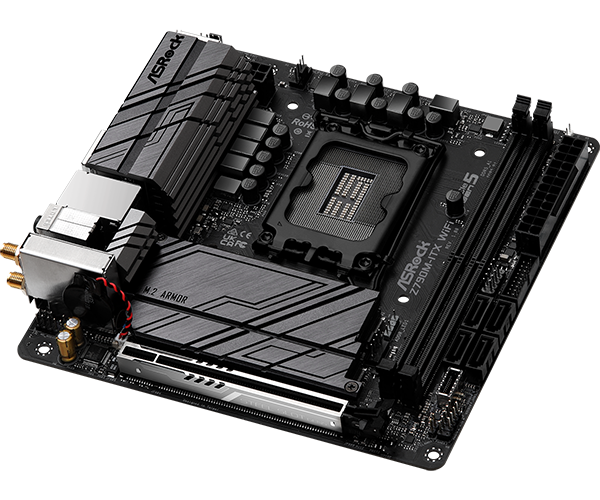

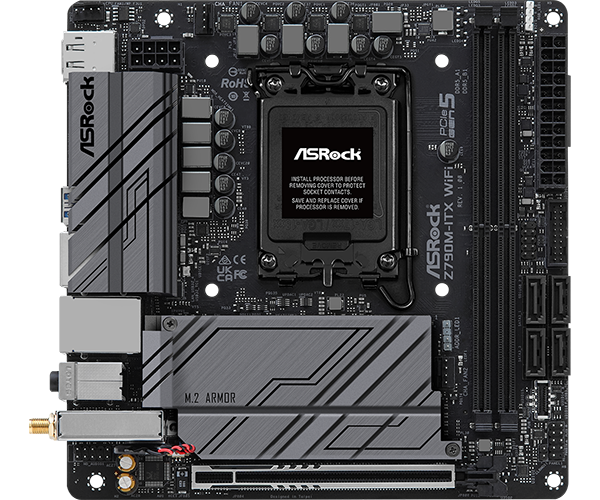

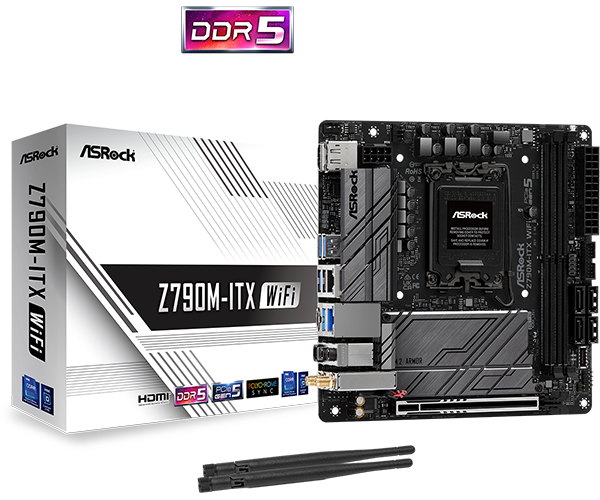

ASRock Z790M-ITX WiFi DDR5,LGA 1700 Mini-ITX Motherboard
ASRock Z790M-ITX WiFi DDR5,LGA 1700 Mini-ITX Motherboard
ASRock Z790M-ITX WiFi DDR5,LGA 1700 Mini-ITX Motherboard
ASRock Z790M-ITX WiFi DDR5,LGA 1700 Mini-ITX Motherboard
Roll over image to zoom in Click on image to zoom
ASRock Z790M-ITX WiFi DDR5,LGA 1700 Mini-ITX Motherboard
ASRock Z790M-ITX WiFi DDR5,LGA 1700 Mini-ITX Motherboard
ASRock Z790M-ITX WiFi DDR5,LGA 1700 Mini-ITX Motherboard
ASRock Z790M-ITX WiFi DDR5,LGA 1700 Mini-ITX Motherboard

ASRock Z790M-ITX WiFi DDR5,LGA 1700 Mini-ITX Motherboard

Save $229.00
ASROCK
Price:
HK$1,670.00 HK$1,899.00

Description

    • Unique Feature
      Superb Productivity
      - PCIe Gen5 (Graphic)
      -Dual Channel DDR5
      Rock-Solid Durability
      - 7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
      - Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
      Ultrafast Connectivity
      - 2.5G LAN, 802.11ax Wi-Fi 6E Module
      EZ Update
      -ASRock Auto Driver Installer
    • CPU
      - Supports 13th Gen & 12th Gen and next gen Intel ® Core™ Processors (LGA1700)
      -Supports Intel® Hybrid Technology
      -Supports Intel® Turbo Boost Max 3.0 Technology
      -Supports Intel® Thermal Velocity Boost (TVB)
      -Supports Intel® Adaptive Boost Technology (ABT)
    • Chipset
      -Intel® Z790
    • Memory
      - Dual Channel DDR5 Memory Technology
      - 2 x DDR5 DIMM Slots
      - Supports DDR5 non-ECC, un-buffered memory up to 7000+(OC) *
      - Max. capacity of system memory: 96GB
      -Supports Intel® Extreme Memory Profile (XMP) 3.0

      * 1DPC 1R Up to 7000+ MHz (OC), 5600 MHz Natively.
      1DPC 2R Up to 5200+ MHz (OC), 5200 MHz Natively.
    • BIOS
      - 128Mb AMI UEFI Legal BIOS with GUI support
    • Graphics
      -Intel® Xe Graphics Architecture (Gen 12)
      - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
      - 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
      - 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz

      * Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    • Audio
      - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
      - Nahimic Audio
    • LAN
      - 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel ® I226V)
      - 1 x Gigabit LAN 10/100/1000 Mb/s (Intel ® I219V)
    • Wireless LAN
      - 802.11ax Wi-Fi 6E Module
      - Supports IEEE 802.11a/b/g/n/ac/ax
      - Supports Dual-Band 2x2 with extended 6GHz band support *
      - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
      - Supports Bluetooth 5.3 + High speed class II
      -SupportsMU-MIMO

      * Wi-Fi 6E (6GHz band) will be supported by Microsoft ® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows ® Update and software updates once available.
      A 6GHz compatible router is required for 6E functionality.
    • Slots
      CPU:
      - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode *
      Chipset:
      - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel ® CNVio/CNVio2 (Integrated WiFi/BT)

      * Supports PCIe riser cards to extend one x16 slot to two x8 slots
      Supports NVMe SSD as boot disks
    • Storage
      CPU:
      - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode *
      Chipset:
      - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen4x4 (64 Gb/s) modes *
      - 4 x SATA3 6.0 Gb/s Connectors

      * Supports Intel® Volume Management Device (VMD)
      Supports NVMe SSD as boot disks
    • RAID
      - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
      - Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *

      * Requires additional M.2 NVMe expansion cards to support RAID 5

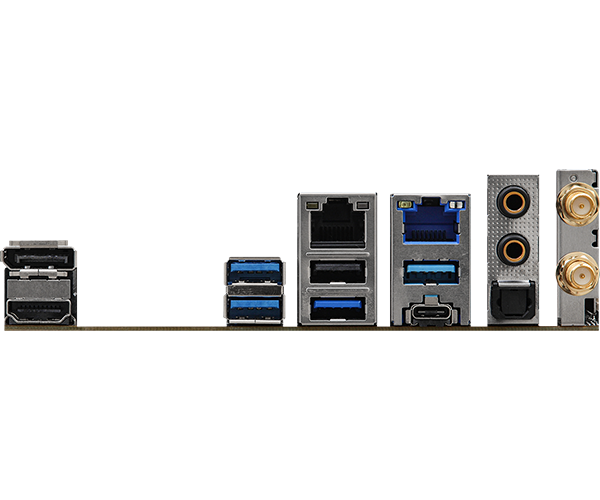

  • USB
    - 1 x USB 3.2 Gen2x2 Type-C (Rear)
    - 1 x USB 3.2 Gen2x2 Type-C (Front)
    - 4 x USB 3.2 Gen2 Type-A (Rear)
    - 2 x USB 3.2 Gen1 (Front)
    - 3 x USB 2.0 (1 Rear, 2 Front)

    * All USB ports support ESD Protection
  • Connector
    - 1 x eDP Signal Connector
    - 1 x RGB LED Header *
    - 1 x Addressable LED Header * *
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed ​​Control) * * *
    - 2 x Chassis Fan Connectors (4-pin) * * * *
    - 1 x 24 pin ATX Power Connector
    •
    - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) * * * * *

    * Supports in total up to 12V/3A, 36W LED Strip

    * * Supports in total up to 5V/3A, 15W LED Strip

    * * * CPU_FAN1/WP supports the fan power up to 2A (24W).
    CPU_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

    * * * * CHA_FAN1~2 support the fan power up to 1A (12W).

    * * * * * Actual speed depends on USB devices and extension cable in the chassis.
