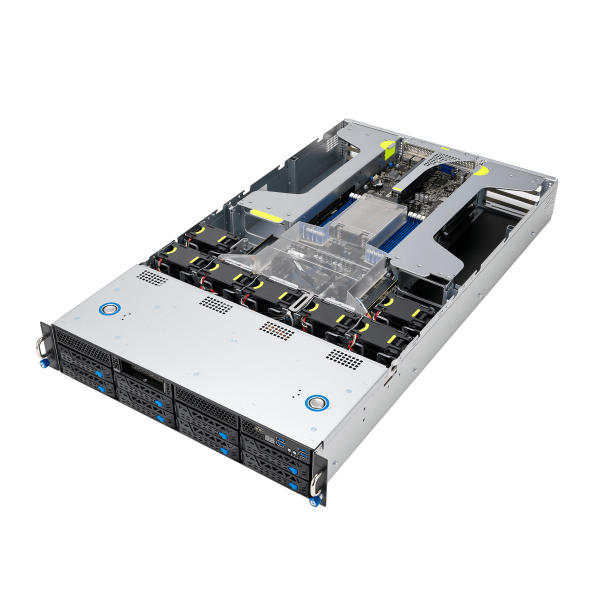

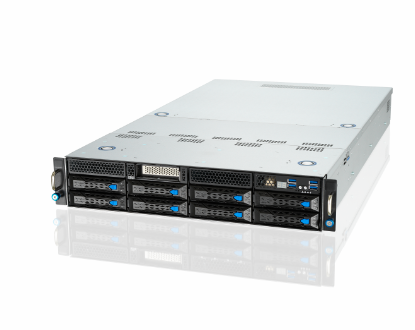

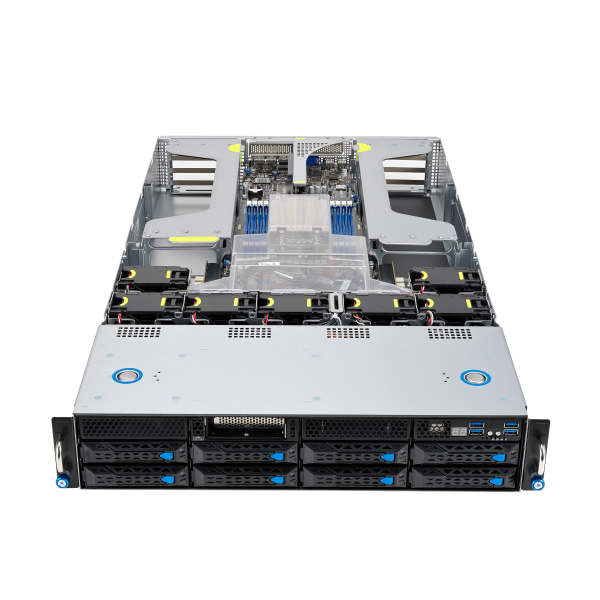

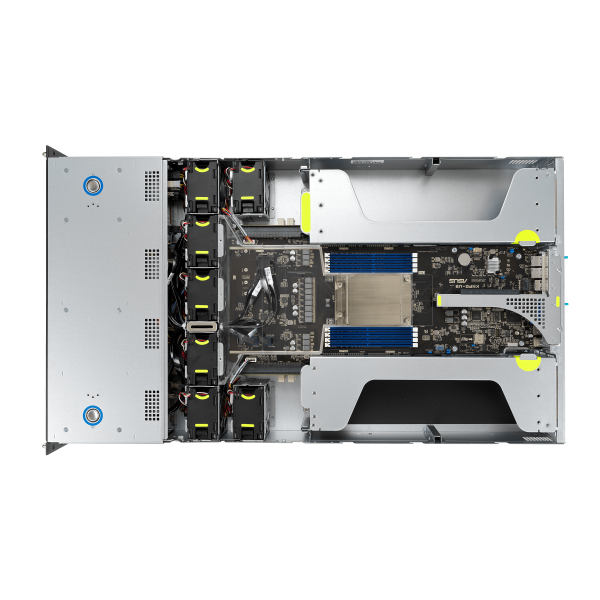

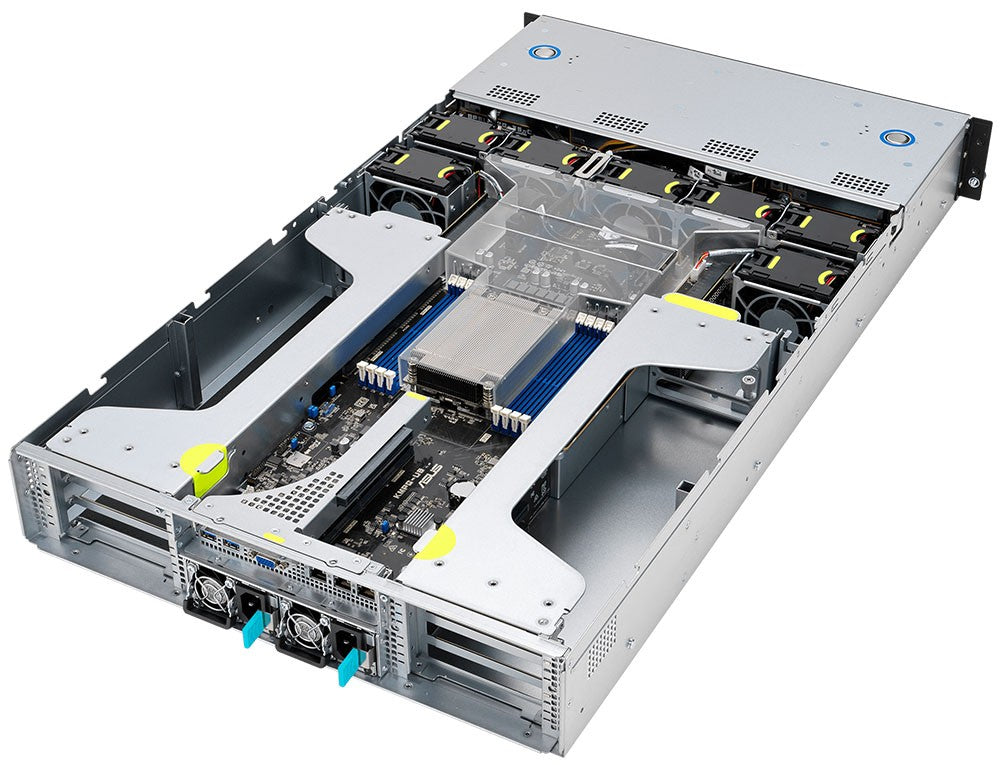

ASUS ESC4000A-E11 2U Dual Socket (AMD EPYC™ 7002/7003) GPU Server (Ask)

main feature

• Provides up to 11 PCIe® 4.0 slots to provide higher bandwidth and faster data transfer rates
• GPU-optimized design uses four dual-socket or eight single-socket GPUs, including NVIDIA® A100, Tesla® T4 or Quadro®
• Xilinx Alveo certified servers support Alveo U50, providing optimized acceleration capabilities to support workloads across cloud and on-premises data centers
• Supports NVIDIA® NVLink bridge to scale performance to meet visual computing workload needs
• Front panel options include PCIe Gen 4.0, OCP 3.0, NVMe and M.2, providing flexibility, performance and scalability to adapt to changing business needs
• High energy efficiency with 2200W or 1600W Platinum redundant power supply
• ASUS thermal control technology enables more efficient power usage in large-scale environments
• ASUS performance tuning technology increases workload transfer speeds to achieve optimal server performance
• Built-in ASUS ASMB10-iKVM can be used with ASPEED AST2600 controller for out-of-band management
• Integrated PFR FPGA serves as platform root of trust solution to provide firmware resiliency
• Designed with two hot-swappable and hot-swappable fans, it provides complete redundancy protection and heat dissipation efficiency.

Powered by AMD EPYC™ 7003 and 7002 series processors

AMD EPYC™ 7003 and 7002 are the world’s first 7nm data center designs supporting PCI ^Express® 4.0 x86 server processor can provide 2 times the performance and 4 times the floating point computing power. Supporting up to 64 cores, 128 threads, 8 channels of DDR4 3200, 128 PCle 4.0 channels and 280 W thermal design power (TDP), this processor also has memory and virtualization encryption functions to ensure absolute security .

PCIe 4.0 expansion

^PCle® 4.0 provides twice the bandwidth of PCle 3.0, reaching 16GT/s, while providing lower power consumption, better channel scalability and downward compatibility. ASUS ESC4000A-E11 is equipped with up to 11 PCIe 4.0 slots to support various graphics cards, storage devices and network applications, such as HBA/RAID, NIC and InfiniBand (IB) cards.

Supports GPU and FPGA

ESC4000A-E11 has a powerful GPU architecture, supporting up to four dual-socket or eight single-socket GPUs in a 2U rack, including ^NVIDIA® A100 and AMD Instinct™ MI100 accelerometers to meet the needs of AI and high-performance computing (HPC) and safely execute workloads in virtual environments. ESC4000-E10 is also a Xilinx Alveo certified server, providing optimal acceleration for workloads in hybrid cloud environments such as financial computing, machine learning, computing storage, and data search and analysis.

• CPU

  1 x Socket SP3 (LGA 4094) Option 1
  AMD EPYC™ 7003 Series
  AMD EPYC™ 7002 Series
  3rd Gen AMD EPYC™ processors with AMD 3D V-Cache™ technology

• Memory

  Total number of slots: 8 (8-channel) Option 1
  Total capacity: up to 2048GB RDIMM
  Memory type:
  DDR4 3200 RDIMM
  DDR4 3200 LRDIMM
  DDR4 3200 LR-DIMM 3DS
  Memory size:
  256GB, 128GB, 64GB, 32GB, 16GB
  * Please refer to the support page for the latest updates.

• Expansion slot

  Rear:
  - 4 x PCIe x16 slots (Gen4 x16 link, FH,FL) for dual-slot GPU cards or
  8 x PCIe x16 slots (Gen4 x8 link, FH,FL) for single-slot GPU cards

  - 2 x PCIe x16 slots (Gen4 x16 link, LP,HL)

  Front:
  - SKU-1 (default)
  1 x PCIe x8 slot (Gen4 x8 link, LP,HL)

  - SKU-2 (by request)
  1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or
  1 x OCP3.0 slot (Gen4 x8 link) by switching cables

  - SKU-3 (by request)
  1 x PCIe x8 slot (Gen4 x8 link, LP,HL) or
  2 x M.2 socket (Gen4 x4 link, up to 22110 module) by switching cables


• Data storage application

  SATA Controller: CPU Integrated
  Optional kits Controller:
  ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
  ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card

• Drive slot

  8 x 3.5" or 2.5" Hot-swap Storage Bays
  (Backplane Supports 4 x SATA/SAS + 4 x SATA/SAS/NVMe Devices)

  1 x M.2 socket (Gen4 x4 link, up to 22110 on-motherboard)

• Network function

  1 x Dual Port Intel I350-AM2 Gigabit LAN controller + 1 x Mgmt LAN

• Multi-GPU support

  Please find the latest GPU support from https://servers.asus.com/support/gpu

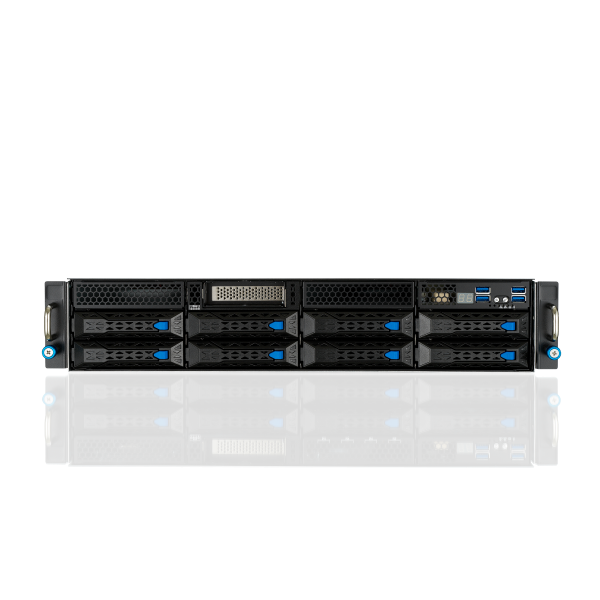

• Front panel output terminal

  1 x Q-code/port-80 LED
  4 x USB 3.2 Gen1 ports

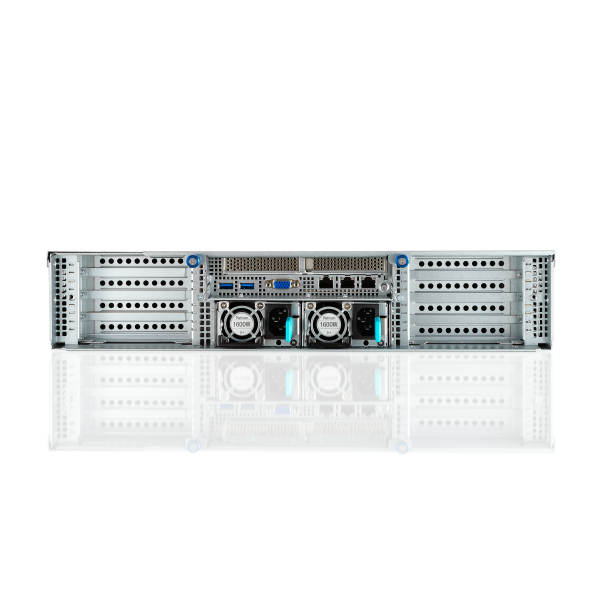

• Rear I/O Ports

  2 x USB 3.2 Gen1 port
  1 x VGA port
  1x Management port (RJ45)
  2 x Gigabit LAN ports (RJ45)

• Switch/LED

  Rear:
  1 x Power Button/LED
  1 x Location LED
  1 x Message LED
  1 x HDD Access LED

  Front:
  1 x Power Button/LED
  1 x Location Button/LED
  2 x LAN LED
  1 x Message LED
  1 x HDD Access LED

• Operating system support

  Please find the latest OS support from https://servers.asus.com/support/os

• Management tools

  ASUS Control Center Enterprise (in-band)
  ASMB10-iKVM for KVM-over-IP (out-of-band/BMC AST2600)

• Regulatory Compliance

  BSMI, CE, RCM, FCC(Class A)

• Product Size

  800mm x 440mm x 88.9mm (2U)
  31.50" x 17.22" x 3.5"

• Motherboard size

  2U

• weight

  Net Weight: 34 Kg.
  Gross Weight: 44 Kg.

• Power Specifications

  1+1 Redundant 1600W 80 PLUS Platinum Power Supply
  Rating: 100-127Vac/200-240Vac,12.9A/9.5A,50-60Hz

  1+1 Redundant 2200W 80 PLUS Platinum Power Supply
  Rating: 100-127Vac/200-240Vac,14A/12.6A,47-63Hz

• operating environment

  Operation temperature: 10℃ ~ 35℃ / Non operation temperature: -40℃ ~ 70℃
  Non operating humidity: 20% ~ 90% (Non condensing)

• Remark

  *Users need to remove Slimline cables from the PCIe riser board, and re-connect the cables to the backplane for total 4 x NVMe devices.

  ** There is a MicroSD slot on motherboard allowing you to install a MicroSD card to log BMC events.

  ***We also provide special GPU riser cards (with PCIe-switch) could support 8 single-slot GPU cards (x16 link for each). If customers need the customization, please contact ASUS sales representative for detail.
