Description
Router, 4K-QAM, MLO, AI Detection 2.5G WAN/LAN port , Four 1G ports, Commercial-Grade Network Security, Parental Control, IoT network, Kid’s network, VPN network
- Ultrafast WiFi 7 -- WiFi 7 (802.11be) dual-band extendable router boosts speeds up to 3600 Mbps, with 4096-QAM increasing a single frequency band's transmission speed by 1.2 times

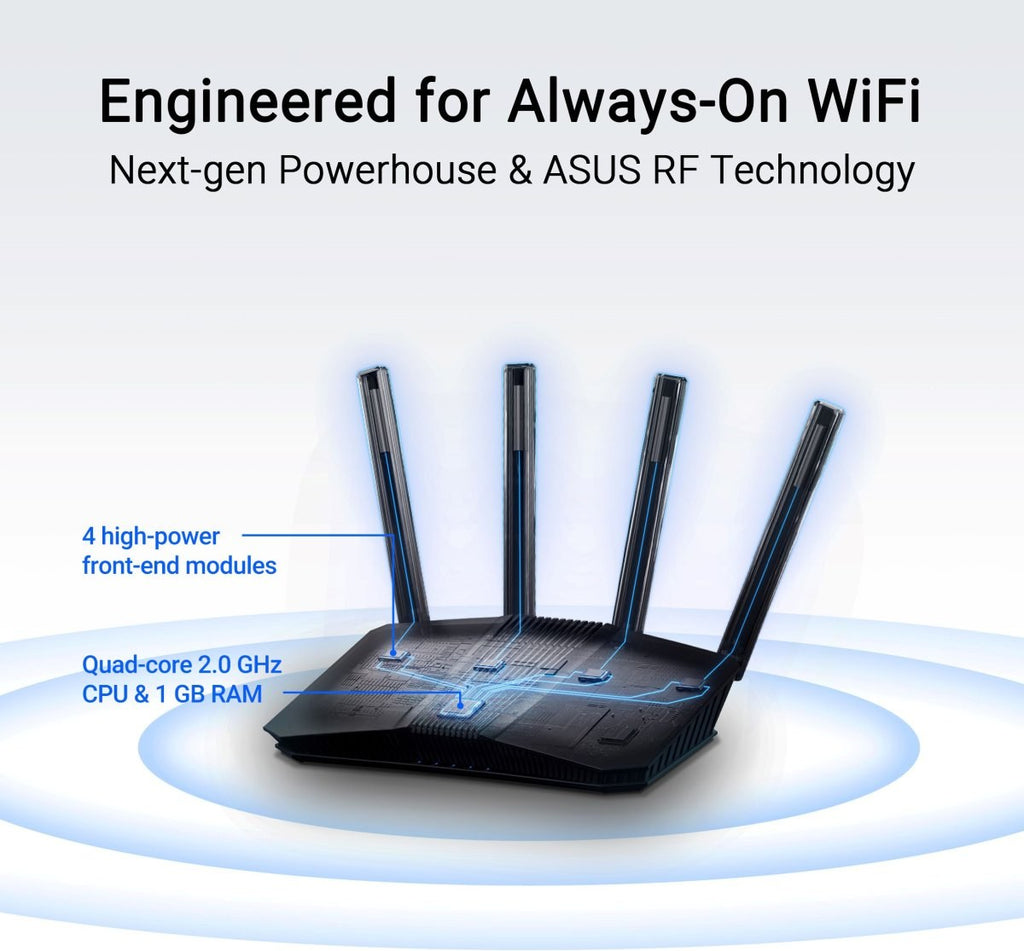

- High Performance CPU -- Equipped with the latest 2.0GHz Quad-Core CPU from Broadcom, supporting up to 20K DMIPS computing power, effortlessly handling various software and hardware features.

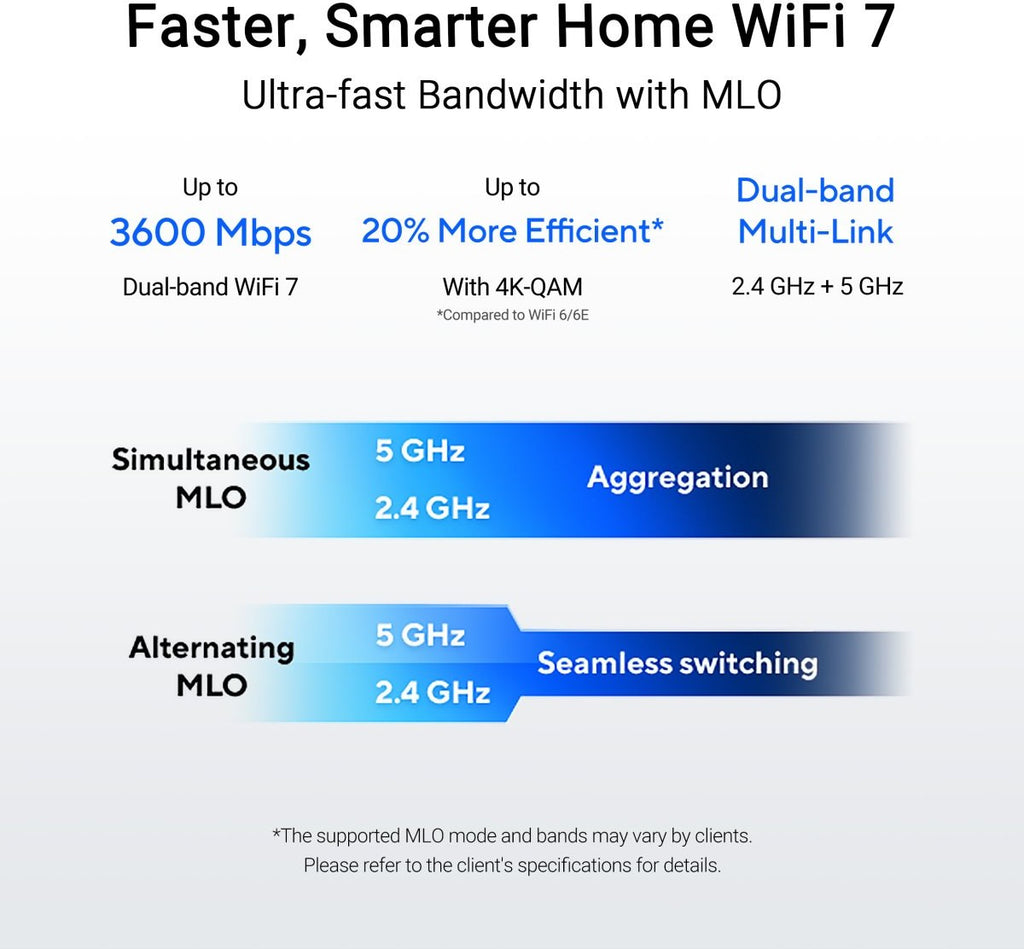

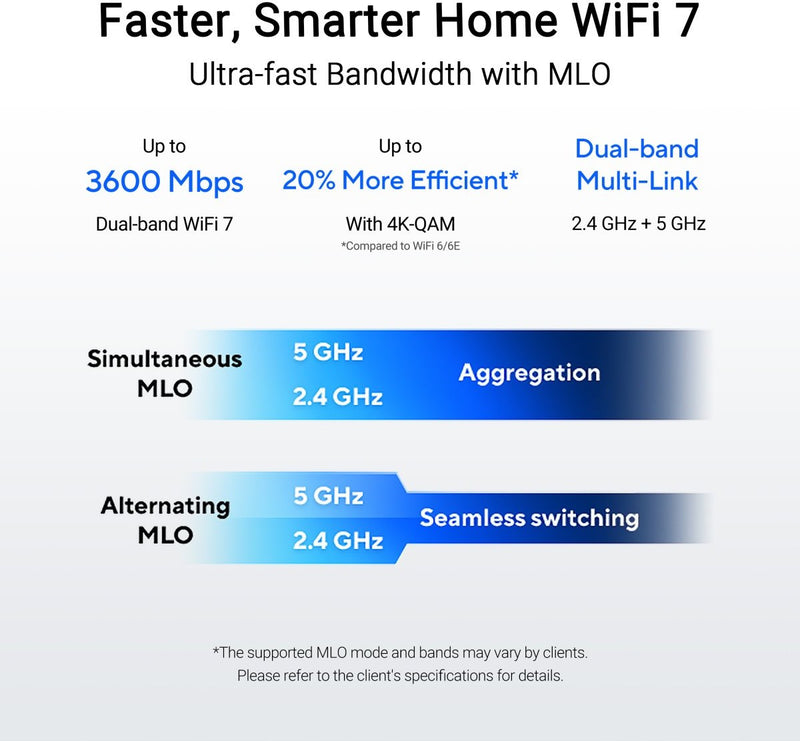

- Unleashing Multi-link operation (MLO) for Ultra-Smooth Connectivity -- Link to multiple bands at the same time to ensure stable internet connections and efficient data transfers

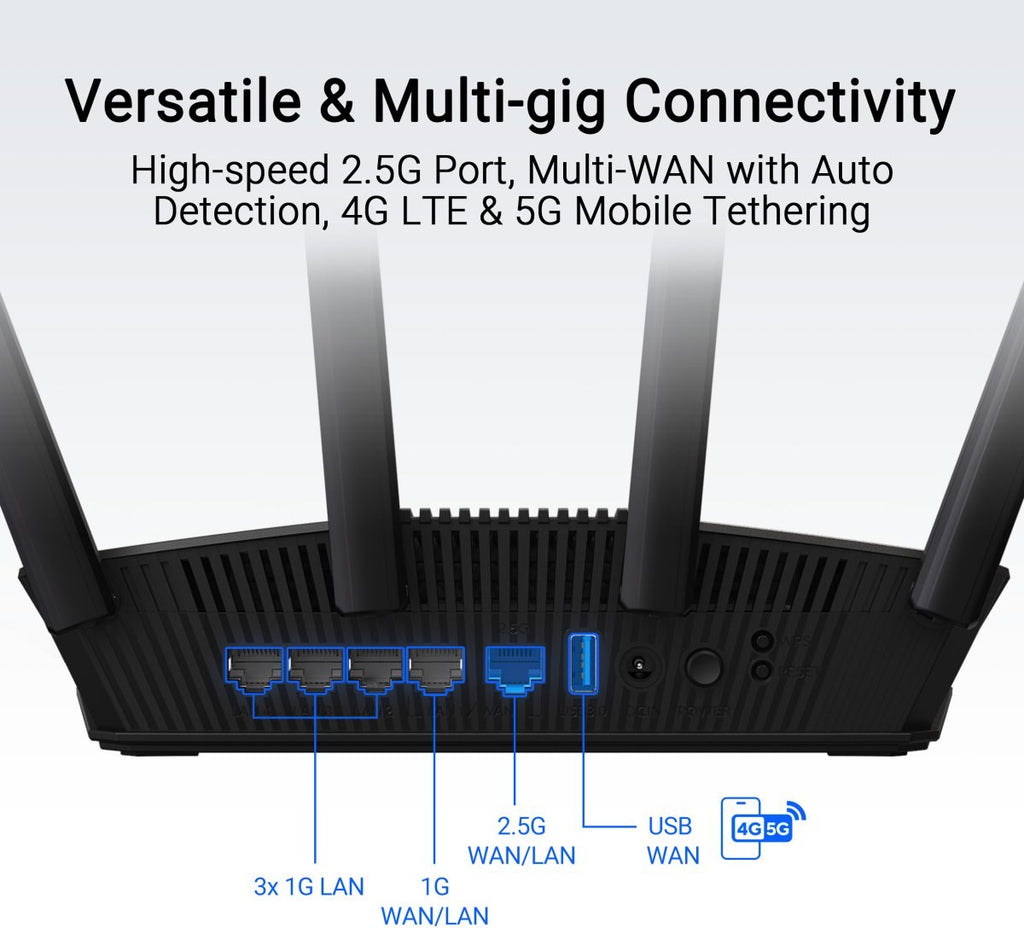

- Al Detection on WAN Input -- flexible WAN inputs with a 2.5 Gb WAN/LAN port and a 1 Gb WAN/LAN port. It can automatically detect the WAN input and configure itself for an easier setup process.

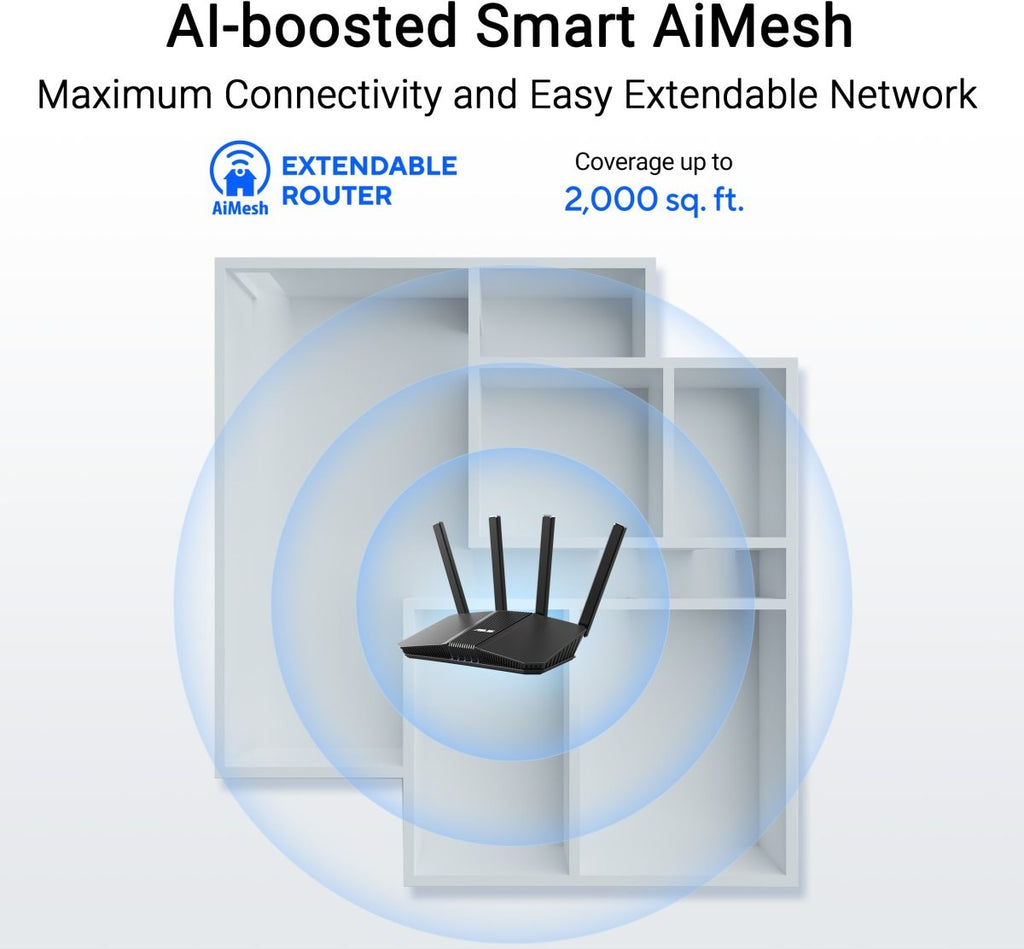

- Hassle-free AiMesh Extendable Network -- AiMesh extendable routers enable whole home seamless roaming with rich, advanced features.
- Commercial-Grade Network Security-- Network security with commercial-grade AiProtection Pro powered by Trend Micro™, plus a one-tap security scan and Safe Browsing.
Technical Specification
Network standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
, IEEE 802.11ax, 802.11be, IPv4, IPv6
Product segment
BE3600 maximum BE performance: 688+2882 Mb/s
Coverage
Large households
Data transfer rate
802.11be (2.4 GHz) : up to 688 Mb/s
802.11be (5GHz) : up to 2882 Mbps
Antenna
External antenna x 4
Transmit/receive
2.4 GHz 2x2
5 GHz 2x2
Processor
2.0 GHz core processor
Capacity memory
256 MB Flash
1 GB RAM
WiFi Technology
MLO (Multilink Operation)
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard and universal
4096 QAM high data transfer rate
Bandwidth 20/40/80/160 MHz RJ45
ports
for 2.5 gigabit BaseT for WAN/LAN x 1
RJ45 for gigabit BaseT for WAN/LAN x 1
J45 for gigabit BaseT for LAN x 3
USB3.2 Gen 1 x 1
Button
WPS button, Reset button, Power button
LED Indicator
Power x 1
2.4 GHz x 1
5GHz x 1
LAN x 1
WAN x 1
Power
AC input: 100 V ~ 240 V (50 ~ 60 Hz)
DC output: 12 V with max. current 2 A
Operating mode
Wireless router mode
Access point mode
Media bridge mode
Repeater
mode AiMesh mode
Product dimensions
238*193*59 mm
Product weight
461 g
