Description
PN:92W02-T0200001

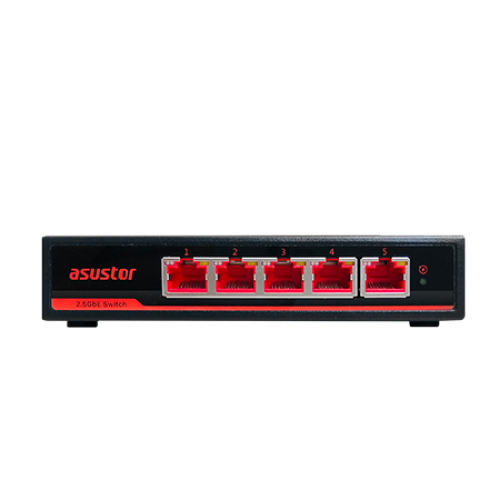

Description: ASW205T, 5-port 2.5GBase-T Unmanaged Switch
GTIN-13 (EAN): 4710474838523
UPC: 887372901506
Dimension: 90 x 140 x 28 (mm)
Hardware Specifications
• Management Type: Unmanaged
• Chipset: RTL8731+RTL8221B
• Number of Ports:５
• Speed: 2.5Gbps /1Gbps / 100M
• Jumbo Frames: 12K
• Supported Standards
IEEE 802.3 Ethernet
IEEE 802.3u (100BASE-T)
IEEE 802.3ab,(1000BASE-T)
IEEE 802.3bz (2.5GBase-T)
IEEE 802.3x (Full-Duplex Flow Control)
• Switching Capacity: 25Gbps
• MAC Address Table: 16K
• Total Non-Blocking Throughput: 12.5Gbps
• Packet Buffer Memory: 4.1Mbit
• Packet Forwarding Rate:18.6Mpps
• Advanced Features: IEEE 802.3X Flow Control
• Transfer Method: Store and Forward
• Power Supply Description: Adapter
• Max. Power Consumption: 10W
• Input Power Type: DC
• AC Input Voltage Range: 100V~240V 50/60Hz
• Fanless: Yes
• LED Indicators
Power
Per Port: Speed/Activity
• Operating Temperature: 0˚C to 40°C (32°F to 104°F)
• Operating Humidity: < 85% No condensation
• Non-Operating Temperature: -10°C-85°C (14-176°F)
• Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC
