Description
- Quad-Core 10nm Intel Celeron N5105 CPU
- 12x M.2 NVMe slots
- Megafast 10-Gigabit Ethernet
- 4 GB of fast and efficient DDR4-2933 RAM
- Dual USB 3.2 Gen 2
- HDMI 2.0b
- S/PDIF output for amazing sound quality
- Smooth 4K hardware transcoding
- Supports Wake on LAN
Hardware Specifications
CPU
CPU ModelIntel Celeron N5105CPU Architecturex64 64-bitCPU FrequencyQuad-Core 2.0GHz (burst up 2.90 GHz)
Memory
Memory4GB SO-DIMM DDR4 Compatibility Memory Module Pre-installed4GB (1x 4GB) Total Memory Slots2Memory Expandable up to16GB (2x 8GB)
- Support mixed capacity
- Youtube
Flash Memory8GB eMMC
Storage
M.2 Drive Slots12 Installation Guide Compatible Drive Type Compatibility
- M.2 2280 NVMe
- Heatsinks for compatible NAS devices may be purchased separately if needed AS-HK1
Maximum Drive Bays with Expansion Unit - 20

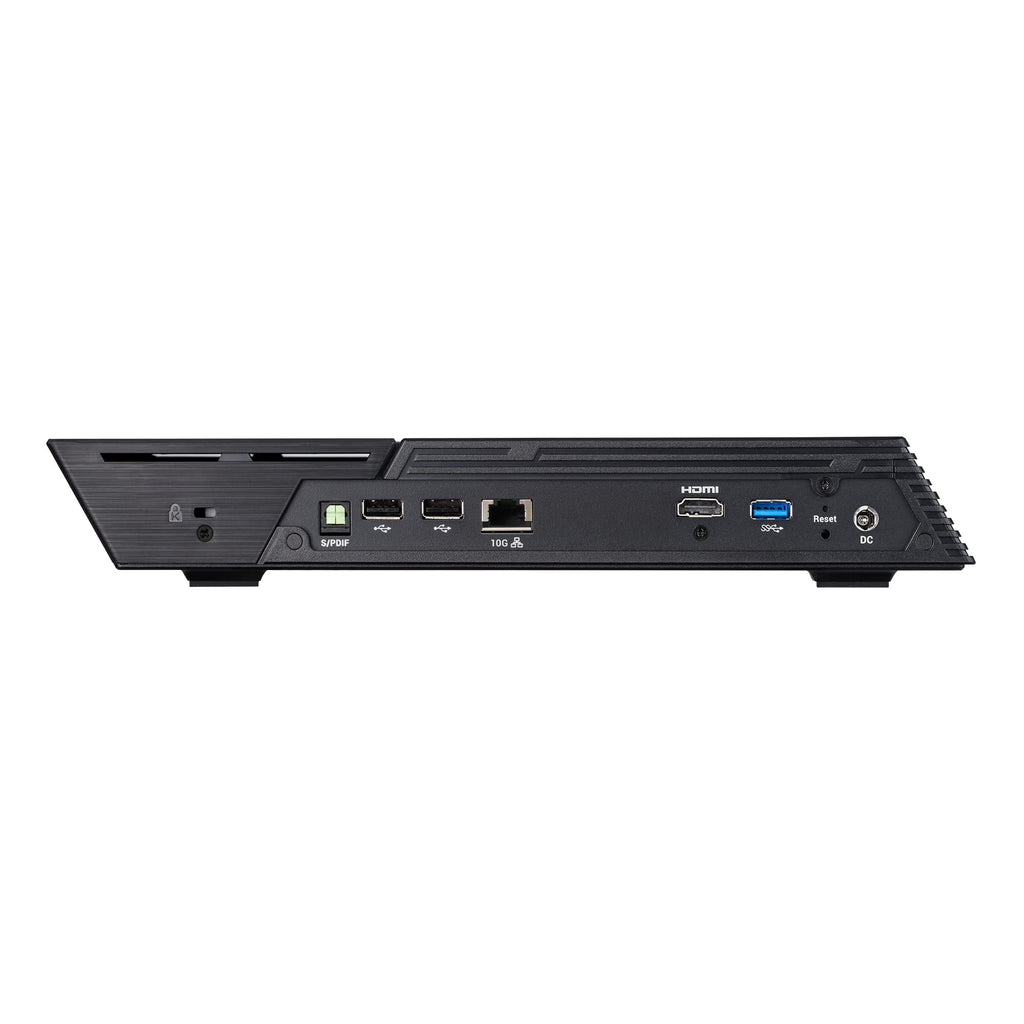

External Ports
Expansion2x USB 3.2 Gen 2 (10Gbps); 2 x USB 2.0Network1 x 10 Gigabit Ethernet (10G/5G/2.5G/1G/100M/10M)
Multimedia Output1x HDMI 2.0b, 1x S/PDIF
Others
System Fan1 x 80mmPower Supply Unit / Adapter90W x1Input Power Voltage100V to 240V ACCertificationFCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCAWarranty3 Years
Operation
Power Consumption26 W Noise Level18.7dBOperation Temperature0°C~40°C (32°F~104°F) Humidity5% to 95% RH
Size and Weight
Size 48.3 (H) x 308.26 (W) x 193 (D) mm Weight1.37 kg / 3 lb Package Contents
