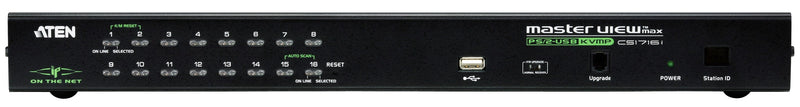

ATEN CS1716i 16 Port PS/2-USB KVM on the Net with 1 Local/Remote User Access
ATEN CS1716i 16 Port PS/2-USB KVM on the Net with 1 Local/Remote User Access
ATEN CS1716i 16 Port PS/2-USB KVM on the Net with 1 Local/Remote User Access
ATEN CS1716i 16 Port PS/2-USB KVM on the Net with 1 Local/Remote User Access
Roll over image to zoom in Click on image to zoom
ATEN CS1716i 16 Port PS/2-USB KVM on the Net with 1 Local/Remote User Access
ATEN CS1716i 16 Port PS/2-USB KVM on the Net with 1 Local/Remote User Access
ATEN CS1716i 16 Port PS/2-USB KVM on the Net with 1 Local/Remote User Access
ATEN CS1716i 16 Port PS/2-USB KVM on the Net with 1 Local/Remote User Access

ATEN CS1716i 16 Port PS/2-USB KVM on the Net with 1 Local/Remote User Access

ATEN
Price:
HK$7,480.00

Description

Features

  • Management
  • Up to 64 user accounts
  • Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
  • Up to 32 concurrent logins
  • Multilanguage web UI support featuring a tree-structured local and remote OSD
  • Adjustable video quality for flexible adaptation to diverse network environments
  • Auto Scan feature for monitoring user-selected computers
  • Broadcast mode – operations from the keyboard can be simultaneously performed on all selected computers on the installation (software installation, system-wide shutdown, etc.)
  • Firmware upgradeable
  • Backup and restore configuration and user account settings
  • Event logging
  • Enable/disable browser access
  • IPv6 capable

    Ease-to-Use Interface
  • Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multilanguage interface to minimize user training time and increase productivity
  • Multiplatform client support (, Mac OS X, Linux, Sun)
  •  support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
  • Port names automatically reconfigured when station sequence is changed
  • Panel array mode enables  to monitor multiple servers from  screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
  • Windows client and Java client software support; Java client works with all operating systems

    Advanced Security
  • Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption
  • Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
  • External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
  • Support for IP/MAC Filter
  • Local and  remote access logged and authenticated

    Virtual Remote Desktop
  • Resizable remote desktop window
  •  board allows logged in users to communicate with each  and allows a user to take exclusive control of the KVM functions
  • Mouse DynaSync™
  • On-screen keyboard with multilanguage support
  • BIOS-level access

    Hardware
  • 16-port  remote access KVM switch - monitor and control up to 16 computers from a single KVM console
  • Daisy chain up to 15 additional units - control up to 256 computers from a single console*
  • Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
  •  - add or remove computers without having to power down the switch
  • Multiplatform support - Windows, Linux, Mac, and Sun
  • Front panel USB hub allows connected computers to access USB peripherals
  • Dual Interface - supports PS/2 or USB keyboard and mouse computer connections with automatic interface detection
  • USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
  • Supports USB keyboards for Windows, Mac  Sun
  • Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1920 x 1200 @ 60Hz** and 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
  • Video DynaSync™ - stores the console monitor's  EDID (Extended Display Identification Data) to optimize display resolution
  • Rack mountable in a 1U system rack

    *Compatible KVM Switches include the following: A CS12 08A, A CS12 16A, CS1708A , CS1716A , KH1508A , KH1516A

    **The video quality of CS1708i /CS1716i has been enhanced to Full HD. To distinguish between the -FHD and FHD versions, please refer to below link: FHD & Non-FHD Comparison Photo
Diagram Description

Specifications

Computer Connections
Direct 16
Maximum 256 (via daisy chain)
Port Selection OSD/GUI; Hotkey; Pushbutton
Connectors
Console Ports 1 x SPHD Male (Yellow)
KVM Ports 16 x SPHD Female (Yellow)
Daisy Chain Ports 1 x DB-25 Male
Power 1 x DC Jack
LAN Ports 1 x RJ-45 Female
Firmware Upgrade 1 x RJ-11
USB Port 1 x USB Type A Female
Switches
Reset 1 x Semi-recessed Pushbutton
Port Selection 16xPushbutton
Firmware Upgrade Recovery 1 x Slide
LEDs
Online 16 (Orange)
Selected 16 (Green)
Station ID 1 x 2-digit, 7-segment (Orange)
Power 1 (Dark Green)
10/100Mbps 1 (Orange/Green - at LAN port)
Emulation
Keyboard/Mouse PS/2, USB
Video
Local 2048 x 1536; DDC2B
Remote FHD: 1920 x 1200 @ 60Hz
Non-FHD: 1600 x 1200 @ 60Hz
Scan Interval 1–255 sec.
Power Consumption DC5.3V:9.2W:58BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0–80% RH, non-condensing
Physical Properties
Housing Metal
Weight 3.00kg (6.61lb)
Dimensions (L x W x H) 43.72 x 15.96 x 4.40cm
(17.21 x 6.28 x 1.73 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
