Description
ATEN's latest supported MST Hub Dual Display Port KVMP!!
2/4 Port USB 3.1 Gen 1 4K DisplayPort MST Multi-Computer Switch - CS1942DP/CS1944DP
● Support MST Hubs: dual DP output
● DisplayPort 1.2 display up to 4K UHD/DCI @ 60Hz
● Can be connected in 2 layers to display up to 4 screens
● SuperSpeed USB 3.1 (Gen 1)
● 2.1 -channel high-quality multimedia applications
● Dual-mode DisplayPort (DP++)
● Independent switching of KVM/USB/Audio
● Four switching methods cross-platform support

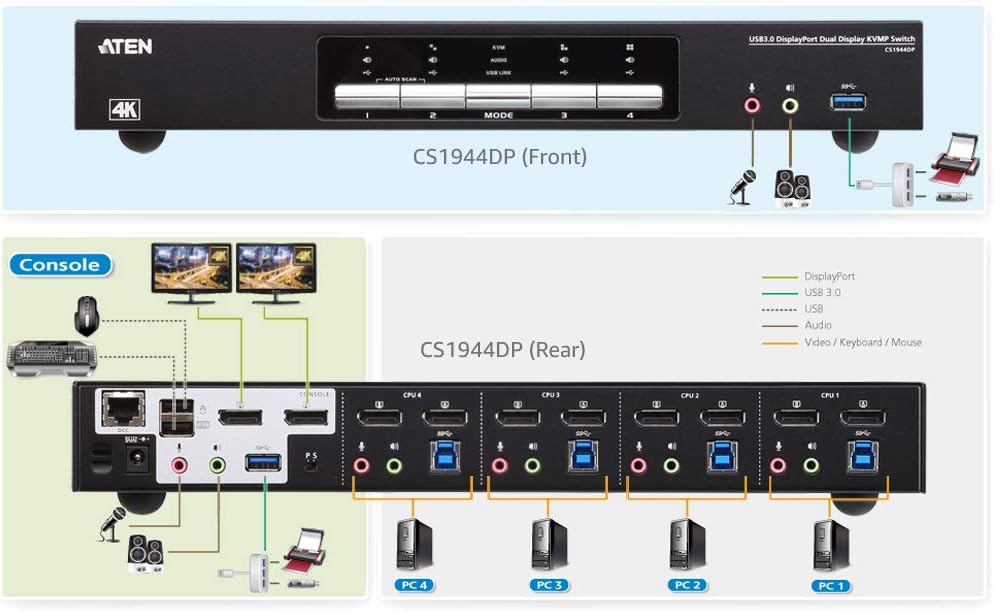

ATEN , the world's No. 1 KVM Switch brand - has been innovating for many years. In order to meet the increasing visual and auditory requirements, it has recently launched the MST Hub 2/4 Port USB 3.0 4K Dual DisplayPort MST multi-computer switch - CS1942DP/CS1944DP . It can independently switch and display 2/4 sets of up to 4K audio and video source signals with MST function on 2 DisplayPort devices. It is also equipped with a daisy chain serial port, which can connect two devices in series to form a 4- screen integrated display . Supports HDCP and Dual-mode DisplayPort (DP++) for easy integration with hardware devices; SuperSpeed USB 3.1 (Gen 1) provides 5Gbps multimedia / file transfer speed; 2.1- channel and 3.5mm audio outputs provide high-quality audio- visual enjoyment and can be switched independently KVM/USB/ audio ; can be switched by panel buttons, hot keys, scroll wheel and RS-232 and supports PC/MAC/Linux cross-platform .
● Built-in MST Hubs: dual DP output
CS1942DP/CS1944DP supports MST Hubs dual DP output. As long as the signal source and display support the MST function, users can select MST Mode , Splitter Mode and Single Mode display as needed.
● DisplayPort 1.2 4K top quality HDCP perfect output
CS1942DP/CS1944DP supports DisplayPort 1.2 , high image quality up to 4K UHD/DCI@ 60Hz . Users can control 2/4 4K computers with a USB keyboard , mouse and display . It also supports HDCP protection standard, ensuring that high -quality audio and video such as Bluray can be perfectly presented through CS1942DP/CS1944DP.
● SuperSpeed USB 3.1 (Gen 1)
CS1942DP/CS1944DP is equipped with USB 3.1 (Gen 1) , which can provide a transfer rate of 5Gbps, which is 10 times faster than the previous generation USB 2.0 . The access speed is faster, and the application is more convenient and efficient.
Supports Dual -mode DisplayPort (DP++)
CS1942DP/CS1944DP supports Dual-mode DisplayPort (DP++) , and users can use it with an HDMI/DVI adapter . When the Dual-mode chipset detects the adapter, it can automatically switch to HDMI/DVI mode to facilitate the use of different hardware .
● Can be connected in 2 layers to display up to 4 screens
CS1942DP/CS1944DP is equipped with an independent RJ45 daisy chain connection dedicated port , which can connect two units in series to form a 4- screen integrated display , which can be easily controlled by a set of keyboard and mouse.
● HD 2.1 channel and 3.5mm audio output
The DisplayPort output of CS1942DP/CS1944DP can provide 2.1 -channel HD Audio, and the body is also equipped with a 3.5mm port for 2.0 -channel output .
● Independent switching of KVM/USB/Audio
To facilitate different applications, users can switch independently the KVM/USB/3.5mm port audio connected to CS1942DP /CS1944DP .
● Four switching methods cross-platform support
Users can use the CS1942DP/CS1944DP 's four switching methods: panel buttons / hot keys / mouse wheel /RS232 , which greatly improves the flexibility of computer switching. Compatible with Windows/Mac/Linux , higher flexibility of use.
