ATEN launches 2x2 professional 4K HDMI Matrix Switch – VM0202H
● 4K@60Hz high-quality audio and video
● HDMI 2 in and 2 out can be switched at will
●HDMI 2.0/ HDCP 1.4
● EDID Expert screen optimization
● Multiple simple control methods
● Metal body, plug and play
ATEN International , the world's leading manufacturer of digital information sharing, launches the 2x2 professional 4K HDMI Matrix Switch – VM0202H for the first time . Combining the Switch and Splitter functions, two sets of HDMI signals can be shared to two sets of display devices at will , and it supports the playback of 4K@60Hz high-quality video . VM0202H has built-in EDID Expert to automatically optimize picture quality. VM0202H is equipped with multiple control modes, including panel buttons, IR remote control and RS-232 selection . With HDMI 2.0 interface and HDCP 1.4 , it supports True 4K signals up to 4:4:4 . All-metal body, plug-and-play, convenient for office and home audio and video applications, perfectly in line with the new generation of home / commercial 4K trend!
4K@60Hz high-quality audio and video
VM0202H supports up to 4K @60Hz and 10.2 Gbps Data Rate to ensure the most authentic audio and video output.
4K: 4096 x 2160 / 3840 x 2160 @60Hz (4:2:0)
True 4K: 4096 x 2160 / 3840 x 2160 @30Hz (4:4:4)

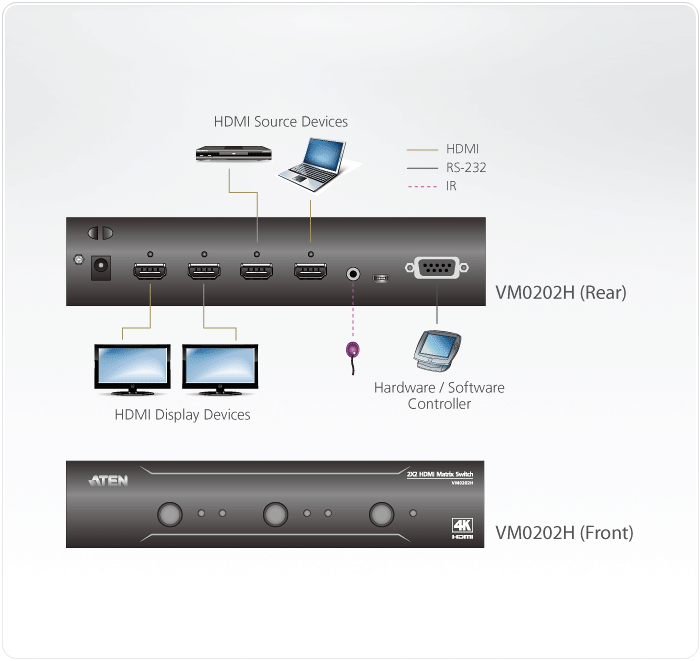

HDMI 2 in and 2 out can be switched at will
VM0202H combines Switch and Splitter functions, allowing administrators to freely allocate 2 sets of HDMI signals to 2 sets of display devices as needed . The entire solution can be used with extenders with different functions and distances to expand the coverage, enough to support long-distance playback such as classroom applications.
HDMI 2.0/ HDCP 1.4
VM0202H is equipped with HDMI 2.0 and HDCP 1.4 , which is compatible with 4K audio and video sources , making it very convenient for both home and commercial use.
EDID Expert screen optimization
In many video projects in the past, the EDID between the display and the signal source was not compatible, resulting in a decline in picture quality or even failure to display properly. VM0202H has built-in EDID Expert , which focuses on solving resolution matching issues during booting, porting, etc. , optimizing the picture quality so that the picture can be output at the most suitable resolution .
Multiple easy control methods

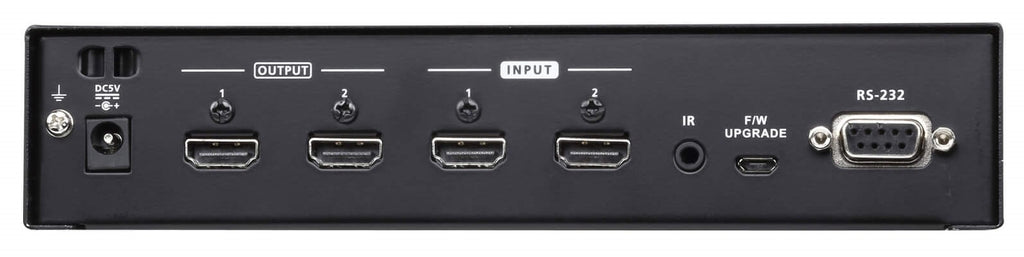

VM0202H provides a variety of management methods, which can be controlled through a total of 3 methods including panel controls / IR remote control and RS-232 serial .
Metal body, plug and play
VM0202H is a metal body model, which is sturdy and durable. There is no software required for installation , just simply plug in the hardware (HDMI/Power) and you are ready to use.
