Description

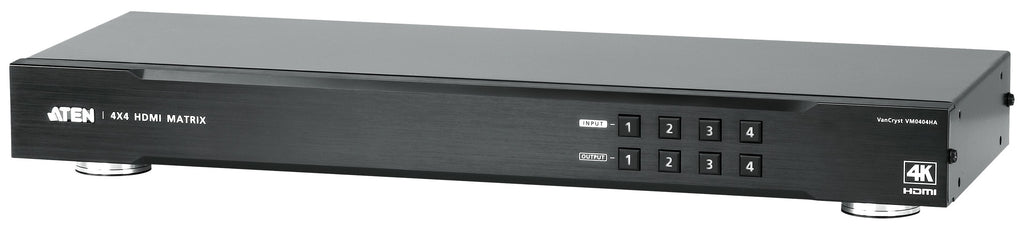

Upgraded appearance! Professional video engineering 4x4 4K HDMI Matrix Switch–VM0404HA
● 4K UHD perfect picture quality
● Dolby HD/Master Audio sound output
● Extremely scalable
● Full metal casing
ATEN International , the world's leading manufacturer of digital information sharing, has launched an upgraded 4K UHD 4- port HDMI audio and video sharing switch - VM0404HA . It combines HDMI Switch and HDMI Splitter functions to allow users to combine 4 sets of 4K HDMI devices ( such as HD video recording) movie player, set-top box, 4K Blu-ray player, home theater PC , standalone streaming media player, game console, etc. ) to 4 sets of 4K HDMI screens, display devices, projectors or TVs at the same time . Users can quickly and easily switch between HDMI signal sources and display devices through the remote control and convenient front panel buttons ; at the same time, the panel button LED indicators will display the status of the signal source device. It makes it easier to control the screen display and eliminates all complicated installation procedures.
VM0404HA is compatible with HDMI 2.0 , HDCP 1.4 and HDMI CEC . Provides 4K UHD 3840 x 2160 and DCI 4096 x 2160 resolutions with update rates of 30Hz (4:4:4) and 60Hz (4:2:0) , and supports Dolby True HD and DTS HD Master Audio , allowing users to enjoy the highest quality audio-visual entertainment !
4K UHD perfect picture quality
VM0404HA integrates HDMI Switch and HDMI Splitter functions , which can transmit 4 sets of 4K HDMI audio and video signals to 4 sets of screens; supports up to 4K UHD 3840 x 2160 and DCI 4096 x 2160 , with update rates of 30Hz (4:4:4) and 60Hz (4:2:0) , compatible with HDMI 2.0 and HDCP 2.2 , perfectly compatible with the latest UHD format audio and video such as 4K Blu-ray , especially suitable for use in multimedia conference rooms, multi-functional audio-visual theaters, shopping mall digital screens and other venues.
High-definition image and sound effects output
VM0404HA provides resolutions up to 4K UHD 3840 x 2160 and DCI 4096 x 2160 , perfectly supporting different 4K audio and video equipment on the market. In addition, it supports Dolby True HD and DTS HD Master Audio , providing users with perfect image and sound effects and enjoying the highest audio and video entertainment effects. !
Extremely scalable
VM0404HA supports stacked serial connection, which can connect up to 64 video input and output devices , and can extend the signal to a distance of 20 meters. It is especially suitable for large stores or exhibitions that require multiple audio and video switching and output! A remote control is also included with the box for user convenience. VM0404HA also supports HDMI CEC and can be automatically associated with products with HDMI CEC function. When the relevant function is activated, it will take effect on several devices at the same time, saving complicated steps! In addition, VM0404HA is also equipped with RS-232 to provide high-level operation switching for professional users.
Full metal casing
VM0404HA adopts a full metal casing design, which not only provides stronger protection, but also effectively prevents interference from other electronic products and maintains stable operation!
