Professional Presentation Switch Solution

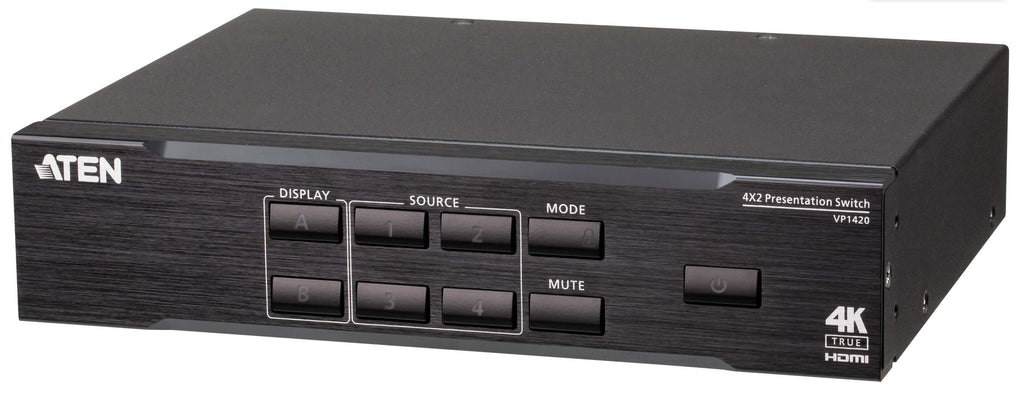

Aten 4 x 2 True 4K Presentation Matrix Switch – VP1420
Multifunctional audio-visual matrix + upconverter + audio processing + analog / digital audio track conversion
● 3*True 4K HDMI + 1*VGA+Audio input
●1*3.5mm Stereo input
● 2*HDMI output
●HDMI2.0 HDCP2.2 HDR
● Calibration function Ensure the most perfect output
●EDID Expert optimizes signals
● Automatic switching, power saving mode and quick startup
● Panel buttons /IR remote control /Web GUI/RS-232 control
●Contact In can be equipped with button control
●Audio track output via Captive Screw Stereo/HDMI
The latest Presentation Switch Solution from ATEN International , the world's leading manufacturer of digital information sharing , provides a stable and reliable one-stop solution for the new generation of conference room applications . VP1420 is a 4x2 True 4K Presentation Matrix Switch that combines four major functions: image matrix, upconverter, audio processing, and analog /digital audio track conversion . Equipped with 3 independent HDMI and 1 set of VGA + Audio inputs , it supports up to True 4K resolution and HDR , and is compatible with HDMI2.0 and HDCP2.2 . The multiple interfaces are convenient for conference applications that require multiple input options. There are 2 HDMI outputs , which can be connected to an extender to transmit audio and video to two screens in the room . Equipped with calibration function and EDID Expert optimized signal to ensure the most perfect picture output; users can control it through multiple methods such as panel buttons /IR remote control /Web GUI/RS-232 , plus automatic switching, power saving mode and quick start functions. Switching conference content is more convenient; the additional Contact In can be equipped with hardware buttons for control; in addition to audio output through HDMI, it can also be used for stereo output through Captive Screw, making it easy to connect speakers and amplifiers.
3*True 4K HDMI 1*VGA+Audio input /2*HDMI output
VP1420 is equipped with 3 independent HDMI and 1 set of VGA + Audio inputs . It has multiple interfaces and supports HDCP2.2 protection standard. It is suitable for connecting to different devices such as Apple TV , ChromeCast , Bluray Player , set-top boxes, etc. It also supports one 3.5mm stereo for background sound input. ; The output is equipped with 2 HDMI , which can be connected to an extender to transmit audio and video to two screens in the room, which is convenient for conference applications that require multiple input options.
True 4K + HDR top quality
VP1420 supports up to True 4K 4096 x 2160 / 3840 x 2160 @60Hz , 4:4:4 color sampling (Chroma) displays the most realistic and original film production-level picture. It also has high dynamic range imaging technology (HDR) , which expands the exposure dynamic range than ordinary digital imaging technology, and can more accurately display the range of brightness from direct sunlight to the darkest shadows in the real world.
Scaler function EDID Expert
VP1420 has a built-in scaling function (Scaler) . This technology unifies the video format and can output up to 4K image quality according to the display , converting the video into the most appropriate signal for playback, so that the picture can be played back with detailed and smooth effects.
In many video projects in the past, the EDID between the display and the signal source was not compatible, resulting in a decline in picture quality or even failure to display properly. VP1420 has built-in EDID Expert , which focuses on solving resolution matching issues during power-on, unplugging and plugging in, etc., optimizing the picture quality so that the picture can be output at the most suitable resolution.

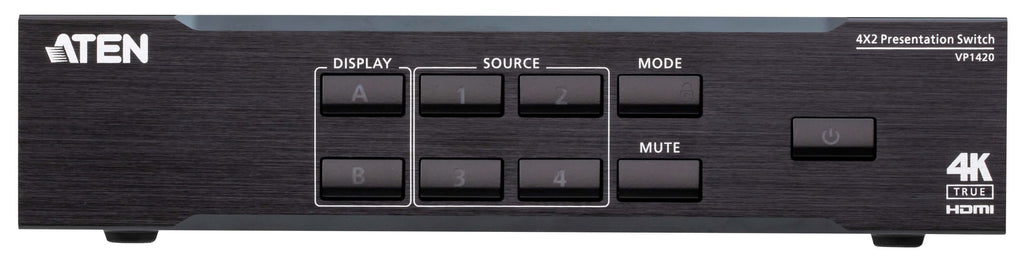

Panel button /IR remote control /Web GUI/RS-232/ Contact In button control
Users can control and switch through VP1420 's panel buttons, IR remote control, Web GUI or RS-232 , greatly improving switching flexibility. If users need button control installed on the wall / desk , they can also use the Contact In and LED ports on the back of the VP1420 to connect hardware buttons.
Audio track output via Captive Screw Stereo/HDMI
Regardless of the 3.5mm terminal or HDMI audio track signal, it can be processed by VP1420 for Embed and De-Embed . The audio track can be directly output via HDMI or stereo output via Captive Screw, making it easy to connect speakers and amplifiers according to application needs.
