Description
Professional Presentation Switch Solution

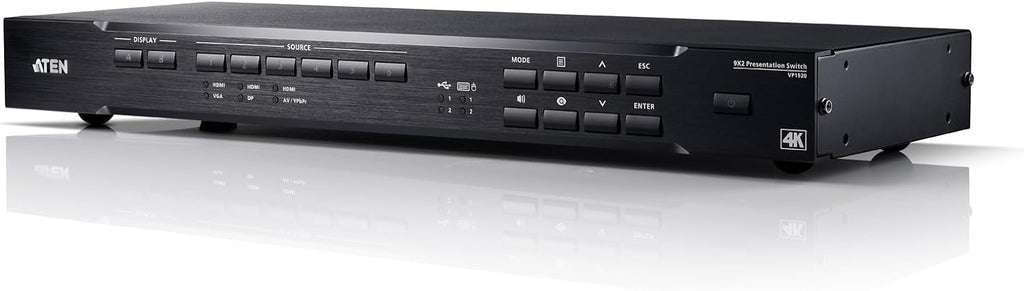

Aten 9x2 4K 3-in-1 Presentation Matrix Switch – VP1920
Image matrix + audio processing + analog / digital audio track conversion
●2*HDMI/DP/VGA+Audio KVM
● 1*HDMI/AV/ component input
● 3*4K HDMI input
● 2*HDMI output to connect to the screen
● 4K DCI@60Hz ultra-high resolution
●PiP and default display mode
● Up to 5 source previews
● Audio tracks are output simultaneously via coaxial / optical /RCA
● 2*USB to connect touch screen and peripheral devices
● Automatic switching and standby mode
ATEN International , the world's leading manufacturer of digital information sharing, has launched the latest Presentation Switch Solution to provide a stable and reliable one-stop solution for the new generation of conference room applications . VP1920 is a 9x2 4K 3-in-1 Presentation Matrix Switch that combines the three major functions of image matrix, audio processing, and analog / digital audio track conversion . Equipped with 2 KVM ports to connect to conference computers, 1 Combo Port supporting AV , component or HDMI , and 3 independent HDMI inputs , multiple interfaces are convenient for conference applications that require multiple input options. There are 2 HDMI outputs , which can be connected to an extender to transmit audio and video to two screens in the room . Ultra-high resolution up to 4K DCI@60Hz plus preset PiP and preset display modes and 5 source previews make it easier to switch conference content. In terms of sound, in addition to HDMI output, it can also be output simultaneously via coaxial, optical fiber, and RCA , making it easy to connect speakers and amplifiers. There are two additional USB ports for connecting touch screens and peripheral devices , and there are also automatic switching and standby modes , making it faster to use without having to wait and interfere with the meeting process.
2- port KVM and multi-interface input

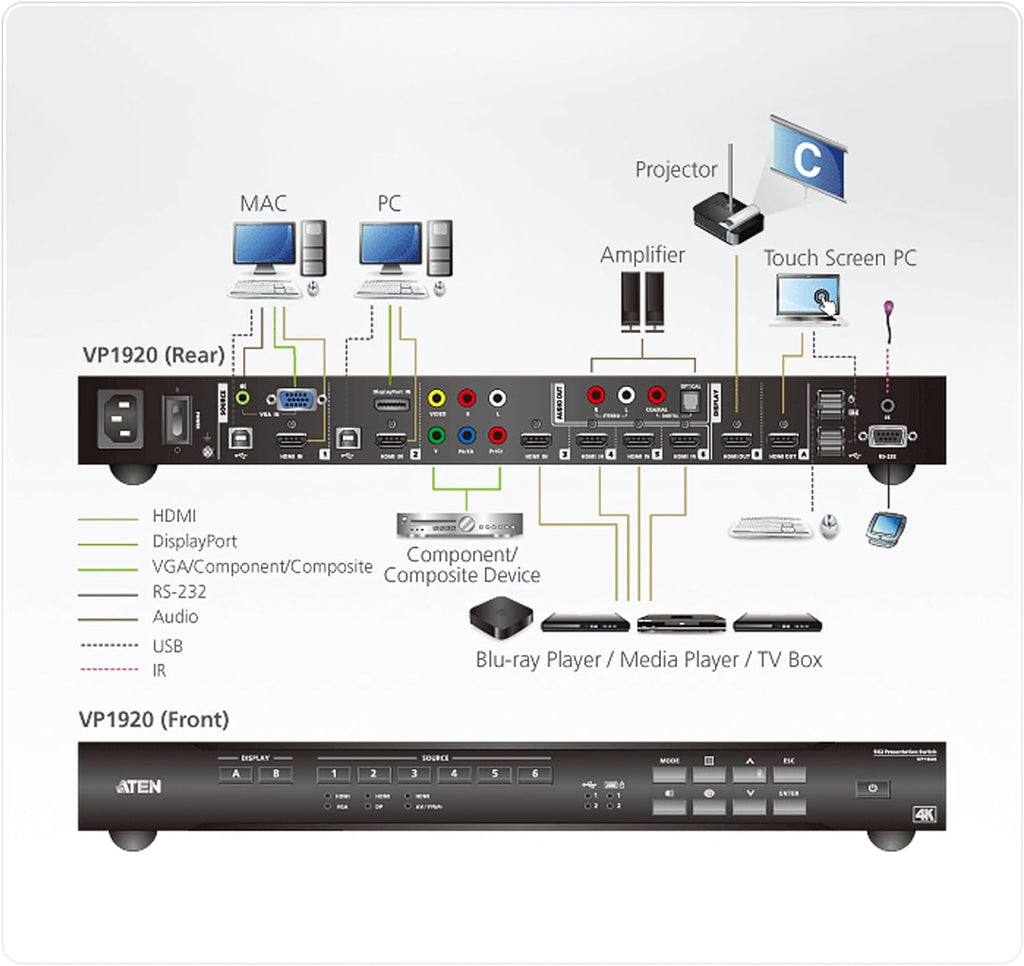

VP1920 is equipped with 2 KVM ports , namely HDMI or DP , and HDMI or VGA + Audio for connecting to computers. Preset computers are prepared at the conference venue, and customers attending the conference can bring their own computers for connection. In addition to the KVM port, VP1920 is equipped with a Combo Port that supports AV , component or HDMI , plus 3 independent HDMI inputs . It has multiple interfaces and supports HDCP protection standards. It is suitable for connecting different devices such as Apple TV , ChromeCast , Blueray Player , and set-top boxes. , convenient for conference applications that require multiple input options.
2*HDMI 4K@60Hz output
VP1920 is equipped with 2 HDMI outputs , which can be connected to an extender to transmit audio and video to two screens in the room . Supports ultra-high resolution up to 4K DCI@60Hz , allowing users to enjoy the most authentic audio and video.
4096 x 2160 @60Hz (4:2:0)
4096 x 2160 @30Hz (4:4:4)
PiP and preset display modes for up to 5 source previews
The dual output ports of VP1920 support one Full Screen display and one multi-split display . Users can select the default display mode according to their needs: Matrix Mode , Mirror Mode and PiP Mode display.
Matrix Mode : A/B display mode, both A and B screens support up to 4K display;
Mirror Mode : A/A display mode, both A screens support up to 4K display. It also supports Preview , which can display real-time previews of up to 5 sources on the left side of a screen;
PiP Mode : AB picture-in-picture display mode, both AB screens support up to 1080p display
Coaxial / optical /RCA sync output
Regardless of the 3.5mm terminal next to VGA , AV , component , DP or HDMI audio track signals can be processed by VP1920 for Embed and De-Embed . The audio track can be directly output via 2 HDMIs , or can be output simultaneously via coaxial / optical /RCA , making it easy to connect speakers and amplifiers according to application needs.
