Description
The best tool for flipping the classroom

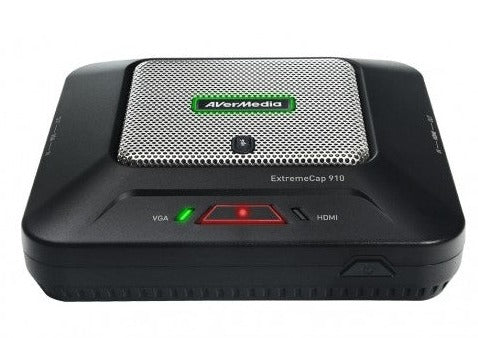

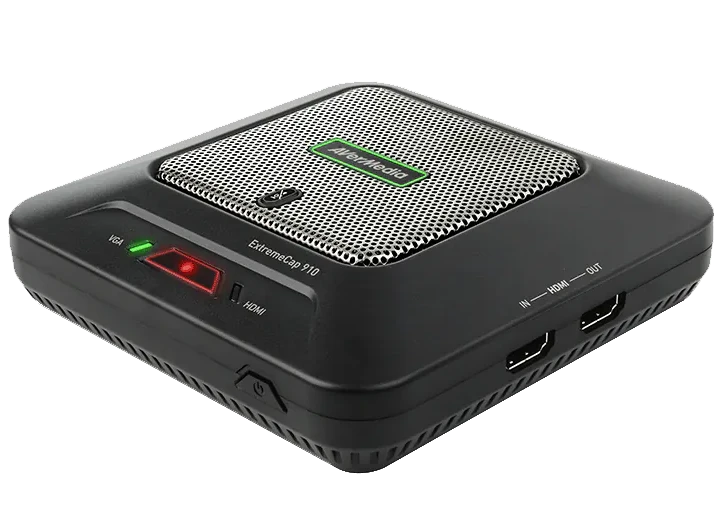

Flipped classroom is a new era of teaching method, and it is also a frequently discussed topic in the field of education. In order to implement flipping, what all teachers need most is a device that is convenient for producing teaching materials. The audio-visual master CV910 is a device that can record images and sounds at the same time. In addition to allowing teachers to easily prepare digital teaching materials, it can also be used in the classroom to record and share complete course content.
Easy to install and get started quickly
Just connect to the computer via VGA or HDMI and press the record button to record the computer screen (course content) and live lecture sound at the same time, without the need for an external microphone.
Share immediately after saving
The sounds and images will be synchronized and stored in the SD card, without the need to install additional software, so that after the course is over, you can quickly and directly share the files with those in need.
Anti-noise processing reduces background noise
The built-in microphone has good anti-noise processing technology, which can effectively reduce background noise: such as projectors and electric fans, making your recording quality even better.
The mute button saves you the trouble of post-production
You can selectively use the mute function during the recording process. If you encounter situations where recording is not required, the image can still be preserved, so you no longer need to process it through post-production.
Customize your course recording environment
The Dashboard setting wizard allows you to set the image file quality and radio distance according to the size of the classroom/conference room and the content of the teaching materials, and adjust the recording file according to your needs.
product specifications
Interface: USB 2.0 (mini USB)
Video input/output: HDMI, VGA
Sound input/output: HDMI, 3.5 mm Audio source resolution: input&pass-thru: 1920x1080@60p (max); recording: 10Mbps@1080p30 (max)
Storage device: SD card (SDHC Class 10 or above; FAT32)
Microphone: Omnidirectional Recording File Format: TS
Multimedia player software: VLC Media Player (recommended)
Ambient operating temperature: 0–50°C
Dimensions: 125.4 (D) x 34.6 (H) x 125.0 (W) mm
Net weight: 170 g
Product packaging
Video master CV910
HDMI cable
D-sub(VGA) cable
3.5 mm audio cable
Mini USB Cable Power Supply User Manual
