Description
Overview

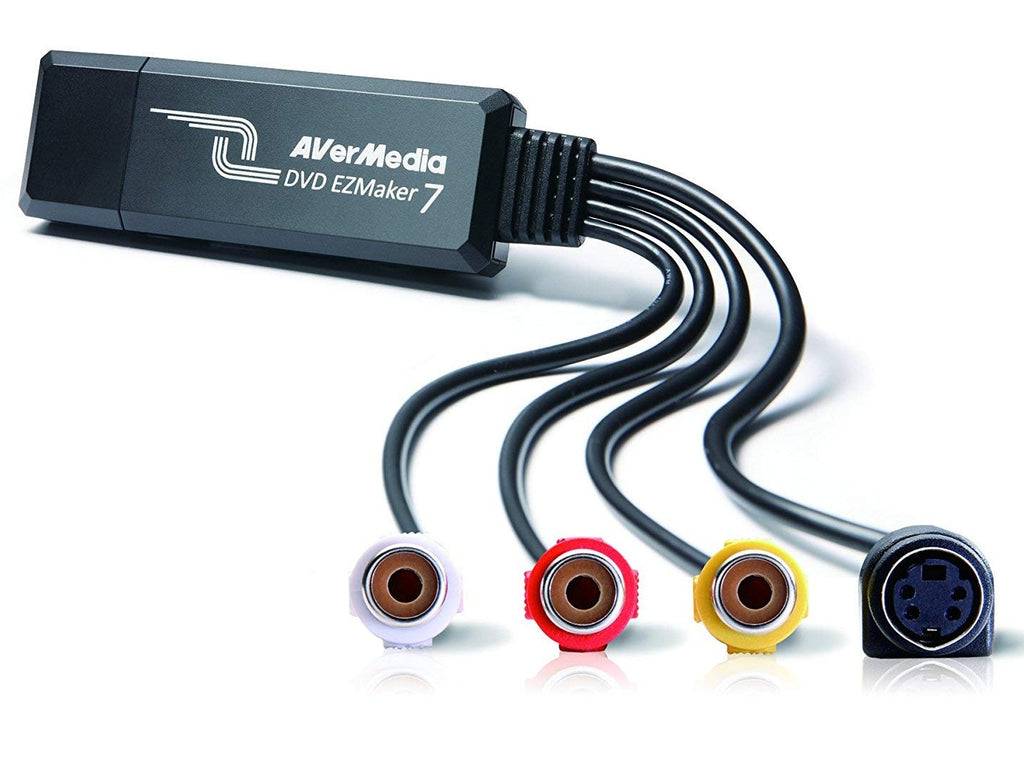

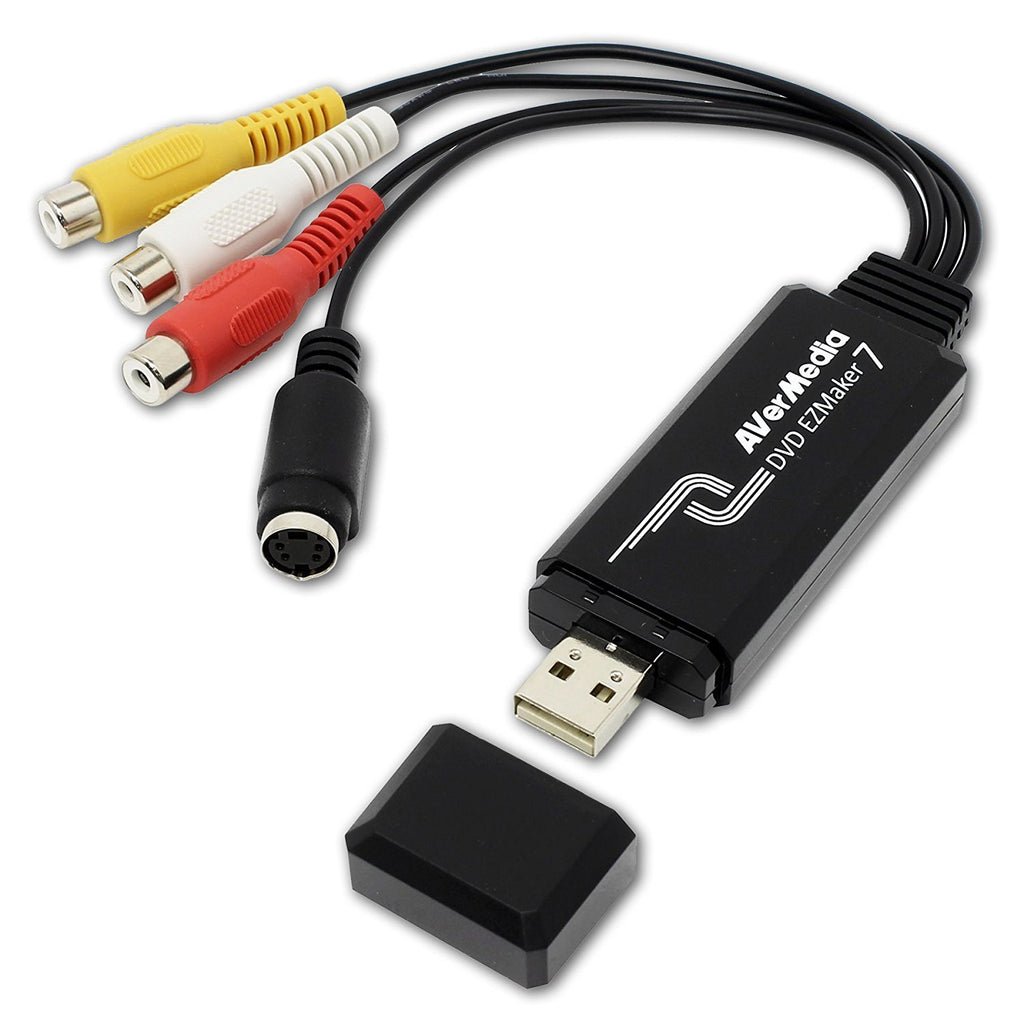

AVerMedia C039P is a USB video capture device with S-Video and composite inputs. The included software development kit provides commonly used functionality to help developers and system integrators complete their tasks easily and efficiently. Even better, it's compatible with major programming languages such as Visual C++ and Visual Basic.
Easily digitize analog video
The AVerMedia C039P allows you to capture true color video sources and images from any type of analog video equipment via S-Video/composite video input. Its portability makes it the best solution for mobile applications such as mobile monitoring and analytics.
Specification
|
Model |
C039P |
|---|---|
|
host interface |
USB 2.0 |
|
enter |
Composite/S-Video/Audio L/R |
|
Enter video resolution |
720×480@60i, 720×576@50i |
|
capture video format |
NTSC/PAL: 80 x 60 (NTSC only), 88 x 72, 128 x 96, 160 x 120, 176 x 144, 240 x 180, 240 x 176, 320 x 240, 352 x 180, 240 x 176, 320 x 240, 352 x 240, 3524 x 0 x 240, 640 x 288, 640 x 480, 704 x 576 (PAL, SECAM only), 720 x 240, 720 x 288, 720 x 480, 720 x 576 (PAL, SECAM) |
|
Pixel format |
NTSC: YUY2 (4:2:2), UYVY (4:2:2) PAL/SECAM: YUY2 (4:2:2), UYVY (4:2:2), Y8 |
|
Color adjustment |
Brightness, contrast, hue, saturation, sharpness |
|
programming language |
VB, VC, Delphi, C#, VB.NET |
|
frame |
Generic DLL |
|
Operating temperature |
Temperature: 0°C to 45°C Humidity: 0 to 80% RHNC |
|
Storage environment |
Temperature: -30°C to +65°C Humidity: 0 to 90% RHNC |
|
electricity demand |
5V maximum 2.06A |
|
Dimensions (mm) |
82 (length) × 28.49 (width) × 14 (height) |
|
CPU |
For SD video capture (AVI format) Intel® Pentium® 4.3.0G (HT) AMD Athlon™ 64 3200+ Intel® Pentium® mobile processor 2.0G or AMD equivalent processor |
|
memory |
512 MB RAM or above |
|
VGA |
VGA card that supports DirectX9.0c or above |
|
Sound Card |
Yes |
|
Supported operating systems |
Win 7/8.1/10 (32/64 bit)* |
