Description
As the world's No. 1 DLP brand, BenQ has launched a full range of innovative projectors that use patented BlueCore DLP high-brightness laser technology and are suitable for large venues. Combining high brightness, superb image quality, installation flexibility and maintenance-free laser light sources, BenQ BlueCore laser projectors deliver immersive public displays and innovative visual communication like never before.
In order to harness the high output of powerful laser light sources, BenQ engineers applied dual color wheel technology to BlueCore laser projectors, successfully eliminating the white section of the traditional color wheel and fully displaying accurate laser RGBY colors, reaching 96% Rec.709 color domain. Through an ideal mixture of red, green, blue and yellow segments, BenQ laser projectors can produce stunning colors and achieve a wider color gamut than traditional lamp-based projectors.

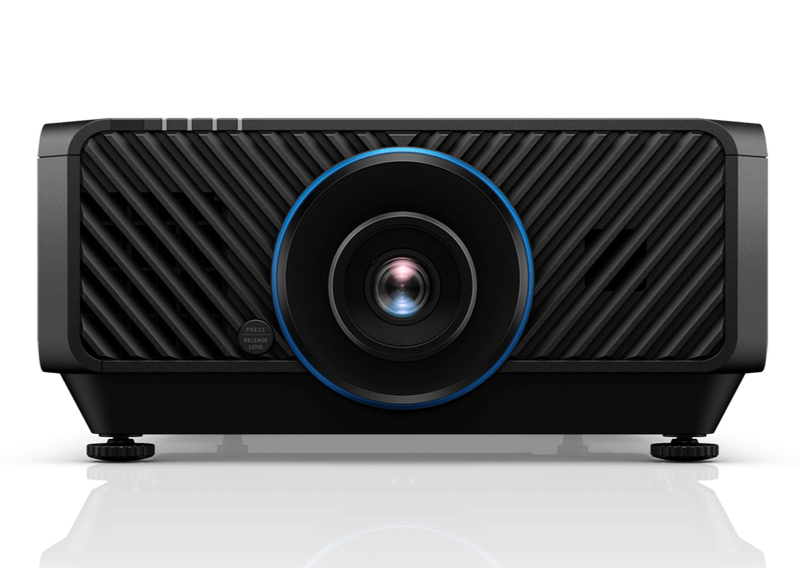

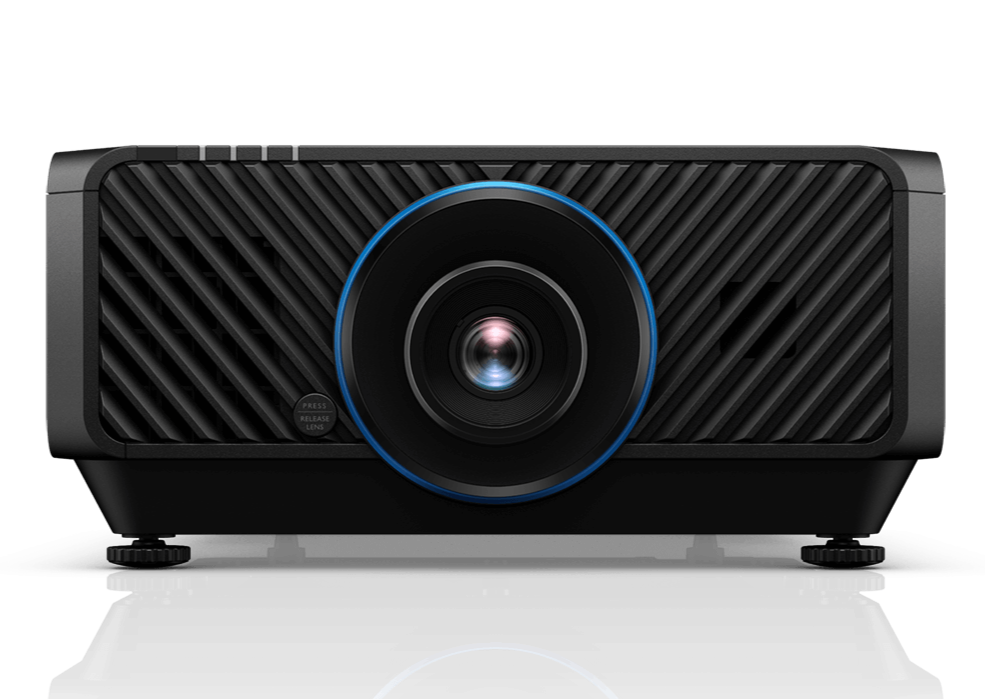

Both the LU9245's HDBaseT and HDMI 2.0 ports support 4K UHD high-definition signals. Users do not need to change many settings to enjoy 4K UHD high-definition video content.
*The actual output resolution depends on the projector settings.
HDR
SDR
LU9245 will automatically analyze the light and dark levels in the picture scene, directly adjust the laser light output intensity, increase the light and dark contrast in the picture, bring out the small details in the dark scene, and present the best dynamic picture!
LU9245 allows users to adjust the Gamma curve according to their own preferences, image characteristics, playback equipment, etc. It also provides BenQ default values and DICOM Gamma curves to meet various user needs.
BenQ laser projectors support year-round operation and are suitable for museums or public exhibitions. Choose from 3 different light source modes. In Laser Dimming mode, the light source can have a service life of up to 70,000 hours, extending the life of the projector.
BenQ BlueCore laser projectors use sealed laser modules and enclosed light engines to protect the DMD chip, color wheel sensor, laser reservoir and other optical components. This key design can seal the engine to prevent dust, and the highly thermally conductive metal liquid can control the engine operating temperature and extend the service life of the projector.
BlueCore laser technology ensures reliable projection from any angle. With dynamic installation options such as 360° rotation and vertical projection applications, images can be projected onto ceilings, walls, floors or angled signage.
BenQ's LU9245 laser projector accepts up to a variety of optional replacement lenses. The all-glass optical lens can eliminate chromatic aberration and color flash, showing the best image quality. Providing the most diverse installation options and projection configurations, lens replacement is simple and safe through quick one-button disassembly.
Users can select the required light output intensity in a 0.5% range from 20% to 100%. When faced with the splicing and fusion of multiple projectors, multiple projectors can be spliced into one large screen more quickly.
The digital image reduction and shifting function allows the installer to reduce the projected image to 80% of the original image size with a gain of 0.5% through the OSD menu interface. In addition to shrinking the screen, you can also directly move the screen with the remote control, so that the installer can accurately align the screen without having to bother adjusting the hanger.
before adjustment
After adjustment
The groundbreaking HDBaseT connection integrates audio and video device signals from computers, laptops, document cameras, Blu-ray and DVD sources into a single CAT5 signal cable for distortion-free transmission over a distance of up to 100 meters.
In the same local network environment, administrators can remotely update the firmware of all machines at once through a computer using an intuitive and simple management interface, which can reduce the administrator's time and cost of on-site confirmation and updates one by one.
BenQ central management software allows IT managers/technicians to remotely manage multiple digital projector products through computers and local networks. They can monitor or adjust the status and settings of the projectors in batches/single.
>>Know more about MDA software
>>Know more about DMS Local software
BlueCore laser projectors are compatible with Creston, AMX and PJ Link control systems, allowing centralized maintenance of multiple projectors and system integration with various third-party components to reduce costs. It also supports RS232 remote control. The RS-232 connection port allows for remote control up to 15 meters away without setting up a local network.
When it is necessary to display large-screen 3D videos, a single computer can be used as the playback device, and up to 3 projectors can be connected in series at the same time.
When multiple projectors are connected in series, multiple projectors can be controlled simultaneously through the RS232 input and output functions.
