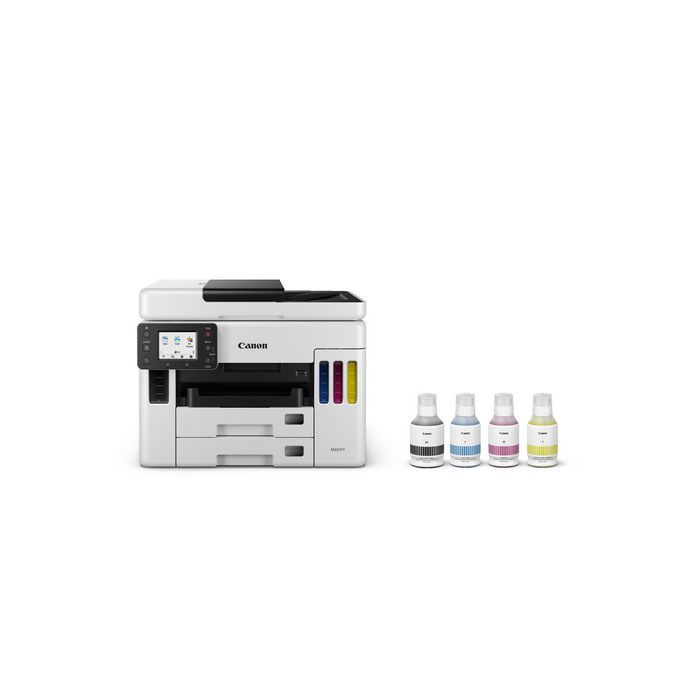

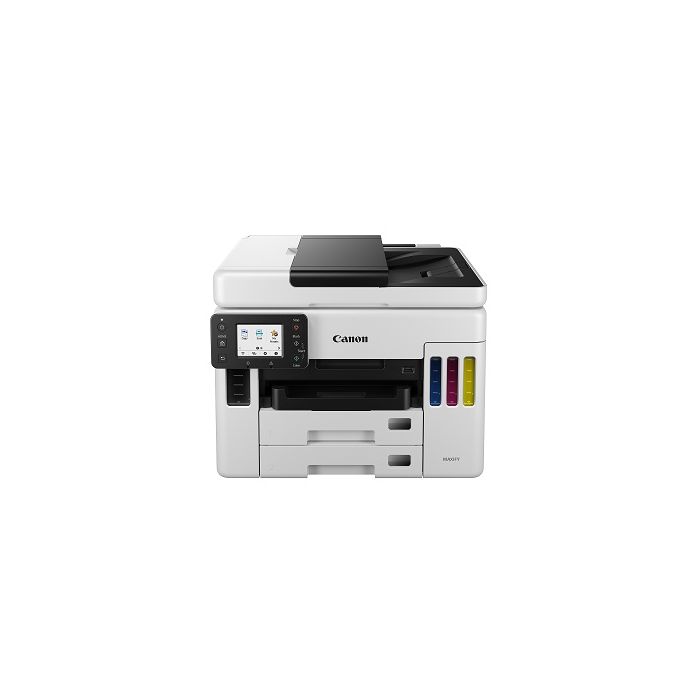

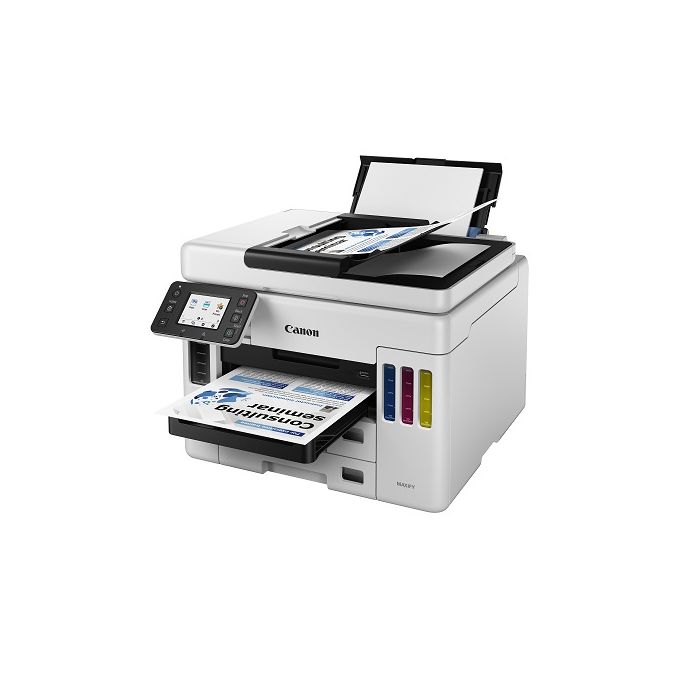

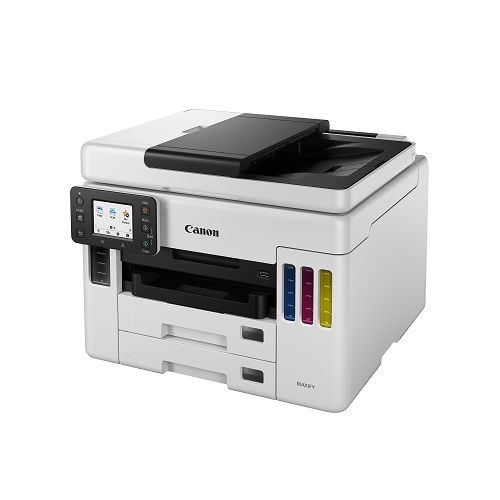

CANON MAXIFY GX7070 InkJet Printer - Print / Scan / Copy / Fax

Roll over image to zoom in Click on image to zoom

MAXIFY GX7070

Commercial high-speed ink-filling all-in-one wireless printer

Combining the advantages of latest document processing technology, high-speed and mobile printing, it is specially designed for companies that pursue high efficiency and high quality, making work more convenient, further reducing costs and improving productivity.

Print, scan, photocopy, fax
A4 standard printing speed (black and white/color): 24.0/15.5 ipm
USB2.0 high speed, Wi-Fi, Ethernet, Mopria, AirPrint, wireless direct connection
Recommended print volume: 300-2,500 pages

Print

Print head/ink
Number of inkjet nozzles	4,352
ink bottle	GI-76 (oily black/oily indigo/oily magenta/oily yellow) MC-G01 (maintenance ink tank)
Highest print resolution	600 (horizontal) ^*1 x 1,200 (straight) dpi
Printing speed *^2** ISO/IEC 24734 Speed details Printing/copying speed measurement test method
Document (ESAT/Single Sided)	Approx. 24.0 ipm (monochrome) / 15.5 ipm (color)
Document (ESAT/double-sided)	Approx. 13.0 ipm (black and white) / 10.0 ipm (color)
Document (FPOT Ready / Single Sided)	Approx. 7 sec (black and white) / 8 sec (color)
Print width	Maximum 208.0 mm
Print range
Bordered printing	Envelope (COM10/DL/C5/Monarch): Top/bottom margin: 12.7mm, Left/right margin: 5.6mm B-Oficio, M-Oficio, Foolscap, FS, LTR, LGL: Top margin: 3mm, Bottom margin: 5mm, Left/right margin: 4mm Square 5 x 5" (127 x 127 mm): Top/bottom/left/right margin: 6 mm Custom size: Top margin: 3 mm, Bottom margin: 5 mm, Left/right margin: 3.4 mm other: Top margin: 3 mm, Bottom margin: 5 mm, Left/right margin: 3.4 mm
Bordered double-sided printing	LTR: Top/bottom margin: 5mm, left/right margin: 4mm other: Top/bottom margin: 5mm, left/right margin: 3.4mm
Supported paper types
Rear paper feeder	Plain paper (64 - 105g/m²) Pearl suede photo paper (LU-101) High gloss multi-purpose photo paper (PP-201) Matte Art Photo Paper (MP-101) Double-sided matte photo paper for art (MP-101D) Glossy photo paper (GP-508) Special paper for reports (HR-101N) Semi-glossy high-contrast photo paper (SG-201) Photo stickers (PS-108/PS-208/PS-808) Removable photo stickers (PS-308R) Magnetic photo paper (PS-508) Light color fabric heat transfer paper (LF-101) envelope
Paper feed tray 1 / 2	Plain paper (64 - 105g/m²)
paper size
Rear paper feeder	A4, A5, A6, B5, LTR, LGL, B-Oficio, M-Oficio, Foolscap, FS, Executive, Envelope[#10, DL, C5, Monarch], 4 x 6", 5 x 7", 7 x 10", 8 x 10", Square (5 x 5") [Custom] Width: 89 - 216 mm, Length: 127 - 1200 mm
Paper feed tray 1	A4, LTR, A5, B5, Executive [Custom] Width: 148 - 216 mm, Length: 210 - 297 mm
Paper feed tray 2	A4,LTR [Custom] Width: 210 - 216 mm, Length: 279.4 - 297 mm
Paper handling (maximum value)
Rear paper feeder	Plain paper (A4/Letter, 64 g/m²): 100 High Gloss Multipurpose Photo Paper (PP-201, 4 x 6"): 20 Semi-glossy high-contrast photo paper (SG-201, 4 x 6"): 20 Glossy Photo Paper (GP-508, 4 x 6"): 20 Matte Art Photo Paper (MP-101, 4 x 6"): 20 Photo stickers (PS-108, PS-208, PS-808): 1 Removable photo stickers (PS-308R): 1
Paper feed tray 1 / 2	Plain paper (A4/Letter, 64 g/m²): 250
Duplex printing supports paper size
type	plain paper
feet	A4,LTR
Paper weight
Rear paper feeder	Plain paper: 64 - 105 g/m² Canon original photo paper: Maximum weight: , approx. 275 g/m² (High gloss multi-purpose photo paper, PP-201)
Paper feed tray 1 / 2	Plain paper: 64 - 105 g/m²
Ink sensor	Electrode and ink droplet calculation
Print head alignment	automatic / manual

Scan ^*3

Scanner type	Platform type (document feeder/platform)
scanning method	CIS
*Optical resolution ^4**	1,200x1,200dpi
Scan color depth (input/output)
Grayscale	16 / 8 bit
color	RGB 16 bit / 8 bit each
*Linear scan speed ^5**
Grayscale	1.4 ms/line (300 dpi)
color	1.4 ms/line (300 dpi)
Maximum file size
Platform type	A4 / LTR (216 x 297mm)
Document feeder (ADF)	A4/LTR/LGL

Photocopy

Maximum file size
feet	A4, A5, A6, B5, LTR, LGL, Executive, FS, Foolscap, B-Oficio, M-Oficio, 4 x 6", 5 x 7", Square (5 x 5")
type	Plain paper high gloss multi-purpose photo paper (PP-201, PP-208) Pearl suede photo paper (LU-101) Semi-glossy high-contrast photo paper (SG-201) Matte Art Photo Paper (MP-101) Glossy photo paper (GP-508) Light color fabric heat transfer paper (LF-101)
Image quality	3 levels (fast, standard, high)
Density adjustment	9 levels, automatic (AE photocopy)
Photocopy speed *^6** ISO/IEC 24734 Speed details test method
File (color): (sFCOT/single-sided) / (sESAT/single-sided)	Approx. 12 seconds/12.7 ipm
Document (ADF): Color/B&W	Approx. 12.2 ipm / 22.2 ipm
Multiple page photocopying
Black and white/color:	Max. 99 pages

fax

type	Super G3/Color Transmission
line	PSTN
*Transmission speed ^7**
Black and white/color(approx.)	3 seconds/1 minute
Fax resolution
black and white (approx.)	8 pels/mm x 3.85 lines/mm (Standard) 8 pels/mm x 7.7 lines/mm (Fine) 300 x 300 dpi (Extra Fine)
Color (approx.)	200×200dpi
Print size	A4/LTR/LGL
Scan width	A4/LTR
Modem speed	Max. 33.6 kbps (auto fallback)
compression
black and white	MH/MR/MMR
color	JPEG
Gradient levels
black and white	256 levels
color	24 bit full color (8 bit each for RGB)
ECM ((error correction mode)	support
Automatic dialing
Automatic dialing	Max. 100 positions
Group dialing	Max. 99 positions
*Transmit/receive memory ^8**	Approx. 250 sheets

Send fax from computer

type	Windows: Supported, macOS: Supported
Fax quantity	1
black and white/color	Applicable to black and white transmission only

network

protocol	SNMP, HTTP, TCP/IP (IPv4/IPv6)
Cable network
Network type	IEEE802.3u (100BASE-TX) / IEEE802.3 (10BASE-T)
Transmission speed	100 Mbps / 10 Mbps (automatic conversion)
wireless network
Network type	IEEE802.11b/g/n
2.4GHz Channel (1 - 11)	HK

safety	WEP64/128 bit WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES)
Wireless direct connection	support

mobile printing

AirPrint	support
Mopria	support
Canon Print Service (Android)	support
PIXMA Cloud Link
smart device	support
printer	support
Canon PRINT Inkjet/SELPHY (iOS/Android)	support

**System requirements ^*9**

Windows 10/8.1/7 SP1
(Applicable to computers with Windows 7 or later pre-installed)

macOS v10.12.6 ~ 10.15

Chrome OS

General specifications

Control interface
Display	2.7" / 6.7cm LCD (touch type)
language	33 optional languages: Japanese/English/German/French/Italian/Spanish/Dutch/Portuguese/Norwegian/Swedish/Danish/Finnish/Russian/Czech/Slovenian/Hungarian /Polish/Turkish/Greek/Simplified Chinese/Traditional Chinese/Korean/Indonesian/Slovak/Estonian/Latvian/Lithuanian/Ukrainian/Romanian/Bulgarian/Thai/Croatian/Vietnamese
Automatic document feeder ADF
Paper handling (plain paper)	A4, LTR: 50, LGL: 10, others: 1
Connection interface	USB 2.0
*Operating environment ^10**
temperature	5-35°C
humidity	10 - 90% RH (no dew condensation)
*Recommended environment ^11**
temperature	15-30°C
humidity	10 - 80% RH (no dew condensation)
Storage environment
temperature	0-40°C
humidity	5 - 95% RH (no dew condensation)
silent mode	support
Approximate value of noise level (printed from computer)
Plain paper (A4, B/W) ^*12	49.0dB(A)
power supply	AC 100-240 V, 50/60 Hz
power consumption
When shutting down	Approx. 0.2 W
When in standby (the scanning light is turned off, and USB is used to connect to the computer)	Approx. 0.9 W
When photocopying ^*13 Connect to computer using USB	Approx. 23W
Recommended print volume	Up to 45,000 sheets/month
Volume (width x depth x height)
Factory settings	399 x 410 x 314 mm
Output tray/auto document feeder fully open:	399 x 645 x 387mm
weight	Approx. 13 kg

Ink volume

Plain paper (A4)
(ISO/IEC 24712 test file ) ^*14

standard:
GI-76 PGBK: 6,000
GI-76 PG C/M/Y: 14,000 ^*15

Economy ^*16 :
GI-76 PGBK: 9,000
GI-76 PG C/M/Y: 21,000

Ink droplets can be placed as small as 1/4,800 inches apart
Document printing speed is based on single-sided printing and is the ESAT average in ISO/IEC 24734's Office Category Test, excluding the first set of printing time. Photo printing speed is calculated using high-gloss multi-purpose photo paper PP-201, driver default settings and based on ISO/JIS-SCID N2, excluding computer processing time. Printing speed will vary depending on system configuration, connection interface, software, document complexity, print mode, coverage, paper type, etc.
The TWAIN driver (ScanGear) is based on TWAIN specification version 1.9 and requires the operating system's built-in data source manager.
Optical scanning resolution is only available with the TWAIN driver. Optical resolution measures the maximum sampling resolution according to the ISO14473 standard.
Maximum speed using a Windows computer and a USB connection, excluding the time it takes to transfer data to the computer
The photocopying speed is the average of sFCOT and sESAT, tested according to ISO/IEC 29183 (excluding warm-up time). Photocopying speed will vary depending on document complexity, print mode, coverage, paper type, etc.
Black and white document fax fax speed is tested based on default settings and ITU-T No.1 chart. Color fax speed is tested based on default settings and Canon color test charts. Transmission speed will vary depending on document complexity, fax settings, recipient and line environment.
Quantity tested according to ITU-T No.1 chart or Canon standard chart (No.1)
For compatible operating systems and driver downloads, please visit http://support-hk.canon-asia.com
Printer performance may be reduced due to unsuitable temperature or humidity environment
For recommended temperatures and humidity for different papers, please refer to the paper instructions or information on the packaging.
Noise tested according to ISO7779 standard and default settings
Tested according to ISO/JIS-SCID N2 standard using A4 plain paper and default settings
The document print yield is tested in Canon mode continuous printing according to ISO/IEC 24712 pattern. Does not include first set of inks
every ink
The economical model will reduce the printing density of black ink and increase the printing volume by about 50%.

Pre-purchase information

In order to ensure the performance of the printer, the printer will automatically clean according to different conditions. A small amount of ink is consumed when the printer performs automatic cleaning, so all color inks may be consumed. Cleaning the inkjet head helps the printer suck air bubbles or ink from the inkjet head to prevent print quality degradation or inkjet head clogging.
The warranty period for printer repair parts is 5 years after the product is discontinued. During maintenance, our company may have the opportunity to replace the printer with a new one or one with equivalent performance. In this case, you may not be able to use old consumables or accessories or may need to switch to another operating system.
To ensure printing quality, please use the ink within 6 months after opening.
Depending on different devices such as computers, smartphones or their device systems, the ink data or information displayed on the device screen may be different from that displayed by the printer. In addition, some ink information displayed on the printer may not be displayed or may be displayed on the device at different times. Please refer to the information displayed on the printer. Please note: All data and information displayed are for reference only
Depending on the printing paper or printing settings, the printer may also use colored ink when printing black and white documents. When any color ink is used up it needs to be replaced.
Printing costs in product brochures or on the website are based on ink consumption data for subsequently installed ink tanks, not the initial ink tanks.
For maintenance details, please contact your Canon sales representative. During the maintenance period, maintenance only covers the printer body and does not include consumables such as printing paper and ink.
Ink bottles sold in the same region as the printer will have separate model labels, and the ink bottles may not be suitable for printers sold in other regions. It is recommended to check with your local Canon company or authorized dealer before changing the printer's usage area.
Using non-original ink will affect printer performance and print quality. In some cases, although there are no safety issues, using non-original ink may cause the inkjet head to overheat and produce smoke.
If the printer malfunctions due to the use of non-original ink, repair fees will be charged even if it is repaired within the warranty period.
Depending on different devices such as computers, smartphones, or other device systems, the remaining capacity of the maintenance cartridge displayed on the device may be different from that displayed on the printer. In addition, the remaining capacity displayed may vary from time to time. Please refer to the information displayed on the printer.
