Description

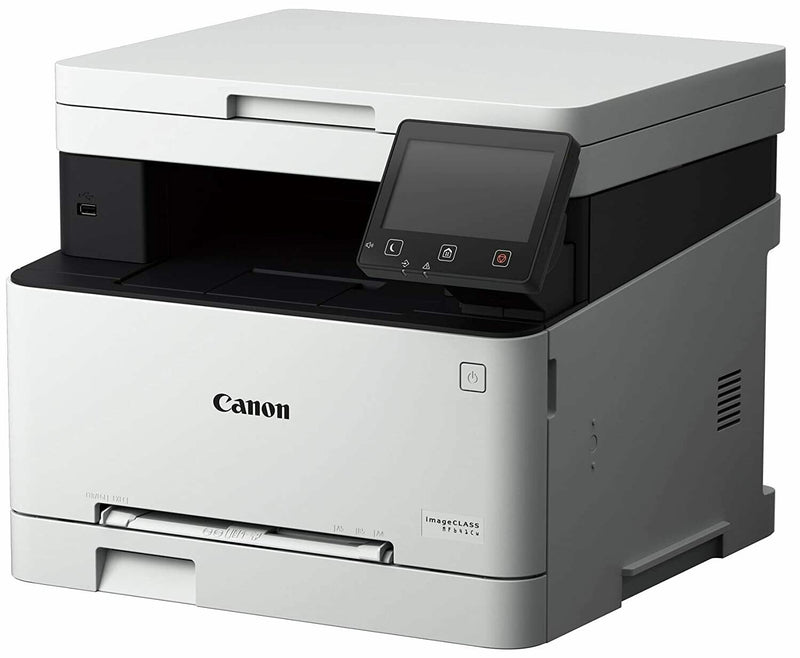

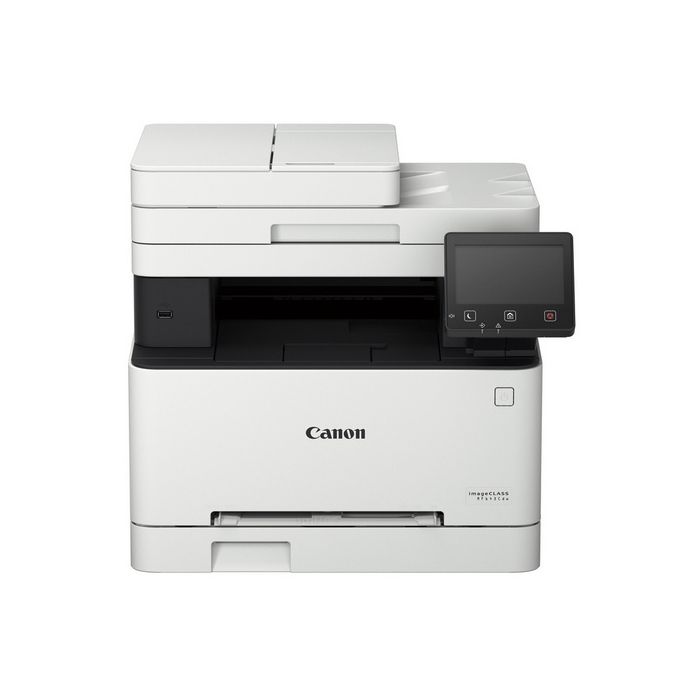

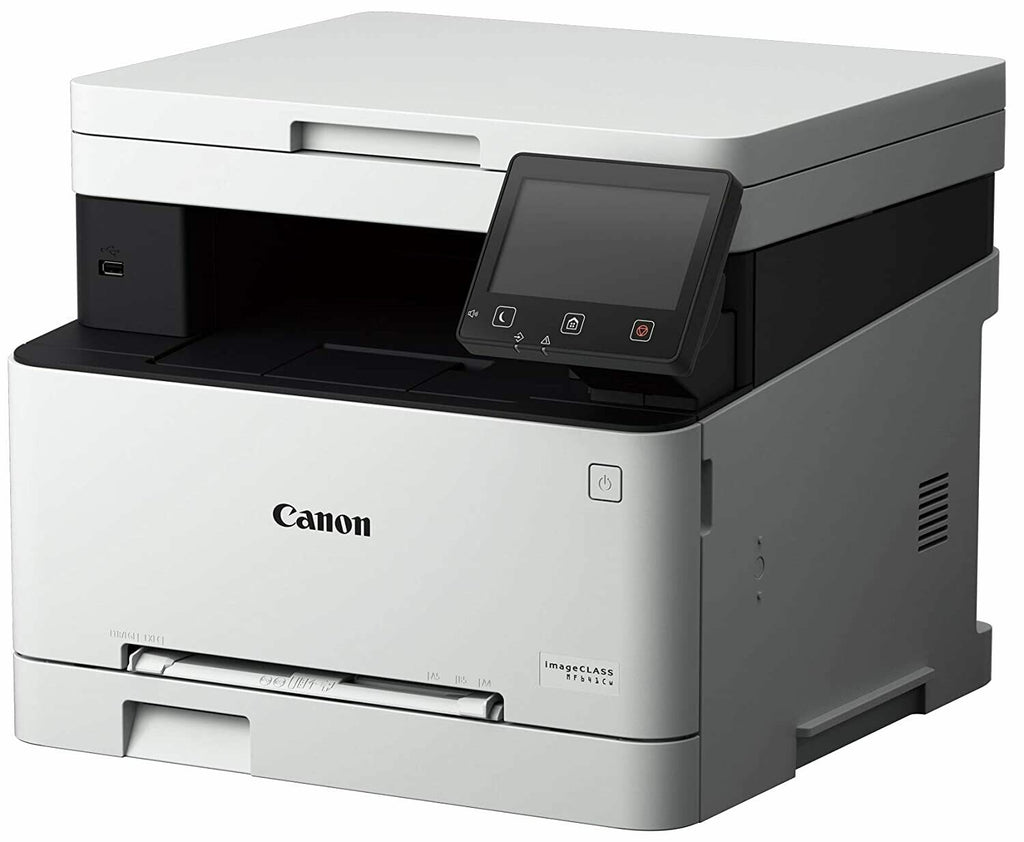

imageCLASS MF643Cdw
Smart 3-in-1 all-in-one color laser printer
MF643Cdw double-sided all-in-one color laser printer brings more vivid and sharp documents and flexible and efficient document processing solutions to small and medium-sized enterprises and large enterprises.
- All-in-one function: color printing/color scanning/color photocopying
- Print/copy speed is 21 pages per minute (black and white and color)
- Print resolution equivalent to 1,200 × 1,200 dpi
- Built-in Wi-Fi 802.11b/g/n wireless network, Gigabit network and direct connection for network
- Recommended print volume per month is 250-2,500 sheets
| Printing method | Color laser printing |
| printing speed | |
| A4 | 21/21 pages per minute (black and white/color) |
| stationery |
22/22 pages per minute (black and white/color) |
| 2-Sided | 12/12 pages per minute (black and white/color) |
|
Print resolution |
600x600dpi |
| The highest print resolution is equivalent to | 1,200 × 1,200 dpi (eq.) |
|
Warm-up time (by power on) |
13 seconds or less |
|
Home page printing time |
|
| A4 | Approx. 10.4 / 10.5 seconds (monochrome/color) |
| stationery | Approx. 10.3 / 10.3 seconds (monochrome/color) |
|
Restart time (from sleep mode) |
6.1 seconds or less |
|
Print language |
UFR II, PCL 6 |
|
Automatic duplex printing |
support |
|
Sizes that support automatic duplex printing |
A4, B5, Legal, Letterhead, Executive, Foolscap, Indian Legal |
|
Print margins |
Top, bottom, left, right 5mm - (envelope: 10mm) |
|
Print function |
Posters, brochures, watermarks, page merging and toner saving |
|
USB memory direct printing |
JPEG, TIFF, PDF |
Photocopy
|
|||||||||||||||||||||
scanning
|
Scan resolution |
|||||||||||||||||||||
| Optics | Platform: up to 600 x 600 dpi Automatic document feeder: up to 300 x 300 dpi |
||||||||||||||||||||
| Software improvement | Up to 9,600 x 9,600 dpi | ||||||||||||||||||||
| Scan components | Color CIS | ||||||||||||||||||||
|
|||||||||||||||||||||
Easy transfer
|
Scan method |
SMB, email, FTP |
|
color mode |
Full color, grayscale, monochrome |
|
Scan resolution |
300x600pi |
|
File format |
JPEG, TIFF, PDF, Compressed PDF, PDF (OCR) |
Computer interface and software
| Standard interface | |
| wired network |
USB 2.0 High Speed, 10Base-T/100Base-TX/1000Base-T Ethernet |
| wireless network | Wi-Fi 802.11b/g/n (Infrastructure mode, WPS easy Setup, direct printing) |
| Near Field Communication (NFC) | Does not support |
|
network protocols |
|
| LPD, RAW, WSD-Print (IPv4, IPv6) | |
| scanning | Email, SMB, WSD-Scan(IPv4, IPv6), FTP |
| TCP/IP Application Services | Bonjour(mDNS), HTTP, HTTPS, POP before SMTP (IPv4,IPv6), DHCP, ARP+PING, Auto IP, WINS (IPv4), DHCPv6 (IPv6) |
| manage | SNMPv1, SNMPv3 (IPv4, IPv6) |
|
network security |
|
| wired network | IP/Mac address filtering, HTTPS, SNMPv3, IEEE802.1x, IPSEC |
| wireless network | WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES) |
|
One-click wireless configuration |
Wi-Fi Protected Setup (WPS) |
|
Other functions |
Department identification code, secure printing, Application Library custom interface function |
|
mobile printing |
Canon PRINT Business, Canon Print Service, Google Cloud Print™, Apple® AirPrint®, Mopria® Print Service |
|
address book |
LDAP |
|
Compatible operating system*2 |
Windows® 10, Windows® 8.1, Windows® 7, Windows Server® 2016, Windows Server® 2012 R2, Windows Server® 2012, Windows Server® 2008 R2, Windows Server® 2008 Mac® OS X 10.9.5 & up *3 , Linux *3 |
|
Included software |
Print driver, scan driver, MF Scan Utility, toner remaining level |
General specifications
|
Memory |
1024 MB |
| LCD display | 5-inch WVGA color touch LCD display |
|
Volume (width x depth x height) |
451 x 460 x 413mm |
|
weight |
20.5 kg |
|
power consumption |
|
| Highest | 850 watts or less |
| Average (in use) | About 370 watts |
| Average (standby mode) | About 11 watts |
| Average (standby mode) | About 0.8 watts |
|
Noise level*4 |
|
| When printing | Sound pressure emission: 51 dB Sound power delivery: 69.4 dB |
| On standby | Sound pressure emission: Background sound power emission: 43dB |
|
Usage environment |
|
| temperature | 10-30°C |
| humidity | 20% - 80% RH (no condensation) |
|
power supply |
AC 220-240 V (±10%), 50/60 Hz (±2Hz) |
|
Consumables*5 |
|
| Toner cartridge (normal) | Cartridge 054 black: 1,500 pages (starting black: 1,500 pages) Cartridge 054 Indigo/Magenta/Yellow: 1,200 pages (Starting Indigo/Magenta/Yellow: 680 pages) |
| Toner Cartridge (High Capacity) | Cartridge 054 H high-yield black toner cartridge: 3,100 pages Cartridge 054 H Indigo/Magenta/Yellow: 2,300 pages |
|
Recommended print volume per month *6 |
30,000 pages |
- Calculated speed for scanning A4 files on a glass surface at 300 x 300dpi.
- ScanGear is not available for Windows Server 2003/2008/2012.
- The latest driver can be downloaded from hk.canon.
- Tested according to ISO 7779 and ISO 9296 standards.
- Tested according to ISO/IEC 19798.
- The recommended monthly print volume is the median of other Canon laser printers that can provide high-quality prints. This value does not represent the maximum monthly print volume.
