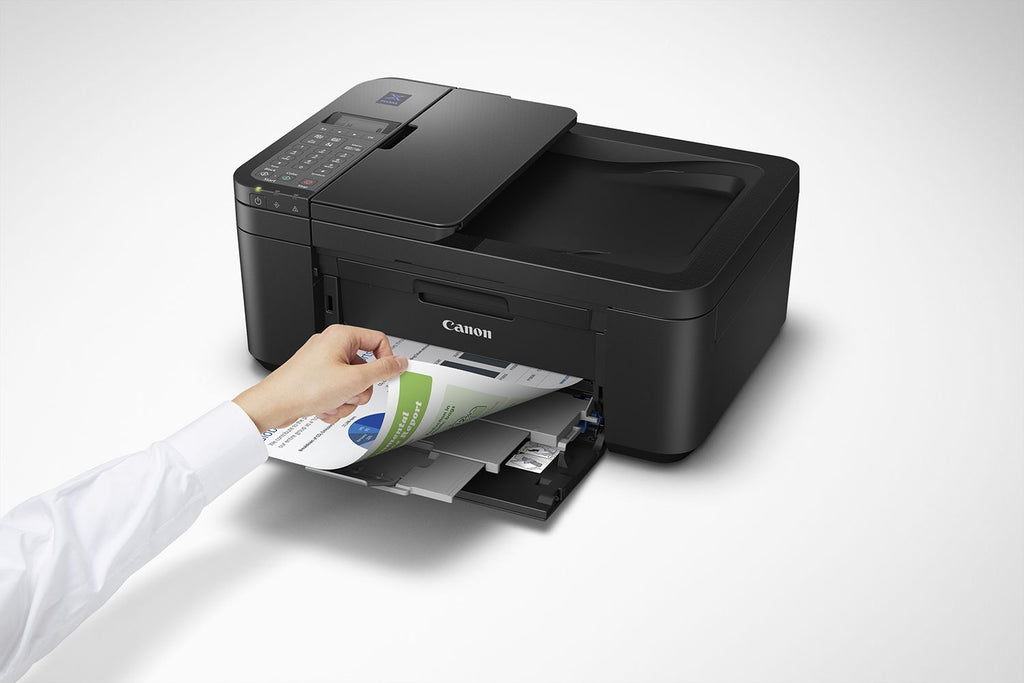

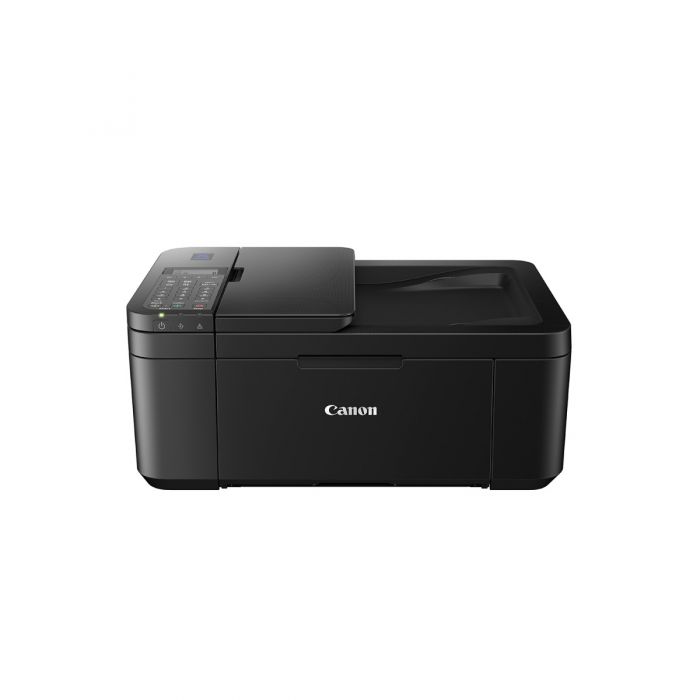

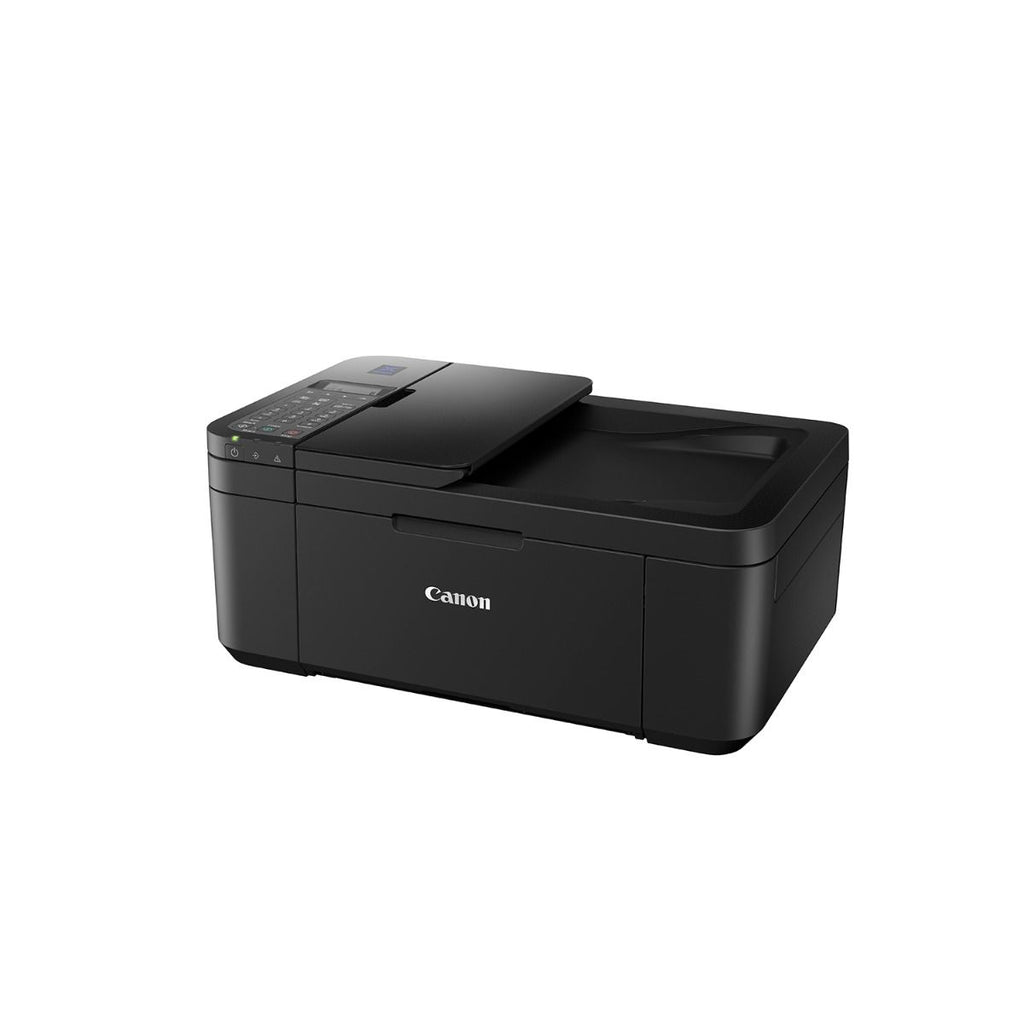

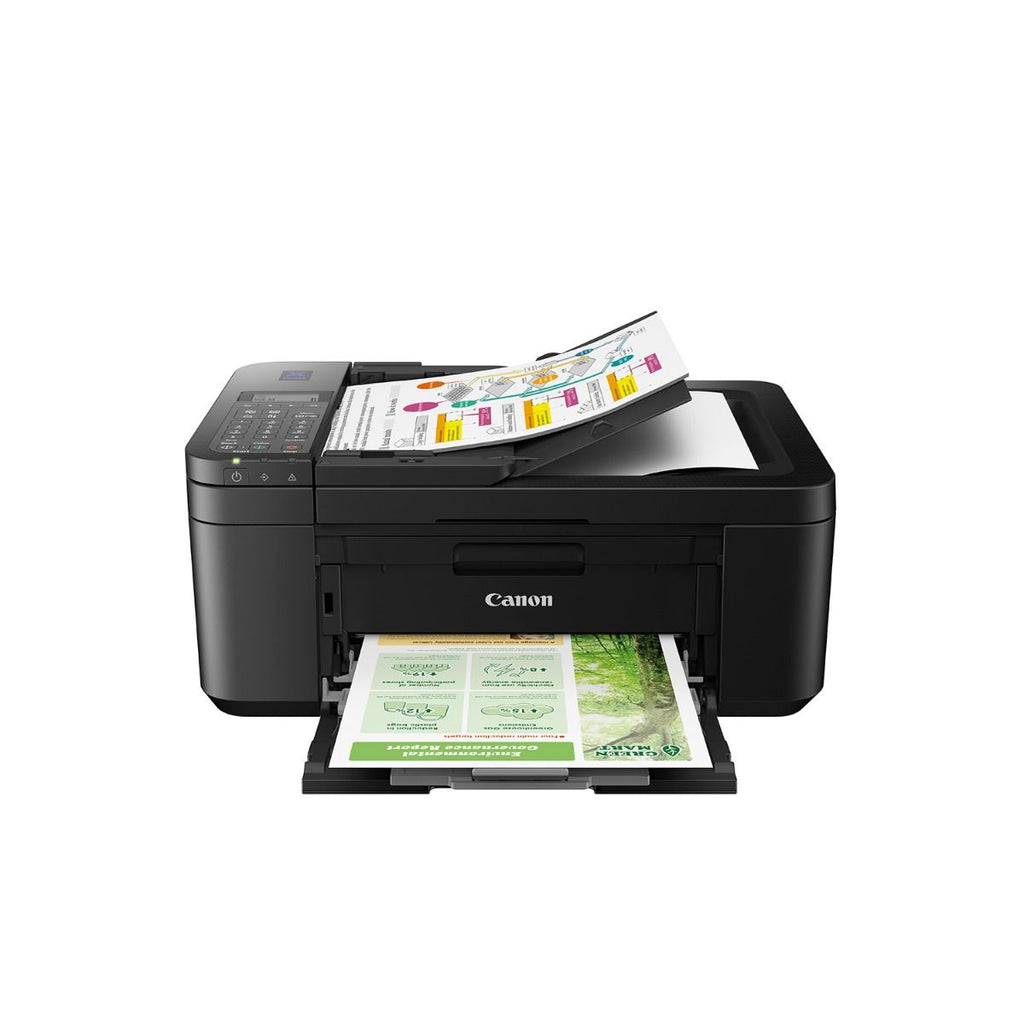

PIXMA E4570

Slim, wireless all-in-one printer with fax and automatic duplex printing

The E4570 compact all-in-one printer integrates printing, scanning, copying and fax functions. It supports high-consumption ink tanks, greatly reducing printing costs to HK0.7 per A4 color document. It also supports automatic double-sided printing, making it ideal for small offices or SOHO users provide comprehensive printing solutions.

Print, scan, photocopy, fax
ISO A4 standard printing speed (black and white/color): 8.8/4.4 ipm
USB2.0 high speed, Wi-Fi, Mopria®, AirPrint, wireless direct connection
Recommended print volume: 50-200 pages

Print

Print head/ink
type	FINE Cartridge
Number of inkjet nozzles	Total 1,280 nozzles
Ink tank model	PG-47, CL-57 (Random: CL-57S)
Highest print resolution	4800 (horizontal) ^*1 x 1200 (straight) dpi
Printing speed *^2** Based on ISO/IEC 24734 Speed details test method
Document (ESAT/Single Sided)	Approx. 8.8 ipm (black) / 4.4 ipm (colour)
Document (ESAT/Duplex)	Approx. 1.9 ipm (colour)
Document (FPOT / single sided)	Approx. 11 sec (black) / 19 sec (colour)
Photo (4x6") (PP-201/borderless)	approx. 65 seconds
Print width	Maximum 203.2 mm (8 inches), Borderless: up to 216mm (8.5inch)
Print range
Borderless printing ^*3	Top/bottom/left/right margin: 0mm
Bordered Printing	Envelope(#10/DL): Top margin: 8mm Bottom margin: 12.7mm Left/right margin: 5.6mm LTR, LGL: Top margin: 3mm Bottom margin: 5mm Left margin: 6.4mm Right margin: 6.3mm Customized (width: 101.6 - 215.9 mm, Length: 152.4 - 676 mm): Top margin: 3mm Bottom margin: 5mm Left margin: 3.4mm Right margin: 3.4 - 9.3 mm other: Top margin: 3mm Bottom margin: 5mm Left/right margin: 3.4 mm
Bordered double-sided printing	A4/LTR: Top/Bottom margin: 5 mm A4: Left/right margin: 3.4 mm LTR: left margin: 6.4 mm, right margin: 6.3 mm
Supported paper types
front paper feeder	Plain paper (64 - 105 g/m²) Flagship wide color gamut photo paper (PT-101) Pearl suede photo paper (LU-101) High gloss multi-purpose photo paper (PP-208) Matte Art Photo Paper (MP-101) Special paper for reports (HR-101N) Semi-glossy high-contrast photo paper (SG-201) Photo stickers (PS-108/PS-208/PS-808) Removable photo stickers (PS-308R) Magnetic photo paper (PS-508) envelope
paper size
front paper feeder	A4, A5, B5, LTR, LGL, Envelopes (#10, DL), 4 x 6", 5 x 7", 8 x 10" [custom size] Width: 101.6 - 215.9mm Length: 152.4 - 676mm
*Paper size (borderless) ^3**	A4, LTR, 4 x 6", 5 x 7", 8 x 10"
paper handling (maximum value), front paper feeder
Plain paper (A4/LTR size)	Plain paper (64 g/m²) = 100
Photo paper (4 x 6")	Other Canon photo papers = 20 High Gloss Multipurpose Photo Paper (PP-208) = 10
Photo paper (5 x 7")	10
Duplex printing supports paper
type	plain paper
feet	A4,LTR
Paper weight
front paper feeder	Plain paper: 64 - 105 g/m² Canon paper: Maximum weight: Approx. 300 g/m² (Flagship wide color gamut photo paper, PT-101)
Ink sensor	Ink drop calculation
Print head alignment	Manual

**Scan ^*4**

Scanner type	Platform type (ADF / Platen)
scanning method	Contact Image Sensor (CIS)
*Optical resolution ^5**	600x1,200dpi
Scan color depth (input/output)
Grayscale	16 / 8 bit
color	RGB each 16 / 8 bit
*Linear scan speed ^6**
Grayscale	Approx. 1.5 ms/line (300 dpi)
color	Approx. 3.5 ms/line (300 dpi)
Maximum file size
Platform type	A4/LTR
automatic document feeder	A4/LTR/LGL

Photocopy

Supported paper types
feet	B5, A5, Legal, A4, LTR, 4 x 6", 5 x 7"
type	plain paper Flagship wide color gamut photo paper (PT-101) Pearl suede photo paper (LU-101) Semi-glossy high-contrast photo paper (SG-201) High gloss multi-purpose photo paper (PP-208) Glossy photo paper (GP-508)
Photocopy quality	3 levels (fast, standard, high)
Density adjustment	9 levels, automatic (AE photocopy)
*Photocopy speed ^7** ISO/IEC 24734 Speed details test method
Document (Colour): (sFCOT/Simplex) / (sESAT/Simplex)	approx. 27 sec / approx. 3.6 ipm
File (ADF): Color (ESAT/Single-sided)	Approx. 2.7 ipm
File (ADF): Black and white (ESAT/single-sided)	Approx. 6.4 ipm
Multiple page photocopying
black and white/color	Max. 99 pages

fax

type	Desktop Transceiver (Super G3 / Color Communication)
Applicable Line	PSTN
*Transmission speed ^8**
black and white / color	About 3 seconds (black and white) / about 1 minute (color)
Fax resolution
Black and white(approx.)	8 pixels/mm x 3.85 lines/mm (standard) 8 pixels/mm x 7.7 lines/mm (high quality) 300 x 300dpi (highest quality)
Color (approx.)	200×200dpi
Print size	A4, LTR, LGL
Scan width	A4/LTR
Modem speed	Maximum 33.6 kbps (auto fallback)
compression
black and white	MH, MR, MMR
color	JPEG
Gradient levels
black and white	256 levels
color	RGB each 8 bit
ECM (Error Correction Mode)	support
Automatic dialing
number speed dial	Max. 20 positions
Group dialing	Max. 19 positions
*Transmit/receive memory ^9**	About 50 pages

Send fax from computer

type	Windows: Supported, macOS: Supported
Fax quantity	1 location
black and white/color	Applicable to black and white transmission only

network

protocol	SNMP, HTTP, TCP/IP (IPv4/IPv6)
wireless network
Network type	IEEE802.11b/g/n
2.4 GHz Channel: 1 - 11	US/TW/CAN
2.4 GHz Channel: 1 - 13	KR/EUR/AU/ASA/CN/EMBU
safety	WPA-PSK (TKIP/AES) WPA2-PSK (TKIP/AES)
Wireless direct connection	support

mobile printing

AirPrint	support
Mopria	support
Canon Print Service (Android)	support
PIXMA Cloud Link (smart device)	support
Canon PRINT Inkjet/SELPHY (iOS/Android)	support

System requirements ^*10

Windows 10/8.1/7 SP1
(operation can only be guaranteed on a PC with a pre-installed Windows 7 or later)

macOS v10.13.6 ~ 11.0

Chrome OS

General specifications

Control interface
Display	2-Line LCD
language	32 selectable languages Japanese, English (mm and inches), German, French, Italian, Spanish, Portuguese, Dutch, Danish, Norwegian, Swedish, Finnish, Russian, Ukrainian, Polish, Czech, Slovenian , Hungarian, Slovak, Croatian, Romanian, Bulgarian, Turkish, Greek, Estonian, Latvian, Lithuanian, Simplified Chinese, Korean, Traditional Chinese, Indonesian, Vietnamese
automatic document feeder
Paper handling (plain paper)	A4, LTR: 20, LGL: 5
Connection interface	USB 2.0
*Operating environment ^11**
temperature	5-35°C
humidity	10 - 90% RH (no condensation)
*Recommended environment ^12**
temperature	15-30°C
humidity	10 - 80% RH (no condensation)
Storage environment
temperature	0-40°C
humidity	5 - 95% RH (no condensation)
silent mode	support
Noise level (computer printing) (approx.)
Plain paper (A4, B/W) ^*13	Approx. 56.5 dB(A)
power supply	AC 100-240V, 50/60Hz
Power consumption (approx.)
When shutting down	0.3 W
When in standby (scan light is off) Connect to computer using USB	0.8W
When photocopying ^*14 Connect to computer using USB	7W
Recommended usage	Up to 1,200 pages/month
Volume (width x depth x height)
Factory specifications	Approx. 435 x 295 x 189 mm
Output tray/auto document feeder fully open:	Approx. 435 x 592 x 438 mm
Weight (approx.)	5.8kg

Ink volume

Plain paper (A4)
(ISO/IEC 24712 test file ) ^*15

Plain paper (A4)
(ISO/IEC 24712 test file) ^*16

PG-47: 400

CL-57S: 180 (random)
CL-57: 300

Photo paper 4 x 6"
(ISO/IEC 29103 test file) ^*16

PG-47: N/A*17

CL-57S: 55 (random)

CL-57: 90

Ink droplets can be placed as small as 1/4,800 inches apart
Document printing speed is based on single-sided printing and is the ESAT average in ISO/IEC 24734's Office Category Test, excluding the first set of printing time. Photo printing speed is calculated using high-gloss multi-purpose photo paper PP-201, driver default settings and based on ISO/JIS-SCID N2, excluding computer processing time. Printing speed will vary depending on system configuration, connection interface, software, document complexity, print mode, coverage, paper type, etc.
Borderless printing does not support photo paper types: envelopes, high-resolution special paper HR-101, T-Shirt transfer paper and photo sticker PS series
The TWAIN driver (ScanGear) is based on TWAIN specification version 1.9 and requires the operating system's built-in data source manager.
Optical scanning resolution is only available with the TWAIN driver. Optical resolution measures the maximum sampling resolution according to the ISO14473 standard.
Maximum speed using a Windows computer and a USB connection, excluding the time it takes to transfer data to the computer
Copy speeds (ADF) are ESAT of copy in sequence, ISO/IEC 24735. Copy speeds (ADF) are ESAT of copy in sequence, ISO/IEC 24735. The speed will vary accordingly. Varies depending on file complexity, print mode, coverage, paper type, etc.
Black and white document fax fax speed is tested based on default settings and ITU-T No.1 chart. Color fax speed is tested based on default settings and Canon color test charts. Transmission speed will vary depending on document complexity, fax settings, recipient and line environment.
Quantity tested according to ITU-T No.1 chart or Canon standard chart (No.1)
For compatible operating systems and driver downloads, please visit http://support-hk.canon-asia.com
Printer performance may be reduced due to unsuitable temperature or humidity environment
For recommended temperatures and humidity for different papers, please refer to the paper instructions or information on the packaging.
Noise tested according to ISO7779 standard and default settings
Tested according to ISO/JIS-SCID N2 standard using A4 plain paper and default settings
Document print yield is tested in Canon continuous printing mode according to ISO/IEC 24712 pattern. Does not include first set of inks
A4 document print yield is tested in ISO/IEC 24711 method according to ISO/IEC 24712 pattern. 4R photo printing test in continuous mode according to ISO/IEC 29103 pattern
Not suitable for photo printing, but a small amount of ink will be consumed for maintenance purposes

The warranty period for printer repair parts is 5 years after the product is discontinued. During maintenance, our company may have the opportunity to replace the printer with a new one or one with equivalent performance. In this case, you may not be able to use old consumables or accessories or may need to switch to another operating system.
To ensure printing quality, please use the ink within 6 months after opening.
Depending on different devices such as computers, smartphones or their device systems, the ink data or information displayed on the device screen may be different from that displayed by the printer. In addition, some ink information displayed on the printer may not be displayed or may be displayed on the device at different times. Please refer to the information displayed on the printer. Please note: All data and information displayed are for reference only.
Depending on the printing paper or printing settings, the printer may also use colored ink when printing black and white documents. When any color ink is used up it needs to be replaced.
Whether printing in black and white or color, the printer must have all color ink cartridges installed. If any of the ink cartridges are not installed, the printer will display an error signal and be unable to print.
When you install it for the first time using the supplied initial ink tank, the printer will consume a small amount of ink to fill the print head. Therefore, the initial ink tank will print fewer pages than subsequent standard ink tanks installed.
Printing costs in product brochures or on the website are based on ink consumption data for subsequently installed ink tanks, not the initial ink tanks.
Whether printing in black and white or color, the printer must have all color ink cartridges installed. If any of the ink cartridges are not installed, the printer will display an error signal and be unable to print.
For maintenance details, please contact your Canon sales representative
Ink bottles sold in the same region as the printer will have separate model labels, and the ink bottles may not be suitable for printers sold in other regions. It is recommended to check with your local Canon company or authorized dealer before changing the printer's usage area.
If the printer malfunctions due to the use of non-original ink (including drilling holes in the original ink cartridge and refilling the non-original ink), repairs will be charged even within the warranty period.
If you use non-original ink (including drilling holes in the original ink cartridge and refilling it with non-original ink), it may have a negative impact on printer performance. In addition, there is a chance that the inkjet head may overheat or emit smoke.
