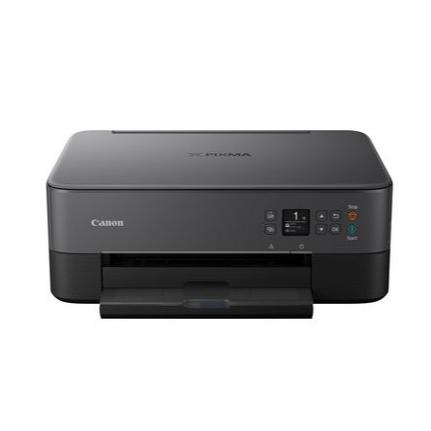

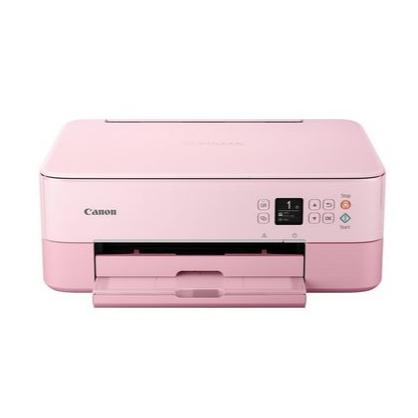

PIXMA TS5370a
Slim wireless all-in-one photo printer with 1.44-inch OLED
The slim all-in-one photo printer integrates color printing, scanning and photocopying functions. It is equipped with a new 1.44-inch OLED and stylish smart status display lights. It also supports comprehensive mobile printing technology to meet different home printing needs.
- Print, scan, photocopy
- ISO A4 standard printing speed (black and white/color): 13.0/6.8 ipm
- USB2.0 high speed, Wi-Fi, Mopria®, AirPrint, Bluetooth BLE (not applicable to TS5370a), wireless direct connection
- Recommended print volume: 30-100 pages
|
Printhead/ink type |
||
|
type |
permanent |
|
|
Number of inkjet nozzles |
1,792 |
|
|
Ink tank model |
PG-760 |
|
|
Highest print resolution |
4800 (horizontal)*1 x 1200 (vertical) dpi |
|
|
Printing speed *2 ISO/IEC 24734
|
||
|
Document (ESAT/Single Sided) |
Approx. 13 ipm (monochrome)/6.8 ipm (color) |
|
|
Photo (4x6") (PP-201/borderless) |
Approx. 43 sec |
|
|
Print width |
Up to 203.2 mm (8 inch), Borderless: Up to 216 mm (8.5 inch) |
|
|
Print range |
||
|
Borderless printing *3 |
Top/bottom/left/right margin: 0 mm |
|
|
Bordered printing |
Top margin: 3mm, bottom margin: 5mm, left/right margin: 3.4mm (LTR: Left: 6.4mm, Right: 6.3mm) |
|
|
Double-sided printing (bordered) |
Top margin: 5mm, Bottom margin: 5mm, Left/right margin: 3.4mm (LTR: Left: 6.4mm, Right: 6.3mm) |
|
|
Supported paper types |
||
|
Rear paper feeder |
Special paper for plain paper reports (HR-101N) |
|
|
Paper feed tray |
plain paper |
|
|
paper size |
||
|
Rear paper feeder |
A4, A5, B5, LTR, LGL, 4 x 6",5 x 7", 7 x 10", 8 x 10", Envelopes (DL, COM10), Square (5 x 5", 3.5 x 3.5"), Card (91 x 55 mm) |
|
|
Paper feed tray |
A4, A5, B5, LTR |
|
|
Paper size (borderless) *4 |
A4, LTR, 4 x 6", 5 x 7", 8 x10", Card Size (91 x 55 mm), Square (5 x 5", 4 x 4") |
|
|
Paper handling (maximum value) |
||
|
Rear paper feeder (plain paper) |
A4, LTR =100 |
|
|
Paper feed tray (plain paper) |
A4, LTR = 100 |
|
|
Borderless printing supports paper sizes |
||
|
type |
plain paper |
|
|
feet |
A4, A5, B5, LTR |
|
|
Paper weight |
||
|
Rear paper feeder |
Plain paper: 64-105 g/m2, |
|
|
Paper feed tray |
Plain paper: 64-105 g/m2 |
|
|
Ink sensor |
Ink drop calculation |
|
|
Print head alignment |
automatic / manual |
Scan *5
|
Scanner type |
Platform type |
|
scanning method |
CIS |
|
Optical resolution *6 |
1200x2400dpi |
|
Scan color depth (input/output) |
|
|
Grayscale |
16 bit/8 bit |
|
color |
RGB 16 bit/8 bit each |
|
Linear scan speed *7 |
|
|
Grayscale |
1.5ms/line (300dpi) |
|
color |
3.5 ms/line (300 dpi) |
|
Maximum size |
|
|
Platform type |
A4/LTR (216 x 297mm) |
Photocopy
|
Maximum file size |
A4/LTR |
|
|
Supported paper types |
||
|
inches |
A4/A5/B5/LTR/4 x 6"/5 x 7" |
|
|
type |
plain paper |
|
|
Photocopy quality |
3 levels (fast, standard, high) |
|
|
Density adjustment |
9 levels, automatic (AE photocopy) |
|
|
Photocopy speed *8 ISO/IEC 24734
|
||
|
Document (sFCOT/single sided) |
about. 4.0ipm |
|
|
Document (sESAT/single-sided) |
about. 20 seconds |
|
|
Multiple page photocopying |
||
|
black and white/color |
Max. 99 pages |
network
|
protocol |
SNMP, HTTP, TCP/IP (IPv4/IPv6) |
|
Transmission speed |
IEEE802.11n/IEEE802.11g/IEEE802.11b |
|
wireless network |
2.4 GHz |
|
Frequency band *9 |
1-13 |
|
scope |
50 meters indoors (depending on transmission speed and environment) |
|
safety |
WEP64/128 bit |
|
Wireless direct connection |
support |
|
Bluetooth |
Supported (not applicable to TS5370a) |
mobile printing
|
AirPrint |
support |
|
Windows 10 Mobile |
support |
|
Mopria® |
support |
|
Google Cloud Print |
support |
|
Canon Print Service |
support |
|
PIXMA Cloud Link |
|
|
(Compatible with smart devices) |
support |
|
Canon PRINT Inkjet/SELPHY |
support |
System requirements *10
|
|
Windows 10/8.1/7 SP1 OS X 10.11.6, macOS 10.12 ~ 10.14 |
General specifications
|
Control interface |
||
|
Display |
OLED (1.44 inches ) |
|
|
language |
|
|
|
Connection interface |
USB 2.0 high speed |
|
|
PictBridge (Wireless LAN) |
support |
|
|
Operating environment *11 |
||
|
temperature |
5-35°C |
|
|
humidity |
10 - 90% RH (no condensation) |
|
|
Recommended environment *12 |
||
|
temperature |
15-30°C |
|
|
humidity |
10 - 80% RH (no condensation) |
|
|
Storage environment |
||
|
temperature |
0-40°C |
|
|
humidity |
5 - 95% RH (no condensation) |
|
|
silent mode |
support |
|
|
Noise level (PC Print) |
||
|
Plain paper (A4, black and white) *13 |
43.5dB(A) |
|
|
power supply |
AC 100-240 V, 50/60 Hz |
|
|
Power consumption (printed by computer) |
||
|
When shutting down |
Approx. 0.3 W |
|
|
When in standby (scan light is off) Connect to computer using USB |
Approx. 0.9 W |
|
|
Standby (open all connections, scan light off) |
Approx. 1.7 W |
|
|
Standby mode start time |
Approx. 11 min 7 sec |
|
|
When photocopying *14 |
Approx. 19W |
|
|
environment |
||
|
Specification |
RoHS (EU, China), WEEE (EU) |
|
|
Volume (width x depth x height) |
||
|
Factory settings |
Approx. . 403 x 315 x 148 mm |
|
|
With A4 regular (paper tray) |
Approx. 403 x 359 x 148 mm |
|
|
Output tray fully open: |
Approx. 403 x 659 x 293 mm |
|
|
Weight |
Approx. 6.3 kg |
Ink volume
|
plain paper ( number of A4 sheets ) |
Standard capacity ink: |
|
Photo paper (PP-201, 4 x 6") |
Standard capacity ink: |
- Ink droplets can be placed as small as 1/4,800 inches apart
- Document printing speed is based on single-sided printing and is the ESAT average in ISO/IEC 24734's Office Category Test (WORD, Excel, PDF), excluding the first set of printing time. Photo printing speed is calculated using high-gloss multi-purpose photo paper PP-201, driver default settings and based on ISO/JIS-SCID N2, excluding computer processing time. Printing speed will vary depending on system configuration, connection interface, software, document complexity, print mode, coverage, paper type, etc.
- Borderless printing does not support photo paper types: envelopes, high-resolution special paper HR-101, T-Shirt transfer paper TR301 and photo stickers PS series
- Borderless printing does not support photo paper types: envelopes, high-resolution special paper HR-101, T-Shirt transfer paper TR-301
- The TWAIN driver (ScanGear) is based on TWAIN specification version 1.9 and requires the operating system's built-in data source manager.
- Optical scanning resolution is only available with the TWAIN driver. Optical resolution measures the maximum sampling resolution according to the ISO14473 standard.
- Maximum speed using a Windows computer and a USB connection, excluding the time it takes to transfer data to the computer
- The photocopying speed is the average of sFCOT and sESAT, tested according to ISO/IEC 29183 (excluding warm-up time). Photocopying speed will vary depending on document complexity, print mode, coverage, paper type, etc.
- Only applicable to 1-11 in Hong Kong area
- For compatible operating systems and driver downloads, please visit http://support-hk.canon-asia.com
- Printer performance may be reduced due to unsuitable temperature or humidity environment
- For recommended temperatures and humidity for different papers, please refer to the paper instructions or information on the packaging.
- Noise tested according to ISO7779 standard and default settings
- Tested according to ISO/JIS-SCID N2 standard using A4 plain paper and default settings
- Document yields are printed in ISO/IEC 24711 continuous mode according to ISO/IEC 24712 patterns. Photo print yields are printed in ISO/IEC 24711 continuous mode according to ISO/IEX 29103 patterns.
- Expected supplementary value
