Description
Model MPZ-B002-AFAP
ATX Version ATX 12V Ver. 3.1
PFC Active PFC
Input Voltage 100-240V
Input Current 13-7A
Input Frequency 50-60Hz
Dimensions (L x W x H) 160 x 150 x 86 mm

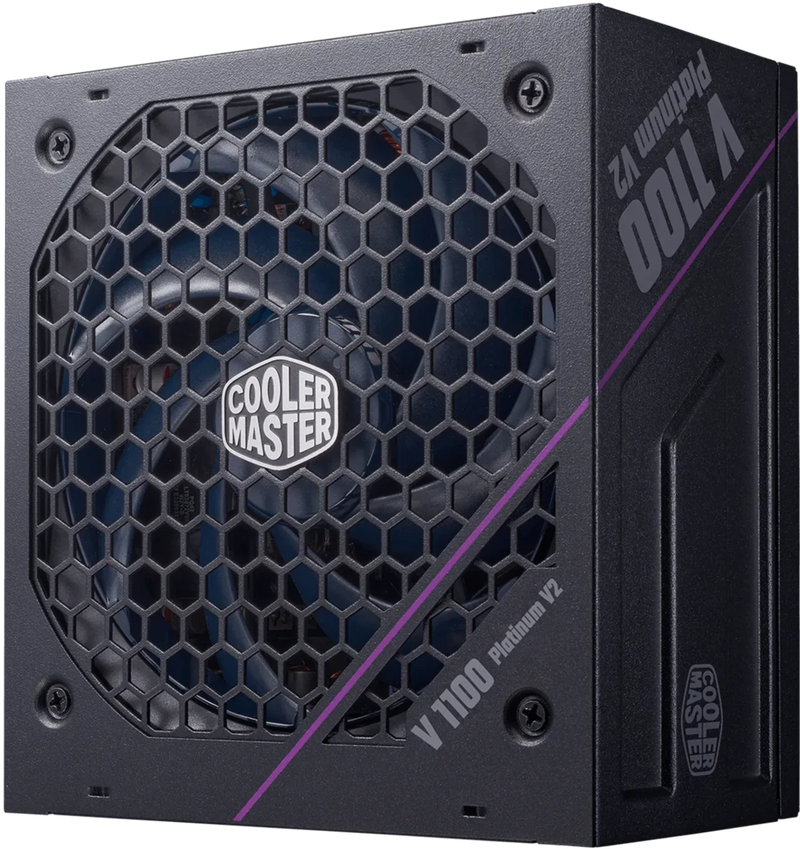

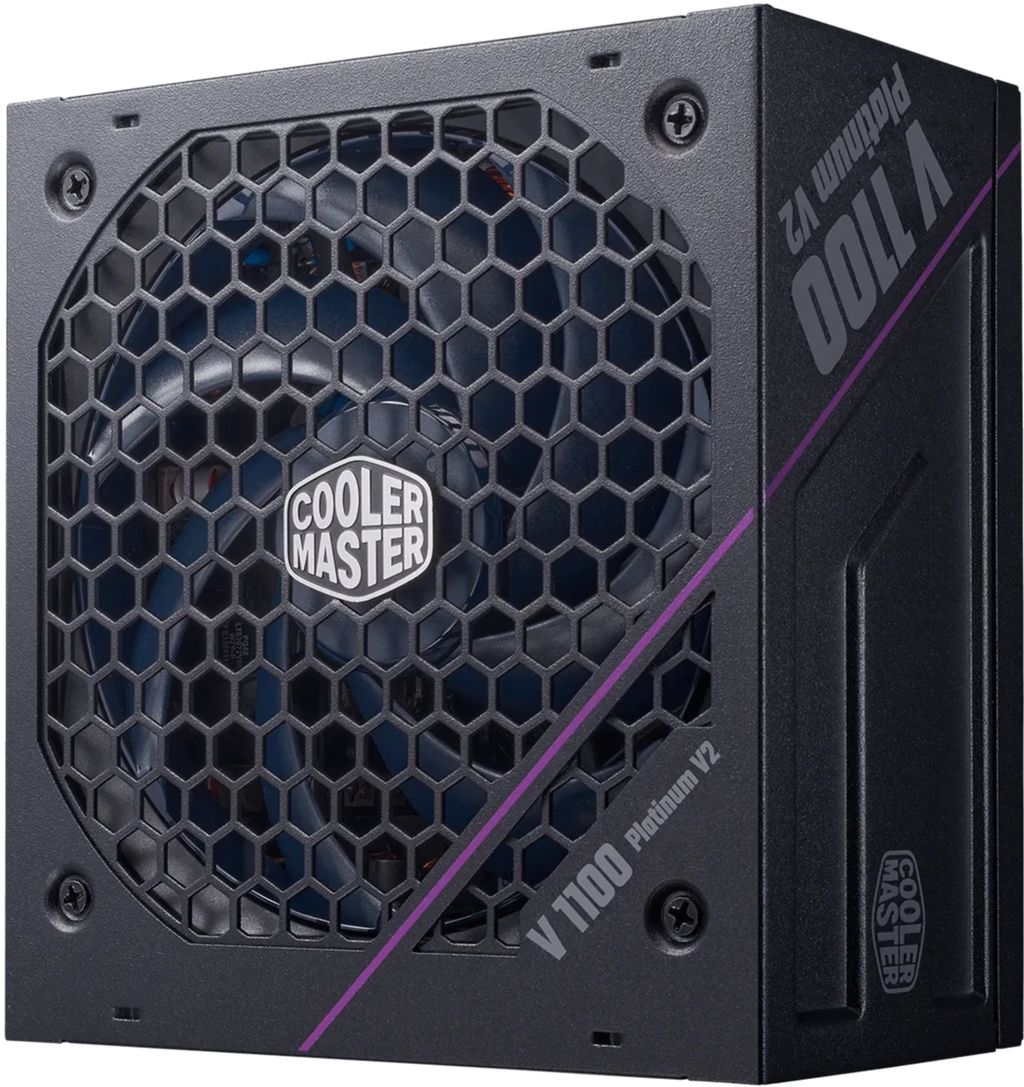

Fan Size 135mm
Fan Bearing LDB
Fan Speed 2400±10% RPM
Efficiency ≥ 92% @ Typical Load
80 PLUS Rating 80 PLUS Platinum
ErP 2014 Lot 3 Yes
Operating Temperature 0-50°C
Power Good Signal 100-150 ms
Hold Up Time ≥ 16ms
MTBF >100,000 Hours
Protections OPP/ OVP/ OTP/ OCP/ SCP/ UVP/ Surge & Inrush Protection
Regulatory cTUVus, TUV, CE, FCC, BSMI, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (Based on region's requests.)

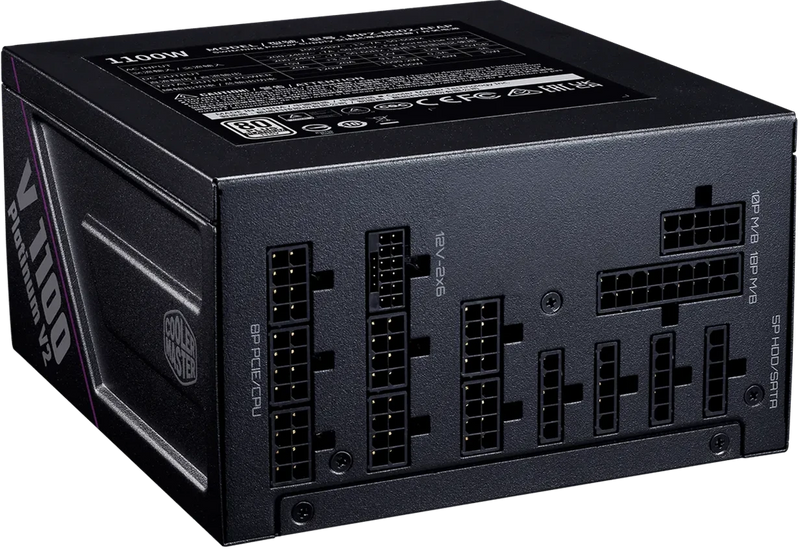

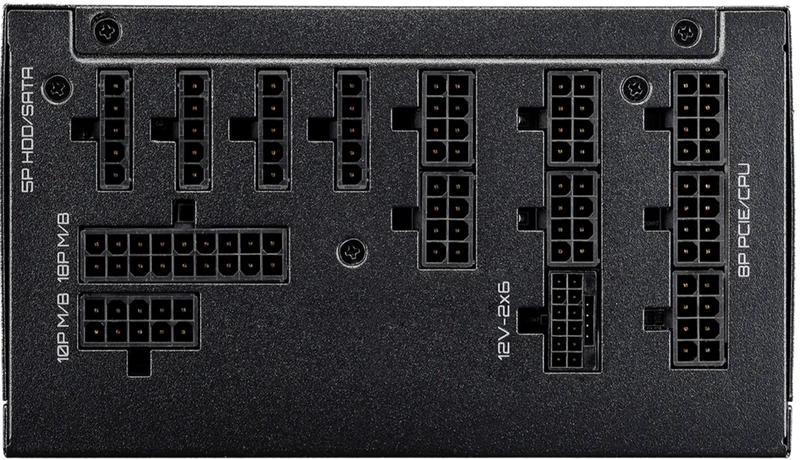

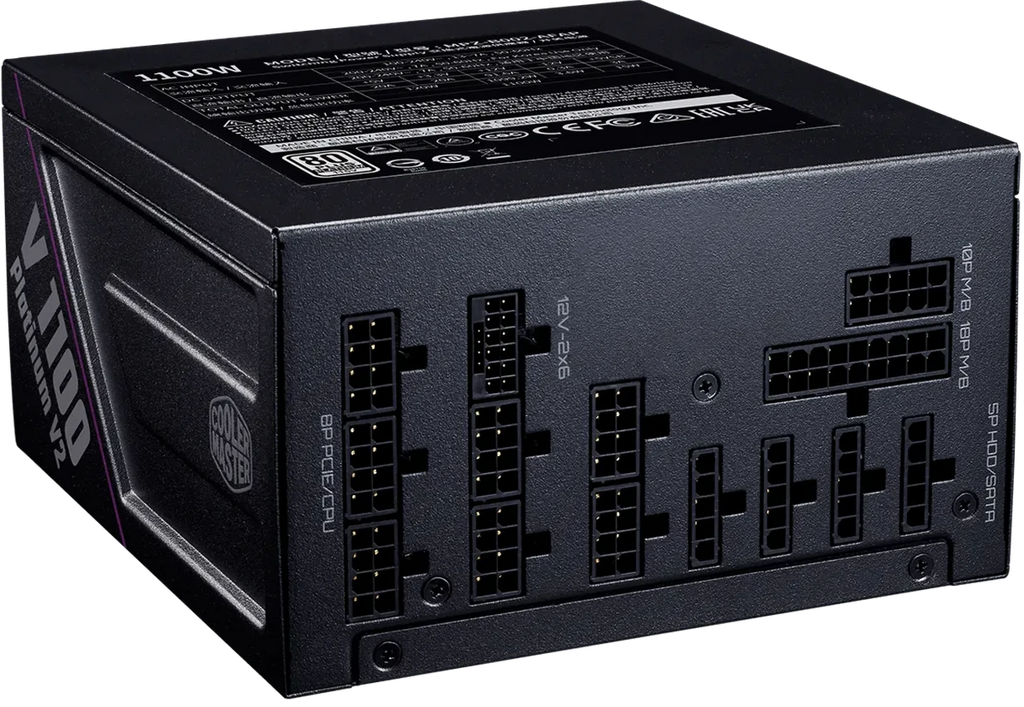

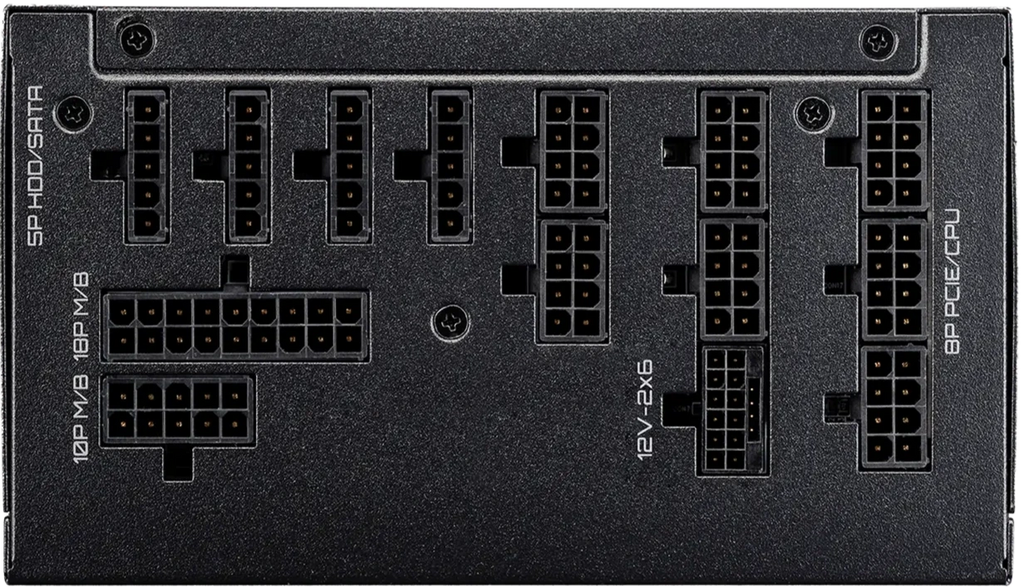

ATX 24 Pin Connectors 1
EPS 4+4 Pin Connectors 1
EPS 8 Pin Connector 1
SATA Connectors 16
Peripheral 4 Pin Connectors 4
PCI-e 6+2 Pin Connectors 5
12V-2x6 Connectors 1
Series V Platinum Series
80 Plus Efficiency Platinum
Modular Fully Modular
Category Above 750W
Form Factor ATX
Watts 1100W
