| color |
Black, White |
|---|

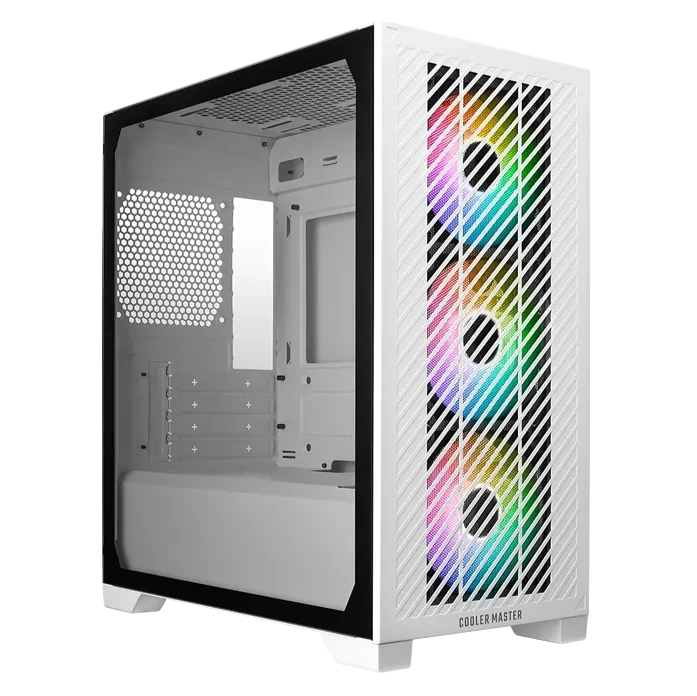

| Product Name | Elite 301 Black Edition Elite 301 White Edioion |
| Model Number | E301-KGNN-S00(Black Edition) E301-WGNN-S00 (White Edition) |
| Series | Elite Series |
| Size | Mini Tower |
| Available Color(s) | Black / White |
| Materials | Steel, Plastic, Tempered Glass |
| Dimensions (L x W x H) | 390 x 203.5 x 430mm (incl. Protrusions), 377 x 203.5 x 410mm (excl. Protrusions) |
| Volume (Liters Excl. Protrusions) | 34.13L |
| Motherboard Support | ITX, Micro-ATX |
| Expansion Slots | 4 |
| 5.25″ ODD | N/A |
| 3.5″ HDD | 1 |
| 2.5″ SSD | 1 (Max.2) |
| I/O Panel | 1 x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen1 Type C, 1 x 3.5mm Headset Jack (Audio + Mic) |
| Pre-installed Fans – Front | 3x 120mm CF120 ARGB (1200 rpm) |
| Pre-installed Fans – Rear | N/A |
| Fan Support – Front | 3x 120mm |
| Fan Support – Top | 2 x 120mm, 2 x 140mm |
| Fan Support – Rear | 1x 120mm |
| Radiator Support – Front | 120mm, 140mm |
| Radiator Support – Top | 120mm, 140mm, 240mm, 280mm |
| Radiator Support – Rear | 120mm |
| Clearance – CPU Cooler | 163.5mm / 6.43”(TG) |
| Clearance – PSU | 160mm / 6.29” |
| Clearance – GFX | 365mm / 14.37”(w/o front fans & radiator) |
| Cable Routing – Behind MB Tray | 18.5mm / 0.73” |
| Dust Filters | Top/Bottom/Front |
| Power Supply Support | ATX |
| Ner Weight | 5.42 kg |
| Gross Weight | 6.33 kg |
| Warranty | 1 Year |
