Description
| color |
Dark Gray |
|---|

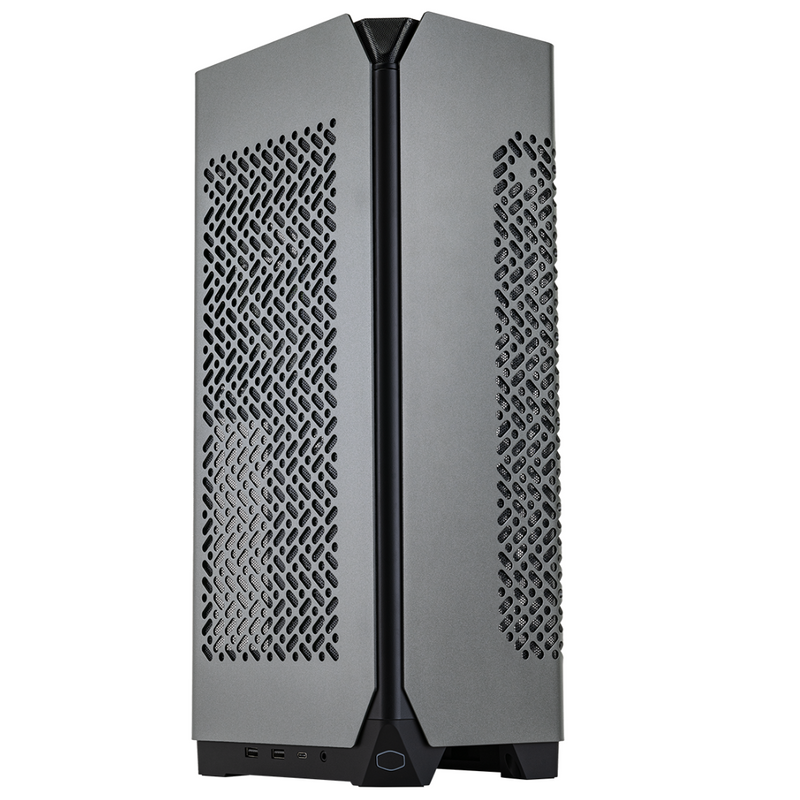

| Product Name | NCORE 100 MAX Dark Gray Edition |
| Model Number | NCORE 100 MAX Dark Gray Edition: NR100-MNNN85-SL0 |
| Series | NCORE Series |
| AvailableColor(S) | Dark Gray |
| Materials Exterior | Steel, Plastic, Aluminum |
| Materials Side Panel | Aluminum |
| Dimensions(LXWXH) | Incl. Protrusions: 155mm x 212mm x 481mm (Normal mode), 172mm x 212mm x 481mm (Expansion mode) Excl. Protrusions: 155mm x 212mm x 457mm, 172mm x 212mm x 457mm |
| Volume (Liters Inc. Protrusions) | 15.80L/17.54L |
| Motherboard Support | ITX |
| Expansion Slots | 3 x PCIe slot mounting |
| 5.25″ Drive Bays | N/A |
| 3.5″ Drive Bays | N/A |
| 2.5″ Drive Bays | 1 SSD |
| I/O Panel – USB Ports | USB 3.2 Gen1 Type A x 2, USB 3.2 Gen2 x 2 Type C x 1 |
| I/O Panel – Audio In / Out 3.5mm | Audio combo x 1 |
| Included Riser Cable | 240mm PCIe 4.0x16x1 |
| Included CPU Cooling Solution | 120mm Radiator with 38mm thickness x 1 (Custom PWM fan max.2400RPM) |
| Included Power Supply Unit | V SFX Gold 850W ATX3.0 |
| Pre-Installed Fans – Rear | 120mm SickleFlow PWM fan x1(max. 1800RPM) |
| Clearance – CPU Cooler | 48mm |
| Clearance – PSU | 100mm |
| Clearance – RAM | 48mm |
| Clearance – Graphics Card | 337mm x 62mm x 180mm (Normal, 3.0 slot thick) 357mm x 79mm x 180mm (Expansion, 3.9 Slot thick) (Maximum space including GPU power connector) |
| Cable Routing – Behind MB Tray | 11mm |
| Dust Filters | Side Panels |
| Power Supply Supported | SFX |
| Warranty | 2 years (Case), 2 years (Thermal Solution), 10 years (Power Delivery) |
