Description

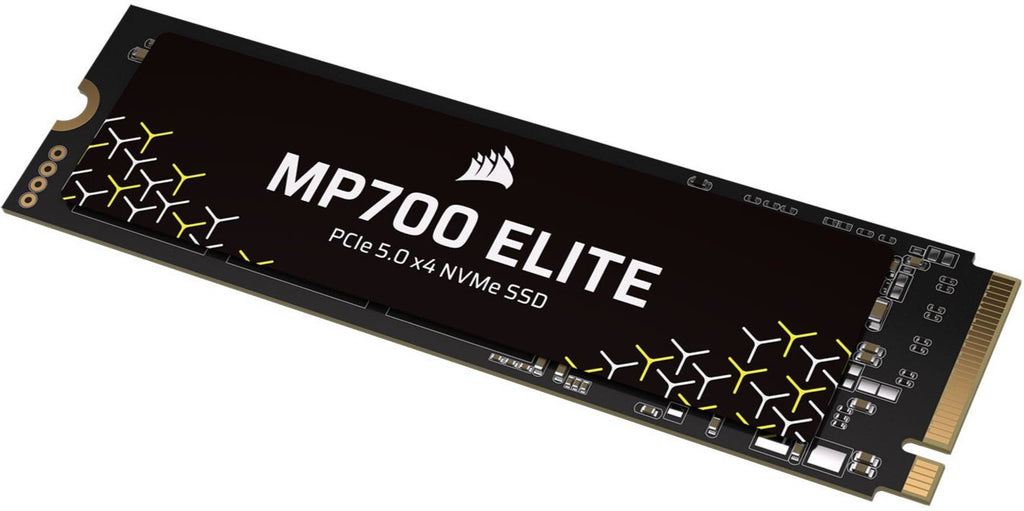

CORSAIR MP700 ELITE PCIe 5.0 x4 NVMe M.2 SSD
Experience the incredible performance of PCIe 5.0 storage with the MP700 ELITE offering sequential read speeds of up to 10,000MB/sec and sequential write speeds of up to 8,500MB/sec. The combination of NVMe 2.0 interface and high-density 3D TLC NAND flash memory offer excellent performance and longevity, while the industry standard M.2 2280 form factor makes installation straightforward. Microsoft DirectStorage enables unprecedented load times when playing compatible games. With excellent endurance backed up by a comprehensive five-year warranty, the MP700 ELITE delivers cutting-edge storage performance for years to come.
Features
• Gen5 Storage Performance: The PCIe 5.0 x4 controller delivers up to 10,000MB/sec sequential reads and up to 8,500MB/sec sequential write speeds*, for phenomenal read, write, and response times.
• Your PC Made Faster: Load games, boot Windows, open and transfer files, all faster than ever.
• High-Density 3D TLC NAND: Provides the ideal mix of performance and endurance to keep your drive performing at its best for years.
• Microsoft DirectStorage Support***: Enables the MP700 ELITE to communicate directly with your graphics card when playing compatible games, for unbelievably fast load times.
• Outstanding Endurance: Rated for up to 1,200TB Written, the MP700 ELITE’s longevity ensures that it reliably stores your data through many years of use.
• Compact M.2 2280 Form Factor: Fits directly into most motherboards, with no heatsink attached for maximum compatibility.
• Performance Heatsink: A pre-installed aluminum heatsink ensures optimal operating temperatures and reduces performance throttling.
• Backward Compatible**: Support for PCIe 4.0 and PCIe 3.0 platforms.
• CORSAIR SSD Toolbox Software: Enables advanced drive controls from your desktop including secure erase and firmware updates.
*Performance and endurance vary by capacity.
**Reduced performance on PCIe Gen4 and Gen3.
***DirectStorage requires a DirectX12 GPU with Shader Model 6.0 support.
| Storage Form Factor | M.2 2280 |
|---|---|
| Heatsink Color | BLACK |
| Memory Type | PCIe Gen 5.0 x4 |
| SSD Max Sequential Read CDM | up to 10,000MB/s |
| Power Consumption Active | 5.9W Average |
| Storage Temperature | -40°C to +85°C |
| Endurance | 600TBW |
| Storage Humidity | 93% RH (40° C) |
| SSD Package Contents | MP700 ELITE M.2 SSD (no included heatsink, separate cooling required) |
| SSD Max Sequential Write CDM | up to 8,500MB/s |
| Max Random Read QD32 IOMeter | up to 1.3M iOPS |
| Max Random Write QD32 IOMeter | up to 1.4M iOPS |
| SSD Smart Support | Yes |
| NAND Technology | 3D TLC NAND |
|---|---|
| SSD Operating Temperature | 0°C to +70°C |
| SSD Shock | 1500 G |
| Form Factor | M.2 2280 |
| Application Consumer | Client |
| SSD Compatibility | Form Factor: M.2 SSD|Supported PCIe Gen5 Platforms: Gen5 capable boards from AMD 600, 800 Series, Intel® 600, 700, 800|Backward compatible with PCIe Gen4 and Gen3 Platforms: Intel® 100, 200, 300, 400, 500, X99, X299 Chipsets, AMD Socket AM4 Platform, X399, TRX40 |
| Voltage | 3.3V, +/- 5% |
| Vibration | 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G |
| DEVSLP | PS4: <3.5mW |
| MTBF Hours | 1,600,000 hours |
| SSD TBW | 600 |
| Interface | PCIE* 5 x 4 |
