Description
Excellent 5th generation SSD performance
MP700 PRO SE combines the latest PCIe 5.0 technology with the NVMe 2.0 interface to deliver faster data transfer and greater M.2 SSD performance than ever before. *
Up to 14,000MB/sec sequential reads
Up to 12,000MB/sec sequential writes
Up to 14,000MB/sec sequential reads
Up to 12,000MB/sec sequential writes
* Requires SSD cooling. Check your motherboard for details.
Make your computer faster
Provides almost double sequential read and write speeds compared to PCIe 4.0 SSDs, and can be up to 25 times faster for some SATA SSDs.
*Performance may vary based on system hardware and settings. SSD cooler required, please check your system documentation.
High Density 3D TLC NAND
Combining high-speed performance with excellent durability ensures that the drive will last long and perform well after years of use.

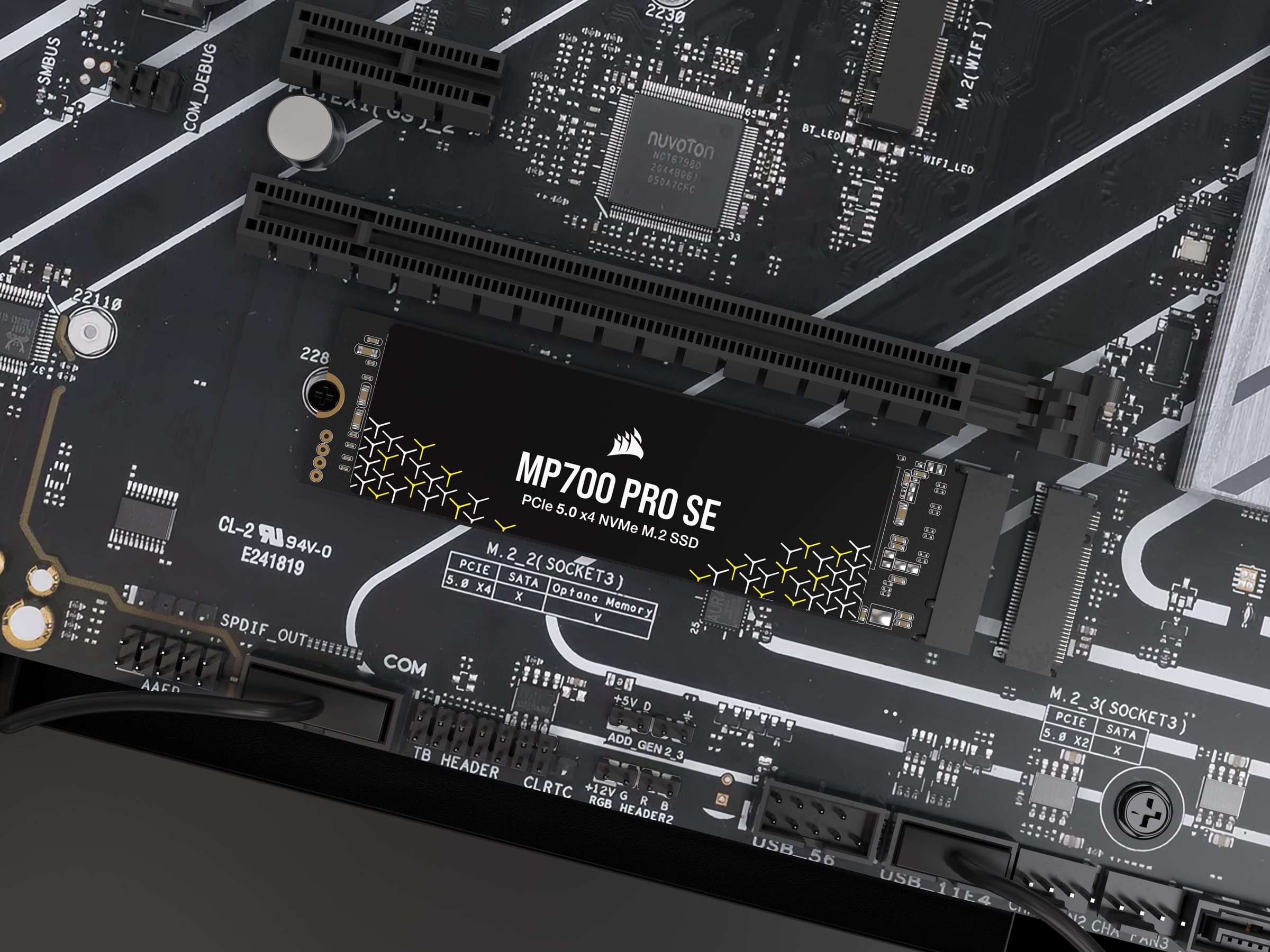

Compact M.2 2280 form factor
Fits directly into the motherboard and is designed to be used with the integrated SSD cooling provided by the motherboard.
*Selected Intel Z690, Z790 and AMD 600 series motherboards. The performance is lower on PCIe 4.0 M.2 motherboards.

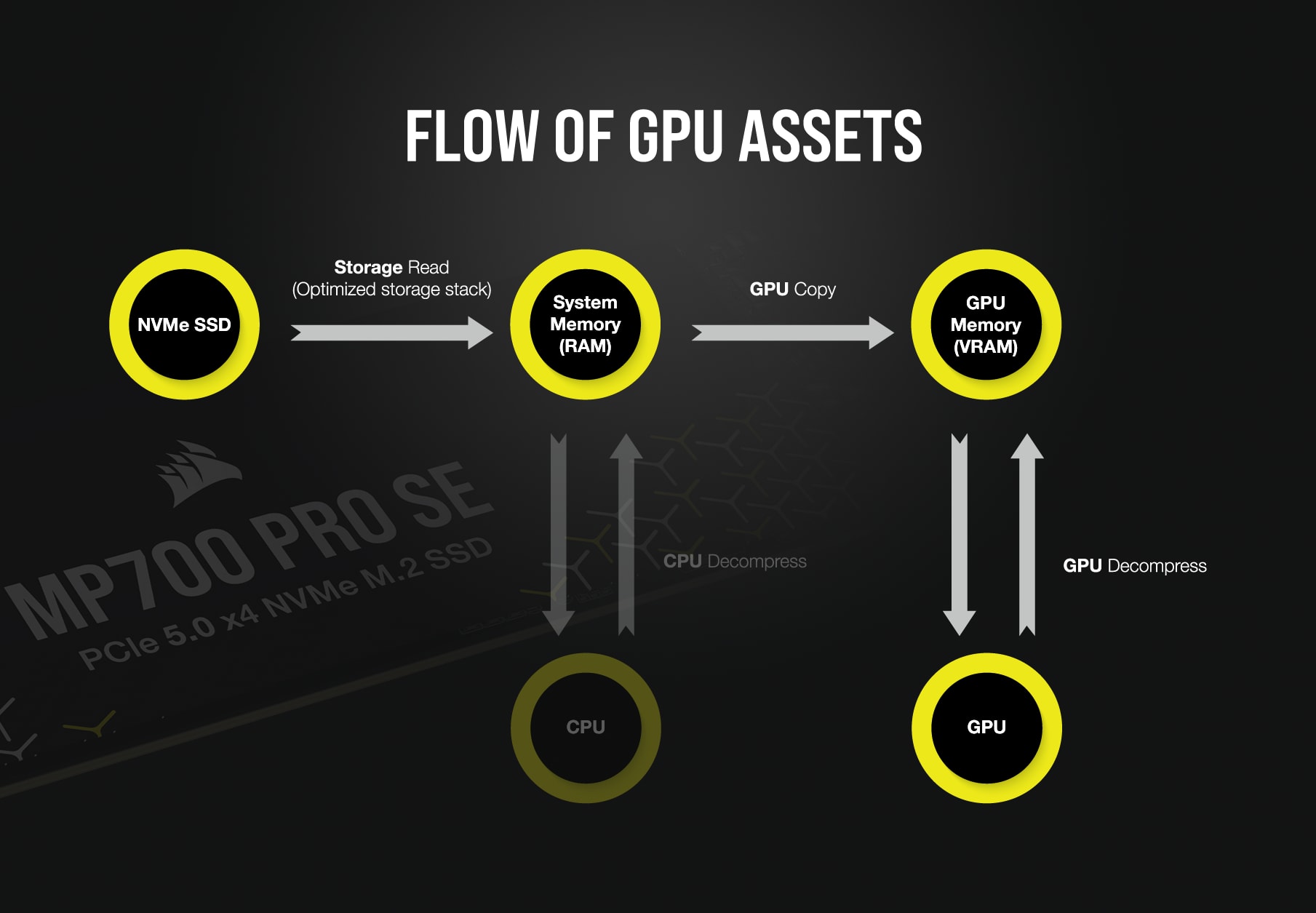

MICROSOFT DIRECTSTORAGE**
Allows the MP700 PRO to communicate directly with the graphics card when playing compatible games, enabling incredibly fast load times.
**DirectStorage requires DirectX12 GPU and Shader Model 6.0 support
Comprehensive five-year warranty
Reassuring long-term reliability and industry-leading customer support.
| Storage Form Factor | M.2 2280 |
|---|---|
| Heatsink Color | BLACK |
| Memory Type | PCIe Gen 5.0x4 |
| SSD Max Sequential Read CDM | Up to 14000MB/s |
| Power Consumption Active | 11.5W Average |
| Storage Temperature | -40 |
| Endurance | 3000TBW |
| Storage Humidity | 93% RH (40°C) |
| SSD Package Contents | MP700 PRO SE M.2 SSD (no included heatsink, separate cooler required) |
| SSD Max Sequential Write CDM | Up to 12000MB/s |
| Max Random Read QD32 IOMeter | Up to 1.7M IOPS |
| Max Random Write QD32 IOMeter | Up to 1.6M IOPS |
| SSD Smart Support | Yes |
| NAND Technology | 3D TLC NAND |
|---|---|
| SSD Shock | 1500G |
| Form Factor | M.2 2280 |
| Application Consumer | Client |
| SSD Compatibility | Form Factor: M.2 SSD|Supported PCIe Gen5 Platforms: Select Gen5 capable boards from AMD 600 Series, Intel® 600, 700|Backward compatible with PCIe Gen4 and Gen3 Platforms: Intel® 100, 200, 300, 400, 500, X99 , X299 Chipsets, AMD Socket AM4 Platform, X399, TRX40 |
| Voltage | 3.3V, +/- 5% |
| Vibration | 20Hz~80Hz/1.52mm, 80Hz~2000Hz/20G |
| DEVSLP | PS4: <85mW |
| Encryption | AES 256-bit Encryption |
| MTBF Hours | 1,600,000 Hours |
| SSDTBW | 3000 |
| Interface | PCIE* 5x4 |
