Description

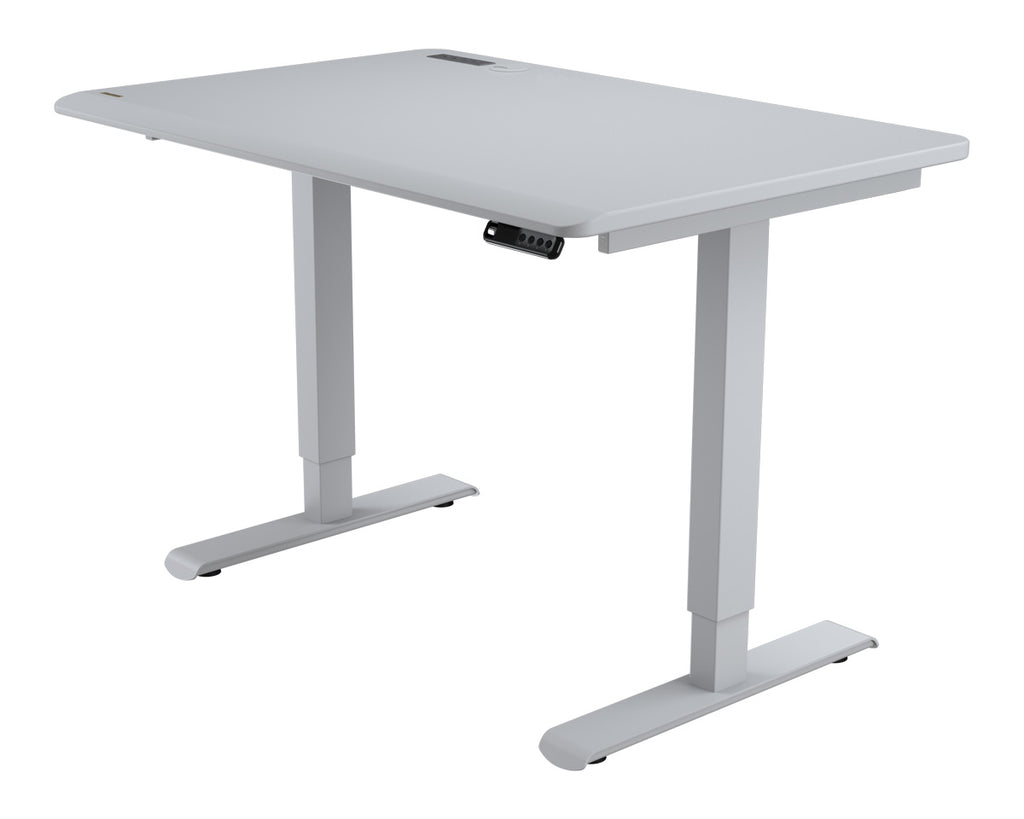

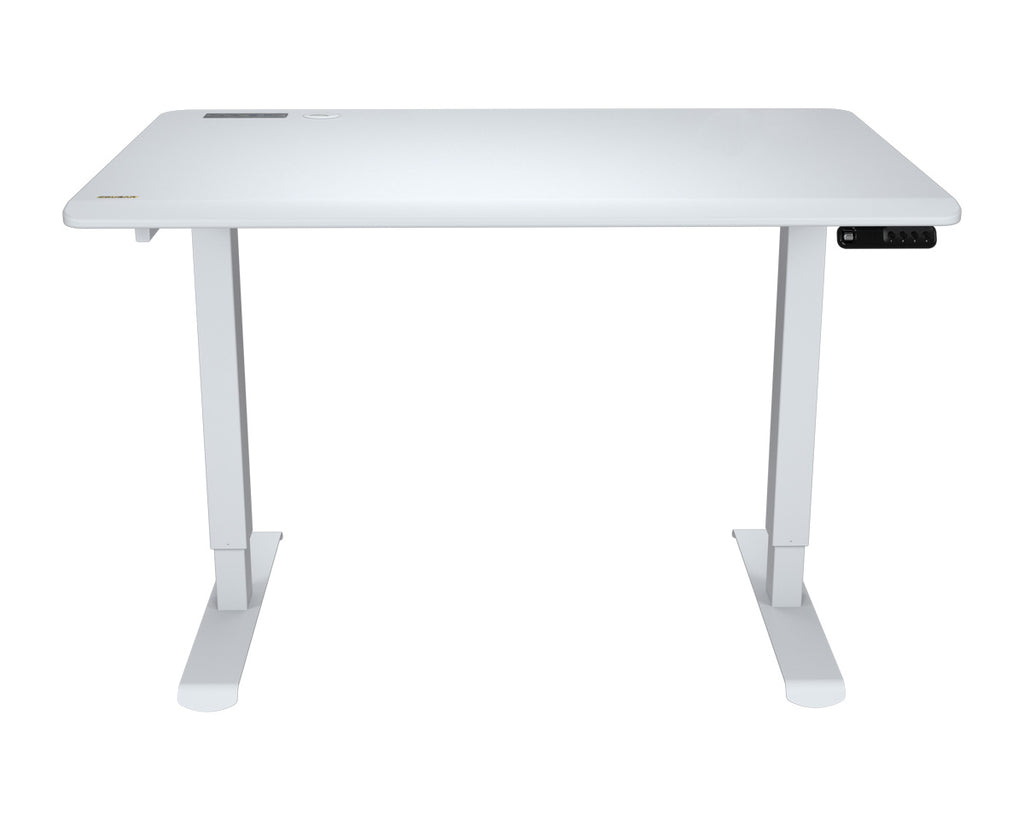

ROYAL 120 ELITE
Electric Standing Desk
Cougar Electric Standing Desk chooses outstanding lifting columns, control box and keypad with exceptional quality construction. With cable management attached to preserve you the tidy desk. Exclusively built-in 7-in-1 docking station let you expand the connectivity options of laptop. We integrate all your needs into this desk.
Features
Superior Memory Keypad
3-digit display and 4 settings of memory functionality. One-touch function from sit to stand to let you easily set your preferred heights.
Premium and Ergonomics Desktop
Design with smooth and ergonomics desktop edge.
MDF board offers superior density and strength surface.
MDF board offers superior density and strength surface.
Easy Clean
Stain-resistant
Water-resistant
Powerful Dual-motor Lifting System
Top choice dual-motor lifting system engineered for smooth and quick height adjustment. Robust steel frames construction keeps stability and supports up to 100kg lifting capacity.
- Stability
- Anti-collision detection
- 2-stage legs
- Dual-motor
- Speed: 1.57"/sec.
- Low noise ≤ 50db
Advanced Anti-collision Sensitivity
When the sensor detects any collision while raising or lowering the desk, it will halt and reverse direction of movement. It prevents material damage or user injury and prolongs your product lifetime.
Assembly in Minutes
Only take 5 Steps to assemble your desk.
Cable Grommet
Allow you to pass cords through the top of desks orderly.

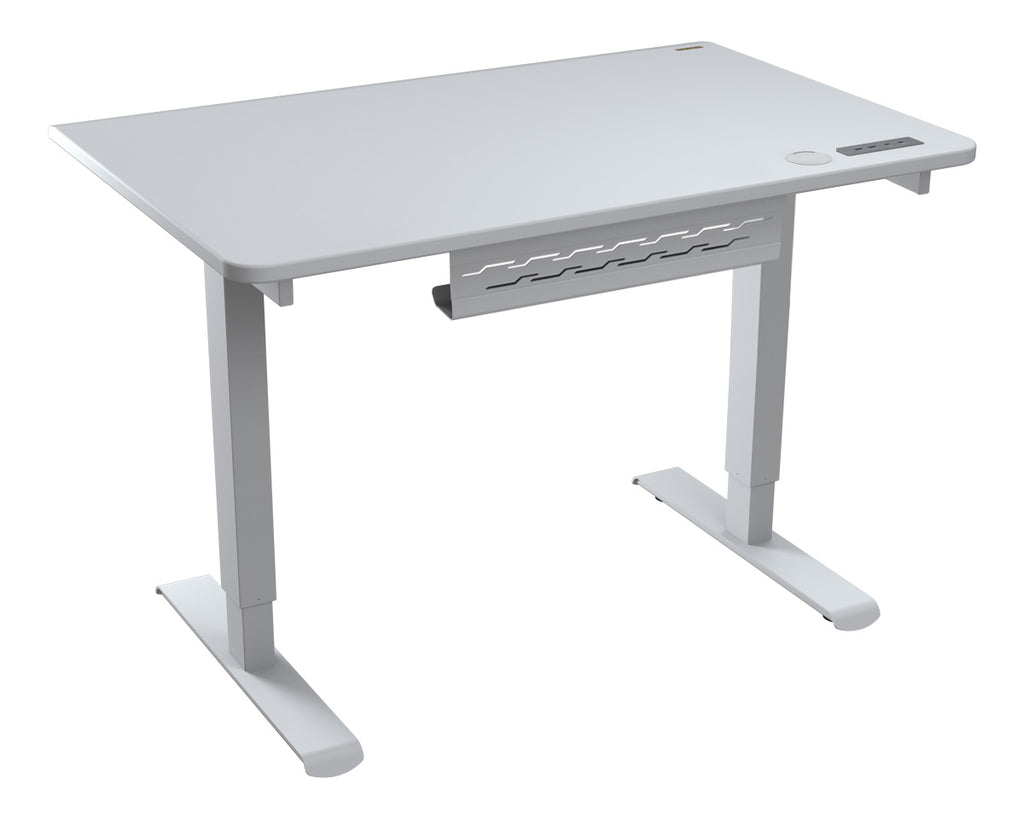

Under-desk Cable Tray
Easy to assemble 1 set of cable tray with included tools. Let you hide unsightly wires and power strips.

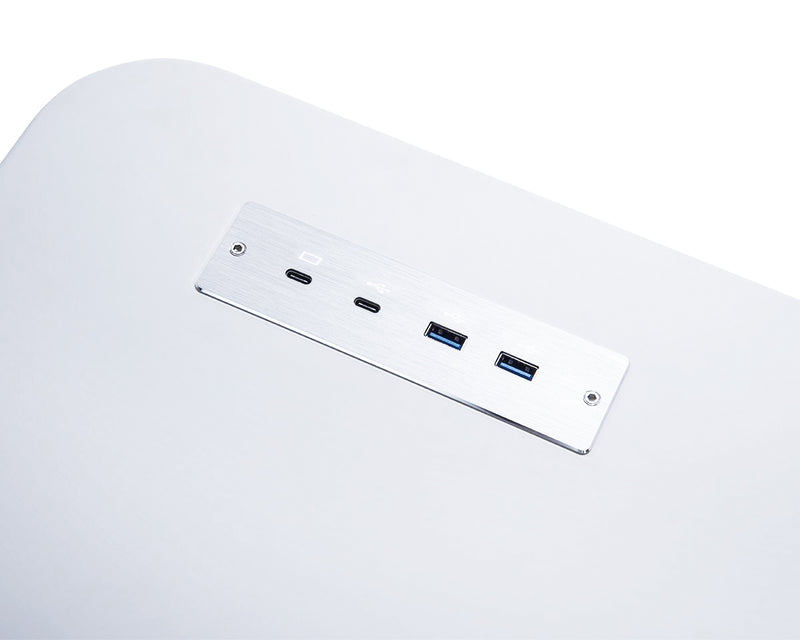

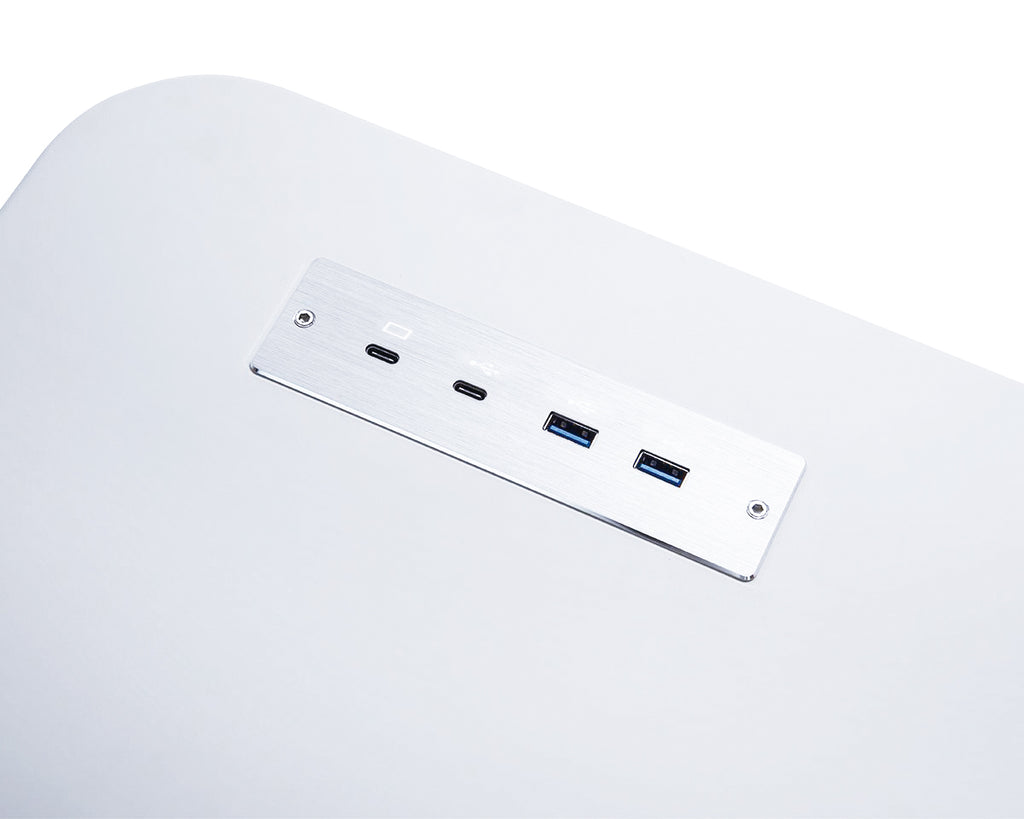

Exclusive Built-in 7-in-1 Docking Station
Desktop built-in 7-in-1 docking station lets you expand the connectivity options of your laptop.
Top
1. USB-C (With PD Function)
2. USB-C (Data only)
3. USB-A x 2
Bottom
4.DP 1.4
5. HDMI 2.0
6. USB-C (Power IN with PD Charge)
- Power up Type C laptops
- Support Dual 4K Displays@60Hz
- 5Gbps Data Transfer
Note: Final resolution of HDMI or DP output depends on your host devices.
System Requirements: The connected laptop must support Power Delivery and DisplayPort Alt Mode via the USB-C port.
Specification
| Product | ROYAL 120 ELITE |
| Built-in Docking Port | Input Type C x 1, Type C USB 3.1 x 1, Type A USB 3.1 x 2 HDMI 2.0 x 1, DP 1.4 x 1, Power in PD 3.0 x 1 |
| Preassembled Desk Frame | 2 stage columns and dual motors desk frame |
| Desk Dimension (W x D x Thickness) |
47 x 31 x 1 (in) 1200x800x25(mm) |
| Height range (with desktop) |
28 - 48 (in) 725 - 1225 (mm) |
| Travel Speed | 1.57 (in /sec) 40 (mm/sec) |
| Lifting Capacity | 220(lb) 100 (kg) |
| Noise level | ≦50 decibels during motion |
| Input | 100-240V AC, 50/60Hz |
