Description
Highlights
- Excellent value for money, combining affordability and high performance.
- Supports front 420mm or top 360mm radiator (supports dual 360mm radiators).
- Supports 400mm GPU and rotatable graphics card mounting bracket (vertical graphics card installation).
- 2x 120mm fans can be installed on the side of the motherboard to increase ventilation airflow.
- Comes with a fan control box that can control RGB lighting and speed.
- Equipped with Type-C USB connection hole, the latest devices are fully connected.
- Equipped with four dust-proof baffles to protect components from dust damage.
Pre-installed 120mm ARGB FAN x1 +140mm ARGB FAN x2 Small, yet powerful

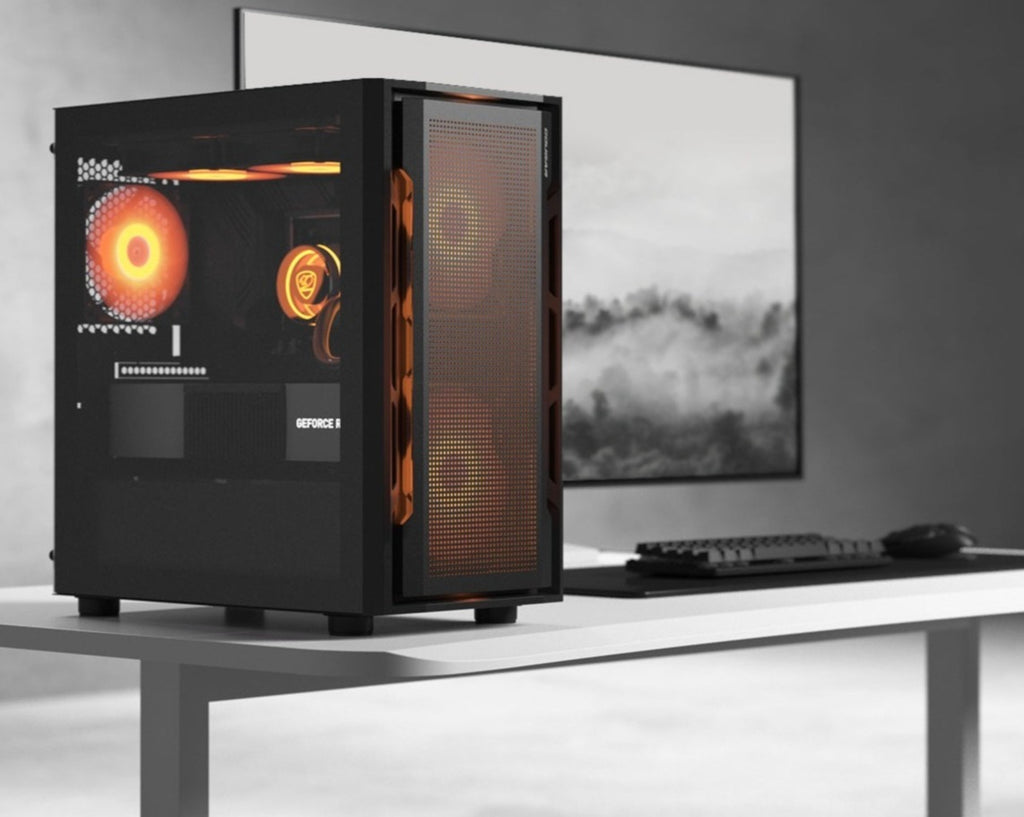

The Uniface Mini RGB is a compact mini case that packs a range of features into its small size. The perforated front panel, inherited from its sibling Uniface RGB, provides superior ventilation and retains COUGAR’s unique visual identity, while the tempered glass left panel showcases unique installation creations. The seemingly compact layout can accommodate 6 fans and supports graphics cards up to 340 mm long, 280 mm water cooling radiator or 160 mm air cooling radiator, showing its greatness in a compact form.
punched front panel

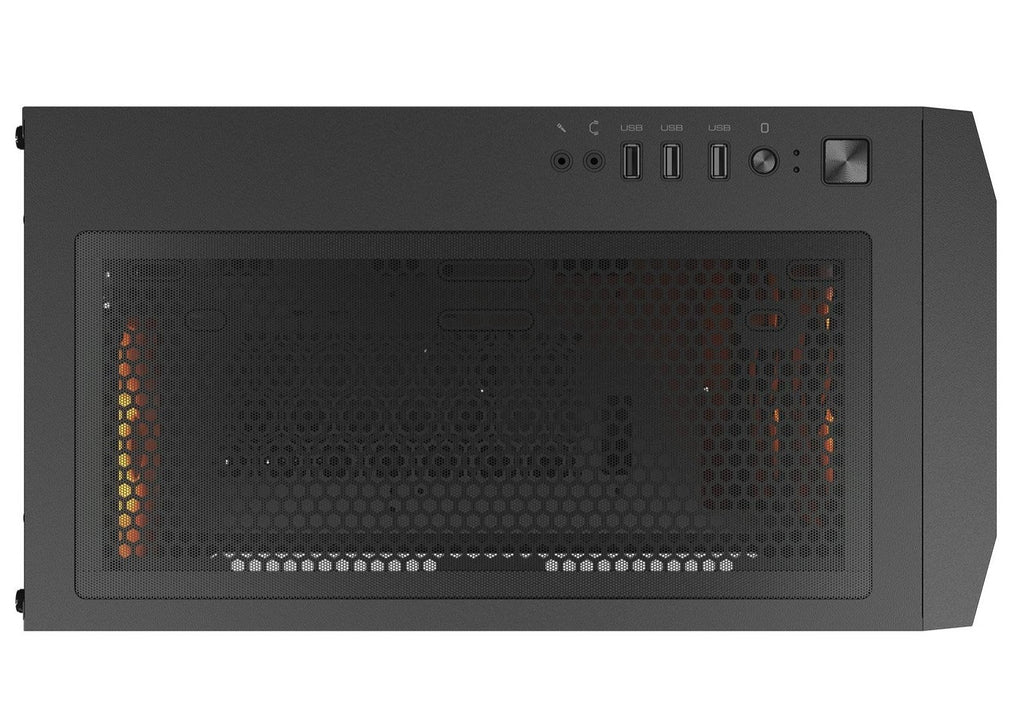

The punched front panel designed following COUGAR's unique visual image has excellent ventilation effect, integrating simple aesthetics and heat dissipation performance.
Uniface Mini RGB is equipped with two 140mm ARGB fans and one 120mm ARGB fan. You can switch a variety of stunning lighting effects through the dedicated RGB buttons. In addition, the built-in LED controller is compatible with the 5V ARGB connection on the motherboard and can synchronize the lighting effects of the PC system.
Outstanding support
Supports graphics cards up to 340mm, four 2.5″ SSDs or two 2.5″ SSDs paired with two 3.5″ HDDs to enjoy the gaming experience brought by the latest devices.
perfect display

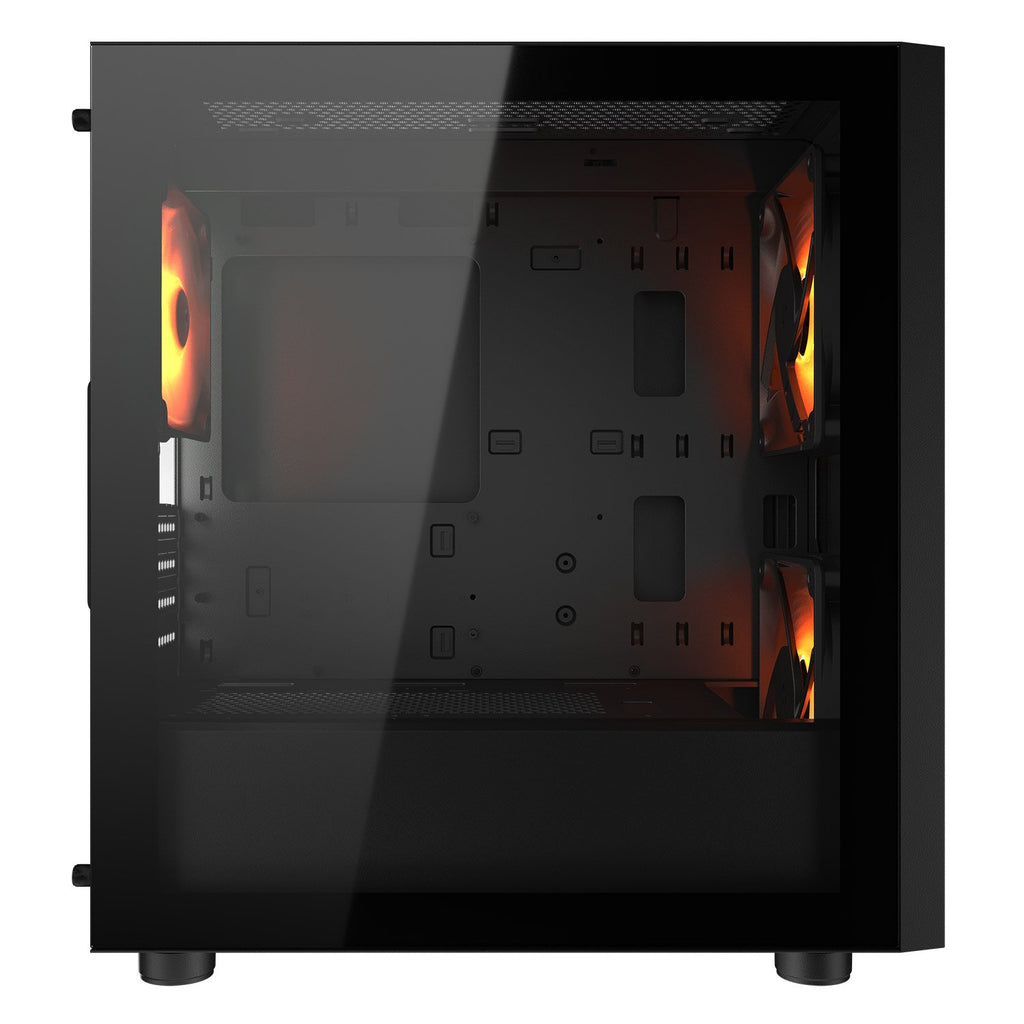

The tempered glass left panel displays your unique installation masterpiece.
Excellent cooling performance
The Uniface Mini RGB's deceptively compact layout can accommodate up to 6 fans, as well as a 280mm water cooling radiator or a 160mm CPU air cooling. Huge cooling potential allows you to build your ideal device without worrying about overheating.
Water cooling system
Air cooling system
Specification
| Product Name | Uniface RGB / Uniface RGB (white) | |
|---|---|---|
| Chassis specifications | mid tower case | |
| Motherboard type | Mini ITX/Micro ATX/ATX/CEB/E-ATX | |
| Dimensions (width x height x depth) | 230 x 493 x 475 (mm) 9.1 x 19.4 x 18.7 (in) |
|
| I/O jack | Type C Gen 2 x 1, USB 3.0 x 2, 4-pole headphone audio jack x 1, RGB light effect button | |
| 3.5" hard drive bayy | 2 | |
| 2.5" hard drive bay | 2+1 (converted from 3.5"" hard drive bay) | |
| Expansion slot | 7 (vertical graphics card can be installed vertically) | |
| Vertical graphics card installation support | Yes | |
| Cooling fan system | front panel | 120mm x 3 / 140mm x 3 |
| upper cover | 120mm x 3 / 140mm x 2 | |
| Console side | 120mm x 2 | |
| backplane | 120mm x 1 / 140mm x 1 | |
| Number of pre-installed fans | Previous version | 120mm ARGB fan x 3 |
| backplane | 120mm ARGB fan x 1 | |
| Speed | 120mm ARGB fan: 1200 ± 10% RPM | |
| Connector | 5V 3 Pin (ARGB) / 3 Pin (Fan) | |
| Maximum number of fans installed | 9 | |
| Water cooling system can be installed | front panel | 420mm/360mm/280mm/240mm/140mm/120mm |
| upper cover | 360mm/280mm/240mm/140mm/120mm | |
| Motherboard side | 240mm/120mm | |
| backplane | 140mm/120mm | |
| Tempered glass side windows | yes | |
| Support motherboard RGB synchronization software | yes | |
| Maximum length of graphics card | 400 (mm) / 15.7 (in) | |
| CPU air cooling maximum height | 180 (mm) / 7.1 (in) | |
| Maximum length of power supply | 210 (mm) / 8.3 (in) | |
