Description
AG620 ARGB

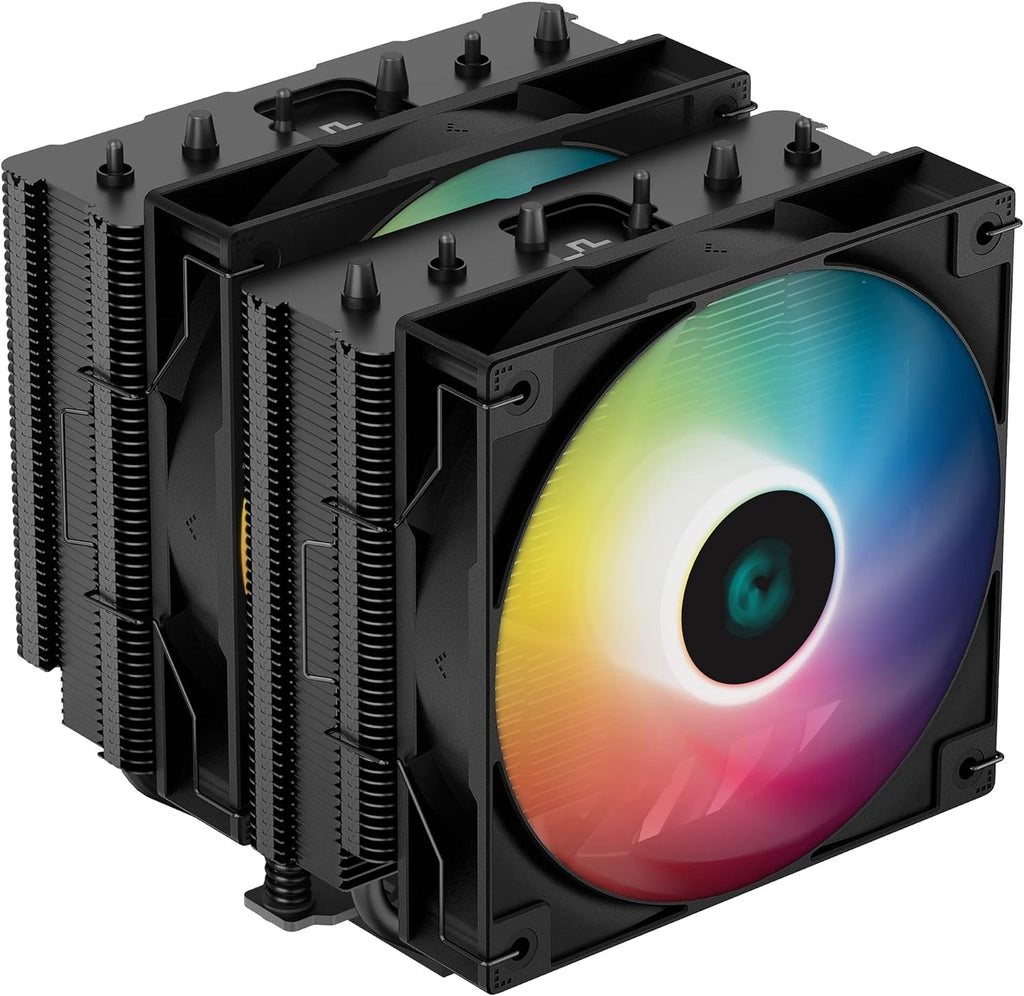

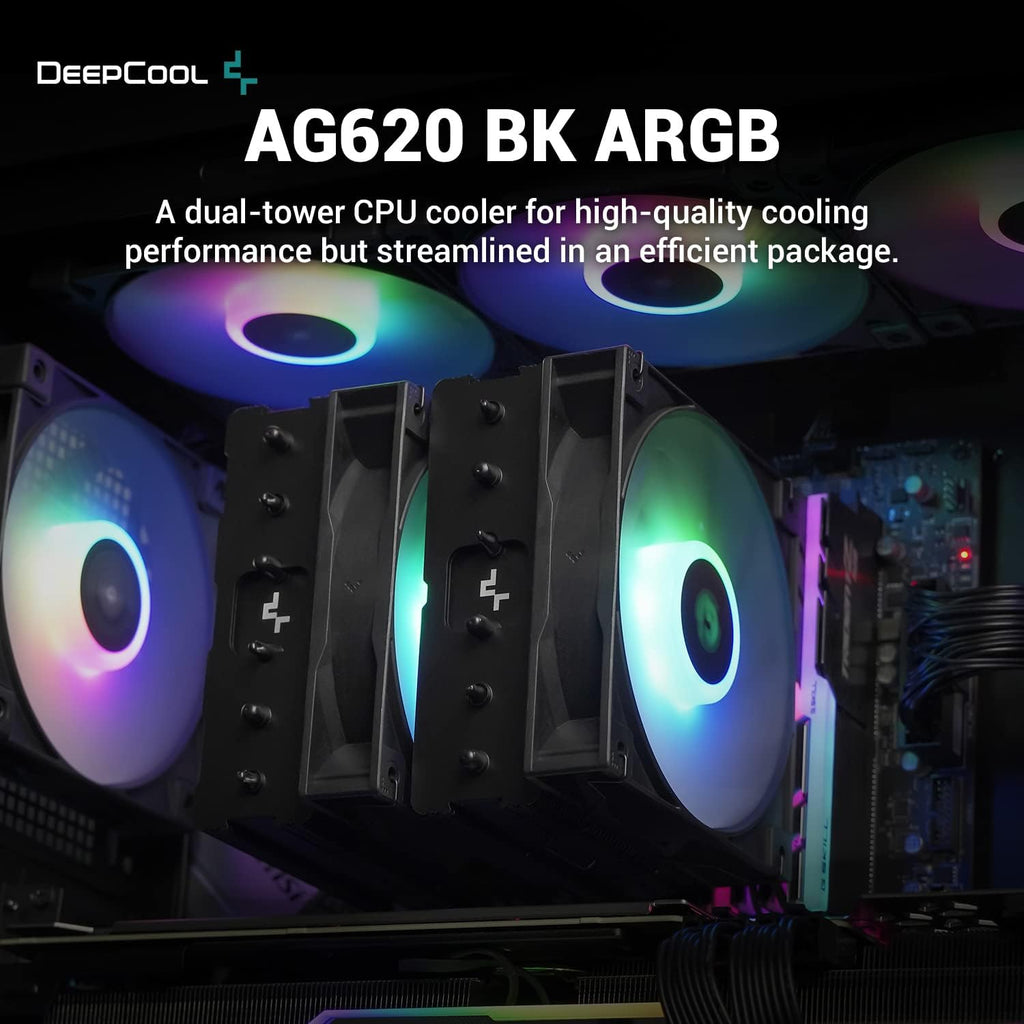

The DeepCool AG620 BK ARGB is a dual-tower 120mm CPU cooler that boasts impressive 260W cooling power performance that's been stripped down and optimized for terrific efficiency throughout.
GAMMAXX SERIES
AG620 BK ARGB
Dual-Tower CPU Cooler with 260W TDP
The DeepCool AG620 BK ARGB is a dual-tower 120mm CPU cooler that boasts impressive 260W cooling power performance that's been stripped down and optimized for terrific efficiency throughout.
SUBSTANTIAL COOLING POWER
Keep things cool with up to 260W of heat dissipation power to ensure your system is performing at its peak without a sweat.
BALANCED BIDIRECTIONAL HEAT PIPE TECHNOLOGY
By optimizing the internal capillary structure and injecting a precise amount of liquid, the heat pipe achieves the best heat dissipation performance regardless of whether the cooler is in a vertical or horizontal case. This perfect ratio facilitates a highly efficient phase change throughout the heat pipe and achieves lower thermal resistance over a wide TDP range.

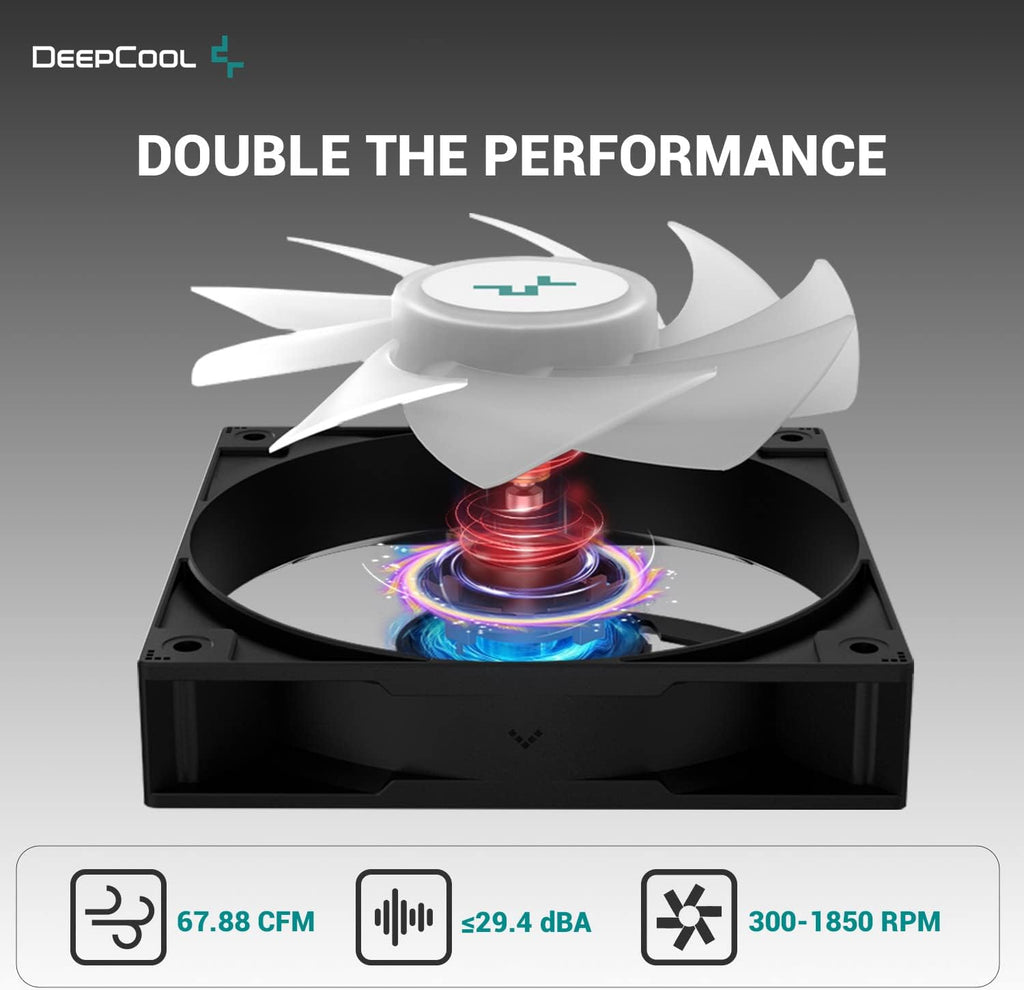

HIGH EFFICIENCY FANS
Find your optimal balance with automatic PWM support for full performance under load to silent efficiency at idle.
300-1850RPM
≤29.4dB(A)
67.88 CFM
MATRIX FINS ARRAY
High-quality aluminum fins on the heat sink are densely stacked for ideal heat dissipation and which also features a unique "checkerboard" design aesthetic.

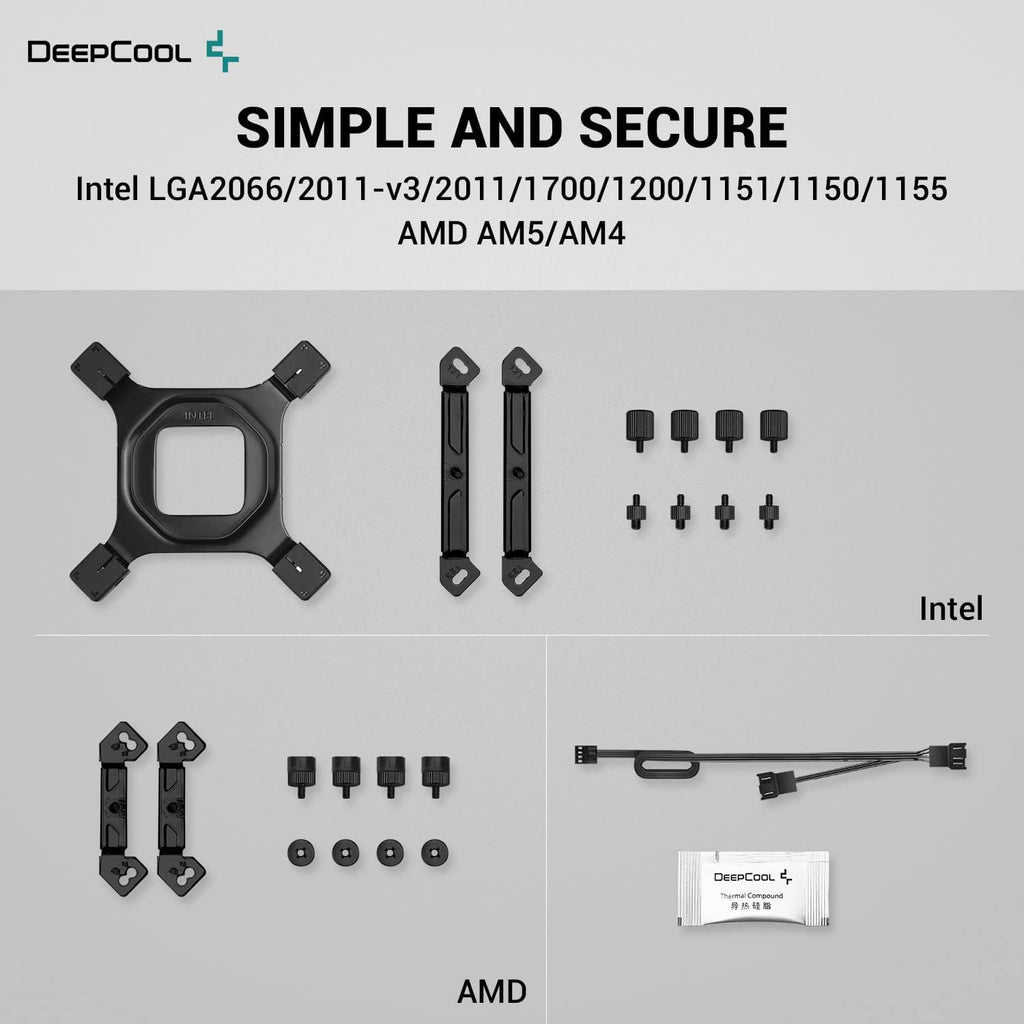

SIMPLE AND SECURE
The included all-metal mounting brackets support both Intel and AMD platforms with an easy five-step installation process that maintains great contact pressure.
Application For
Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD
AM5/AM4
Technical Specification
Product Dimensions
129×136×157 mm(L×W×H)
Heatsink Dimensions
127×110×157 mm(L×W×H)
Net Weight
1300g
Heatpipe
Ø6mm×6pcs
Fan Dimensions
120×120×25mm(L×W×H)
Fan Speed
300~1850RPM±10%
Fan Airflow
67.88 CFM
Fan Air Pressure
2.04 mmAq
Fan Noise
≤29.4dB(A)
Fan Connector
4-pin PWM
Bearing Type
Hydro Bearing
Fan Rated Voltage
12 VDC
Fan Rated Current
0.14A
Fan Power Consumption
1.68 W
LED Type
Addressable RGB LED
LED Connector
3-pin(+5V-DG)
LED Rated Voltage
5 VDC
LED Power Consumption
1.05 W
EAN
6933412727828
P/N
R-AG620-BKANMN-G-2
