Description

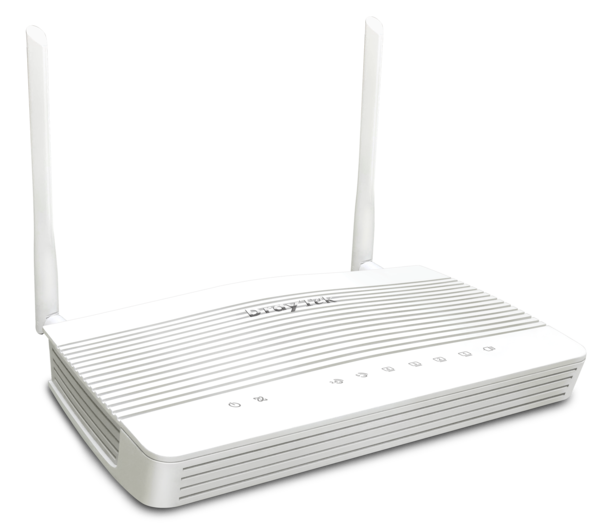

DrayTek brand new SOHO VPN Router
Vigor2135AX upgraded model - Vigor2136AX is officially launched!
Added 2.5Gb Multi-Gigabit Port
WiFi 6 AX3000 Wireless
1 *2.5GbE WAN
1*2.5GbE LAN + 3 *GbE LAN
2.4GHz 600Mbps + 5GHz 2400Mbps high-speed wireless transmission
4*VPN channels (IPSec, GRE over IPSec, IKEv2, OpenVPN, Wireguard)
Built-in firewall
QoS Bandwidth Management
Built-in Hotspot Web Portal
Content Filter (Application, Web Category, DNS Keyword / URL Keyword)
Support VigorAP / Vigor Switch central management
Supports VigorACS 3 large-scale central management system
The new upgraded model of DrayTek SOHO VPN Router Vigor2135AX – Vigor2136ax is officially launched ! The new design has received comprehensive improvements in terms of hardware and functions, including the introduction of 2.5GbE WAN port + 2.5GbE LAN port , breaking the 1Gb bottleneck of previous models ! Prepare for bandwidth upgrades . Supports functions including firewall , VPN ( supports IPSec / GRE over IPSec / IKEv2 / OpenVPN / Wireguard) , bandwidth management and Internet content management , etc. It also provides AP / Switch Controller function, allowing Vigor series network products to be managed more systematically . Regardless of SOHO or remote office users, they can use high-speed and efficient secure network transmission solutions!

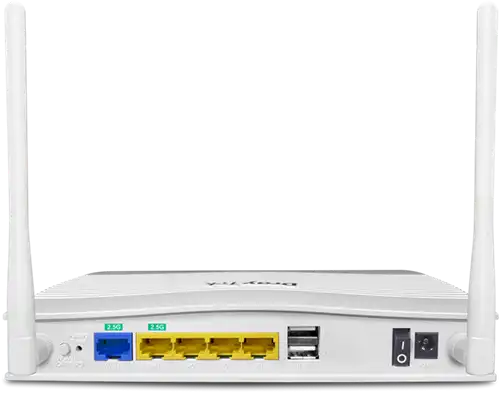

1*2.5GbE WAN + 1*2.5GbE LAN + 3*GbE LAN
The interface has been upgraded to 2.5GbE , including 1 WAN port and 1 LAN port , which can exceed the speed of 1GbE and increase the network speed. It is also equipped with 3 GbE LAN ports for connecting basic network equipment. Vigor2136ax integration QoS and NAT connection number / bandwidth management enable network administrators to effectively control and allocate bandwidth to ensure network stability. It also supports VLAN ( Port-based & Tag-based) , and with Layer 2 switch , enterprises can have multiple subnets , making it easier to manage the network architecture.
Various VPN Tunnel connection and management methods
V igor2136ax has been added to support 4 VPN channels , supporting today's most commonly used VPN connection methods - IPSec/GRE over IPSec/IKEv2/OpenVPN/Wireguard , whether it is a point-to-point connection with the head office or employees on the go who use mobile devices to connect back to the office intranet Data access can be performed in a high security state ( Hardware-based AES/DES/3DES) .
WiFi 6 AX3000 (2400Mbps @ 5GH z + 600Mbps @ 2.4GHz) 2X2 antenna design
V igor2136ax provides WiFi 6 AX3000 dual-band wireless functions and has a variety of application capabilities to improve high- density networks , such as OFDMA ( multi- user simultaneous communication and transmission ) / 1024-QAM ( high data volume transmission ) / BSS Color ( crowded channel efficiency utilization) ) ’s latest WiFi 6 technology advantages . Supports two wireless channels, 2.4GHz (600Mbps, 40MHz) and 5GHz (2400Mbps, 160MHz, MU-MIMO). 2.4GHz is suitable for most wireless devices such as laptops, while 5GHz MU-MIMO can provide higher bandwidth and less interference . , providing multiple users with simultaneous multi-transport streaming connection effects.
Multiple SSID WPA3 wireless encryption
Vigor2136ax provides up to 8 SSIDs. 2.4GHz and 5GHz each provide 4 independent SSIDs . Users can set designated SSIDs for different departments within the organization to cooperate with Wireless Isolation and different SSIDs effectively separate transmission content , preventing unauthorized persons from easily accessing sensitive information within the company, improving security and facilitating wireless connections.
In line with the improvement of wireless network security requirements , the latest WPA3 wireless encryption technology is added , and Access List and Wireless Client Isolation are also supported .
Built-in Hotspot Web Portal
DrayTek VPN Router has a built-in Hotspot Web Portal function that supports simple custom web design ( logo , background image , color ) . It can link to a designated web page or display Internet access terms before users officially access the Internet. It also supports a variety of Internet authentication methods , including Facebook Login, Google Login, SMS PIN, Voucher PIN and RADIUS . It can be used with different SSIDs and can limit the connection time of wireless users as needed . When the time is exhausted, you can reconnect as needed. time distance and then reconnect. For example , free Internet access is limited to 30 minutes every four hours to provide value-added services to stores while preventing users from occupying bandwidth for a long time.
Security protection Built-in firewall Support CSM management
Vigor2136ax has a built-in SPI firewall, which provides multiple types of level and content-based protection options, and supports DoS/DDoS attack protection and URL/ webpage content filters.
Rich and flexible network management functions
Object-based filtering – can be based on different projects, including protocol/ service/ port/ IP/ file extension, etc. to manage network traffic.
Digital Content Security Management (CSM) - Completely blocks various P2P/IM network applications such as QQ , Emule , BT , and Skype .
URL/Web classification filtering – For Facebook/Twitter , employees will privately use the company network for unnecessary social activities, affecting work efficiency ; Vigor2136ax ’s website classification service ( need to be purchased separately ) can block network access and strengthen network control based on website categories / URLs (e.g. blocking social networking sites, gambling sites, etc.).
It can also block file formats downloaded by http , such as executable files / compressed files / multimedia files.
Bandwidth management (QoS) function -Users can customize bandwidth guarantee and APP QoS based on categories , support inbound/outbound speed control, and can also set bandwidth /session upper and lower limits to ensure flexible control and ensure that commercial applications such as VoIP enjoy higher priority . , making the network smoother .
IP/MAC Address Binding -It can prevent employees from changing their IP addresses to avoid router firewalls and prevent ARP spoofing to ensure internal network security.
Central Management supports AP/Switch Management function
Vigor2136ax adds AP /Switch central setting and operation status monitoring . 9 VigorAPs / 5 VigorSwitches can obtain unified setting data from Vigor2136ax , eliminating the need for manual settings one by one, greatly saving time.
Support VigorACS3 large-scale central management system
V igor2136ax support TR-069 function, can be matched DrayTek VigorACS 3 cloud management solution , as one of the SD-WAN Edge Routers , allows administrators to manage other Vigor series products through a single interface and enjoy a wide range of features, including Zero Touch Deployment & Provisioning, Auto VPN, Interface Quality & SLA , VoIP Optimization & Monitoring, Application Visibility, Customized Hotspot Page with Multilingual, Hotspot Clients Analytics, ACS Server Load Balancing / Failover comprehensive management functions.
Multifunctional USB Port supports File Server / Printer Server
Vigor2136ax has a USB port that allows users to connect various USB devices, including USB storage devices as file servers ; it can also connect USB printers as printer servers .
Support free DrayDDNS to provide original DDNS service, perfect compatibility
IPv6/v4 simultaneous support
