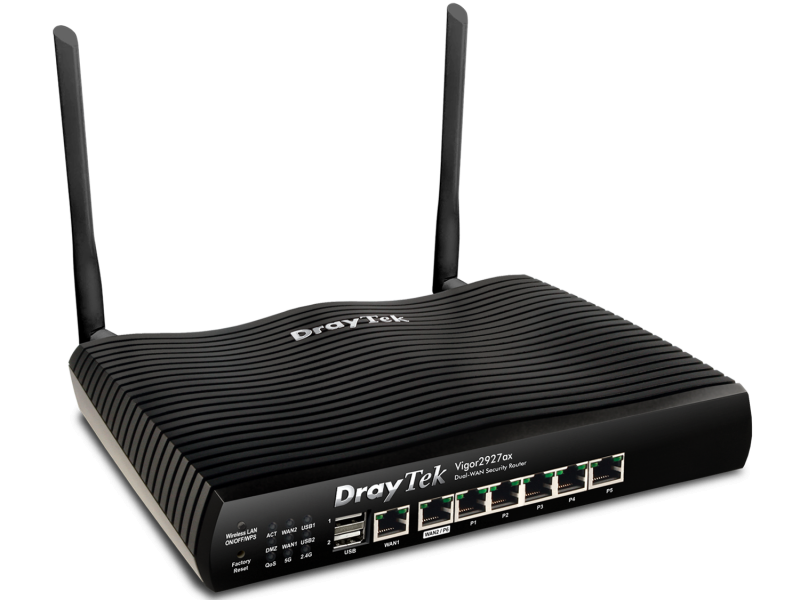

DrayTek Vigor 2927AX Vigor 2927 with WiFi 6 AX3000

product specifications

Fixed WAN port

• 1 GbE RJ-45

WAN/LAN switchable port

• 1 GbE RJ-45

Fixed LAN port

• 5 GbE RJ-45

USB port

• 2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer

RJ-11 voice port

• 2x FXS (V type)

wireless antenna

• 2x external dipole
• Gain: 3dBi at 5GHz, 2.5dBi at 2.4GHz
• (AC/Axis model)

2.4G wireless LAN

• 802.11ax 2x2 MIMO 574Mbps (ax model)

5G wireless LAN

• 802.11ax 2x2 MU-MIMO 2402Mbps (ax model)

NAT throughput

• 800Mbps

NAT throughput with hardware acceleration

• 940 Mbps (single WAN)
• 1.8 Gbps (dual WAN)

IPsec VPN performance

• 290 Mbps (AES 256-bit)

SSL VPN performance

• 120Mbps

maximum. Number of NAT sessions

• 60,000

maximum. Concurrent VPN Tunnels

• 50

maximum. Concurrent OpenVPN + SSL VPN

• 25

IPv4

• PPPoE, DHCP, static IP, PPTP/L2TP

IPv6

• PPP, DHCPv6, static IPv6, TSPC, AICCU, 6rd, 6in4 static tunnel

802.1p/q multiple VLAN tagging

• Yes

Multiple VLAN/PVC

• Yes

wireless wide area network

• 2 (AC model)

3G/4G/LTE WAN with USB modem

• Yes

load balancing

• IP-based, session-based

WAN on-demand activation

• Link failure, traffic threshold
• Connection detection
• ARP, flat

WAN data budget

• Yes

Dynamic domain name resolution

• Yes

Dynamic domain name resolution

• Yes

Virtual LAN

• 802.1q tag-based, port-based

maximum. Number of VLANs

• 16

Number of LAN subnets

• 8

DHCP server

• Multiple IP subnets, custom DHCP options, bind IP to MAC

LAN IP alias

• Yes

Wired 802.1x certification

• Yes

port mirroring

• Yes

Local DNS server

• Yes

Conditional DNS forwarding

• Yes

Hot portal website

• Yes

Hotspot authentication

• Click, social login, SMS PIN, credential PIN, RADIUS, external portal server

routing

• IPv4 static routing, IPv6 static routing, inter-VLAN routing, RIP, BGP

policy-based routing

• Protocol, IP address, port, domain, country

High availability

• Yes

DNS Security (DNSSEC)

• Yes

Production management specifications

• IGMP v2/v3, IGMP proxy, IGMP snooping and fast leave

Local RADIUS server

• Yes

SMB file sharing

• Yes (requires external storage)

LAN to LAN

• Yes

Remote worker to LAN

• Yes

protocol

• PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN

User Authentication

• Local, RADIUS, LDAP, TACACS+, mOTP

IKE certification

• Preshared key, X.509

IPsec certification

• SHA-1, SHA-256

encryption

• MPPE, DES, 3DES, AES

VPN relay (redundant)

• Load balancing, failover

One-arm VPN

• Yes

NAT Traversal (NAT-T)

• Yes

DrayTek VPN Matcher

• Yes

network address translation

• Port redirection, open ports, port triggering, DMZ hosting, UPnP

ALG (Application Layer Gateway)

• SIP, RTSP, FTP, H.323

VPN passthrough

• PPTP, L2TP, IPsec

IP-based firewall policy

• Yes

Content filtering

• Applications, URLs, DNS Keywords, Web Features, Web Categories* (*: Subscription required)

DoS attack defense

• Yes

deception defense

• Yes

IP-based bandwidth limits

• Yes

IP-based session restrictions

• Yes

QoS (Quality of Service)

• TOS, DSCP, 802.1p, IP address, port, application

VoIP priority

• Yes

Number of SSIDs

• 4 per radio band

safe mode

• OWE, WEP, WPA, WPA2, Hybrid (WPA+WPA2), WPA3

verify

• Preshared key, 802.1X

WPS

• Password, PBC

Wanda

• Repeater (5GHz only) (AC model)

Access control

• Access list, client isolation, hidden SSID, WLAN scheduling

airtime fairness

• Yes

Bandleader

• Yes

multiple input multiple output

• Yes (5GHz only)

Integrated management system

• Yes

protocol

• SIP, RTP/RTCP, ZRTP

SIP registrar

• 12

dial plan

• Phone book, digital map, call restrictions, zones

Call function

• Call waiting, call transfer, scheduled do not disturb, hotline

speech codec

• G.711 A/u method, G.723.1, G.726, G.729 A/B

Caller ID

• FSK_ETSI, FSK_BELLCORE, DTMF

local service

• HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069

Configuration file export and import

• Yes

Profile compatibility

• Vitality 2926

Firmware upgrade

• TFTP, HTTP, TR-069

Level 2 Administrative Access

• Yes

Access control

• Access lists, brute force protection

Notification reminder

• SMS, email

network management protocol

• v1, v2c, v3

System log

• Yes

Managed by VigorACS

• Yes

Central VPN Management

• 8VPN

Central AP Management

• 20 Vitality AP

mesh network

• 7 VigorAP (AC model)
• Central switch management
• 10 vitality switch

power supply

• DC 12V @ 2A

maximum. energy consumption

• 24 watts (AC model)

aspect

• 241mm x 165mm x 44mm

weight

• 630g (AC model)

Operating temperature

• 0 to 45°C

Storage temperature

• -25 to 70°C

Operating humidity (non-condensing)

• 10 to 90%

Certificate

• https://fw.draytek.com.tw/Vigor2927/Document/NCC/%E9%A9%97%E8%AD%89%E7%AC%A6%E5%90%88%E8%AD%89%E6 %9B%B8%20(%E5%9E%8B%E5%BC%8F%E8%AA%8D%E8%AD%89)_vitality%202927ac.pdf

• https://fw.draytek.com.tw/Vigor2927/Document/CE/
