Description
5G & WiFi6 for Next-Gen Connectivity

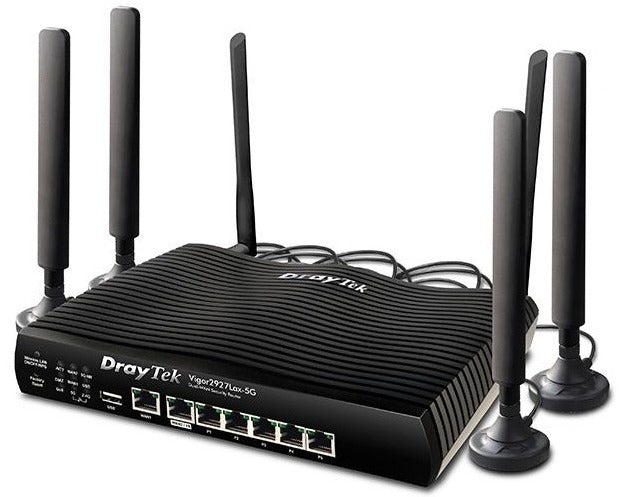

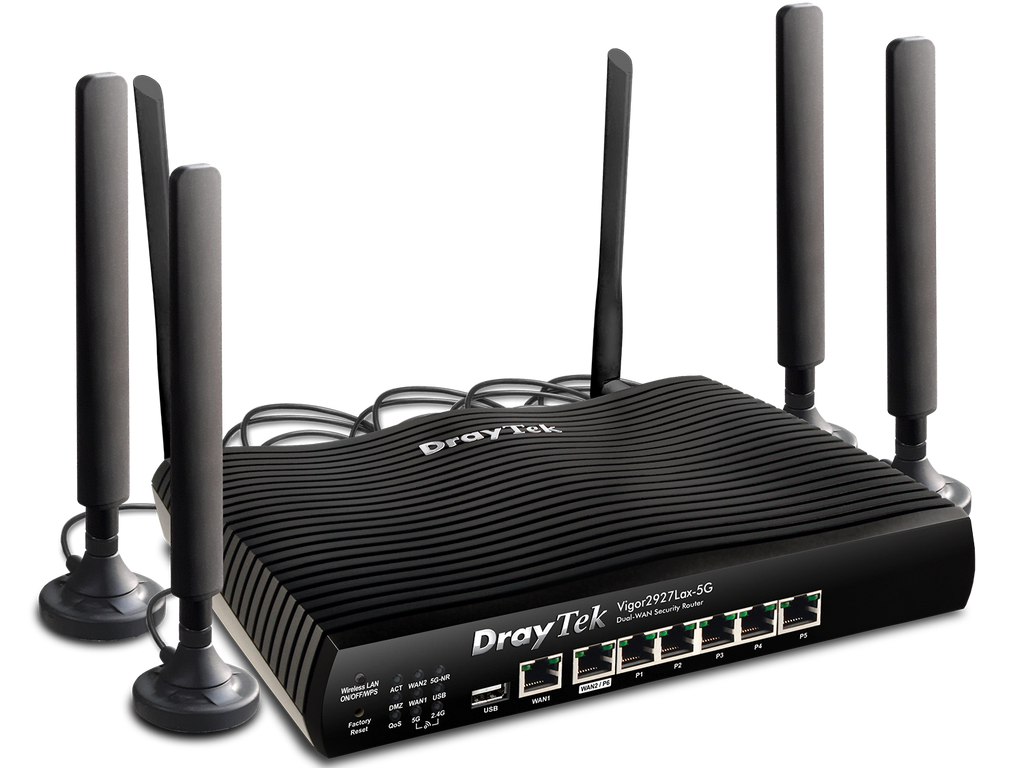

Vigor2927L-5G Series is a Dual-WAN VPN Router with embedded 5G cellular connectivity. Embedded 2 SIM slots (1 SIM online at a time) with lightning speed of up to 1600/200 Mbps (DL/UL). This 5G Router supports both SA and NSA 5G architectures, and integrate 5G LTE with Category 19. Featuring VPN, QoS, route policy, web content filtering, hotspot web portal and more. It is designed for company that require 5G higher performance with high-efficient network connectivity. The series includes built-in 802.11ax model.
5G
support SA and NSA mode
1.6 Gbps
Maximum LTE Download Speed
50 VPN
IPsec VPN throughput up to 250 Mbps
60k Sessions
Recommended for a network of 50 hosts
12x Wireless Antenna (ax model)
2Reset Button
3WLAN/WPS Button (ax model)
41x USB 2.0
5Fixed WAN Port: 1x GbE RJ-45
6WAN/LAN Switchable Port: 1x GbE RJ-45
7Fixed LAN Port: 5x GbE RJ-45
84x LTE Antenna
9Power Input
10Power On/Off Switch
112x Nano-Sized SIM Slot
Key Features
Embedded SIM Slot
Provide 4G LTE/5G Internet access to where fixed lines are (temporarily) not available without the need for a USB dongle.
Load Balancing
Maximize throughput and reliability by using multiple Internet connections. Learn more
VPN (Virtual Private Network)
Build a secure and private tunnel from the LAN of Vigor2927L-5G Series to the remote offices and teleworkers over the Internet.
SSL VPN
The VPN works through firewalls providing secure remote access to any network environment.
Firewall & Content Filter
Filter web pages by URL keyword or web category to block access to insecure or inappropriate contents.
VoIP Friendly
Vigor2927L-5G Series can do port forwarding and reserve bandwidth for VoIP traffic automatically, making VoIP setup effortless.
Bandwidth Management
Prevent one device using all the bandwidth by bandwidth limit policy, session limit policy, and QoS settings.
Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality WLAN.
DrayDDNS
The free DDNS service for you to access the router by a fixed hostname of your choice.
Central AP Management
Use the Vigor2927L-5G Series router as a wireless controller to maintain and monitor the VigorAPs.
Mesh (Wireless model only)
Easily link to other VigorAP to expand the wireless network.
Central Switch Management
Set up VLAN easily from the router and get a centralized hierarchy view of the switches.
5G Router with High Speed Mobile Connectivity
- Integrated 5G/LTE modem with Category 19, the carrier aggregation method can get high-speed mobile broadband connectivity for Internet access and VPN.
- Dual-SIM Slot allows using two mobile network providers. So that in the event of one mobile network not providing Internet connectivity, the router can switch to a secondary SIM and cellular network connection.
- 4x LTE antennas with 1M extension cables allow users to find the optimum position to install the router to get the best signal coverage.
*Backward compatible to 4G LTE
Dual Gigabit + 5G WAN Load Balancer
WAN Load Balancing
Vigor2927L-5G Series offers high throughput with load-balancing connectivity, suitable for handling fiber to the premises (FTTP) and gigabit Internet connections. The 5G LTE WAN can provide high-speed mobile broadband connectivity. All the active WANs will automatically join the WAN Load Balance Pool to optimize Bandwidth Utilization.
Seamless Failover
Can do automatic failovers between WAN connections. In the events of ISP outage, the router will transfer the traffic to another WAN smoothly. Ensure reliable Internet connectivity and save you from the cost of network downtime.
Policy-Based Routing
Using routing policies to designate a WAN interface for Applications, VoIP traffic, traffic from a certain range of IPs, or traffic to a specific destination enhances network efficiency and fluency.
Ideal VPN Router for SMB
Fast IPsec Performance
- Up to 800Mbps Hardware Accelerated IPsec VPN Performance
- Up to 50 concurrently active VPN tunnels
All common VPN standards are supported
- Wireguard VPN (since firmware v4.4.3)
- IKEv1/IKEv2 EAP/ SSL VPN/ L2TPoverIPsec /PPTP/OpenVPN are all supported
Advanced Authentication for Teleworker
- 2-factor authentication available for Teleworker VPN connections
- Authentication can be done with the Active Directory (LDAP) / RADIUS / TACACS+ server in the network
- Notify User by SMS/Email when a Teleworker VPN is online to prevent VPN credential lost or misused by the others
Market Business with Hotspot Web Portal
Market your business when providing free WiFi.
WiFi Marketing
Redirect the hotspot guests to the company homepage, online surveys, or display promotion message.
Grow Your Email List
Require the guest to leave contact info or social media accounts before they can use the Internet service.
Various Authentication Type
A variety of login methods are supported to meet your business need, including Facebook Login, Google Login, SMS PIN, Voucher PIN, and RADIUS.
3rd-Party Service Compliant
Supports external captive portal authentication. You can keep using the WiFi marketing solution you like.
Quota Management
Bandwidth management is integrated into Hotspot to control the bandwidth and session usage of the Hotspot guests.
Comprehensive Firewall
Object-based Firewall
Group IPs and Services by Object before applying to Firewall rules. Easy to organize the network activities.
Manage Traffics not only from LAN to WAN
DrayTek's Firewall can manage traffic between LAN subnets, remote VPN subnets, and the traffic from WAN to the Vigor Router itself! Pre-defining the Internet IPs that can access Vigor Router's service is possible.
Web Content Filtering with DNS Filter
Web Content Filtering Service uses cloud-based technology, 82 categories in total, 10 of which are security-focused, providing comprehensive and up-to-date protection to LAN client during their online activities.
Blocking Apps & DoH servers
APP Enforcement (APPE) can easily block applications (IM/P2P/Stream/Tunneling, etc.) on a LAN network with a few clicks. Blocking DoH servers in the browsers can force the LAN clients to use the standard DNS query to make the DNS Filtering work.
Edge Router for SD-WAN
Edge Router for SD-WAN
The quality of every WAN/VPN interface is measured by latency, loss, and jitter.
Based on the interface quality records, Vigor2927L-5G can adjust the metric to use the best-quality interface for VoIP and business critical apps.
Application Visibility and SD-WAN Policy
The application visibility lets Network Administrator understand the data usage. From every single clients, via which WAN, to which application, at what time.
Based on the application visibility, Network Administrator can create SD-WAN policies to send business-critical applications through the best-quality interface to optimize the user experience.
*SD-WAN requires cooperation with VigorACS 3
APP QoS
VoIP First
VoIP is always with top priority! With default UDP 5060 port (configurable), VoIP QoS is out-of-box ready.
Improve Experience for Business-Critical Apps
Select your business critical apps, and easily put them into QoS classes.
Flexible Bandwidth Allocation
Bandwidth will be reserved for high-priority classes, and can be used by low-priority classes when available.
Management Solution
All-in-One Management
Mesh (ax model)
Discovery, Provisioning, Monitoring, Centralized Hierarchy View
Vigor Router SWM
Auto-Discovery, Provisioning, Monitoring, Centralized Hierarchy View, Reboot PoE Devices Remotely, Quick VLAN Configuration
Vigor Router APM
Auto-Discovery, Provisioning, Monitoring, Centralized View, Alarm, Reboot VigorAP Remotely, Wi-Fi Client Load Balancing
Software Management
VigorACS3
- Zero Touch Deployment & Provisioning
- Auto VPN
- Interface Quality & SLA
- VoIP Optimization & Monitoring
- Application Visibility
- Application Based SD-WAN Policy
- Customized Hotspot Page with Multilingual
- Hotspot Clients Analytics
- ACS Server Load Balancing / Failover
