Description
WLAN |
|
| Band Type | Dual-Band |
| WiFi 6 | |
| 2.4G WLAN | 802.11 b/g/n/ax |
| 5G WLAN | 802.11 a/n/ac Wave 2/ax |
| Antennas | 2x External dipole DB |
| 2.4G Gain (dBi) | 2.7 |
| 5G Gain (dBi) | 2.5 |
| 2.4G Max. Link Rate (Mbps) | 574 |
| 5G Max. Link Rate (Mbps) | 2402 |
| Max.Clients | 254 |
| Max. Clients (per band) | 127 |
| Operating Mode |
AP
Mesh Root
Mesh Node
|
| Max. Number of SSIDs (per band) | 8 (4) |
| Roaming |
AP-Assisted Roaming
PMK-Caching
Pre-Authentication
|
| AirTime Fairness | |
| Band Steering | |
| OFDMA | |
| WDS | Repeater |
| WMM | |

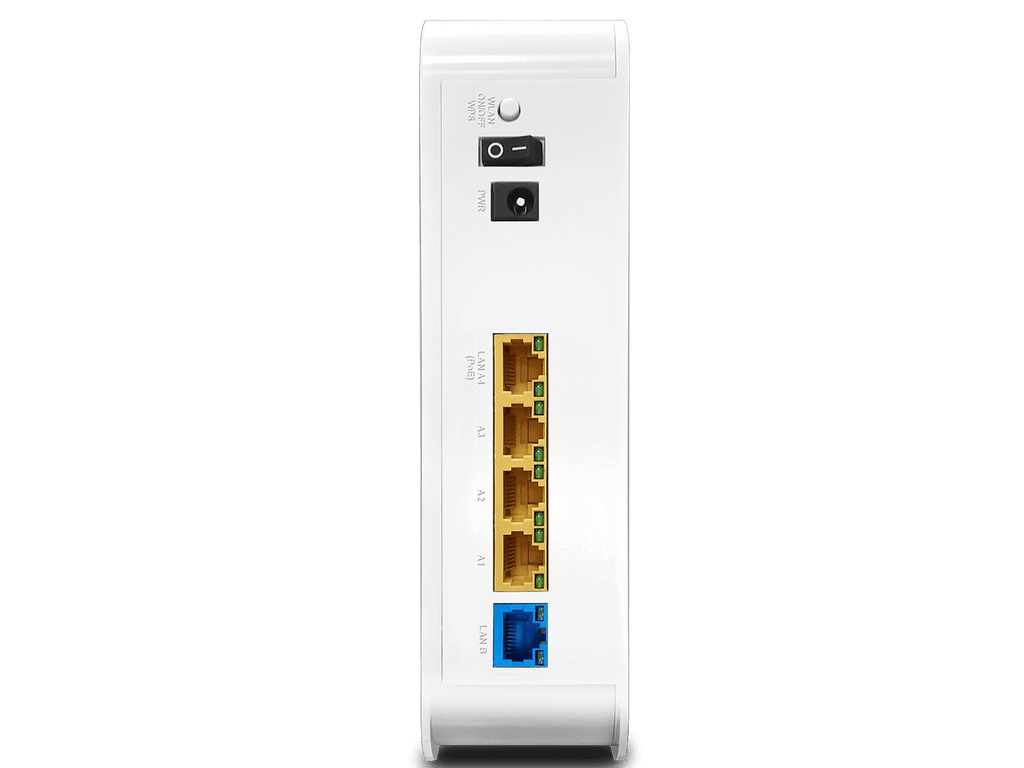

Ports |
|
| 1GbE | 5 |
PoE |
|
| PoE Input Power Supply | 48-56V@0.4A |
| PoE Input | PoE+ (802.3af/at) |
Security |
|
| Security Mode |
OWE
WEP
WPA
WPA2/WPA
WPA2
WPA3/WPA2
WPA3
|
| Authentication | Enterprise, Personal |
| WPS | PBC, PIN |
| MAC Address Filter (Max. entry number) | 256 |
Application |
|
| Built-in RADIUS Server | |
| Hotspot Web Portal | |
| DHCP |
DHCP Client
DHCP Server
DHCP Relay Agent
|
| Static IP | |
| MAC Clone | |
| 802.1q tag-based VLAN | |
| Schedule |
Auto-Reboot
WiFi Up/Down
LED On/Off
|
Management |
|
| Local Service |
HTTP
HTTPS
Telnet
|
| Firmware Upgrade | HTTP, TFTP, TR-069 |
| Config Backup/Restore | |
| Syslog | |
| Notification Alert | |
| SNMP | v1, v2c, v3 |
| Stand-Alone Operation | |
| Mobile Device Management | |
| Mesh | Node, Root |
| Central AP Management (Number of manageable APs) | 30 |
| VigorRouter Management (APM) | |
| VigorConnect Management (Since f/w) | V1.4.6 |
| VigorACS Management (Since f/w) | V1.4.5 |
Physical |
|
| Environment | Indoor |
| Mounting | Wall/Desktop |
| Powered via | DC/PoE |
| Power Input | 12V DC @ 1.5A |
| Max. Power Consumption (watts) | 17.3 |
| Dimension(mm) | 194 x 155 x 50 |
| Weight (g) | 680 |
| Operating Temperature | 0 to 45°C |
| Storage Temperature | -25 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
