Description
Performance |
|
| Buffer Size (Mbit) | 4.1 |
| Switching Capacity (Gbps) | 20 |
| Forwarding Rate (64 bytes)(Mpps) | 14.88 |
| MAC Address Table | 8K |
| Max. Jumbo Frame (KB) | 9 |
| L3 Routing Table | |

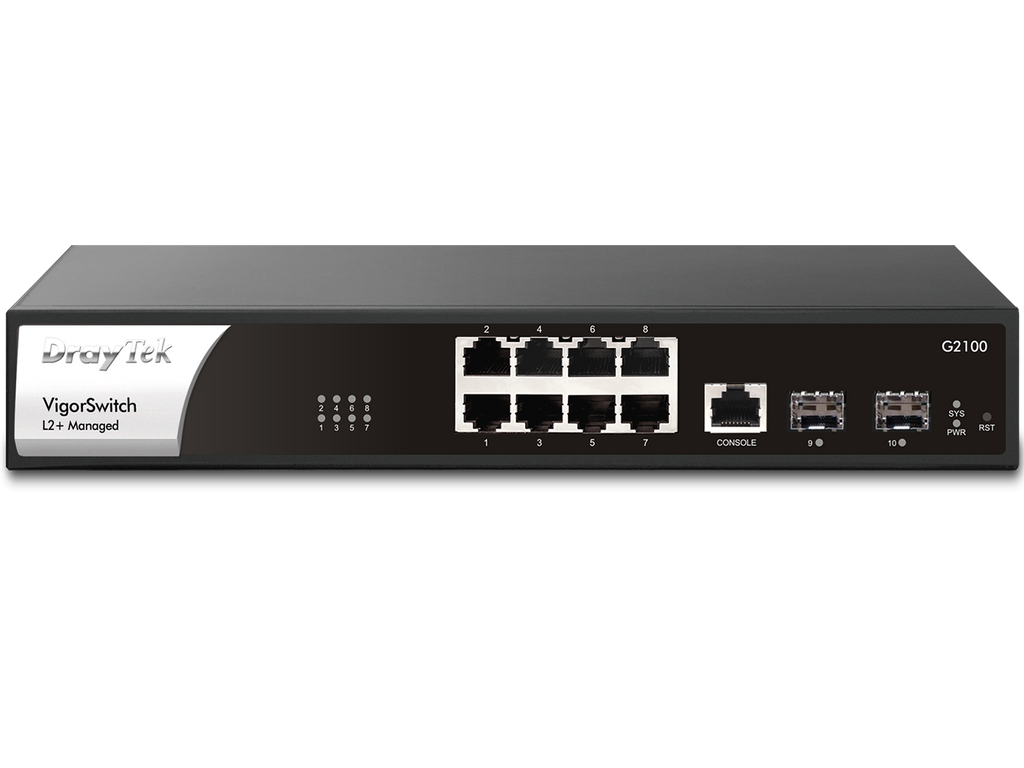

Ports |
|
| 1GbE | 8 |
| SFP(1G) | 2 |
| Console (RJ-45) | 1 |
Standard Compliance |
|
| Ethernet Standards |
802.3 10Base-T
802.3u100Base-T
802.3ab 1000Base-T
802.3x Flow Control
802.3 Auto-Negotiation
802.1q Tag-based VLAN
802.1p Class of Service
802.1d STP
802.1wRSTP
802.1s MSTP
802.3adLACP
802.1ad QinQ
802.1x Port Access Control
802.1AB LLDP
802.3az EEE
|
Spanning Tree |
|
| STP | |
| RSTP | |
| MSTP | |
Link Aggregation |
|
| Max. Number of Group | 4 |
| Max. Number of Member in Each Group | 8 |
| Type | LACP, Static |
| Traffic Load Balancing | |
VLAN |
|
| Max. Number of VLAN | 256 |
| VLAN Type |
802.1q Tag-based VLAN
MAC-based VLAN
Protocol-based VLAN
Management VLAN
Voice VLAN
Surveillance VLAN
|
| GVRP | |
| QinQ (Basic) | |
Layer3 Features |
|
| Static Route | |
| VLAN Route | |
| DHCP Server | |
Multicast |
|
| IGMP Snooping | v2, v3(BISS) |
| IGMP Querier | |
| MLD Snooping | v1, v2 |
| Max. Number of Multicast Group | 256 |
| Multicast Group Filtering / Throttling | |
| MVR (Multicast VLAN Registration) | |
ONVIF Surveillance |
|
| Discovery | |
| Surveillance Topology | |
| Real-Time Video Streaming | |
| ONVIF Device Maintenance |
Device Info
Network Settings
Time Settings
Reboot
Reset to Factory Default
|
QoS |
|
| Number of QoS Queues | 8 |
| Queue Schedule | SPQ, WRR |
| CoS (Class of Service) |
CoS
DSCP
CoS-DSCP
IP Precedence
|
| Rate Limiting | |
Security |
|
| Authentication Server | RADIUS, TACACS+ |
| 802.1X/MAC Authentication | |
| IP Source Guard | |
| Traffic Control | DoS Defense, Storm Control |
| Dynamic ARP Inspection (DAI) | |
| DHCP Snooping | |
| IP Conflict Prevention | |
| Loop Protection | |
Management |
|
| Local Service |
HTTP
HTTPS
Telnet
SSH v2
|
| Config Backup/Restore | |
| Dual Image | |
| 2-Level Administration Privilege | |
| Access Control | Access List |
| OpenVPN Client | |
| SNMP | v1, v2c, v3 |
| RMON Group | 1, 2, 3, 9 |
| SNTP (Simple Network Time Protocol) | |
| LLDP | |
| LLDP-MED | |
| Mail Alert |
Port Status
Port Speed
System Restart
IP Conflict
Hardware Monitor
Device Check
ONVIF IP Cam Snapshot
|
| VigorRouter Management (SWM) | |
| VigorConnect Management (Since f/w) | V2.6.5 |
| VigorACS Management (Since f/w) | V2.6.5 |
Physical |
|
| Rack Mountable | 1U |
| Power Input | AC 100-240V@0.7A |
| Max. Power Consumption (watts) | 18 |
| Dimension(mm) | 270 x 181 x 44 |
| Weight (kg) | 1.78 |
| Operating Temperature | 0 to 50°C |
| Storage Temperature | -20 to 70°C |
| Operating Humidity (non-condensing) | 10 to 90% |
| Storage Humidity (non-condensing) | 5 to 90% |
