Essentials

Product Collection

Intel® Core™ i5 Processors (14th gen)

Code Name

Products formerly Raptor Lake

Vertical Segment

Desktop

Processor Number

i5-14500

Lithography

Intel 7

Use Conditions

PC/Client/Tablet, Workstation

CPU Specifications

Total Cores

14

# of Performance-cores

6

# of Efficient-cores

8

Total Threads

20

Max Turbo Frequency

5GHz

Performance-core Max Turbo Frequency

5GHz

Efficient-core Max Turbo Frequency

3.7 GHz

Performance-core Base Frequency

2.6 GHz

Efficient-core Base Frequency

1.9 GHz

Cache

24MB Intel® Smart Cache

Total L2 Cache

11.5 MB

Processor Base Power

65W

Maximum Turbo Power

154W

Supplemental Information

Marketing Status

Launched

Launch Date

Q1'24

Embedded Options Available

Yes

Memory Specifications

Max Memory Size (dependent on memory type)

192GB

Memory Types

Up to DDR5 4800MT/s
Up to DDR4 3200MT/s

Max # of Memory Channels

2

Max Memory Bandwidth

76.8GB/s

ECC Memory Supported ^‡

Yes

GPU Specifications

GPU Name ^‡

Intel® UHD Graphics 770

Graphics Max Dynamic Frequency

1.55 GHz

Graphics Output

eDP 1.4b, DP 1.4a, HDMI 2.1

Execution Units

32

Max Resolution (HDMI) ^‡

4096x2160@60Hz

Max Resolution (DP)‡

7680x4320@60Hz

Max Resolution (eDP - Integrated Flat Panel)‡

5120x3200@120Hz

DirectX* Support

12

OpenGL* Support

4.5

OpenCL* Support

3.0

Multi-Format Codec Engines

2

Intel® Quick Sync Video

Yes

Intel® Clear Video HD Technology

Yes

# of Displays Supported ^‡

4

Device ID

0x4680

Expansion Options

Direct Media Interface (DMI) Revision

4.0

Max # of DMI Lanes

8

Scalability

1S Only

PCI Express Revision

5.0 and 4.0

PCI Express Configurations ^‡

Up to 1x16+4, 2x8+4

Max # of PCI Express Lanes

20

Package Specifications

SocketsSupported

FCLGA1700

Max CPU Configuration

1

Thermal Solution Specification

PCG 2020C

T _JUNCTION

100°C

Package Size

45.0 mm x 37.5 mm

Advanced Technologies

Intel® Gaussian & Neural Accelerator

3.0

Intel® Thread Director

Yes

Intel® Deep Learning Boost (Intel® DL Boost) on CPU

Yes

Intel® Speed Shift Technology

Yes

Intel® Turbo Boost Technology ^‡

2.0

Intel® Hyper-Threading Technology ^‡

Yes

Intel® 64 ^‡

Yes

Instruction Set

64-bit

Instruction Set Extensions

Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

Idle States

Yes

Enhanced Intel SpeedStep® Technology

Yes

Thermal Monitoring Technologies

Yes

Intel® Volume Management Device (VMD)

Yes

Security & Reliability

Intel® Standard Manageability (ISM) ^‡

Yes

Intel® Control-Flow Enforcement Technology

Yes

Intel® AES New Instructions

Yes

Secure Key

Yes

Intel® OS Guard

Yes

Execute Disable Bit ^‡

Yes

Intel® Boot Guard

Yes

Mode-based Execute Control (MBEC)

Yes

Intel® Virtualization Technology (VT-x) ^‡

Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ^‡

Yes

Intel® VT-x with Extended Page Tables (EPT) ^‡

Yes

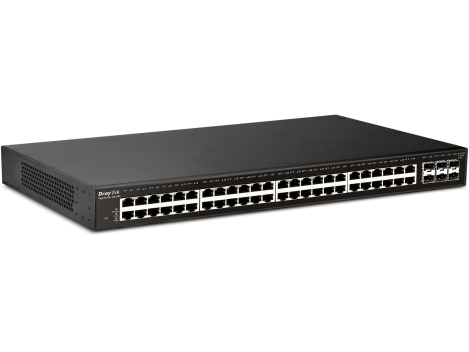

DrayTek Vigor-G2540X 54-Port L2+ Managed Gigabit Switch w/10G SFP+ Uplink
