Description
Technical specifications
-Radiator dimensions: 281 x 124 x 27 mm
-Radiator Material: Aluminum-
Fan Compatibility: 120mm-

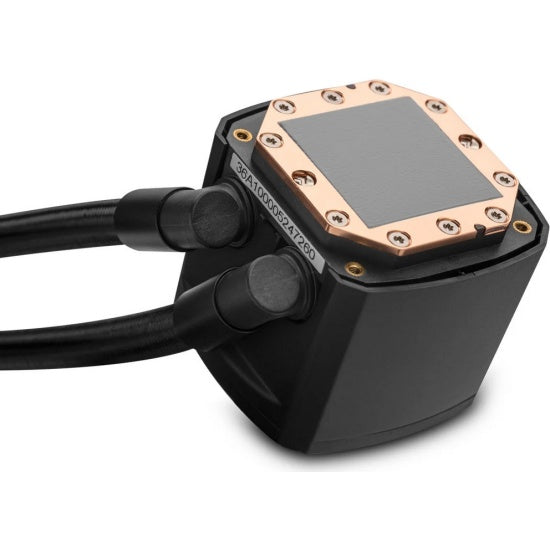

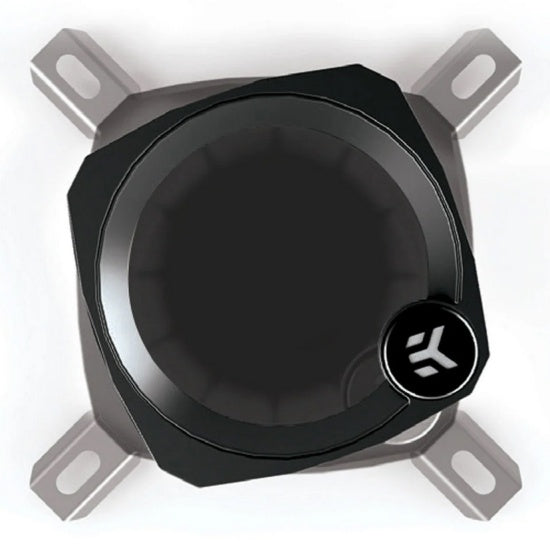

Pump unit dimensions: 82.3 x 69.2 x 61.6 mm -
Pump unit materials: ABS housing, ABS top ring-
Pump speed range: 3100 RPM ± 10%
-Pump PWM range: 20 - 100% -

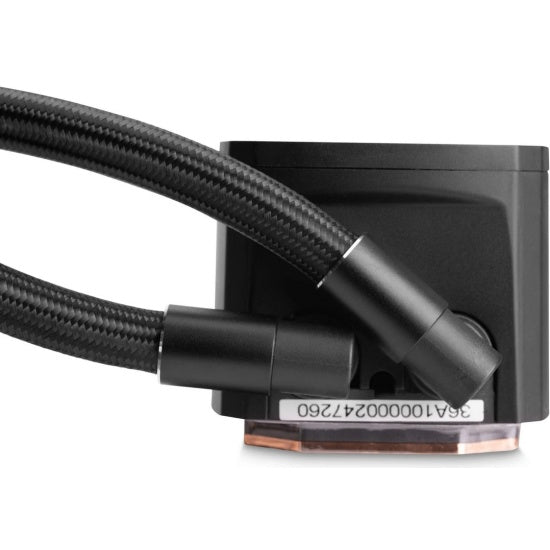

Pipe material: ultra-low evaporation rubber with nylon braided sleeve - pipe
Length: 370mm-

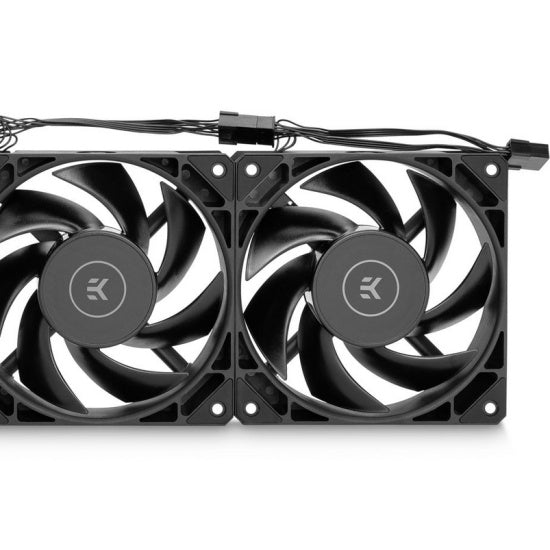

Fan dimensions: 120 x 120 x 25 mm -
Fan speed range: 550 - 2300 ± 10 %
-Fan noise level: 36 dB (maximum speed)
-Fan airflow: 72 CFM = 122,33 m3/h (maximum speed)
System Requirements:
-4-pin PWM header for pump and fan operation
Attached:

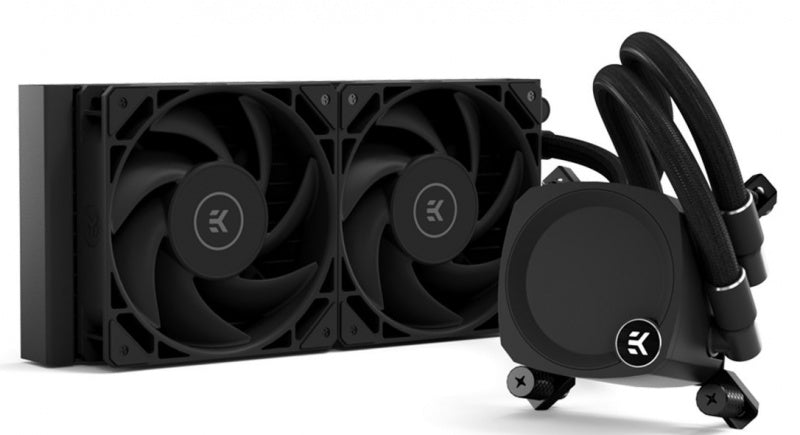

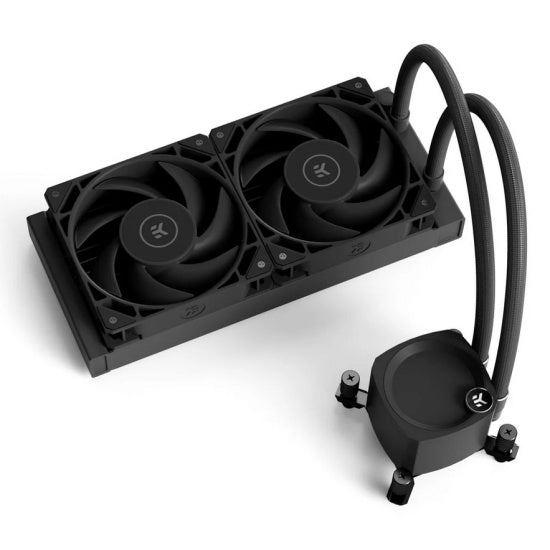

-EK-Nucleus AIO CR240 Dark Device
-EK-FPT FAN 120 - Black Full Pressure Technology Fan (2x) -
Installation kit
- User manual
Compatible CPU sockets:
-Intel LGA sockets: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066 + next generation Intel socket, 1700
- AMD sockets: AM4, AM5
